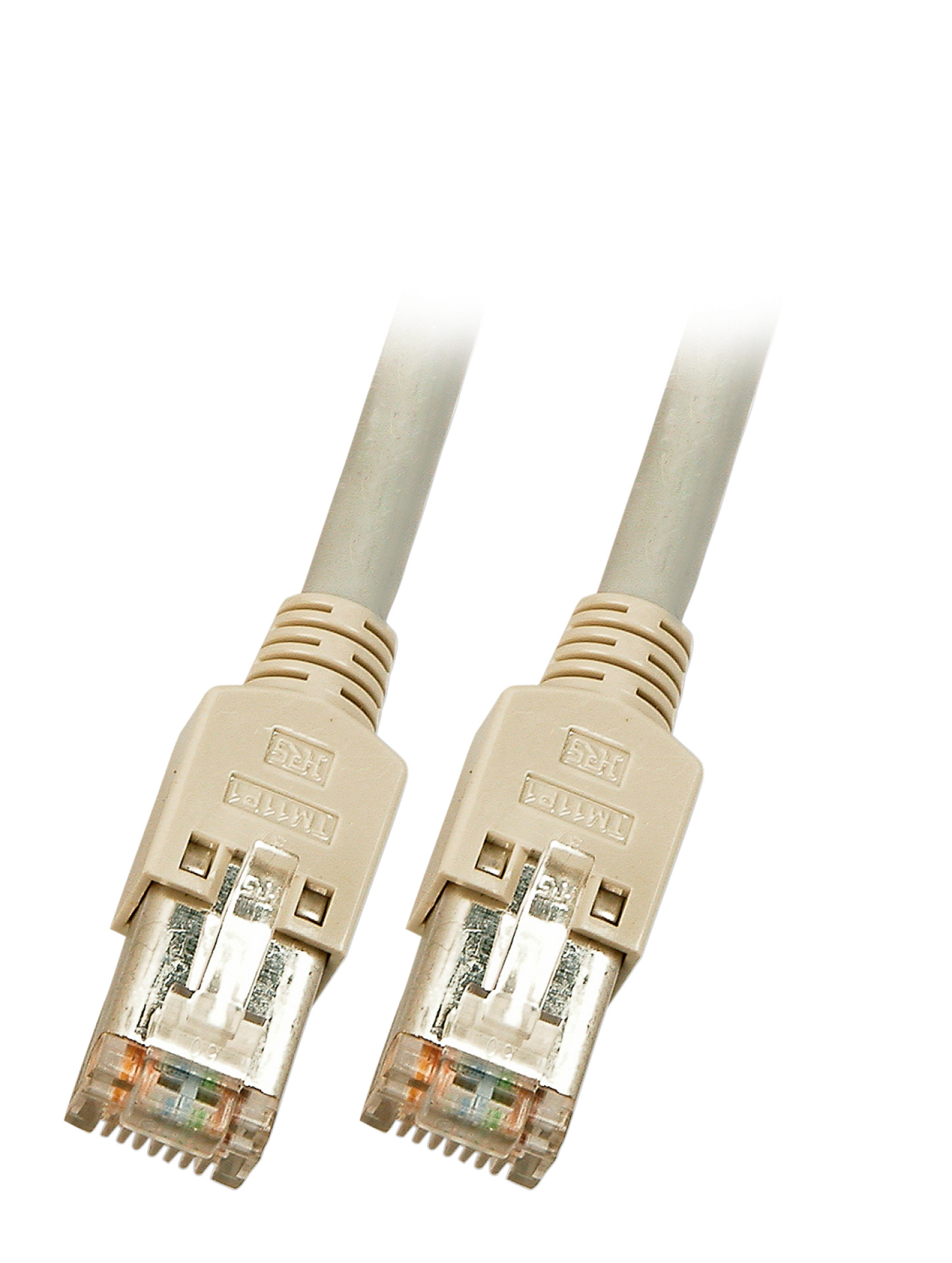

RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau






RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 0,15m
Artikelnummer:
K8701.0,15
EAN Nr.:
4049759200466
Produktinformationen für RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 0,15m
RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11
Das Cat.5e Patchkabel hat vergoldete Kontakte und ermöglicht als Übertragungsstandard 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• S/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der TM11-Stecker erfolgt nach TIA/EIA 568B und ist 1:1.
Das Ethernet Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt dabei bis zu 100 MHz.
Das Cat.5e Patchkabel hat vergoldete Kontakte und ermöglicht als Übertragungsstandard 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• S/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der TM11-Stecker erfolgt nach TIA/EIA 568B und ist 1:1.
Das Ethernet Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt dabei bis zu 100 MHz.
Technische Eigenschaften
(Halogenfrei): | Nein |
---|---|
AWG-Querschnitt: | 26/7 |
Ausführung: | Geschirmt |
Ausführung flammwidrig: | Nein |
Außendurchmesser des Kabels: | 5,1 mm |
Bandbreite: | 100MHz |
Belegung: | nach TIA/EIA 568B |
Betriebs-/Bemessungsspannung: | max. 50 V DC |
Biegeradius: | >20 mm |
Chemisch beständig: | Nein |
Einsatzort: | Industrial Ethernet |
Einsatzort: | Strukturierte Gebäudeverkabelung |
Farbe der Knickschutztülle: | grau |
Flammwidrig: | nach IEC60332-1 |
Geeignet für Schutzart (IP): | IP20 |
Halogen frei: | Nein |
Impedanz: | 100 ±15 Ω |
Kabelkonstruktion: | 4x2 |
Kabeltyp: | S/UTP |
Kabeltyp nach Hersteller: | Dätwyler CU 5502 flex |
Kategorie: | 5E |
Knickschutztülle: | aufgesteckt |
Kontakte: | Vergoldet µ" Vergoldet |
Leitermaterial: | Kupfer |
Leiterwiderstand DC: | 113 Ω/km |
Längenaufdruck: | Nein |
Mantel-Farbe: | grau |
Mantel-Material: | Polyvinylchlorid (PVC) |
NVP-Wert: | 76 % |
Ozon beständig: | Nein |
Pinbelegung: | 1:1 |
Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
Rasthebelschutz: | Nein |
Schirmkontaktierung: | 360° Schirmbefestigung |
Schleifenwiderstand: | 225 Ω/km |
Steckertyp: | TM11 |
Steckverbinder: | IEC 60603-7-3 |
Steckverbindertyp Anschluss 1: | RJ45 8(8) |
Steckverbindertyp Anschluss 2: | RJ45 8(8) |
Steckzyklen: | >750 |
Strombelastbarkeit: | max. 1 A |
Temperaturbereich (Betrieb): | -20 – 60 °C |
Temperaturbereich (Installation): | 0 – 50 °C |
Verkabelungsstandard: | EN50173 |
Verkabelungsstandard: | ISO/IEC 11801 |
Verkabelungsstandard: | ANSI/TIA-568 |
Ölbeständig: | Nein |
Ölbeständig nach EN 60811-2-1: | Nein |
Ölbeständig nach EN 60811-404: | Nein |
Übertragung: | 2,5Gbit |
Varianten
Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
---|---|---|---|---|---|
K8701.0,15 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 0,15m | 0.15 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.025 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 0,25m | 0.25 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.0,50 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 0,5m | 0.5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.1 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 1m | 1,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.1,5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 1,5m | 1,5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.2 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 2m | 2,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.3 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 3m | 3,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8701.5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 5m | 5.0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8701.7,5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 7,5m | 7.5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8701.10 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 10m | 10,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.15 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 15m | 15,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.20 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 20m | 20.0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.25 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 25m | 25.0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.30 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 30m | 30,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8701.40 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 40m | 40.0 m | PoE nach IEEE802.3af | ±5 % | |
K8701.50 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 grau 50m | 50.0 m | Nein | ±5 % |
