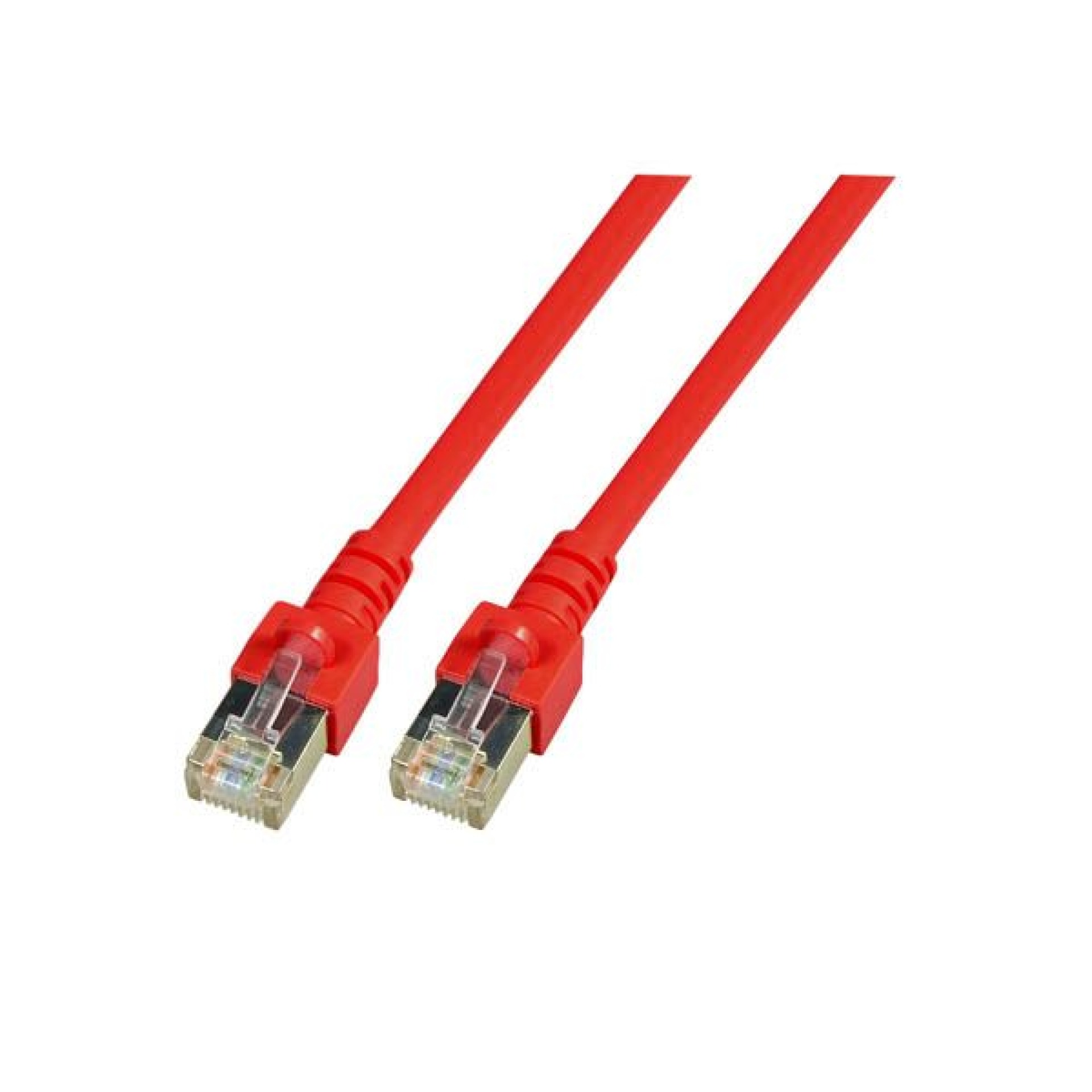

RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, rot

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 0,5m, rot
Artikelnummer: K5458.0,5
EAN Nr.: 4049759030407
Stück

Produktinformationen für RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 0,5m, rot

Das Cat.5e RJ45 Patchkabel gewährleistet gute Eigenschaften für 2,5 Gigabit Ethernet Anwendungen. Durch die doppelte Abschirmung ist das Patchkabel noch besser gegen EMV Strahlung abgesichert.

Querschnitt 4 x 2 x AWG26/7
Gegossene Knickschutztülle (patentiert)
Kabelaufbau SF/UTP
Längenaufdruck auf der Tülle
Leitermaterial CCA

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 5e
Mantel-Farbe: rot
AWG-Querschnitt: 26/7
Ausführung flammwidrig: Nein
Außendurchmesser des Kabels: 5,7 mm
Bandbreite: 100MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >25 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: rot
Geeignet für Schutzart (IP): IP20
Gesamtabschirmung: 65 %
Halogenfrei: Nein
Isolationswiderstand: 10 MΩ
Kabelaufdruck: SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED
Kabelkonstruktion: 4x2
Kabeltyp: SF/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Kontaktwiderstand: 30 mΩ
Leitermaterial: CCA
Leiterwiderstand DC: 146 Ω/km
Längenaufdruck: Ja
Mantelmaterial: Polyvinylchlorid (PVC)
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Schirmkontaktierung: Punktueller Schirmkontakt
Schleifenwiderstand: 292 Ω/km
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-3
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: -5 – 70 °C
Widerstandsunsymmetrie: 5 %
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 2,5Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K5458.0,5 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 0,5m, rot 0,5 m ±5 %
K5458.1 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 1m, rot 1,0 m ±5 %
K5458.1,5 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 1,5m, rot 1,5 m ±5 %
K5458.2 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 2m, rot 2,0 m ±5 %
K5458.3 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 3m, rot 3,0 m ±5 %
K5458.5 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 5m, rot 5,0 m ±5 %
K5458.7,5 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 7,5m, rot 7,5 m ±5 %
K5458.10 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 10m, rot 10,0 m ±5 %
K5458.15 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 15m, rot 15,0 m ±5 %
K5458.20 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 20m, rot 20,0 m ±5 %
K5458.25 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 25m, rot 25,0 m ±5 %
K5458.30 RJ45 Patchkabel SF/UTP, Cat.5e, PVC, CCA, 30m, rot 30,0 m ±5 %
