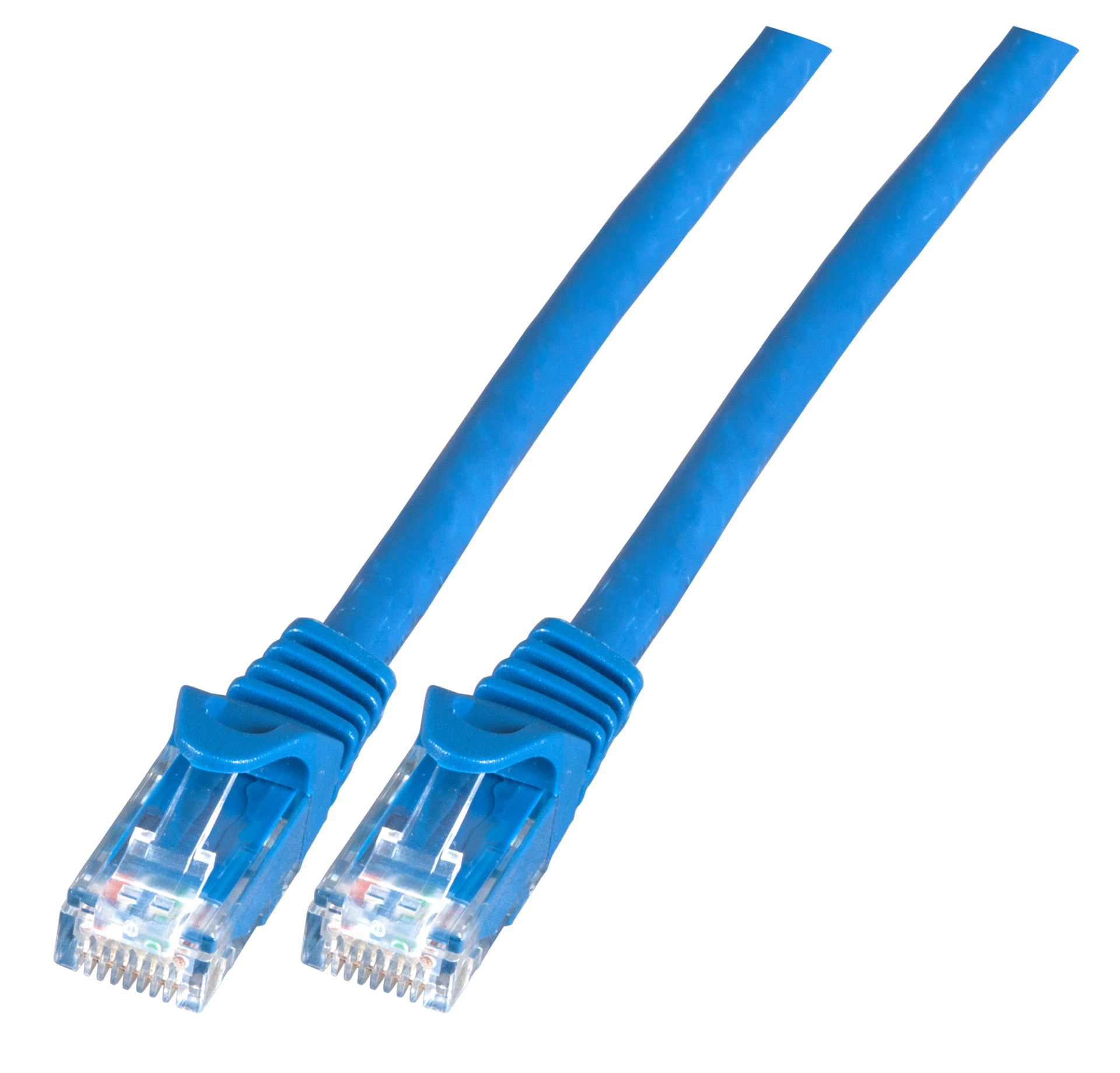

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 0,25m
Artikelnummer: K8104BL.0,25
EAN Nr.: 4049759206000
Stück

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 0,25m

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA

Das Cat.6 Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 5Gbit Ethernet.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das Datenkabel verfügt über ein Leitermaterial aus CCA und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich ist dabei bis zu 250 MHz.

Technische Eigenschaften

Ausführung: Ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: blau
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: 30 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: blau
Flammwidrig: Ja
Geeignet für Schutzart (IP): IP20
Halogenfrei: Ja
Halogen frei: Ja
Kabelaufdruck: Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" gold plated
Leitermaterial: CCA
Mantelmaterial: LSZH
NVP-Wert: - %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Rasthebelschutz: Ja
Raucharm: Ja
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-4
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Verkabelungsstandard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K8104BL.0,25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 0,25m 0,25 m ±5 %
K8104BL.0,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 0,5m 0,5 m ±5 %
K8104BL.1 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 1m 1,0 m ±5 %
K8104BL.1,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 1,5m 1,5 m ±5 %
K8104BL.2 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 2m 2,0 m ±5 %
K8104BL.3 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 3m 3,0 m ±5 %
K8104BL.5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 5m 5,0 m ±5 %
K8104BL.7,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 7,5m 7,5 m ±5 %
K8104BL.10 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 10m 10,0 m ±5 %
K8104BL.15 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 15m 15,0 m ±5 %
K8104BL.20 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA blau 20m 20,0 m ±5 %
