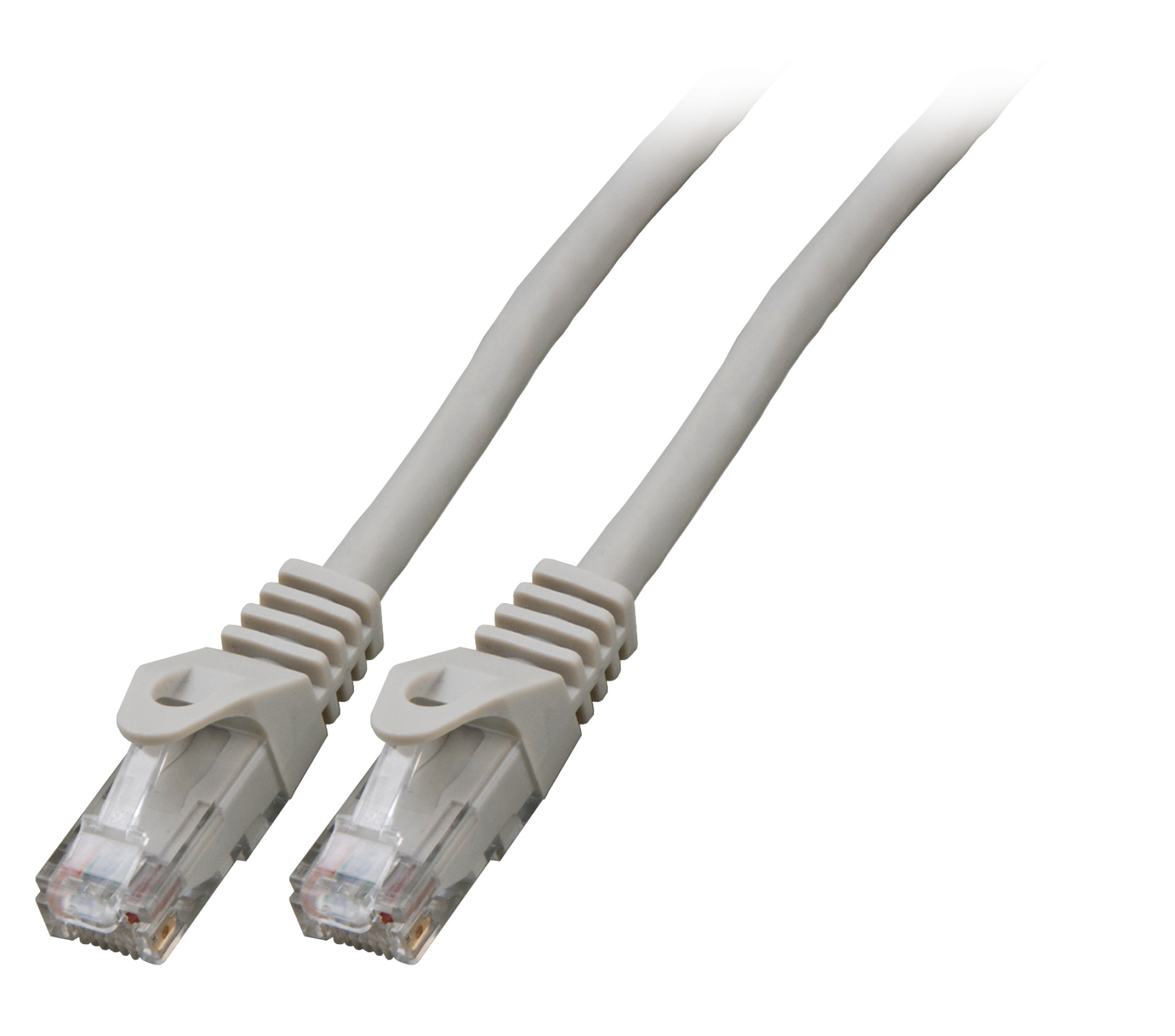

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 0,25m
Artikelnummer: K8104GR.0,25
EAN Nr.: 4049759115548

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 0,25m

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA

Das Cat.6 Patchkabel erfüllt die Anforderungen für 5Gbit Ethernet und besitzt vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1.

Das Ethernet Kabel verfügt über ein Leitermaterial aus CCA und eignet sich optimal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Eine Bandbreite von 250 MHz wird dabei ermöglicht.

Technische Eigenschaften

Ausführung: ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: grau
(Halogenfrei): Ja
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >30 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: grau
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Kabelaufdruck: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: CCA
Längenaufdruck: Ja
Mantelmaterial: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Nein
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-4
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8104GR.0,25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 0,25m 0,25 m Nein ±5 %
K8104GR.0,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 0,5m 0,5 m Nein ±5 %
K8104GR.1 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 1m 1,0 m Nein ±5 %
K8104GR.1,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 1,5m 1,5 m Nein ±5 %
K8104GR.2 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 2m 2,0 m Nein ±5 %
K8104GR.3 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 3m 3,0 m Nein ±5 %
K8104GR.5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 5m 5,0 m Nein ±5 %
K8104GR.7,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 7,5m 7,5 m Nein ±5 %
K8104GR.10 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 10m 10,0 m Nein ±5 %
K8104GR.15 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 15m 15,0 m Nein ±5 %
K8104GR.20 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 20m 20,0 m Nein ±5 %
K8104GR.25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 25m 25,0 m Nein ±5 %
K8104GR.30 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 30m 30,0 m Nein ±5 %
K8104GR.50 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grau 50m 50,0 m Nein ±5 %
