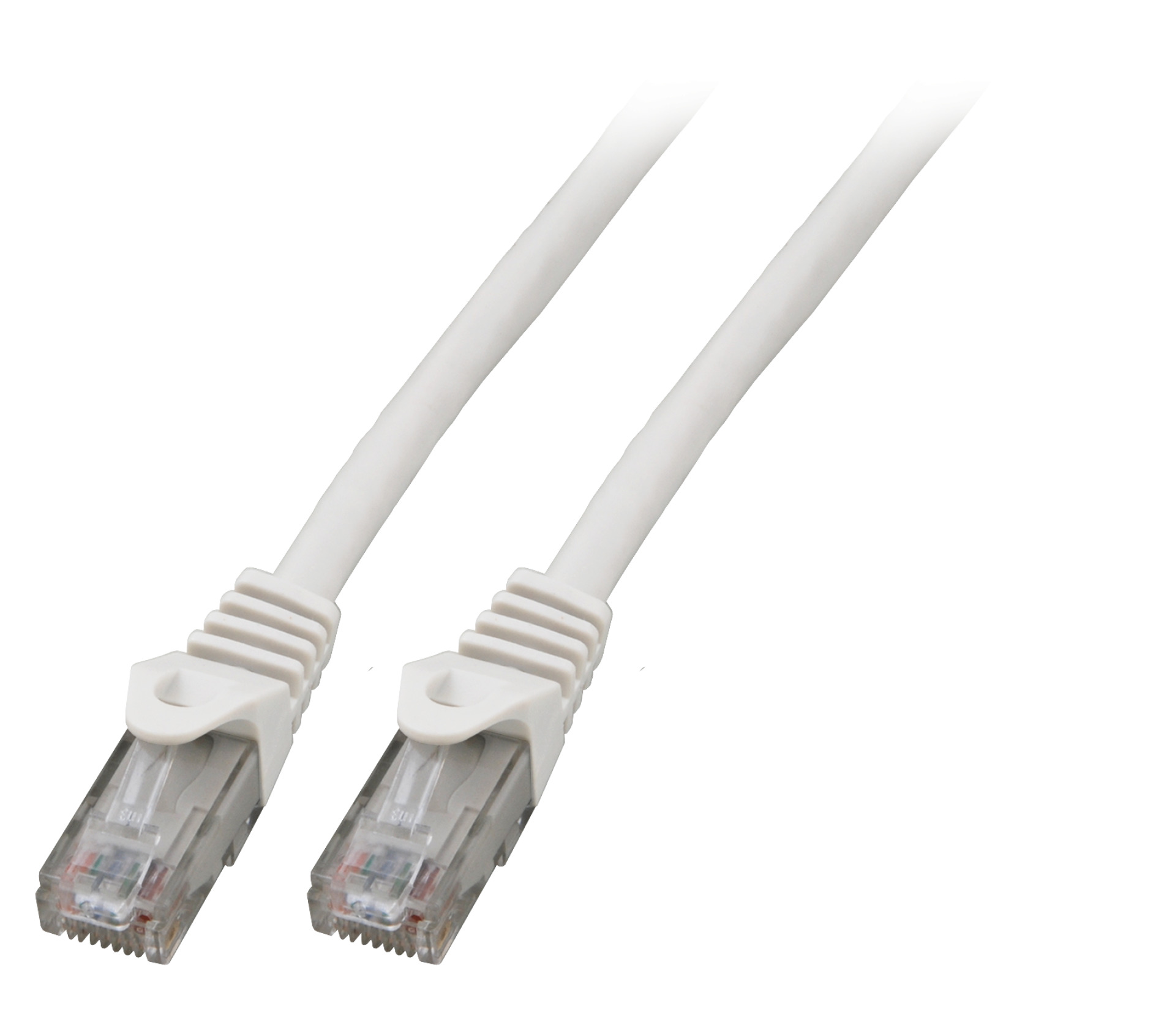

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 0,25m
Artikelnummer: K8104WS.0,25
EAN Nr.: 4049759206055

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 0,25m

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA

Das Cat.6 Patchkabel erfüllt die Anforderungen für 5Gbit Ethernet und besitzt vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das Datenkabel verfügt über ein Leitermaterial aus CCA und eignet sich bestens für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Eine Bandbreite von 250 MHz wird dadurch ermöglicht.

Technische Eigenschaften

(Halogenfrei): Ja
AWG-Querschnitt: 24/7
Ausführung: ungeschirmt
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >30 mm
Chemisch beständig: Nein
Einsatzort: Industrial Ethernet
Einsatzort: Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: weiß
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Kabelaufdruck: Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Kategorie: 6
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: CCA
Längenaufdruck: Ja
Mantel-Farbe: weiß
Mantel-Material: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Nein
Silikonfrei: Ja
Steckertyp: RJ45 standard
Steckverbinder: IEC 60603-7-4
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Steckzyklen: >750
Strombelastbarkeit: max. 1 A
Verkabelungsstandard: EN50173
Verkabelungsstandard: ISO/IEC 11801
Verkabelungsstandard: ANSI/TIA-568
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8104WS.0,25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 0,25m 0.25 m Nein ±5 %
K8104WS.0,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 0,5m 0.5 m Nein ±5 %
K8104WS.1 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 1m 1,0 m Nein ±5 %
K8104WS.1,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 1,5m 1,5 m Nein ±5 %
K8104WS.2 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 2m 2,0 m Nein ±5 %
K8104WS.3 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 3m 3,0 m Nein ±5 %
K8104WS.5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 5m 5.0 m Nein ±5 %
K8104WS.7,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 7,5m 7.5 m Nein ±5 %
K8104WS.10 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 10m 10,0 m Nein ±5 %
K8104WS.15 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 15m 15,0 m Nein ±5 %
K8104WS.20 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 20m 20.0 m Nein ±5 %
K8104WS.25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 25m 25.0 m Nein ±5 %
K8104WS.30 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 30m 30,0 m Nein ±5 %
K8104WS.50 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA weiß 50m 50.0 m Nein ±5 %
