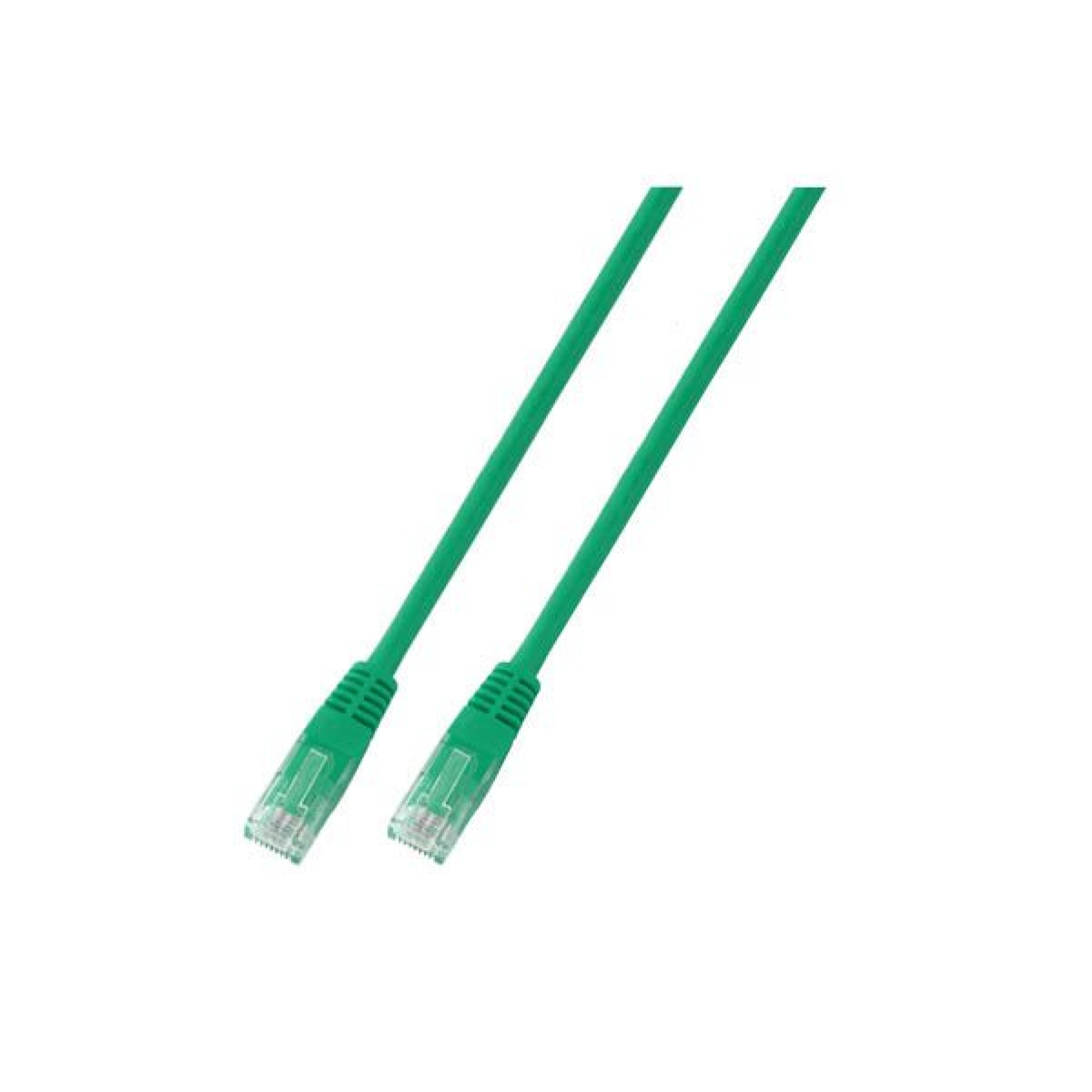

RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 0,25m
Artikelnummer: K8100GN.0,25
EAN Nr.: 4049759160319
Stück

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 0,25m

RJ45 Patchkabel Cat.6 U/UTP PVC CCA

Das Cat.6 Patchkabel erfüllt die Anforderungen für 5Gbit Ethernet und besitzt vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus Polyvinylchlorid (PVC) Material und hat einen Längenaufdruck auf der Tülle. Darüber hinaus bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den erweiterten Temperaturbereich -20 – 70 °C.

Das Netzwerkkabel verfügt über ein Leitermaterial aus CCA und eignet sich ideal für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt 250 MHz.

Technische Eigenschaften

Ausführung: Ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: grün
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Nein
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: 30 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: grün
Geeignet für Schutzart (IP): IP20
Halogenfrei: Nein
Kabelaufdruck: Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" gold plated
Leitermaterial: CCA
Längenaufdruck: Ja
Mantelmaterial: Polyvinylchlorid (PVC)
NVP-Wert: - %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Rasthebelschutz: Nein
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-4
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: -20 – 70 °C
Verkabelungsstandard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K8100GN.0,25 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 0,25m 0,25 m ±5 %
K8100GN.0,5 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 0,5m 0,5 m ±5 %
K8100GN.1 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 1m 1,0 m ±5 %
K8100GN.1,5 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 1,5m 1,5 m ±5 %
K8100GN.2 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 2m 2,0 m ±5 %
K8100GN.3 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 3m 3,0 m ±5 %
K8100GN.5 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 5m 5,0 m ±5 %
K8100GN.7,5 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 7,5m 7,5 m ±5 %
K8100GN.10 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 10m 10,0 m ±5 %
K8100GN.15 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 15m 15,0 m ±5 %
K8100GN.20 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 20m 20,0 m ±5 %
K8100GN.30 RJ45 Patchkabel Cat.6 U/UTP PVC CCA grün 30m 30,0 m ±5 %
