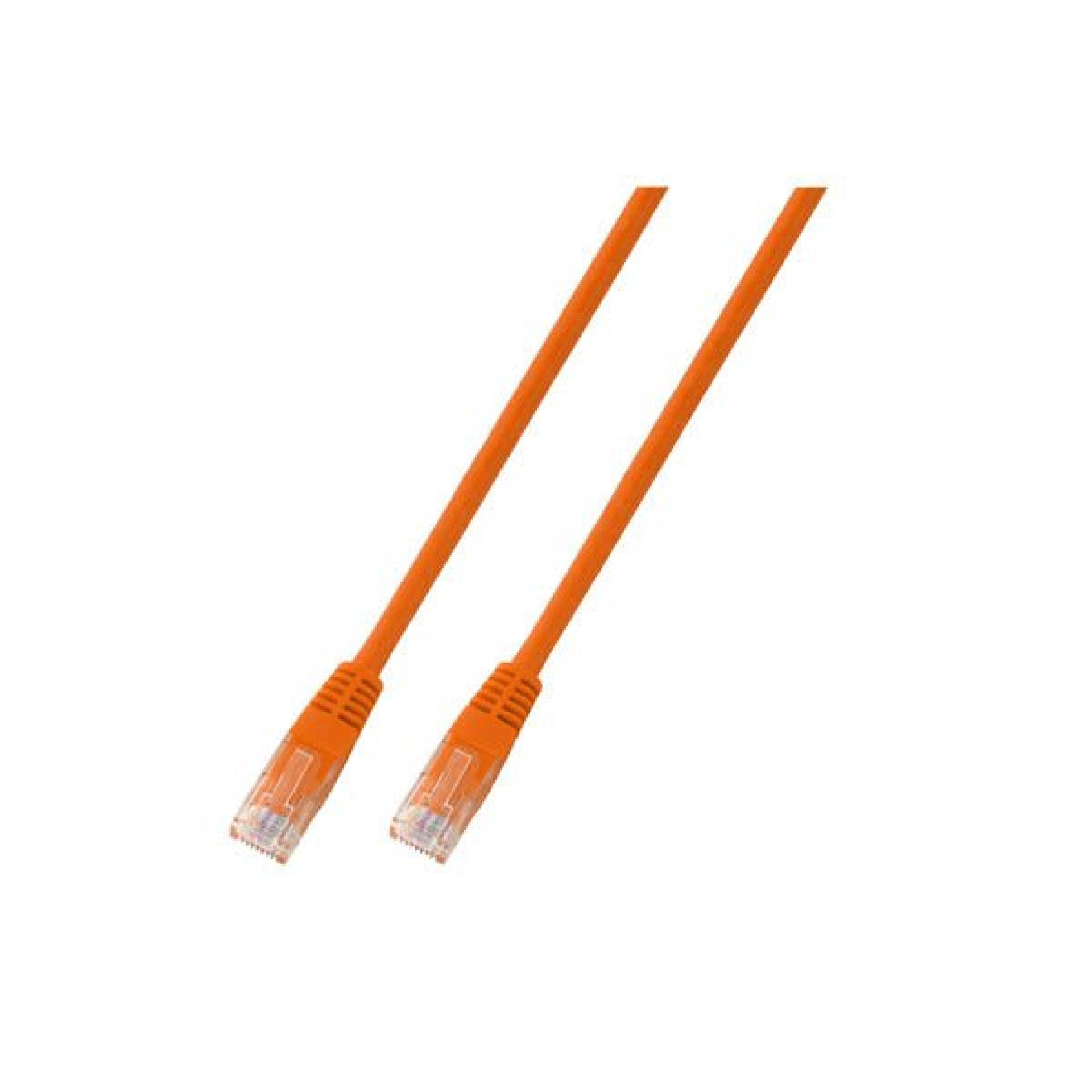

RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, orange

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 0.25m, orange
Artikelnummer: K8100OR.0,25
EAN Nr.: 4049759160333
Stück

Produktinformationen für RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 0.25m, orange

Das ungeschirmte Cat.6 RJ45 Patchkabel gewährleistet sehr gute Eigenschaften für 5 Gigabit Ethernet Anwendungen. Die gegossene Tülle besticht durch ihr schlankes Design und vereinfacht damit den Steckvorgang in beengten Verhältnissen.

Querschnitt 4 x 2 x AWG24/7
Gegossene Knickschutztülle, schlankes Design
Längenaufdruck auf der Tülle

Technische Eigenschaften

Ausführung: Ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: orange
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Nein
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: 30 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: orange
Geeignet für Schutzart (IP): IP20
Halogenfrei: Nein
Kabelaufdruck: Cat.6 UTP AWG24 stranded x 4pairs cable
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: CCA
Längenaufdruck: Ja
Mantelmaterial: Polyvinylchlorid (PVC)
NVP-Wert: - %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Rasthebelschutz: Nein
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-4
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: -20 – 70 °C
Verkabelungsstandard: EN50173
ISO/IEC 11801
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K8100OR.0,25 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 0.25m, orange 0,25 m ±5 %
K8100OR.0,5 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 0.5m, orange 0,5 m ±5 %
K8100OR.1 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 1m, orange 1,0 m ±5 %
K8100OR.1,5 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 1.5m, orange 1,5 m ±5 %
K8100OR.2 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 2m, orange 2,0 m ±5 %
K8100OR.3 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 3m, orange 3,0 m ±5 %
K8100OR.5 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 5m, orange 5,0 m ±5 %
K8100OR.7,5 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 7.5m, orange 7,5 m ±5 %
K8100OR.10 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 10m, orange 10,0 m ±5 %
K8100OR.15 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 15m, orange 15,0 m ±5 %
K8100OR.20 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 20m, orange 20,0 m ±5 %
K8100OR.30 RJ45 Patchkabel U/UTP, Cat.6, PVC, CCA, 30m, orange 30,0 m ±5 %
