DSub Buchsen für Printmontage

D-Sub Lötstecker 09pol. Printmontage, EDS 09 PP
Artikelnummer: 28753.1
EAN Nr.: 4049759038304

Produktinformationen für D-Sub Lötstecker 09pol. Printmontage, EDS 09 PP

Gestanzte Kontakte. Gütestufe III >= 50 Steckzyklen.

Technische Eigenschaften

Ausführung: Stecker
Anschlussart: Löten
Kontaktausführung: männlich (male)

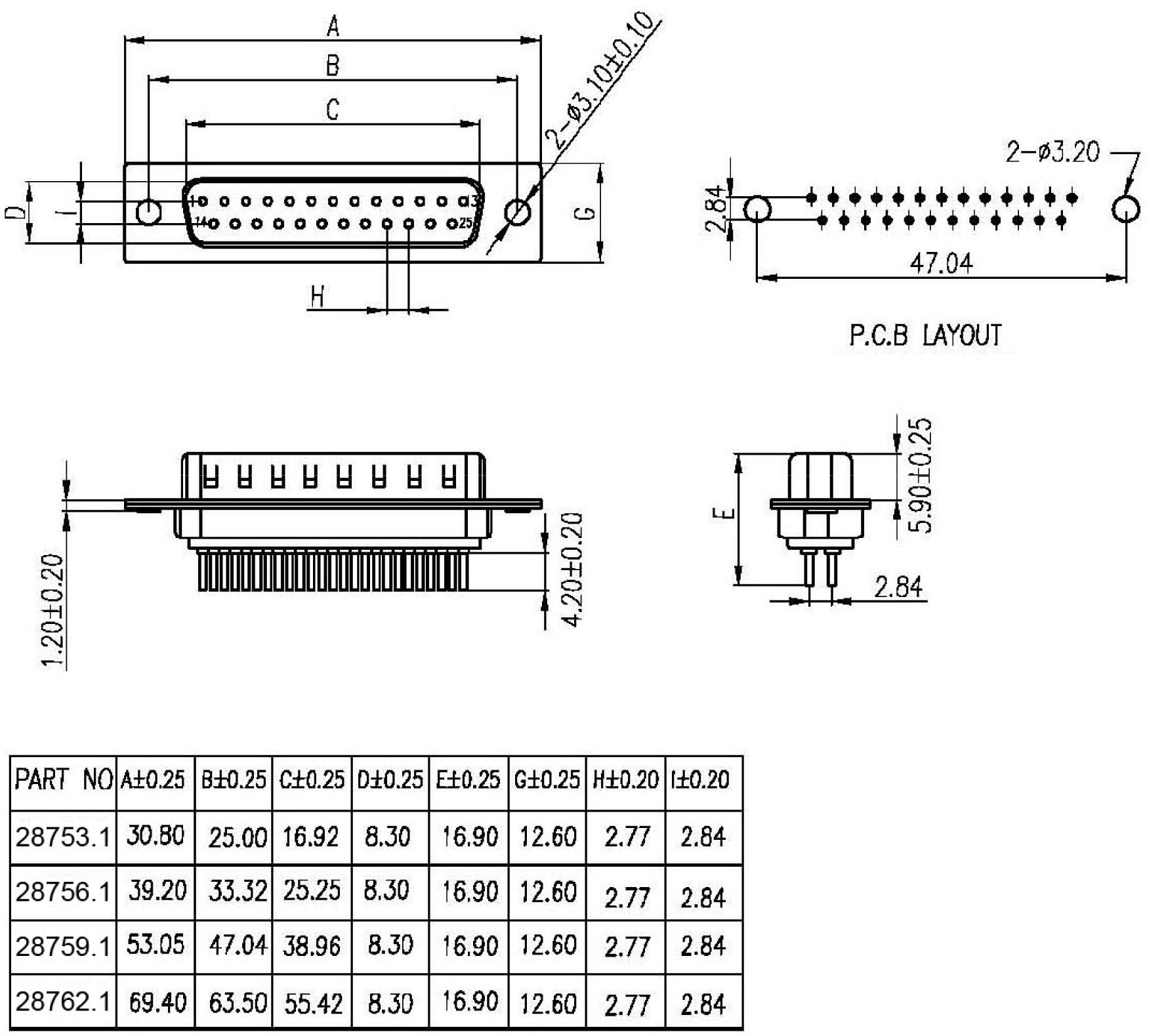

Varianten

Art. Nr. Bezeichnung Polzahl Typ
28753.1 D-Sub Lötstecker 09pol. Printmontage, EDS 09 PP 9 EDS 09 PP
28756.1 D-Sub Lötstecker 15pol. Printmontage, EDS 15 PP 15 EDS 15 PP
28759.1 D-Sub Lötstecker 25pol. Printmontage, EDS 25 PP 25 EDS 25 PP
28762.1 D-Sub Lötstecker 37pol. Printmontage, EDS 37 PP 37 EDS 37 PP

Herstellerangabe


EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
