HDMI / DVI 24+1 Highspeed Kabel, Full HD

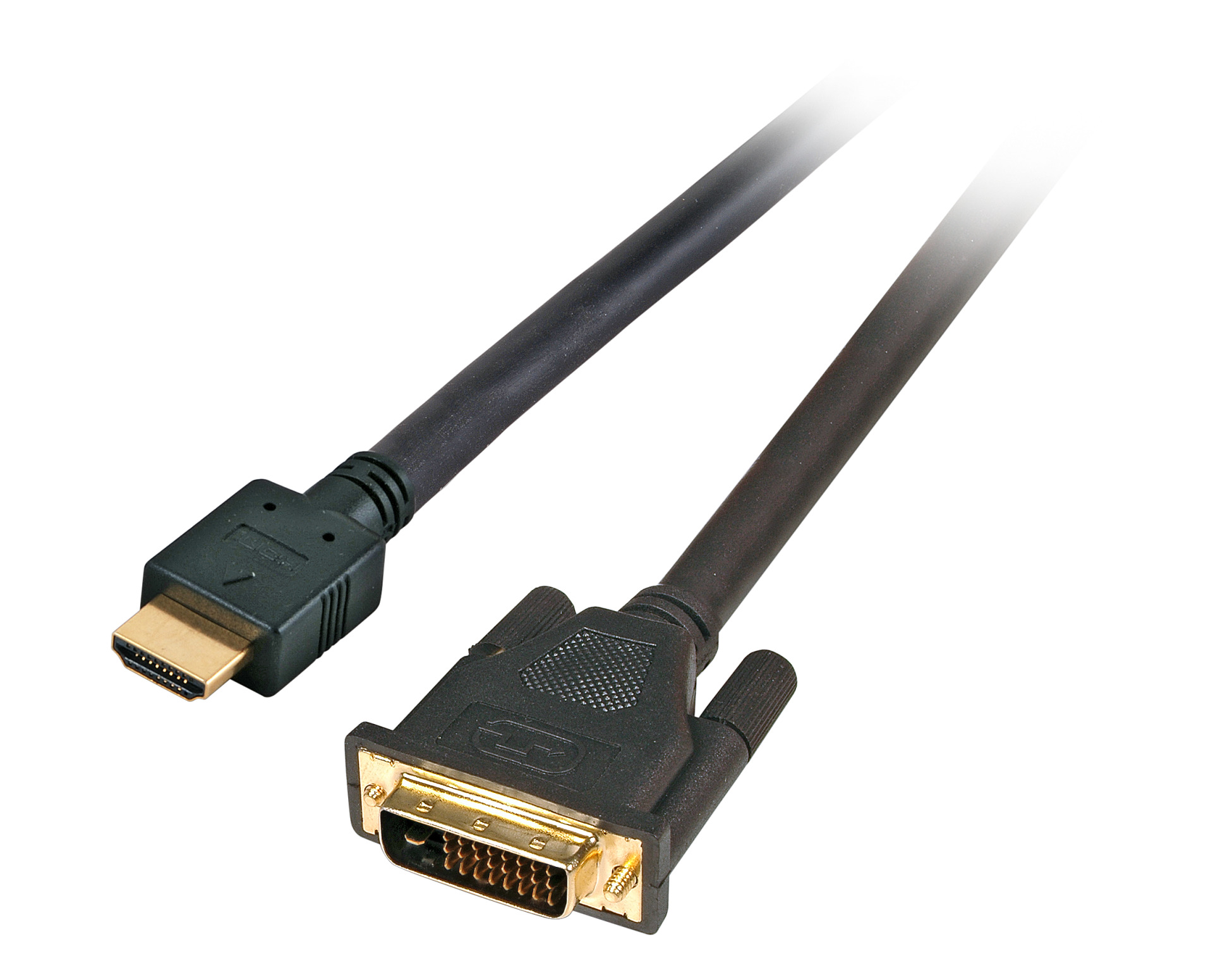

HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 1m, schwarz
Artikelnummer: K5432SW.1
EAN Nr.: 4049759229092

Produktinformationen für HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 1m, schwarz

Unterstützt eine maximale Auflösung von 1920 x 1080P / FUll HD
Schirmung: Folie + Geflecht
Leitermaterial: reines Kupfer, Mantel: PVC
Vergoldete Stecker und Kontakte, Steckergehäuse umspritzt
Kabellänge bis zu 20m!

Technische Eigenschaften

Ausführung: Rundkabel
Steckverbindertyp Anschluss 1: HDMI Typ A
Steckverbindertyp Anschluss 2: HDMI Typ A
3D: Ja
ARC: Ja
Anschluss 1 Winkelung: 180°
Anschluss 2 Winkelung: 180°
Anzahl Schirmung: dreifach
Anzahl der Pole Anschluss 1: 19
Anzahl der Pole Anschluss 2: 20
Ausführung Anschluss 1: Stecker
Ausführung Anschluss 2: Stecker
Betriebstemperatur: -5 – 45 °C
Biegeradius (Dynamisch/Statisch): 40 mm
CEC: Ja
Chip: Nein
DSC: Nein
Div. Längen Kabelset: 1x1m
Erweiterte Farbdarstellung: Deep Color
Farbtiefe: 10-Bit
Garantie: 36 Monate
Geschirmt: Ja
HDMI Power: Ja
HDMI certified: Ja
HEC (Ethernet Kanal): Ja
Halogenfrei: Nein
Kabel- und Steckerkompatibilität: Standard HDMI
Kabelart (passiv/aktiv/optisch): passiv
Kabelaufdruck: DVI (Digital Visual Interface ) Interconnect Cable
Kabelset: Nein
Knickschutz: Ja
Kompatibel mit: TV
Kontaktmaterial: vergoldet
Lagertemperatur: -20 – 70 °C
Lieferumfang: 1xHDMI-DVI Kabel
MSA: Nein
MST: Nein
Material Innenleiter: BC
Material Kabelmantel: PVC
Material Steckergehäuse: PVC molded
Max. Auflösung: 4K@30Hz
Max. Übertragungsrate: 18 Gbit/s
Maximale Steckzyklen: 5000
Mit Abschlusswiderstand: Nein
PCIe Datenübertragung: Nein
Rückwärts kompatibel: Ja
Signal-Typ: Digital
Staubschutzkappe: Ja
Steckerabmessungen Seite 1: 19.3*9.9*37.3mm
Steckerabmessungen Seite 2: 41*15.5*51.5mm
Unterstützte Audioformate: compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos)
Unterstützte Videostandards: HD - High Definition
VESA zertifiziert: Nein
VRR: Nein
Verpackungsart: Plastiktüte
Version: HDMI Version 1.4
Zugkraft (kurz/lang): 98,1 N
eARC: Nein

Varianten

Art. Nr. Bezeichnung Farbe Länge Durchmesser AWG
K5432SW.1 HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 1m, schwarz schwarz 1,0 m 6,0 mm 30AWG
K5432SW.2 HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 2m, schwarz schwarz 2,0 m 6,0 mm 30AWG
K5432SW.3 HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 3m, schwarz schwarz 3,0 m 6,0 mm 30AWG
K5432SW.5 HighSpeed HDMI - DVI Kabel,HDMI A - DVI 24+1 St-St 5m, schwarz schwarz 5,0 m 6,0 mm 30AWG
