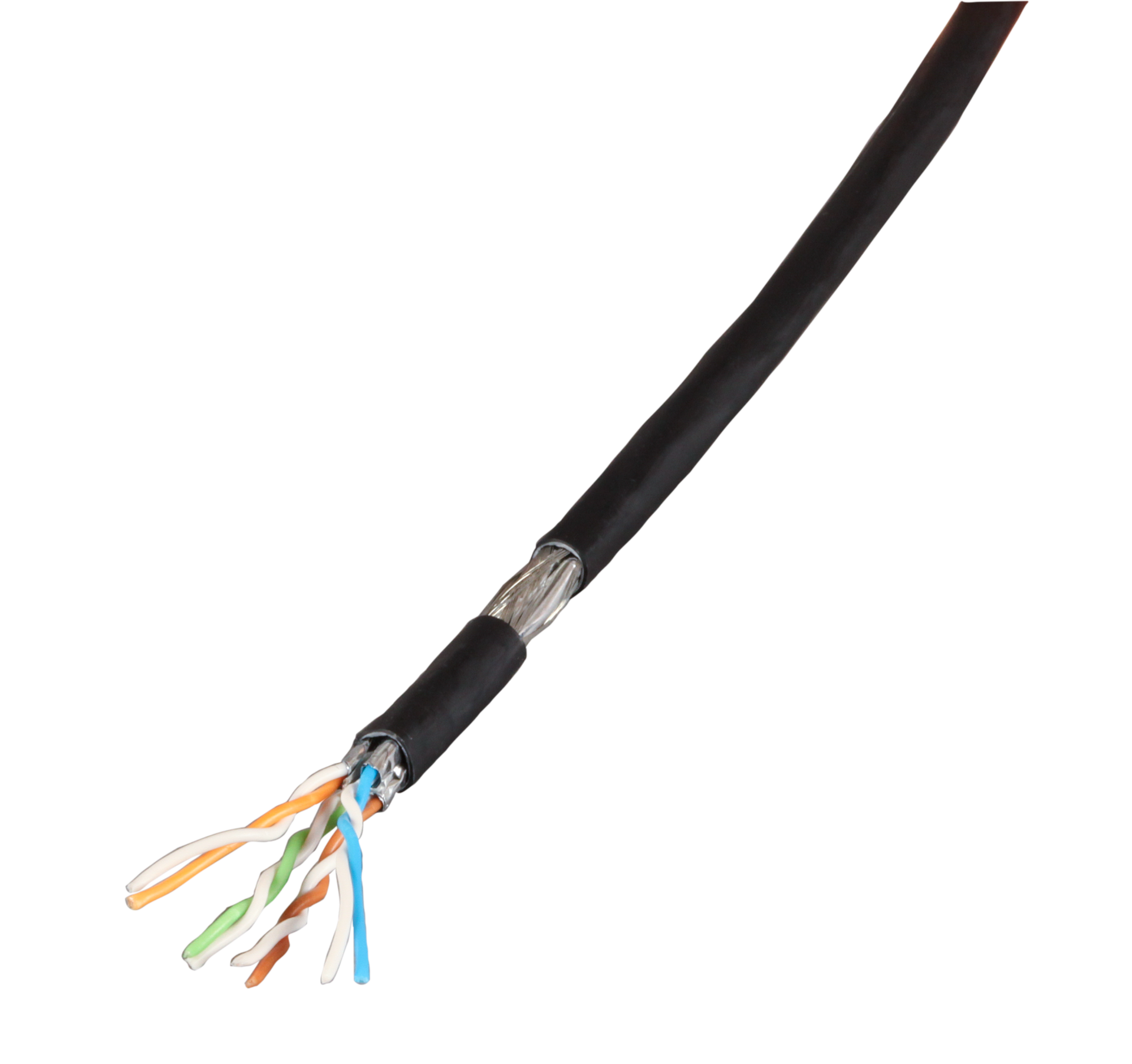

Cat.7 1000 MHz Patchkabel Draka UC900 FLEX SS26

Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, schwarz
Artikelnummer: 99755.1
EAN Nr.: 4049759301699
Ader-Zahl
Mantel-Farbe
Typ

Produktinformationen für Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, schwarz

Cat.7-Rangierkabel - übertrifft die Anforderungen der ISO/IEC 11801, IEC 61156-6, EN 50173-1 und EN 50288-4-2. Einsetzbar für alle ICT-Netzanwendungen bis zur Klasse F gemäß EN 50173-1 und ISO/IEC 11801, darüber hinaus auch für Multimedia-Anwendungen im CATV-Frequenzbereich bis 862 MHz gemäß IEC 15018. Geeignet für die Übertragung von Power over Ethernet (PoE) / PoE+.

Technische Eigenschaften

(Halogenfrei): nach EN 60754-1/2
AWG-Querschnitt: 26/7
Ader-Isolation: Foam-Skin PP
Ader-Kennzeichnung: Farbe
Biegeradius (dynamisch): 50
Biegeradius (statisch): 25
Euroklasse: Dca
Flammwidrig: nach IEC/EN 60332-1-2
Halogenfrei nach EN 50267-2-2: Ja
Harmonisierte Norm: EN 50575
Installationsstandard: EN 50174
Isolationswiderstand (500V): ≥ 2000
Kabel: IEC 61156-6
Kabel: EN 50288-4-1
Kabelaufbau: S/FTP
Kabeltyp: Draka UC900 SS26
Kategorie: 7
Kopplungsdämpfung: 80
Laufzeitunterschied: 12
Leiter-Klasse: Kl.2 = mehrdrähtig
Leiter-Material: Cu, blank
Leiterdurchmesser: 0,48
Mantel-Material: LSZH
Max. Frequenz: IEC 61156-6
Max. Frequenz: EN 50288-4-1
NVP-Wert: 79 %
PoE: nach IEEE802.3af PoE
PoE: nach IEEE802.3bt 4PPoE
PoE: nach IEEE802.3at PoE+
Prüfspannung DC, 1 min: 1000
Raucharm: nach EN 61034
Raucharm nach EN 61034-2: Ja
Schirm über Verseilelement: Folie
Schirm über Verseilung: Geflecht
Schleifenwiderstand: 290
Transferimpedanz bei 1MHz: 10
Transferimpedanz bei 10MHz: 10
Transferimpedanz bei 30MHz: 30
Trennklasse gem. EN50174-2: D
UV beständig: Nein
Verkabelungsstandards: ISO/IEC 11801
Verkabelungsstandards: EN 50173-1
Verseilelement: Paare
Wellenwiderstand: 100 ± 5
Widerstandsunsymmetrie: 3 %
Zul. Kabelaußentemperatur, fest verlegt: -20 – 60
Zul. Kabelaußentemperatur, in Bewegung: 0 – 50

Varianten

Art. Nr. Bezeichnung Typ Ader-Zahl Mantel-Farbe Länge Cu-Zahl Gewicht Max. Zugkraft Außendurchmesser ca. Brandlast
99751.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, grau simplex 8 grau 1000,0 m - - - - -
99752.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, gelb simplex 8 gelb 1000,0 m - - - - -
99753.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4 Dca, rot simplex 8 rot 1000,0 m - - - - -
99754.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4 Dca, blau simplex 8 blau 1000,0 m - - - - -
99755.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, schwarz simplex 8 black 1000,0 m - - - - -
99756.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, grün simplex 8 grün 1000,0 m - - - - -
99757.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, orange simplex 8 orange 1000,0 m - - - - -
99758.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, weiß simplex 8 weiß 1000,0 m - - - - -
99759.1000 Patchkabel Cat.7 PiMF UC900MHz FLEX SS26 4P Dca, erika-violett simplex 8 magenta 1000,0 m - - - - -
99751.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, grau simplex 8 grau 1,0 m 18 38 100 5,9 465
99751.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, grau 100m simplex 8 grau 100,0 m 18 38 100 5,9 465
99752.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, gelb simplex 8 gelb 1,0 m 18 38 100 5,9 465
99752.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, gelb 100 M simplex 8 gelb 100,0 m 18 38 100 5,9 465
99753.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, rot simplex 8 rot 1,0 m 18 38 100 5,9 465
99753.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, rot 100 M simplex 8 rot 100,0 m 18 38 100 5,9 465
99754.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P FRNC-B, blau simplex 8 blau 1,0 m 18 38 100 5,9 465
99754.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, blau, 100 M simplex 8 blau 100,0 m 18 38 100 5,9 465
99755.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, schwarz simplex 8 schwarz 1,0 m 18 38 100 5,9 465
99755.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, schwarz, 100 M simplex 8 schwarz 100,0 m 18 38 100 5,9 465
99756.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, grün simplex 8 grün 1,0 m 18 38 100 5,9 465
99756.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, grün, 100 M simplex 8 grün 100,0 m 18 38 100 5,9 465
99757.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, orange simplex 8 orange 1,0 m 18 38 100 5,9 465
99757.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, orange, 100 M simplex 8 orange 100,0 m 18 38 100 5,9 465
99758.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, weiß simplex 8 weiß 1,0 m 18 38 100 5,9 465
99758.100 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca weiss, 100m simplex 8 weiß 100,0 m 18 38 100 5,9 465
99759.1 Patchkabel Cat.7 PiMF UC900MHz FLEX, SS26 4P Dca, erika-violett simplex 8 magenta 1,0 m 18 38 100 5,9 465
