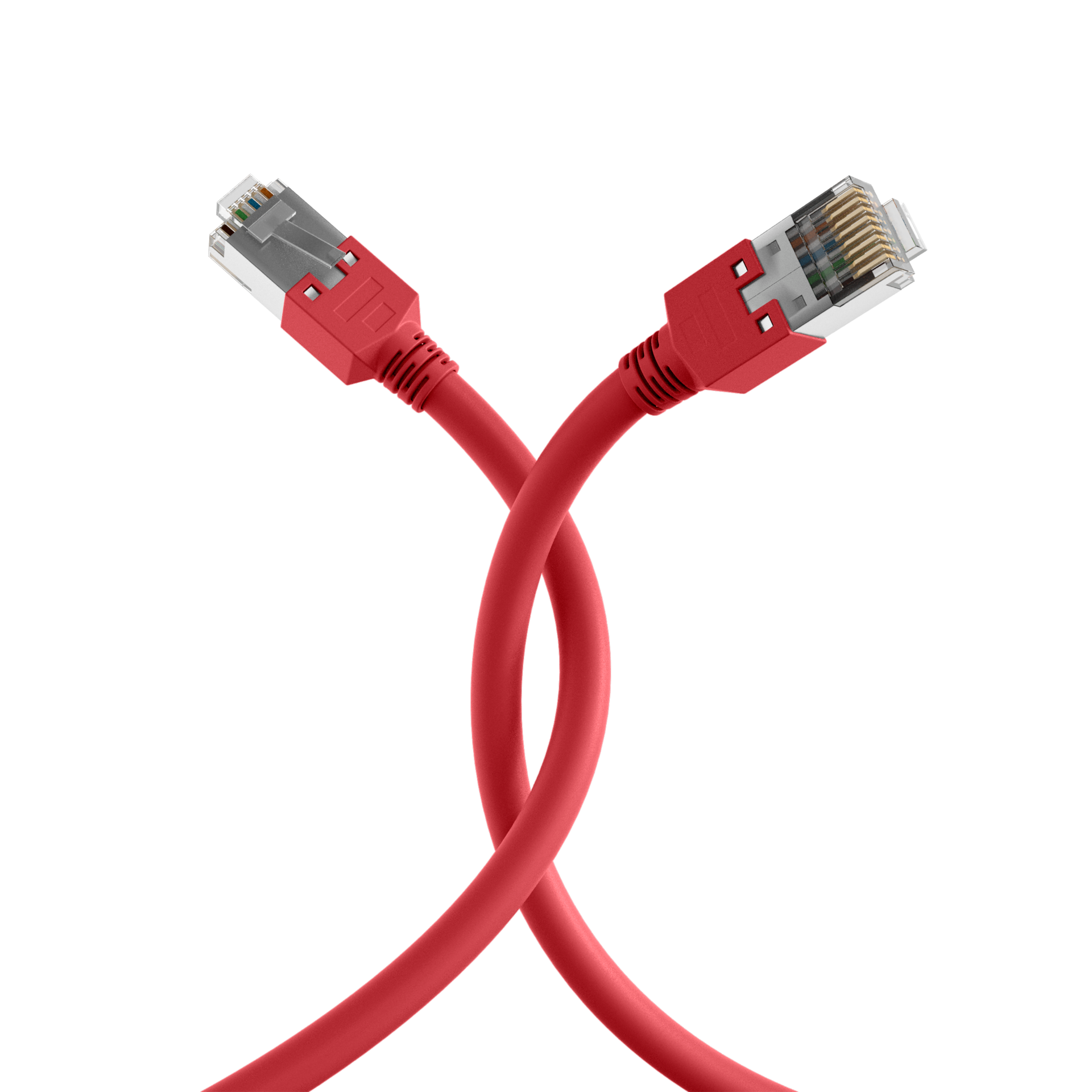

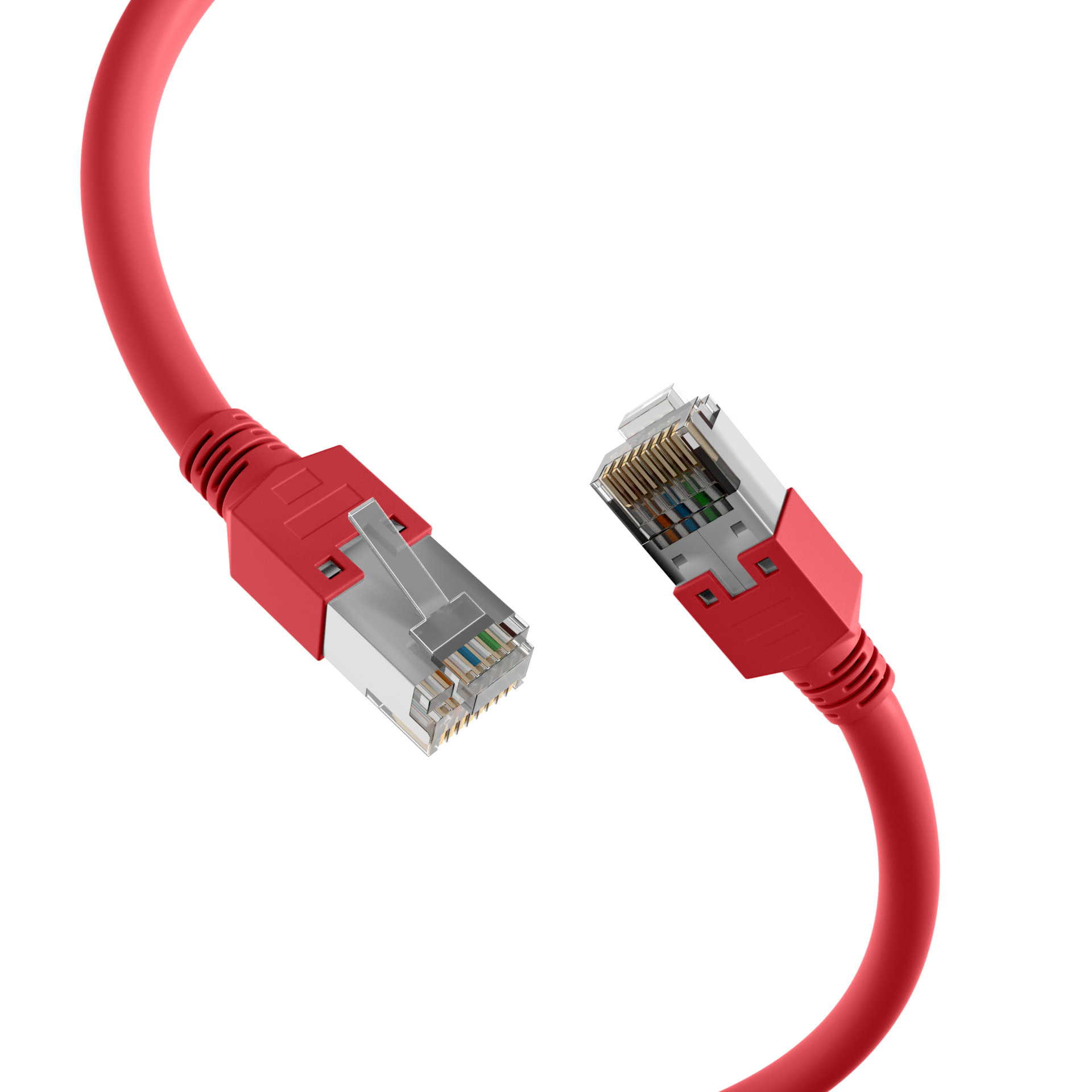

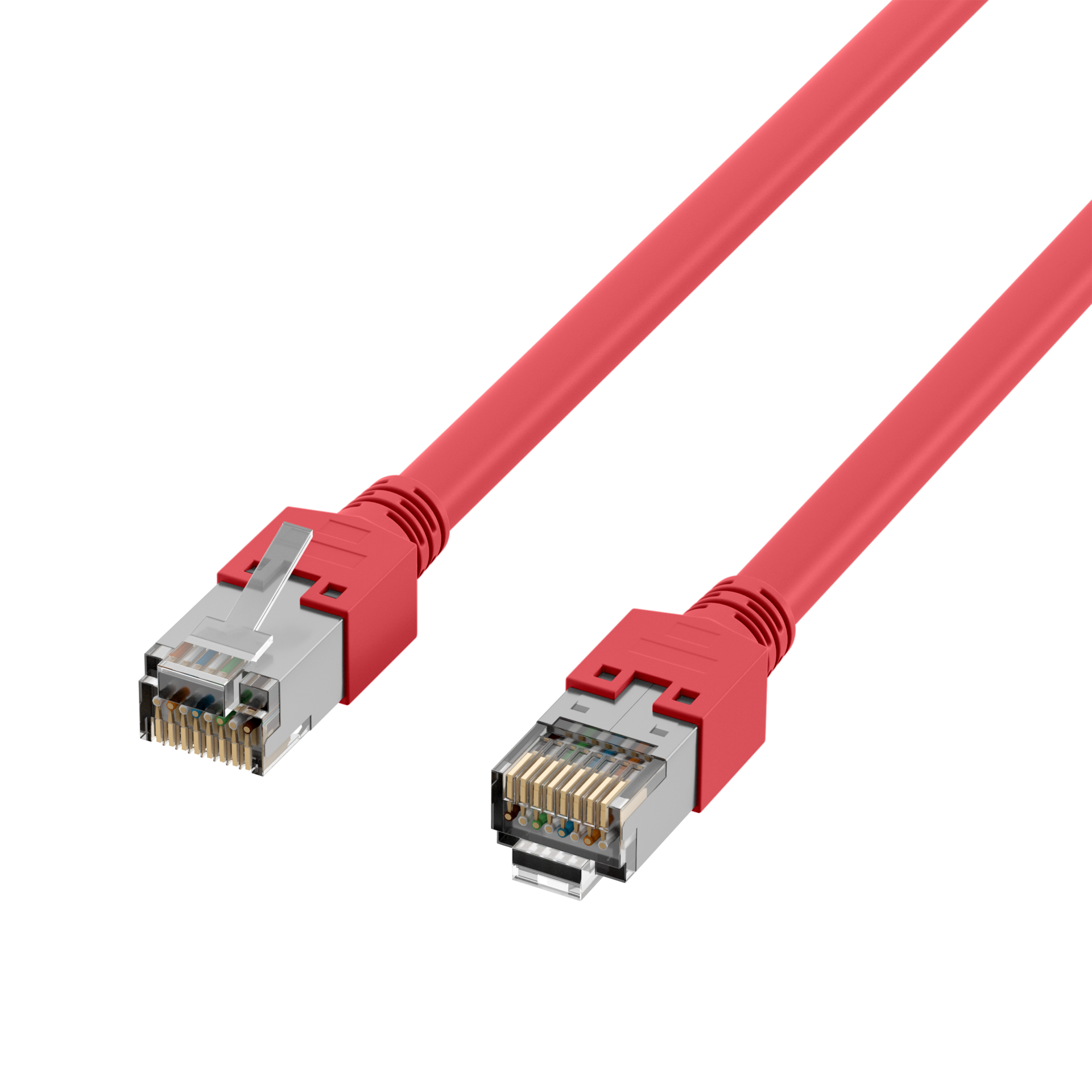

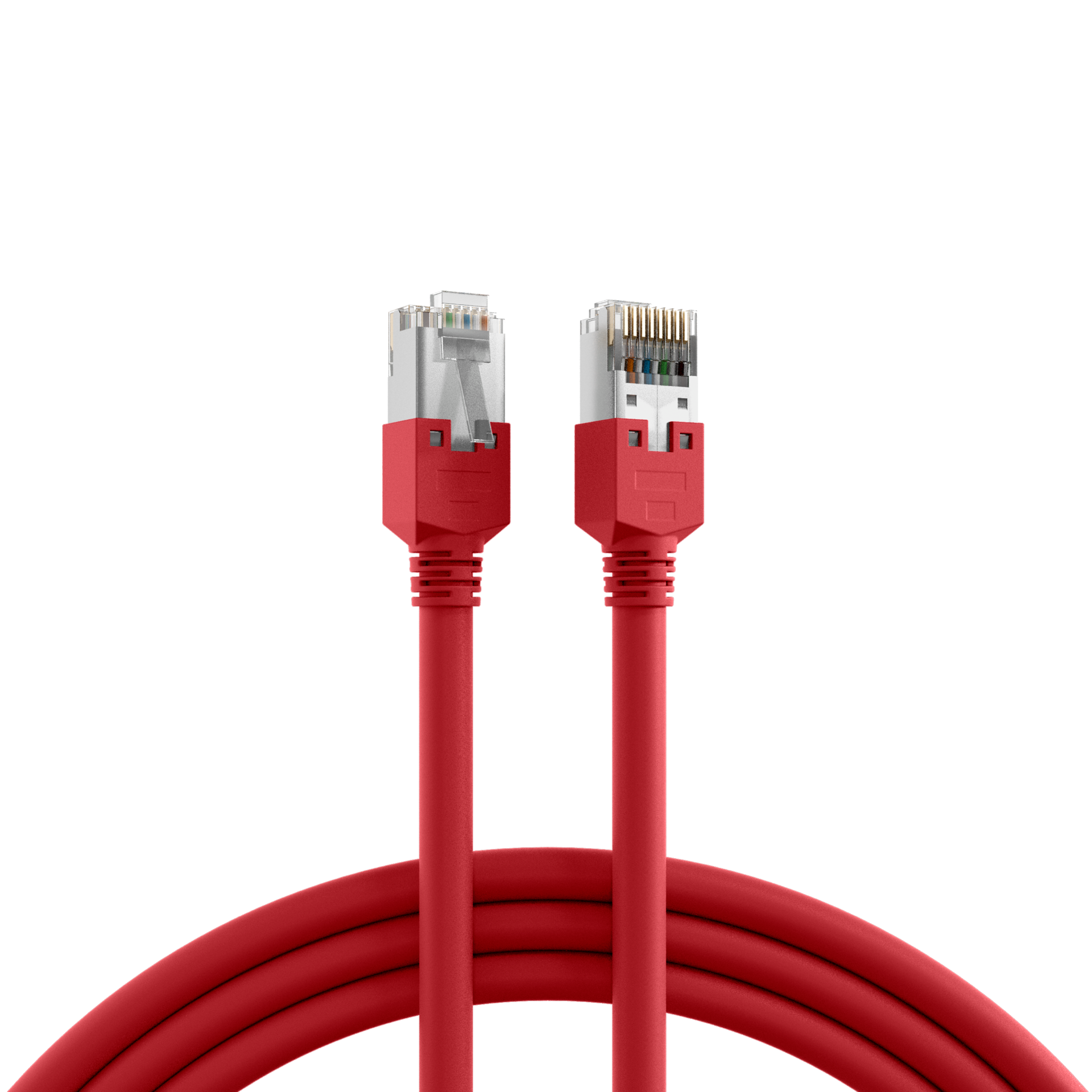

RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot






RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 0,15m
Artikelnummer:
K8703.0,15
EAN Nr.:
4049759200664
Produktinformationen für RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 0,15m
RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11
Das Cat.5e Patchkabel hat vergoldete Kontakte und ermöglicht als Übertragungsstandard 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• S/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material. Darüber hinaus bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der TM11-Stecker erfolgt nach TIA/EIA 568B und ist 1:1.
Das Ethernet Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite ist dabei bis zu 100 MHz.
Das Cat.5e Patchkabel hat vergoldete Kontakte und ermöglicht als Übertragungsstandard 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• S/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material. Darüber hinaus bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der TM11-Stecker erfolgt nach TIA/EIA 568B und ist 1:1.
Das Ethernet Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite ist dabei bis zu 100 MHz.
Technische Eigenschaften
Ausführung: | Geschirmt |
---|---|
Steckverbindertyp Anschluss 1: | RJ45 8(8) |
Steckverbindertyp Anschluss 2: | RJ45 8(8) |
Kategorie: | 5e |
Mantel-Farbe: | rot |
(Halogenfrei): | Nein |
AWG-Querschnitt: | 26/7 |
Ausführung flammwidrig: | Nein |
Außendurchmesser des Kabels: | 5,1 mm |
Bandbreite: | 100MHz |
Belegung: | nach TIA/EIA 568B |
Betriebs-/Bemessungsspannung: | max. 50 V DC |
Biegeradius: | >20 mm |
Chemisch beständig: | Nein |
Einsatzgebiet: |
Industrial Ethernet Strukturierte Gebäudeverkabelung |
Farbe der Knickschutztülle: | rot |
Flammwidrig: | nach IEC60332-1 |
Geeignet für Schutzart (IP): | IP20 |
Halogen frei: | Nein |
Impedanz: | 100 ±15 Ω |
Kabelkonstruktion: | 4x2 |
Kabeltyp: | S/UTP |
Kabeltyp nach Hersteller: | Dätwyler CU 5502 flex |
Knickschutztülle: | aufgesteckt |
Kontakte: | Vergoldet µ" Vergoldet |
Leitermaterial: | Kupfer |
Leiterwiderstand DC: | 113 Ω/km |
Längenaufdruck: | Nein |
Mantelmaterial: | Polyvinylchlorid (PVC) |
NVP-Wert: | 76 % |
Ozon beständig: | Nein |
Pinbelegung: | 1:1 |
Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
Rasthebelschutz: | Nein |
Schirmkontaktierung: | 360° Schirmbefestigung |
Schleifenwiderstand: | 225 Ω/km |
Steckertyp: | TM11 |
Steckverbinder: | IEC 60603-7-3 |
Steckzyklen: | ≥750 |
Strombelastbarkeit: | max. 1 A |
Temperaturbereich (Betrieb): | -20 – 60 °C |
Temperaturbereich (Installation): | 0 – 50 °C |
Verkabelungsstandard: |
ANSI/TIA-568 EN50173 ISO/IEC 11801 |
Ölbeständig: | Nein |
Ölbeständig nach EN 60811-2-1: | Nein |
Ölbeständig nach EN 60811-404: | Nein |
Übertragung: | 2,5Gbit |
Varianten
Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
---|---|---|---|---|---|
K8703.0,15 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 0,15m | 0,15 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.0,5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 0,5m | 0,5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.1 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 1m | 1,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.1,5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 1,5m | 1,5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.2 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 2m | 2,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.3 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 3m | 3,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 5m | 5,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.7,5 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 7,5m | 7,5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.10 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 10m | 10,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.15 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 15m | 15,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.20 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 20m | 20,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
K8703.25 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 25m | 25,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
K8703.30 | RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 rot 30m | 30,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % |
