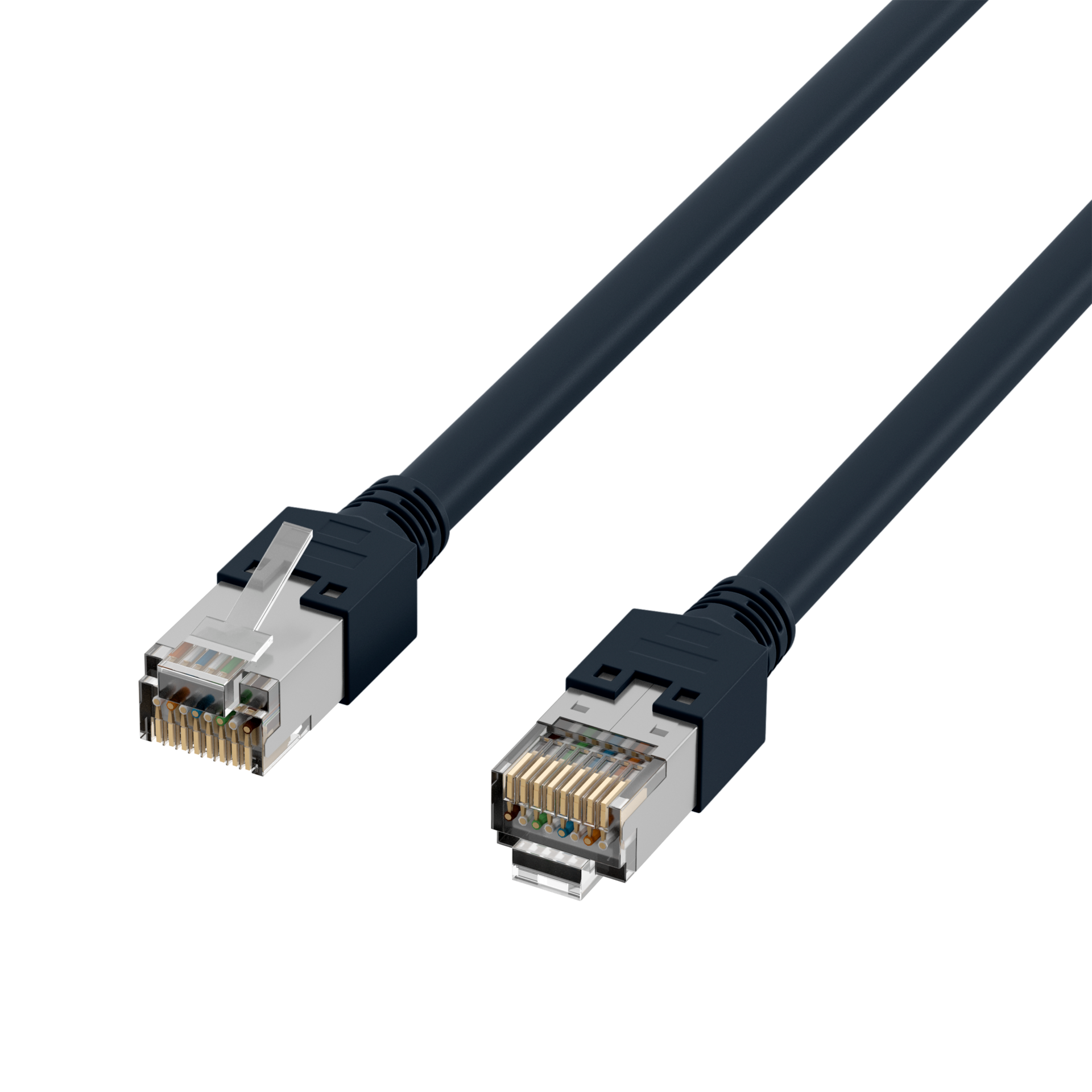

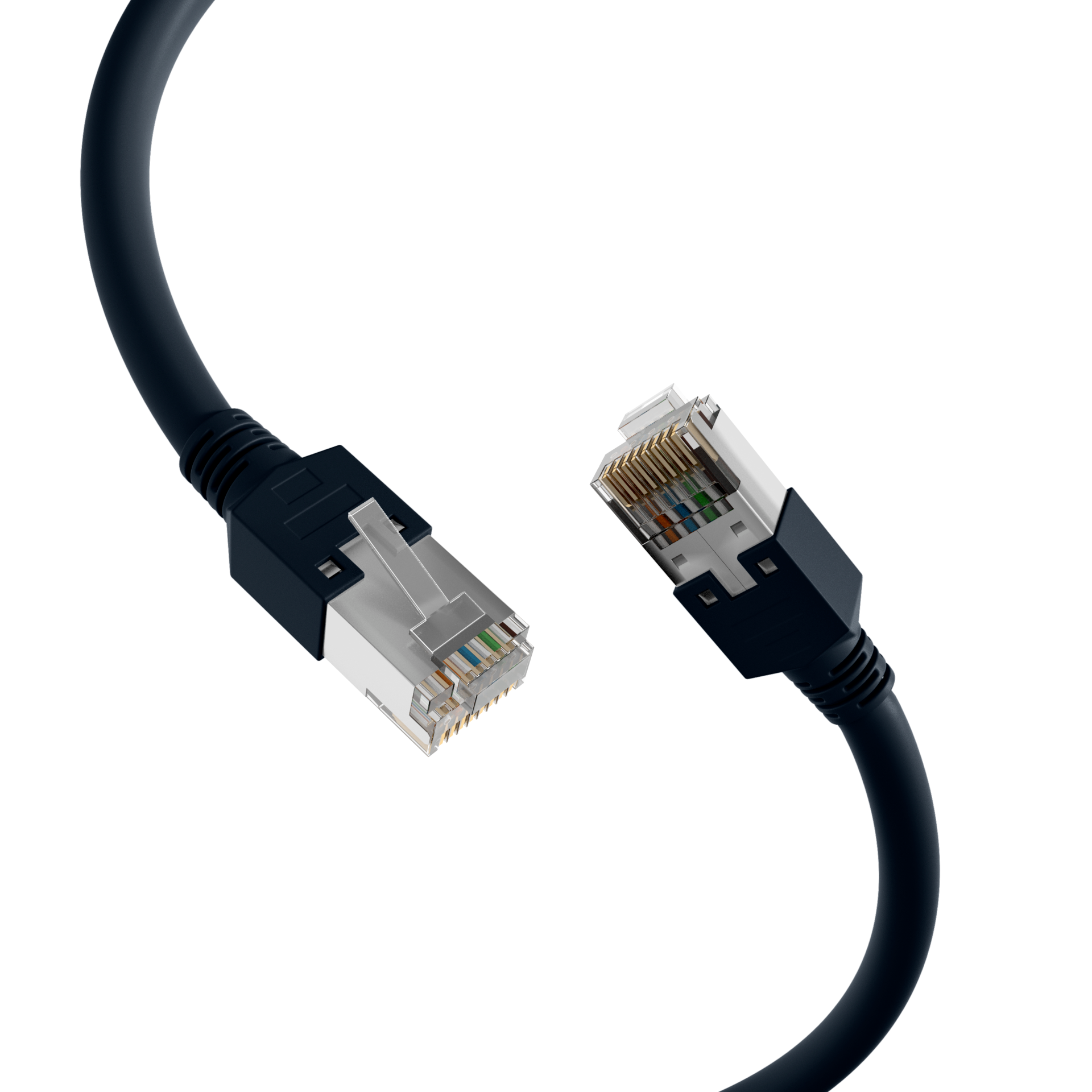

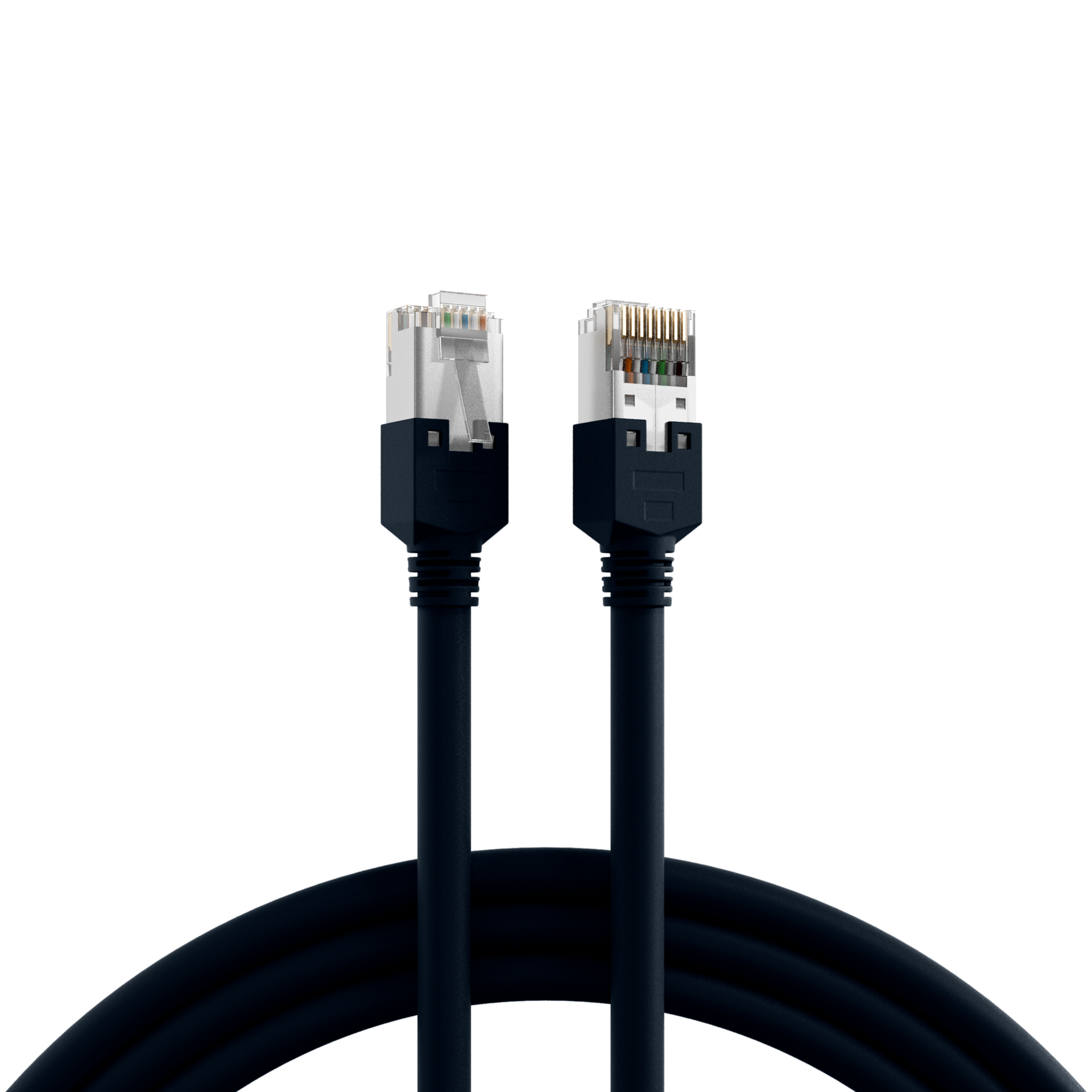

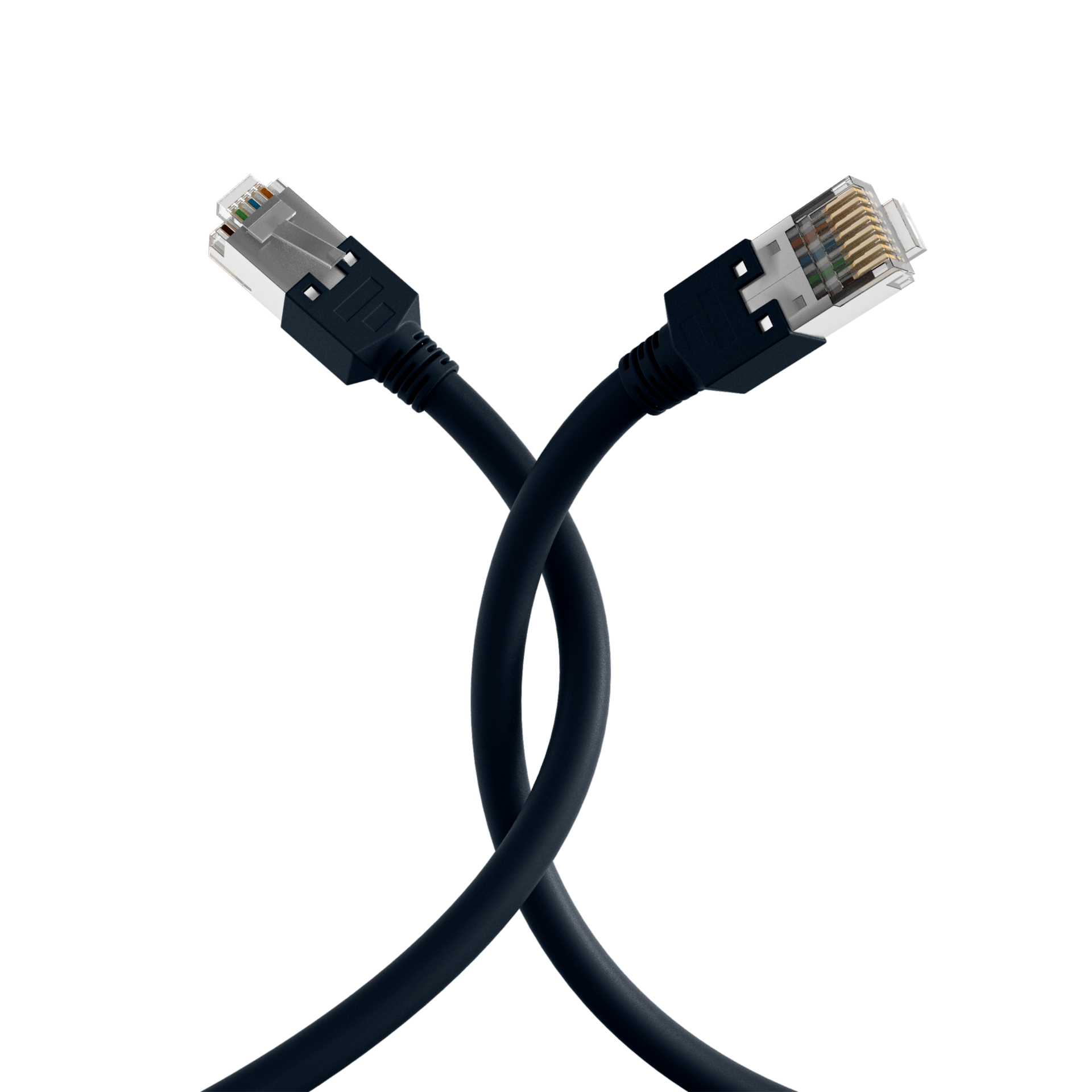

RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz

RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 0,25m
Artikelnummer: K8705.0,25
EAN Nr.: 4049759236878

Produktinformationen für RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 0,25m

RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11

Das Cat.5e Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 2,5Gbit Ethernet.

Technische Produkteigenschaften
• Cat.5e
• S/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Besitzt vergoldete Kontakte

Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material. Darüber hinaus bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der TM11-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das Netzwerkkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich bestens für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von bis zu 100 MHz wird damit erzielt.

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 5e
Mantel-Farbe: schwarz
(Halogenfrei): Nein
AWG-Querschnitt: 26/7
Ausführung flammwidrig: Nein
Außendurchmesser des Kabels: 5,1 mm
Bandbreite: 100MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >20 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: schwarz
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: Nein
Impedanz: 100 ±15 Ω
Kabelkonstruktion: 4x2
Kabeltyp: S/UTP
Kabeltyp nach Hersteller: Dätwyler CU 5502 flex
Knickschutztülle: aufgesteckt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: Kupfer
Leiterwiderstand DC: 113 Ω/km
Längenaufdruck: Nein
Mantelmaterial: Polyvinylchlorid (PVC)
NVP-Wert: 76 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Nein
Schirmkontaktierung: 360° Schirmbefestigung
Schleifenwiderstand: 225 Ω/km
Steckertyp: TM11
Steckverbinder: IEC 60603-7-3
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich (Betrieb): -20 – 60 °C
Temperaturbereich (Installation): 0 – 50 °C
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 2,5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8705.0,25 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 0,25m 0,25 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.0,50 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 0,5m 0,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.1 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 1m 1,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.1,5 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 1,5m 1,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.2 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 2m 2,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.3 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 3m 3,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.5 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 5m 5,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.7,5 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 7,5m 7,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.10 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 10m 10,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.15 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 15m 15,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.20 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 20m 20,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8705.25 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 25m 25,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at ±5 %
K8705.30 RJ45 Patchkabel Cat.5e S/UTP PVC Dätwyler 5502 TM11 schwarz 30m 30,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at ±5 %
