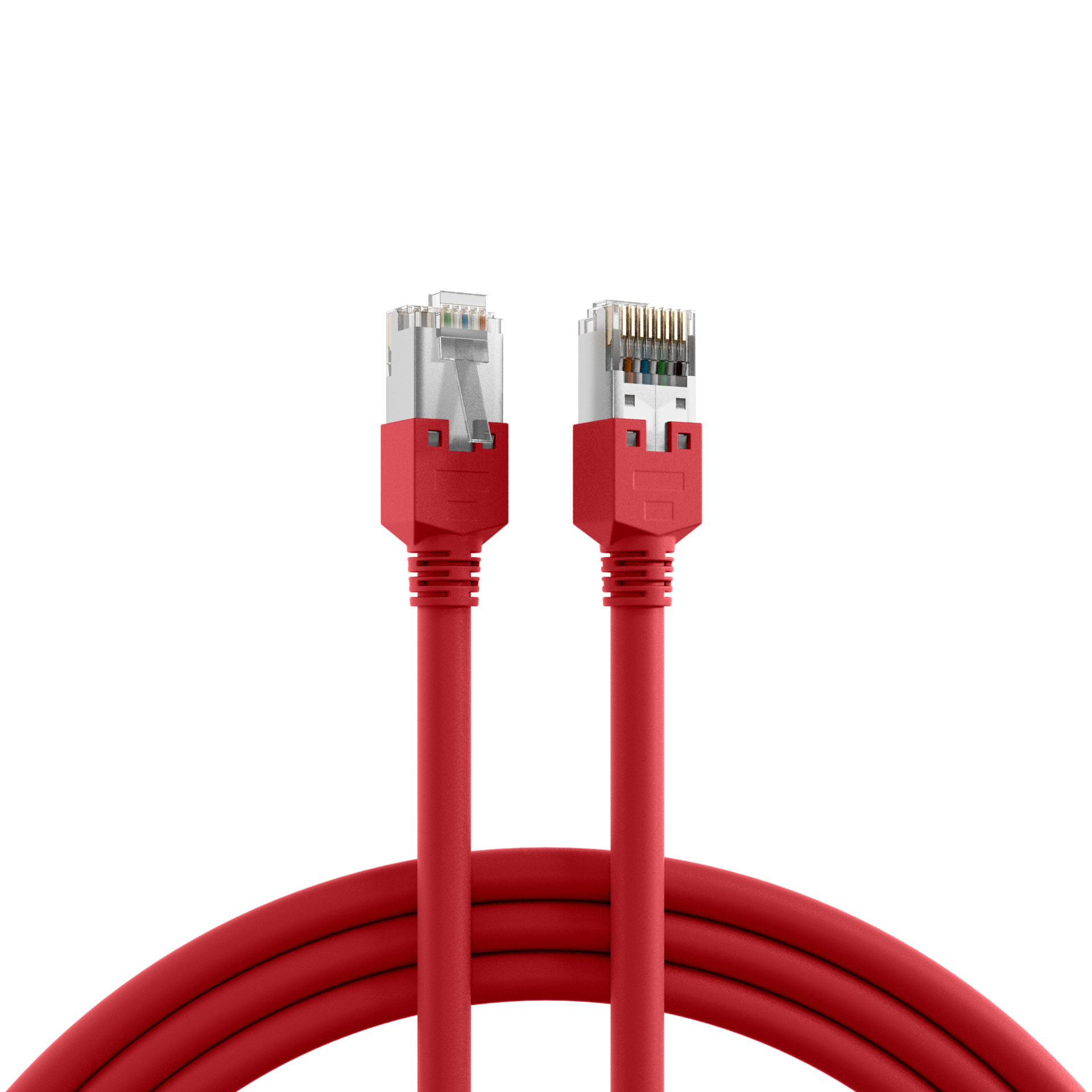

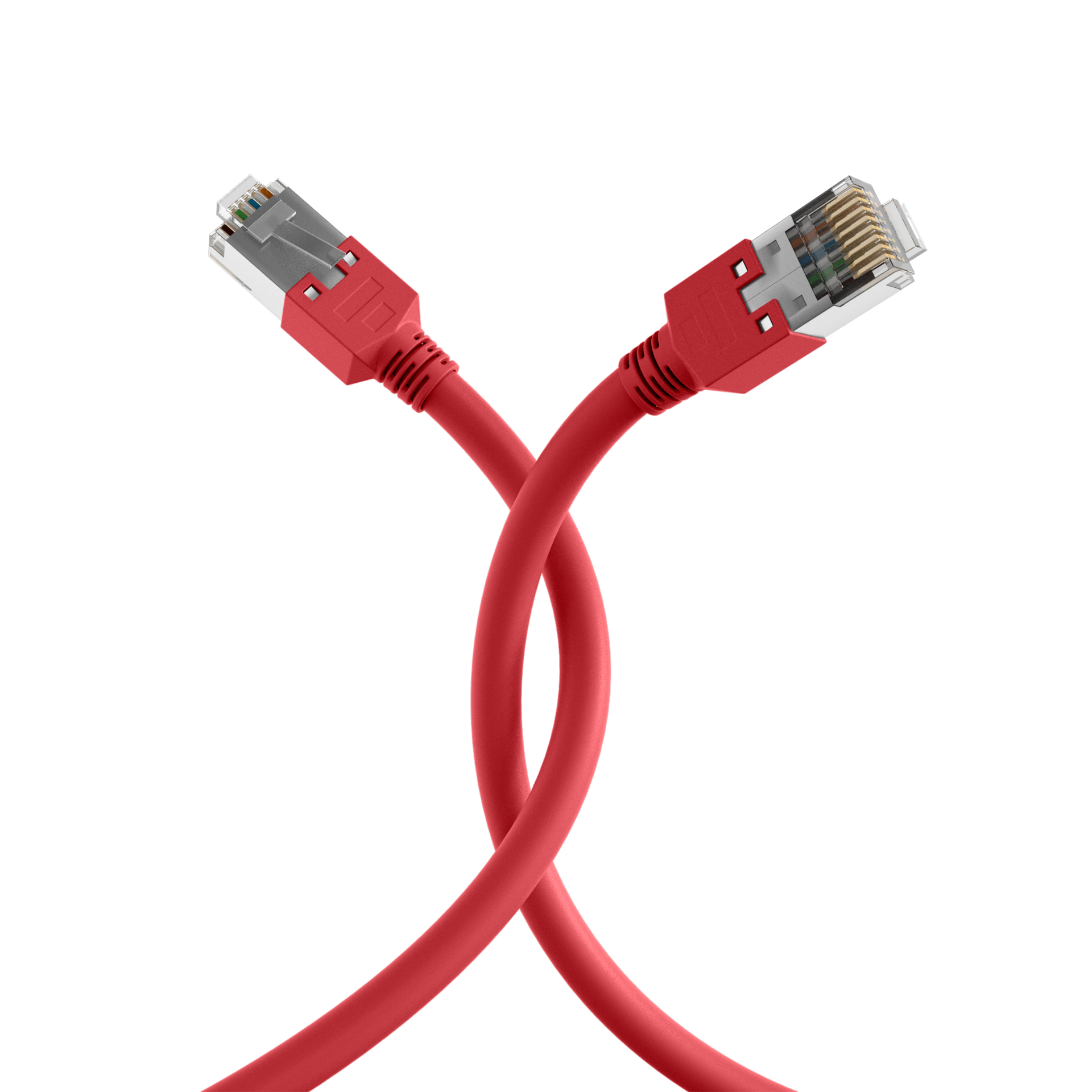

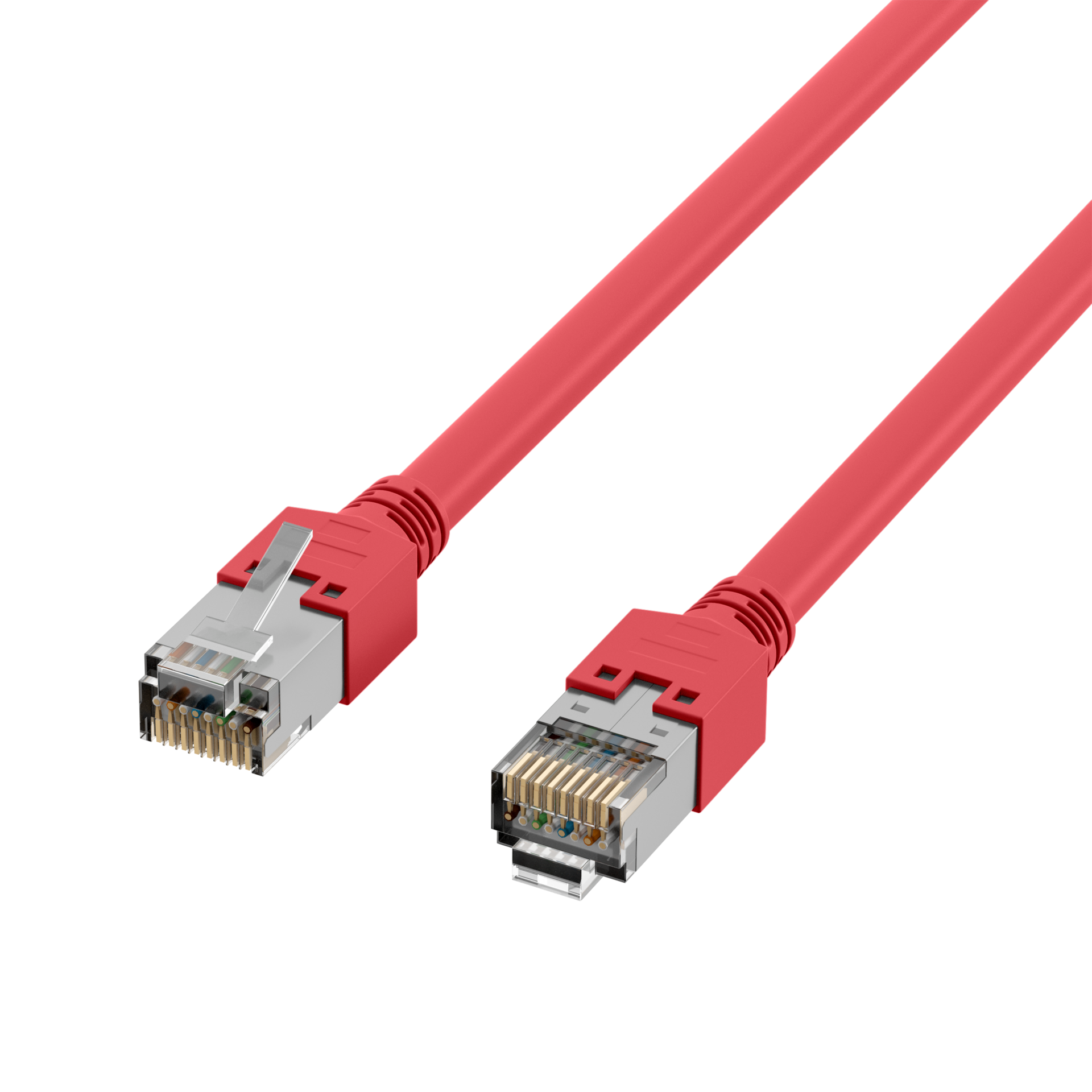

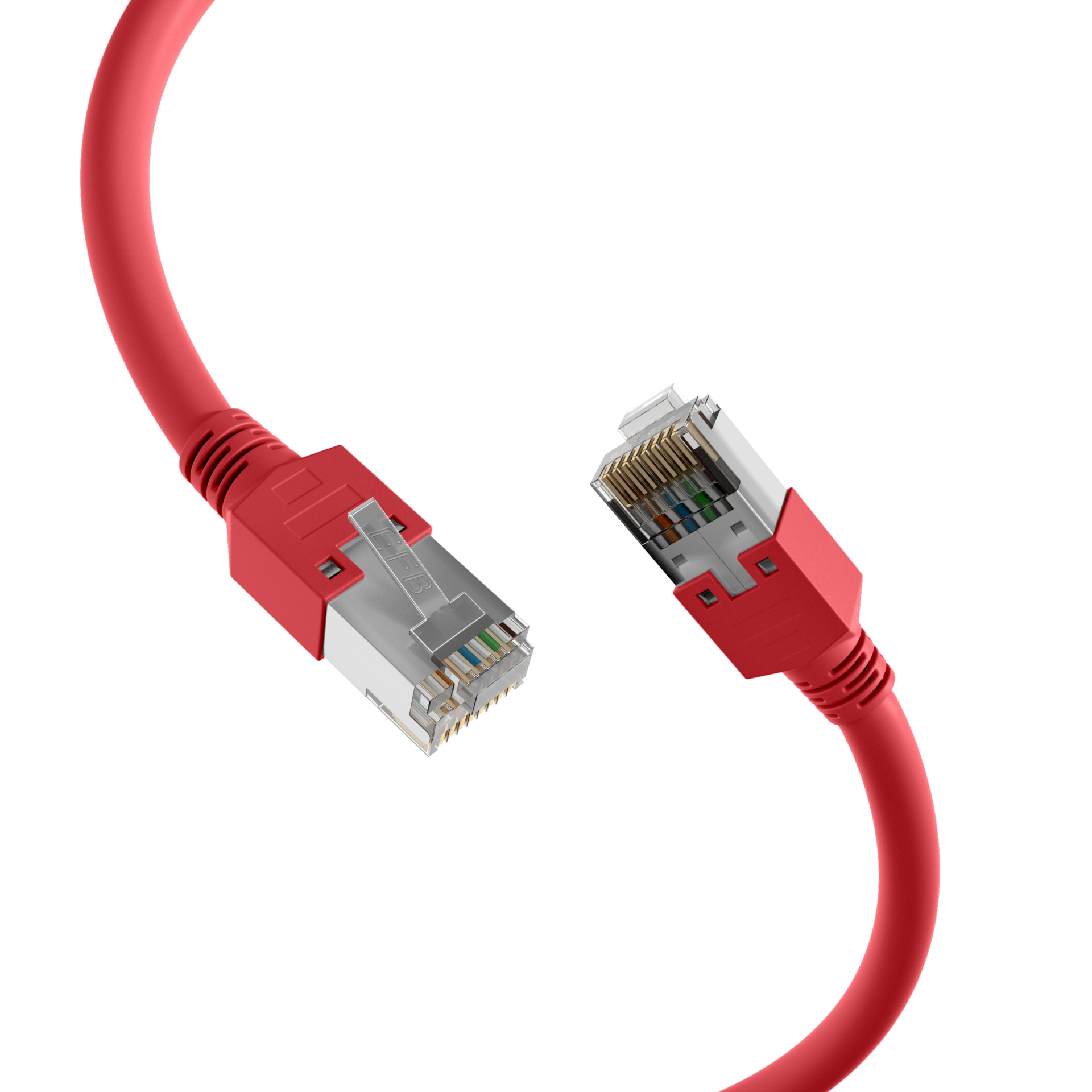

RJ45 Crossover Patchkabel SF/UTP, Cat.5e, TM11, UC300, rot





Preise nur für eingeloggte Nutzer sichtbar
RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 0,5m
Artikelnummer:
K2793.0,50
EAN Nr.:
4049759011178
Produktinformationen für RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 0,5m
Das in Europa gefertigte Cat.5e RJ45 Crossover Patchkabel gewährleistet sehr gute Eigenschaften für 2,5 Gigabit Ethernet Anwendungen. Zusammengesetzt ist das Patchkabel aus dem Rohkabel UC300 HS26 von Draka und TM11 Steckern von Hirose. Durch die doppelte Abschirmung ist das Patchkabel noch besser gegen EMV Strahlung abgesichert.
Querschnitt 4 x 2 x AWG27/7
Montierte Knickschutztülle
Kabelaufbau SF/UTP
Querschnitt 4 x 2 x AWG27/7
Montierte Knickschutztülle
Kabelaufbau SF/UTP
Technische Eigenschaften
Ausführung: | Geschirmt |
---|---|
Steckverbindertyp Anschluss 1: | RJ45 8(8) |
Steckverbindertyp Anschluss 2: | RJ45 8(8) |
Kategorie: | 5e |
Mantel-Farbe: | rot |
AWG-Querschnitt: | 26/7 |
Ausführung flammwidrig: | Ja |
Außendurchmesser des Kabels: | 5,7 mm |
Bandbreite: | 100MHz |
Belegung: | 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5 |
Betriebs-/Bemessungsspannung: | max. 50 V DC |
Biegeradius: | >25 mm |
Einsatzgebiet: |
Industrial Ethernet Rechenzentrum Strukturierte Gebäudeverkabelung |
Farbe der Knickschutztülle: | rot |
Flammwidrig: | nach IEC60332-1 |
Geeignet für Schutzart (IP): | IP20 |
Halogen frei: | nach IEC60754-2 |
Halogenfrei: | Ja |
Impedanz: | 100 ±15 Ω |
Isolationswiderstand: | > 2000 MΩ |
Kabelkonstruktion: | 4x2 |
Kabeltyp: | SF/UTP |
Kabeltyp nach Hersteller: | Draka UC300 HS26 |
Knickschutztülle: | aufgesteckt |
Kontakte: | Vergoldet |
Leitermaterial: | Kupfer |
Leiterwiderstand DC: | 130 Ω/km |
Mantelmaterial: | LSZH |
NVP-Wert: | 67 % |
POE Klasse: |
4PPoE nach IEEE802.3bt PoE+ nach IEEE802.3at PoE nach IEEE802.3af |
Pinbelegung: | gekreuzt |
Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
Rasthebelschutz: | Nein |
Raucharm: | nach IEC61034 |
Schleifenwiderstand: | < 260 Ω/km |
Steckertyp: | TM11 |
Steckverbinder: | IEC 60603-7-3 |
Steckzyklen: | ≥750 |
Strombelastbarkeit: | max. 1 A |
Temperaturbereich (Betrieb): | -20 – 60 °C |
Temperaturbereich (Installation): | 0 – 50 °C |
Widerstandsunsymmetrie: | < 3 % |
Ölbeständig nach EN 60811-2-1: | Nein |
Ölbeständig nach EN 60811-404: | Nein |
Übertragung: | 2,5Gbit |
Varianten
Art. Nr. | Bezeichnung | Länge | Längentoleranz | |
---|---|---|---|---|
K2793.0,50 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 0,5m | 0,5 m | ±5 % | |
K2793.1 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 1m | 1,0 m | ±5 % | |
K2793.1,5 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 1,5m | 1,5 m | ±5 % | |
K2793.2 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 2m | 2,0 m | ±5 % | |
K2793.3 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 3m | 3,0 m | ±5 % | |
K2793.5 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 5m | 5,0 m | ±5 % | |
K2793.10 | RJ45 Patchkabel Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed rot 10m | 10,0 m | ±5 % |
