RJ45 Patchkabel U/UTP, Cat.5e, PVC, CCA, magenta

Preise nur für eingeloggte Nutzer sichtbar

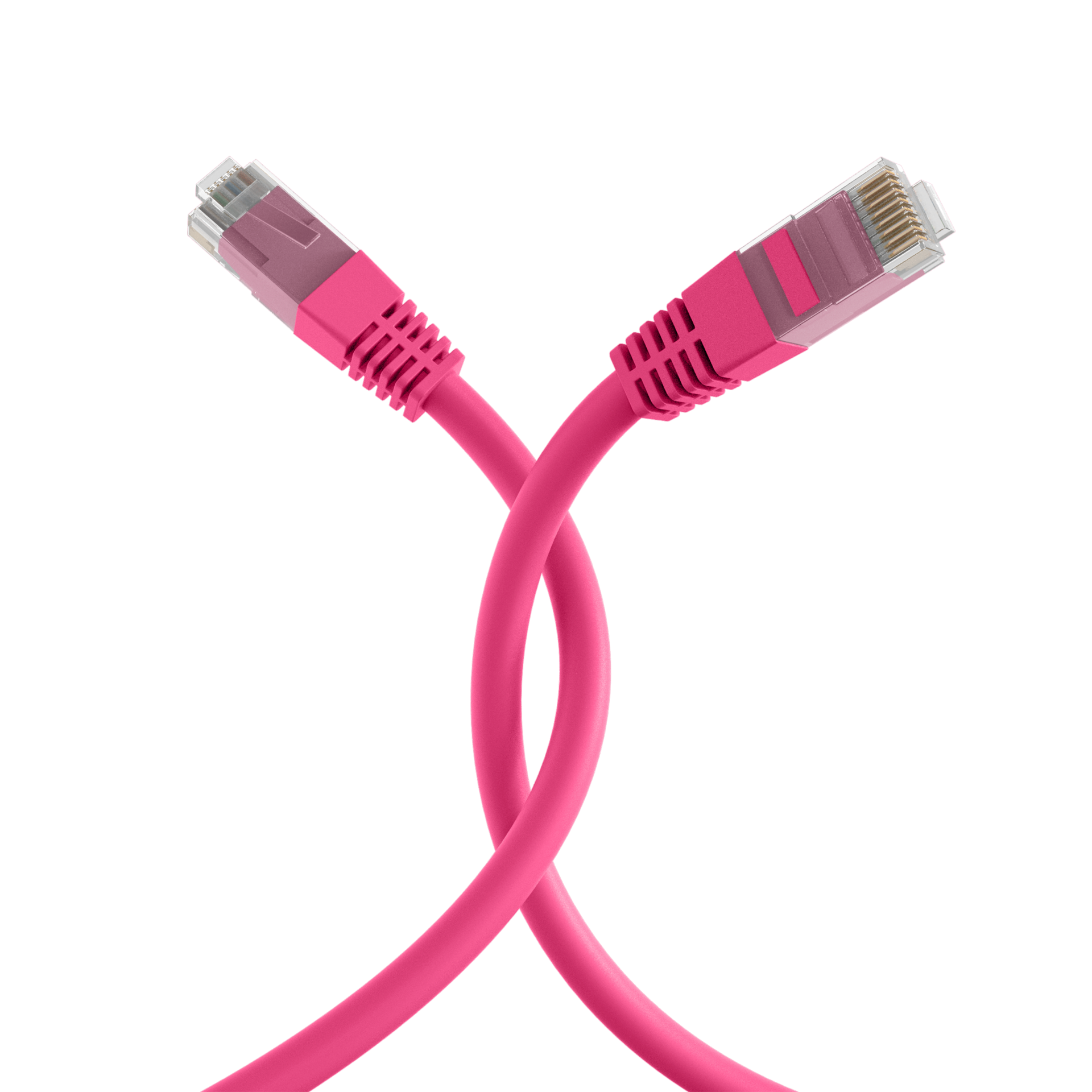

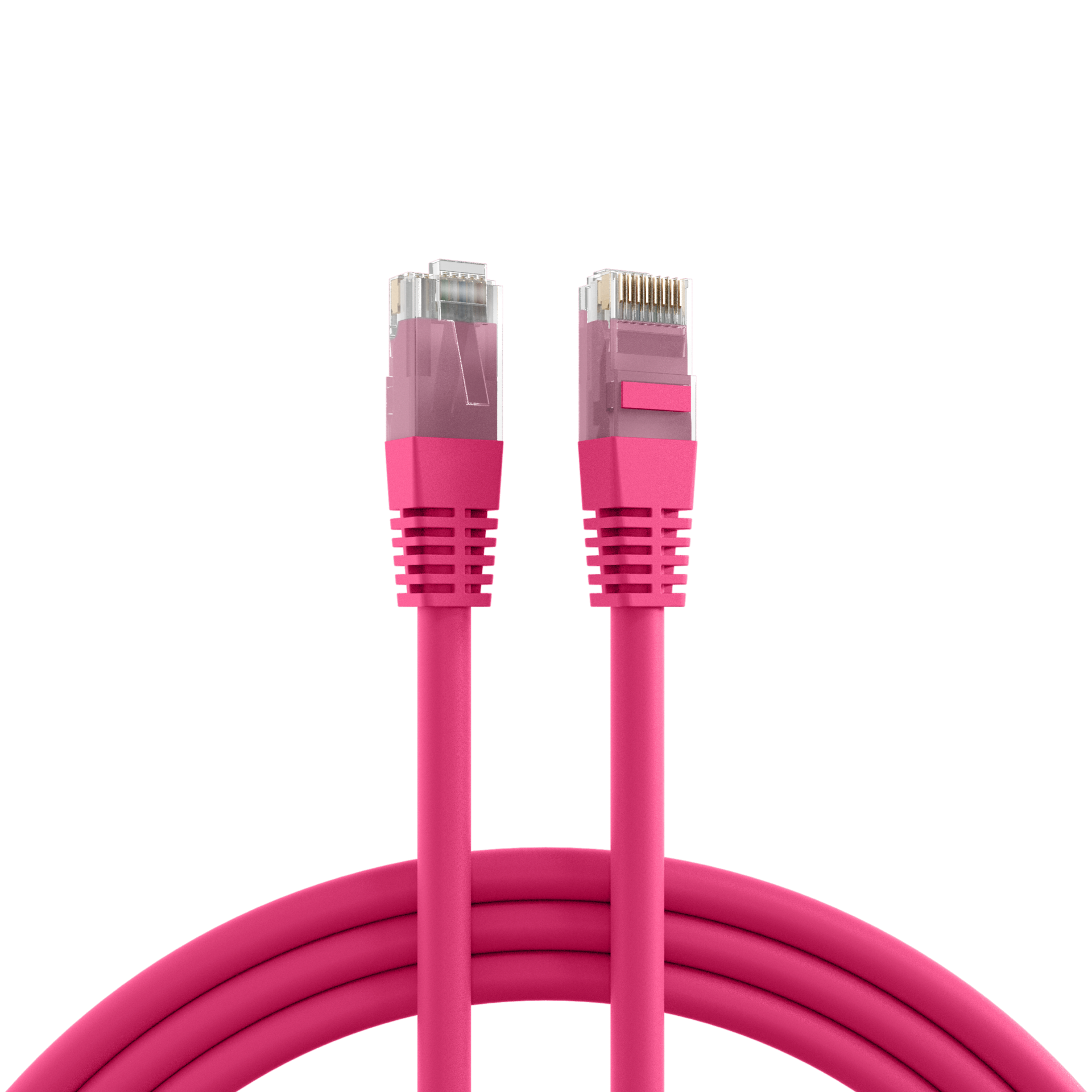

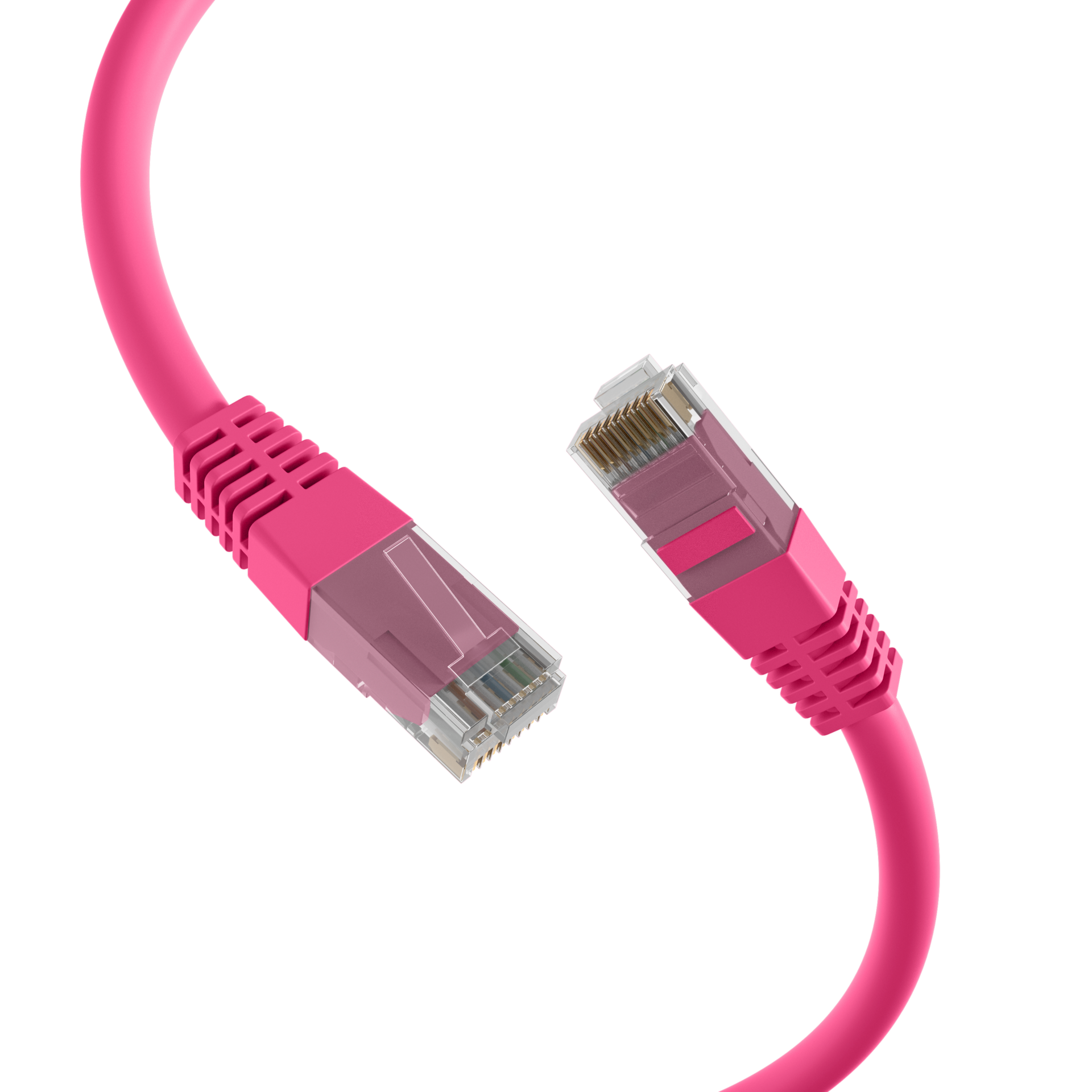

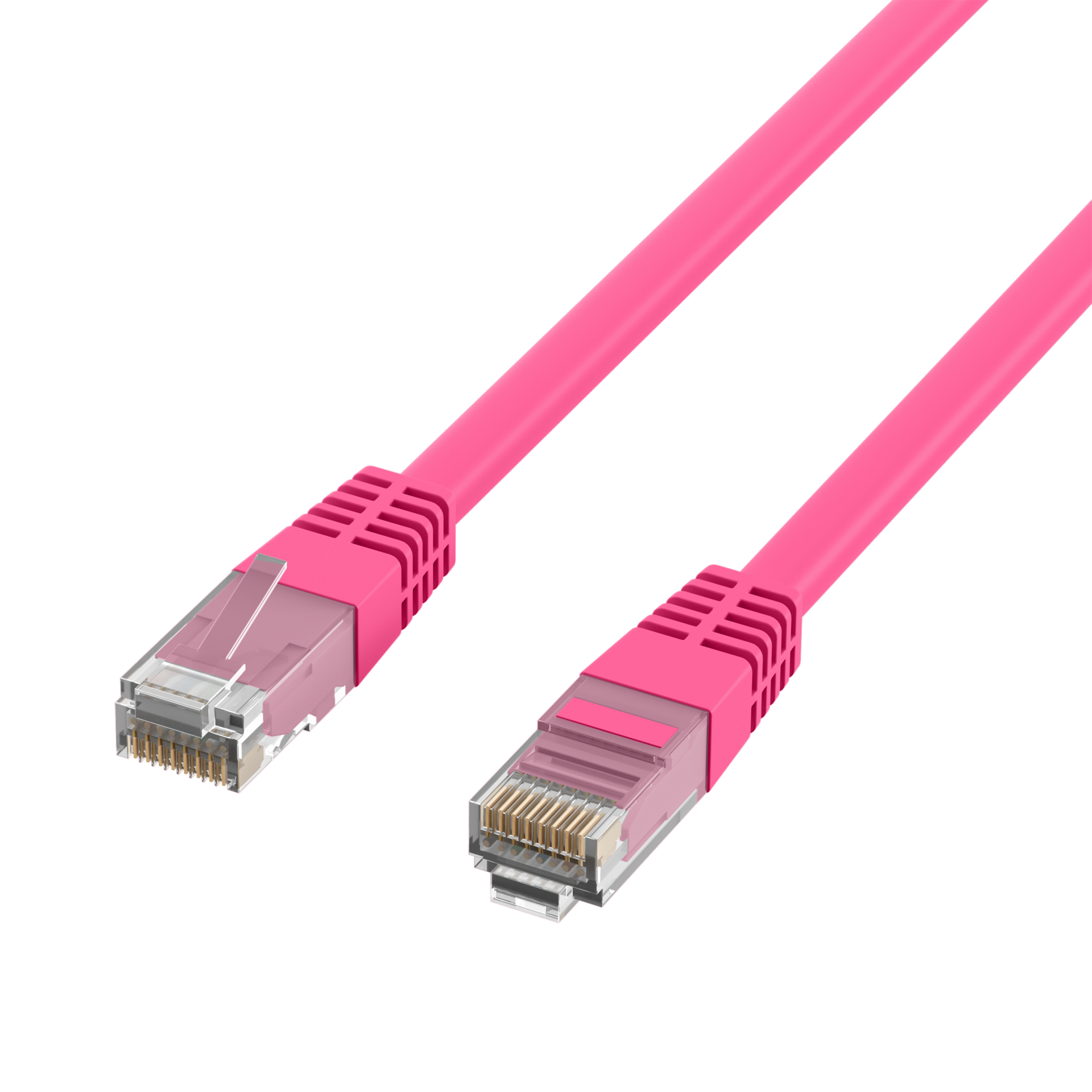

RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 0,5m
Artikelnummer: K8091.0,5
EAN Nr.: 4049759031855
Stück

Produktinformationen für RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 0,5m

Das ungeschirmte Cat.5e RJ45 Patchkabel gewährleistet sehr gute Eigenschaften für 2,5 Gigabit Ethernet Anwendungen. Die gegossene Tülle besticht durch ihr schlankes Design und vereinfacht damit den Steckvorgang in beengten Verhältnissen.

Querschnitt 4 x 2 x AWG24/7
Gegossene Knickschutztülle, schlankes Design
Längenaufdruck auf der Tülle

Technische Eigenschaften

Ausführung: Ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 5e
Mantel-Farbe: magenta
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,4 mm
Bandbreite: 100MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: 27 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: magenta
Geeignet für Schutzart (IP): IP20
Halogenfrei: Nein
Kabelaufdruck: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" gold plated
Kontaktwiderstand: < 20 mΩ
Leitermaterial: CCA
Längenaufdruck: Ja
Mantelmaterial: Polyvinylchlorid (PVC)
NVP-Wert: - %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Rasthebelschutz: Nein
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-2
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: 0 – 60 °C
Verkabelungsstandard: EN50173
ISO/IEC 11801
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 2,5Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K8091.0,5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 0,5m 0,5 m ±5 %
K8091.1 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 1m 1,0 m ±5 %
K8091.1,5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 1,5m 1,5 m ±5 %
K8091.2 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 2m 2,0 m ±5 %
K8091.3 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 3m 3,0 m ±5 %
K8091.5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 5m 5,0 m ±5 %
K8091.7,5 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 7,5m 7,5 m ±5 %
K8091.10 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 10m 10,0 m ±5 %
K8091.15 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 15m 15,0 m ±5 %
K8091.20 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 20m 20,0 m ±5 %
K8091.25 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 25m 25,0 m ±5 %
K8091.30 RJ45 Patchkabel Cat.5e U/UTP PVC CCA magenta 30m 30,0 m ±5 %
