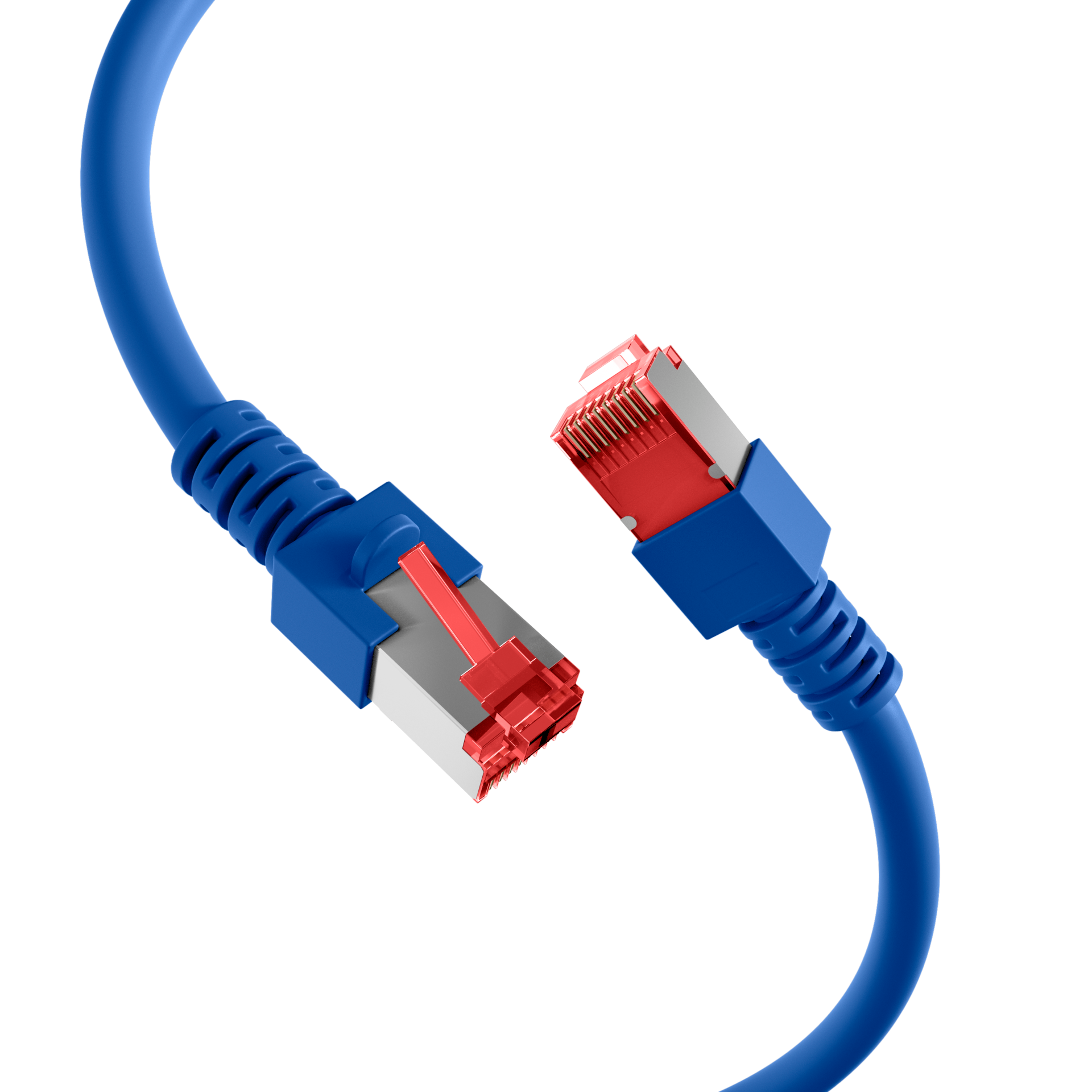

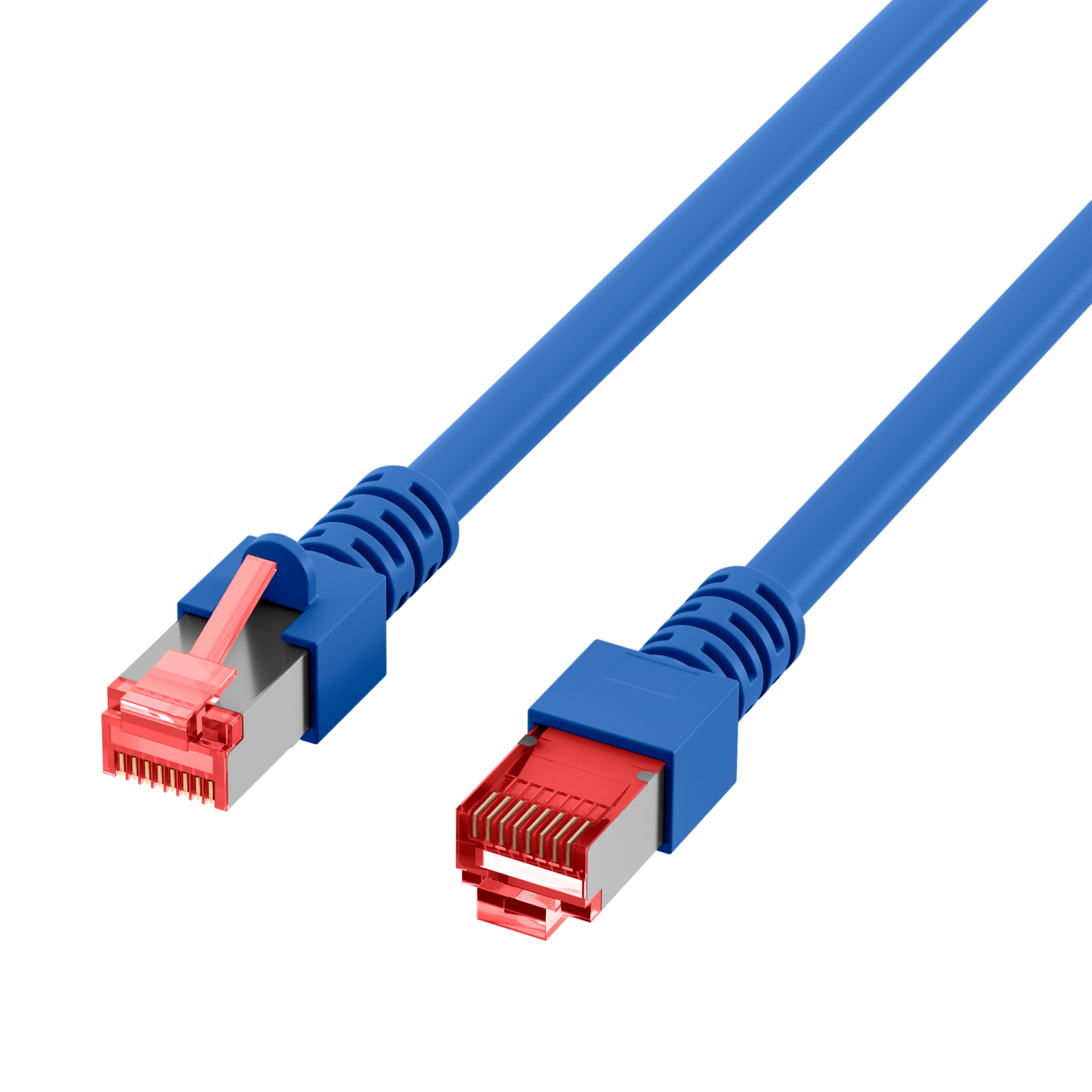

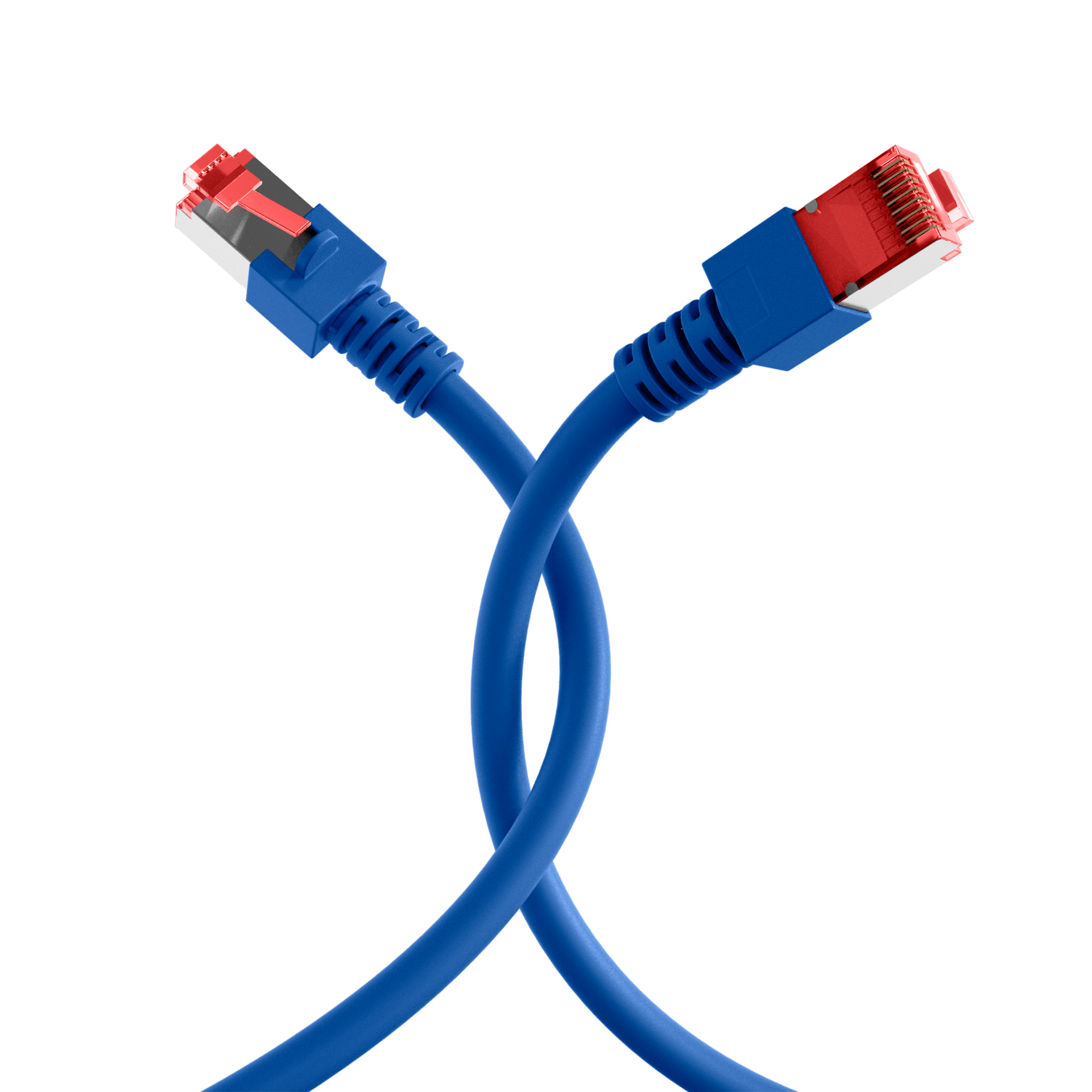

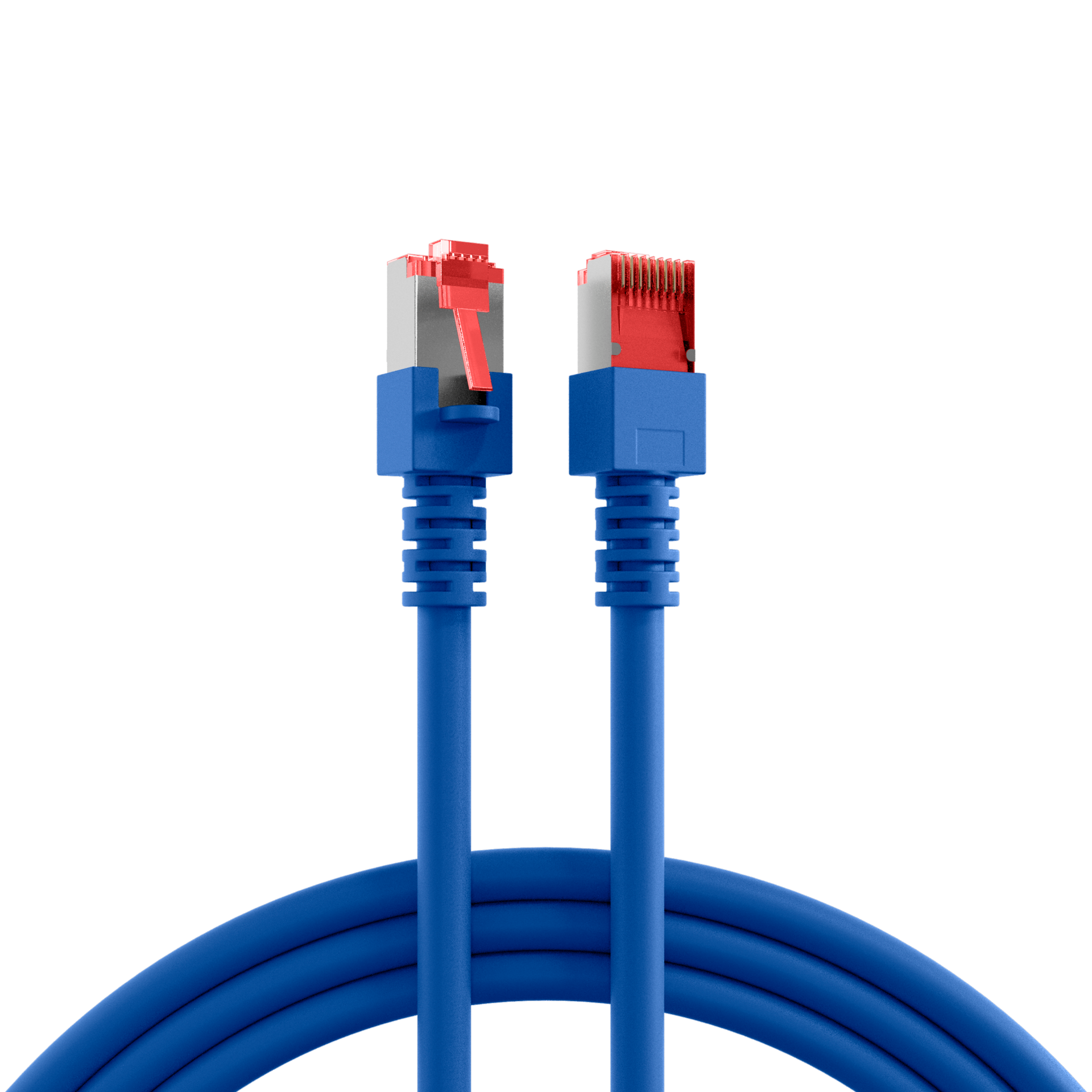

RJ45 Patchkabel Cat.6 S/FTP LSZH blau

RJ45 Patchkabel Cat.6 S/FTP LSZH blau 0,15m
Artikelnummer: K5513.0,15
EAN Nr.: 4049759095529

Produktinformationen für RJ45 Patchkabel Cat.6 S/FTP LSZH blau 0,15m

RJ45 Patchkabel Cat.6 S/FTP LSZH

Das Cat.6 Patchkabel besitzt vergoldete Kontakte und ermöglicht als Übertragungsstandard 5Gbit Ethernet.

Technische Produkteigenschaften
• Cat.6
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und hat einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den Temperaturbereich 0 – 60 °C.

Das Ethernet Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Eine Bandbreite von 250 MHz wird dabei erreicht.

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: blau
(Halogenfrei): Ja
AWG-Querschnitt: 27/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 6,2 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >31 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: blau
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Isolationswiderstand: 10 MΩ
Kabelaufdruck: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: S/FTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet
Kontaktwiderstand: 30 mΩ
Leitermaterial: Kupfer
Leiterwiderstand DC: 185 Ω/km
Längenaufdruck: Ja
Mantelmaterial: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Punktueller Schirmkontakt
Schleifenwiderstand: 370 Ω/km
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-5
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: 0 – 60 °C
Temperaturbereich (Betrieb): -20 – 75 °C
Temperaturbereich (Installation): -20 – 60 °C
Temperaturbereich (Lagerung): -20 – 60 °C
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Widerstandsunsymmetrie: 5 %
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K5513.0,15 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 0,15m 0,15 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.0,25 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 0,25m 0,25 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.0,5 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 0,5m 0,5 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.1 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 1m 1,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.1,5 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 1,5m 1,5 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.2 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 2m 2,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.3 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 3m 3,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.5 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 5m 5,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.7,5 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 7,5m 7,5 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.10 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 10m 10,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K5513.15 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 15m 15,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at ±5 %
K5513.20 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 20m 20,0 m PoE nach IEEE802.3af;PoE nach IEEE802.3at ±5 %
K5513.25 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 25m 25,0 m PoE nach IEEE802.3af ±5 %
K5513.30 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 30m 30,0 m PoE nach IEEE802.3af ±5 %
K5513.40 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 40m 40,0 m Nein ±5 %
K5513.50 RJ45 Patchkabel Cat.6 S/FTP LSZH blau 50m 50,0 m Nein ±5 %
