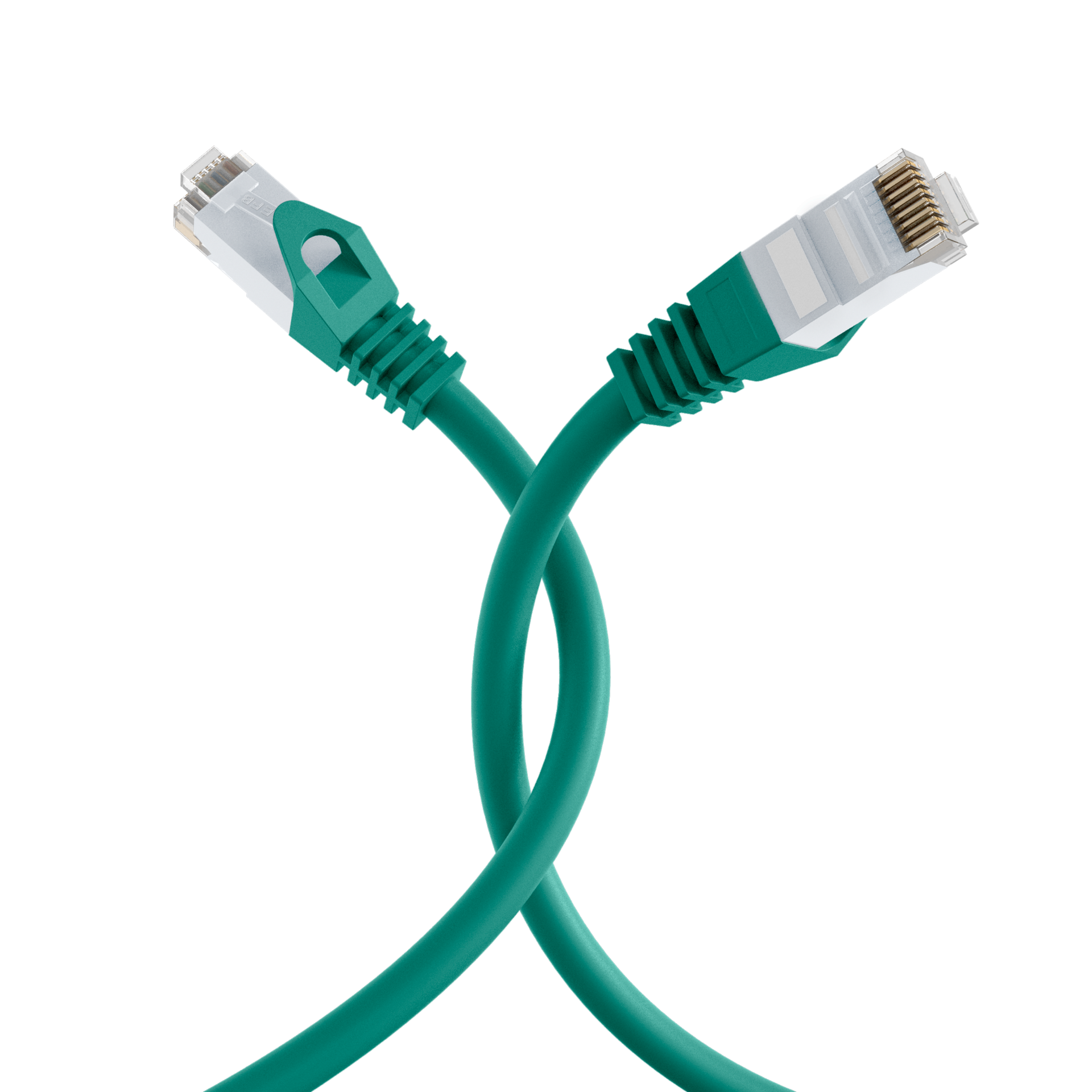

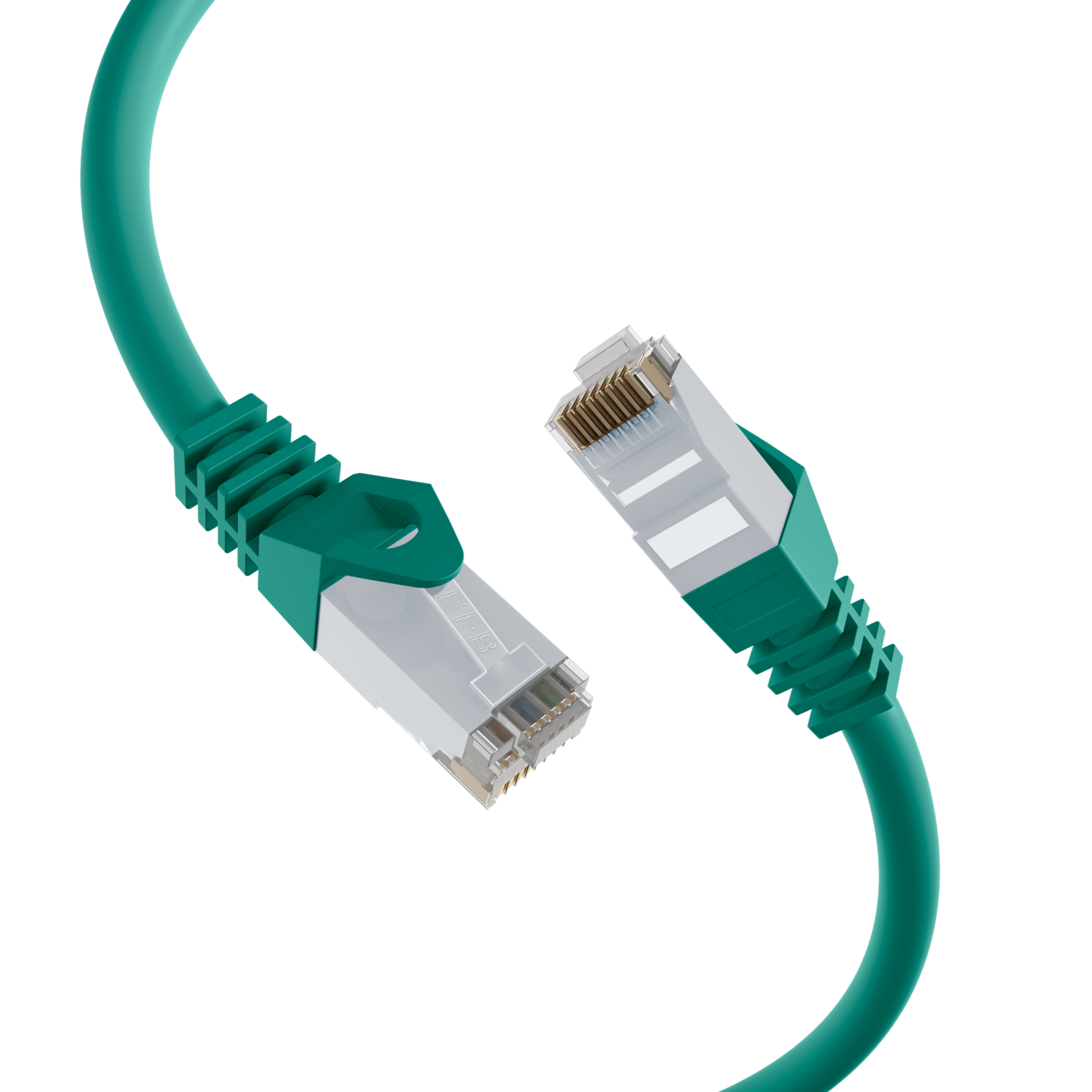

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 0,25m
Artikelnummer: K8104GN.0,25
EAN Nr.: 4049759206024

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 0,25m

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA

Das Cat.6 Patchkabel erfüllt die Anforderungen für 5Gbit Ethernet und hat vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Darüber hinaus bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das Ethernet Kabel verfügt über ein Leitermaterial aus CCA und eignet sich ideal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich ist dabei bis zu 250 MHz.

Technische Eigenschaften

Ausführung: ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6
Mantel-Farbe: grün
(Halogenfrei): Ja
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >30 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: grün
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Kabelaufdruck: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: CCA
Längenaufdruck: Ja
Mantelmaterial: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Nein
Silikonfrei: Ja
Steckertyp: RJ45 Standard
Steckverbinder: IEC 60603-7-4
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8104GN.0,25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 0,25m 0,25 m Nein ±5 %
K8104GN.0,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 0,5m 0,5 m Nein ±5 %
K8104GN.1 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 1m 1,0 m Nein ±5 %
K8104GN.1,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 1,5m 1,5 m Nein ±5 %
K8104GN.2 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 2m 2,0 m Nein ±5 %
K8104GN.3 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 3m 3,0 m Nein ±5 %
K8104GN.5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 5m 5,0 m Nein ±5 %
K8104GN.7,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 7,5m 7,5 m Nein ±5 %
K8104GN.10 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 10m 10,0 m Nein ±5 %
K8104GN.15 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 15m 15,0 m Nein ±5 %
K8104GN.20 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 20m 20,0 m Nein ±5 %
K8104GN.25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA grün 25m 25,0 m Nein ±5 %
