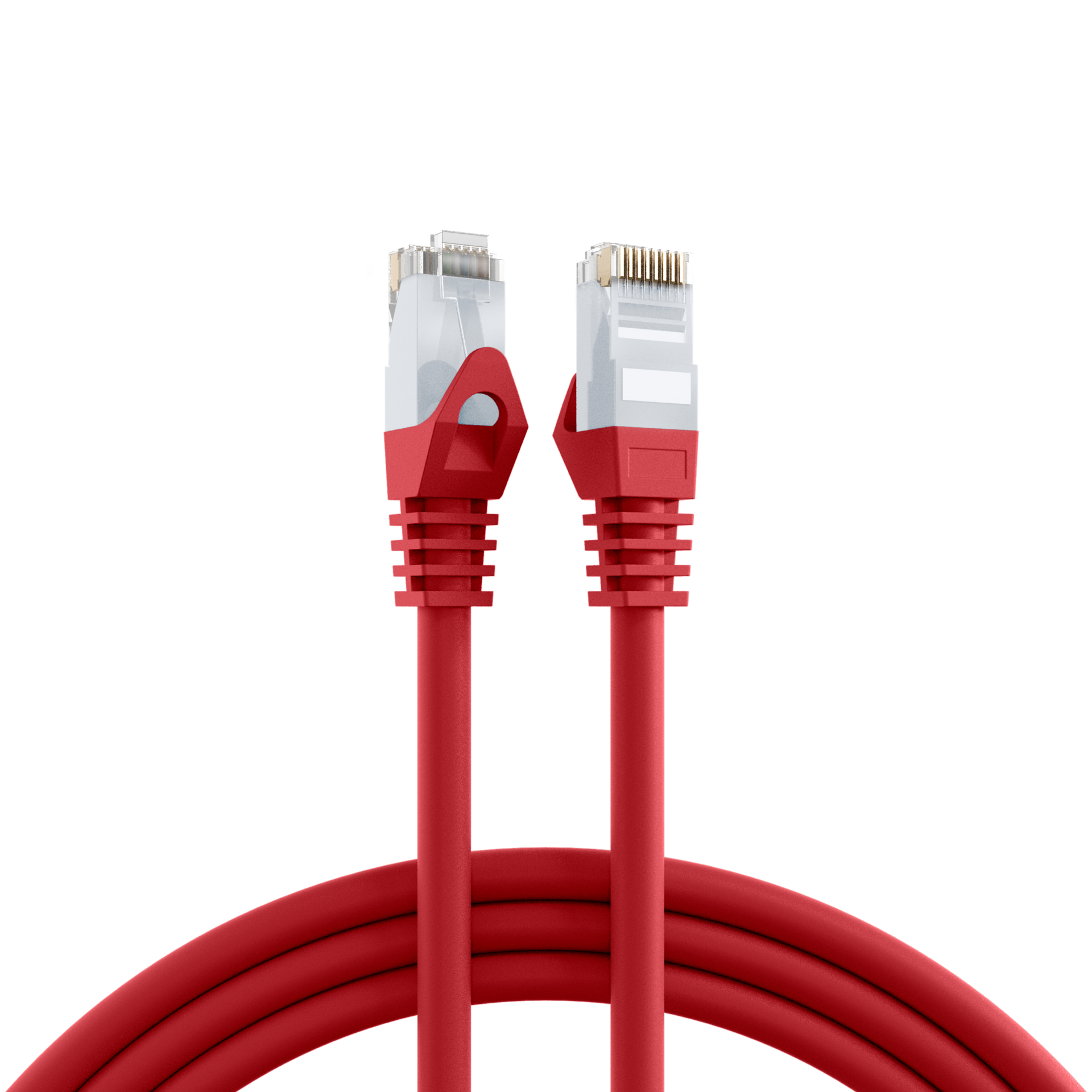

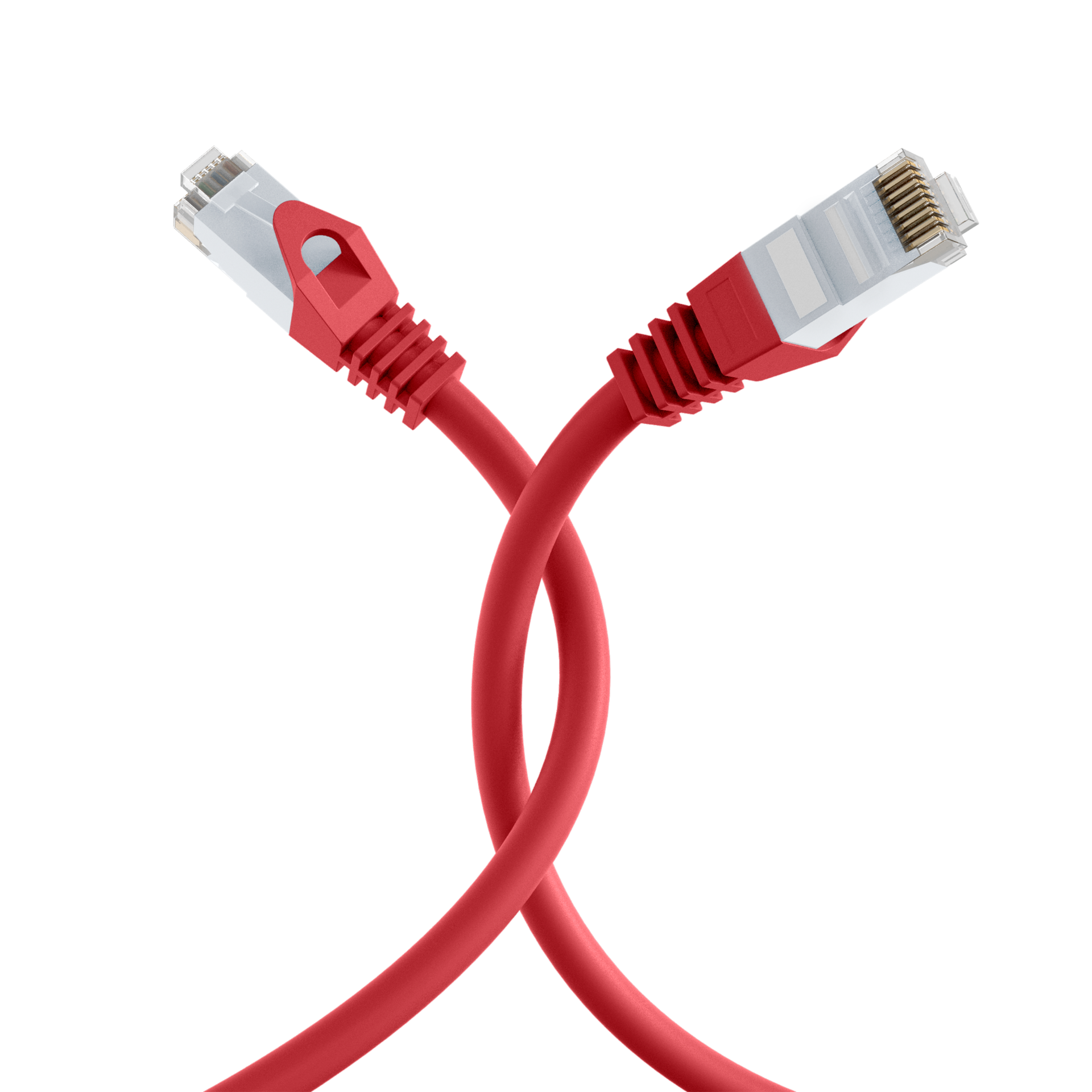

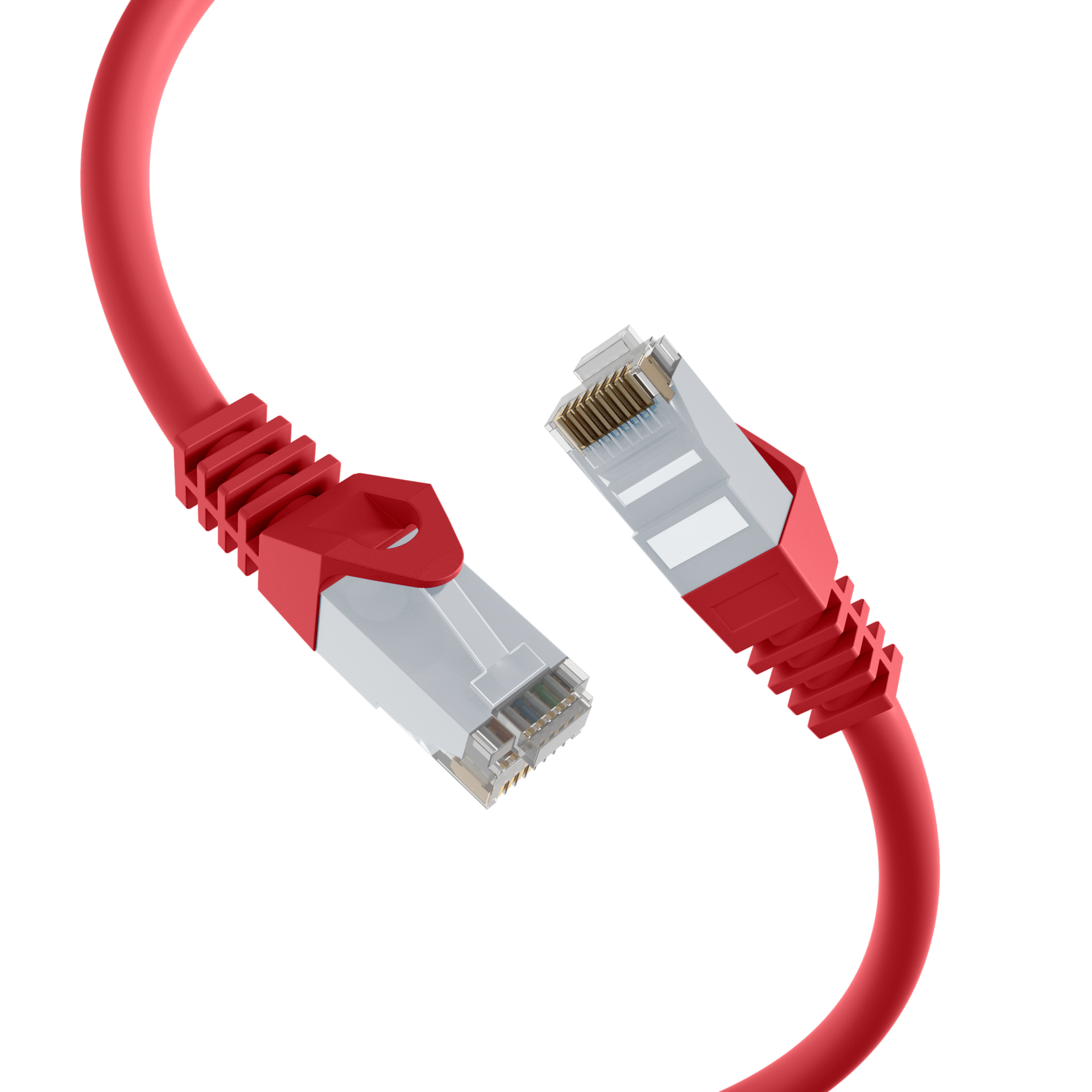

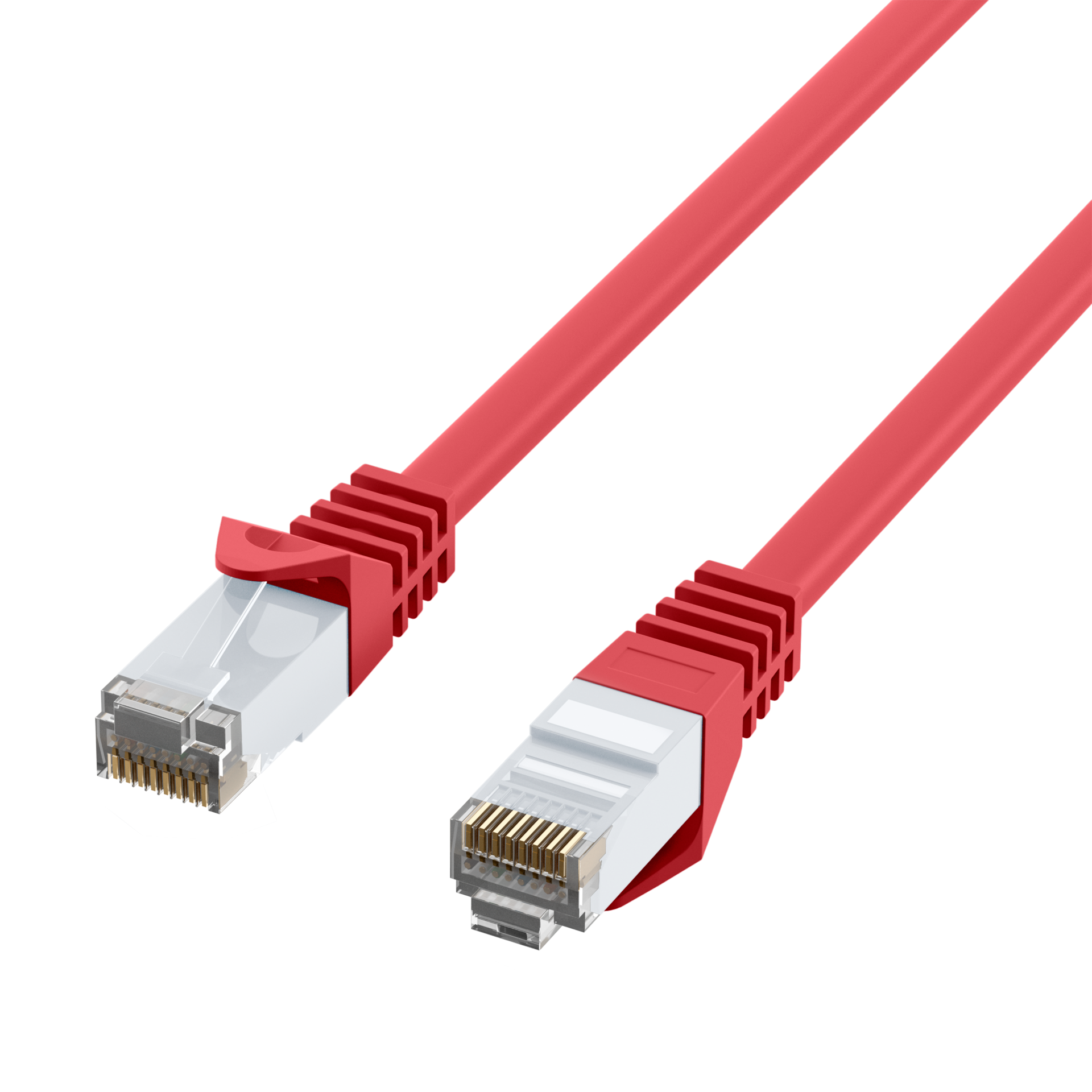

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 0,25m
Artikelnummer: K8104RT.0,25
EAN Nr.: 4049759206031

Produktinformationen für RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 0,25m

RJ45 Patchkabel Cat.6 U/UTP LSZH CCA

Das Cat.6 Patchkabel ermöglicht als Übertragungsstandard 5Gbit Ethernet und hat vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das LAN Kabel verfügt über ein Leitermaterial aus CCA und eignet sich bestens für Applikationen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von 250 MHz wird damit erreicht.

Technische Eigenschaften

(Halogenfrei): Ja
AWG-Querschnitt: 24/7
Ausführung: ungeschirmt
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 250MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >30 mm
Chemisch beständig: Nein
Einsatzort: Industrial Ethernet
Einsatzort: Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: rot
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Kabelaufdruck: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Kategorie: 6
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: CCA
Längenaufdruck: Ja
Mantel-Farbe: rot
Mantel-Material: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Nein
Silikonfrei: Ja
Steckertyp: RJ45 standard
Steckverbinder: IEC 60603-7-4
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Steckzyklen: >750
Strombelastbarkeit: max. 1 A
Verkabelungsstandard: EN50173
Verkabelungsstandard: ISO/IEC 11801
Verkabelungsstandard: ANSI/TIA-568
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 5Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8104RT.0,25 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 0,25m 0.25 m Nein ±5 %
K8104RT.0,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 0,5m 0.5 m Nein ±5 %
K8104RT.1 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 1m 1,0 m Nein ±5 %
K8104RT.1,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 1,5m 1,5 m Nein ±5 %
K8104RT.2 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 2m 2,0 m Nein ±5 %
K8104RT.3 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 3m 3,0 m Nein ±5 %
K8104RT.5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 5m 5.0 m Nein ±5 %
K8104RT.7,5 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 7,5m 7.5 m Nein ±5 %
K8104RT.10 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 10m 10,0 m Nein ±5 %
K8104RT.15 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 15m 15,0 m Nein ±5 %
K8104RT.20 RJ45 Patchkabel Cat.6 U/UTP LSZH CCA rot 20m 20.0 m Nein ±5 %
