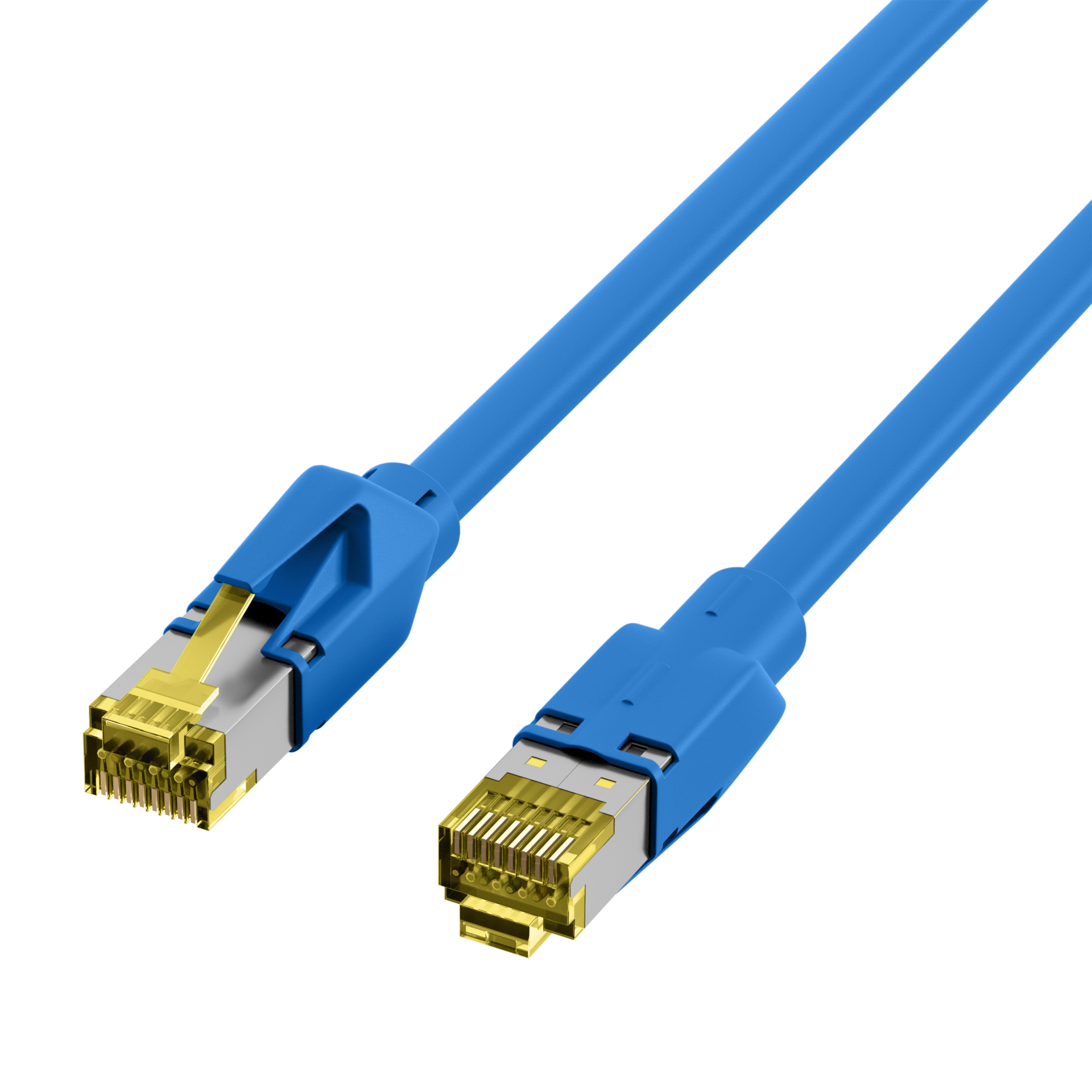

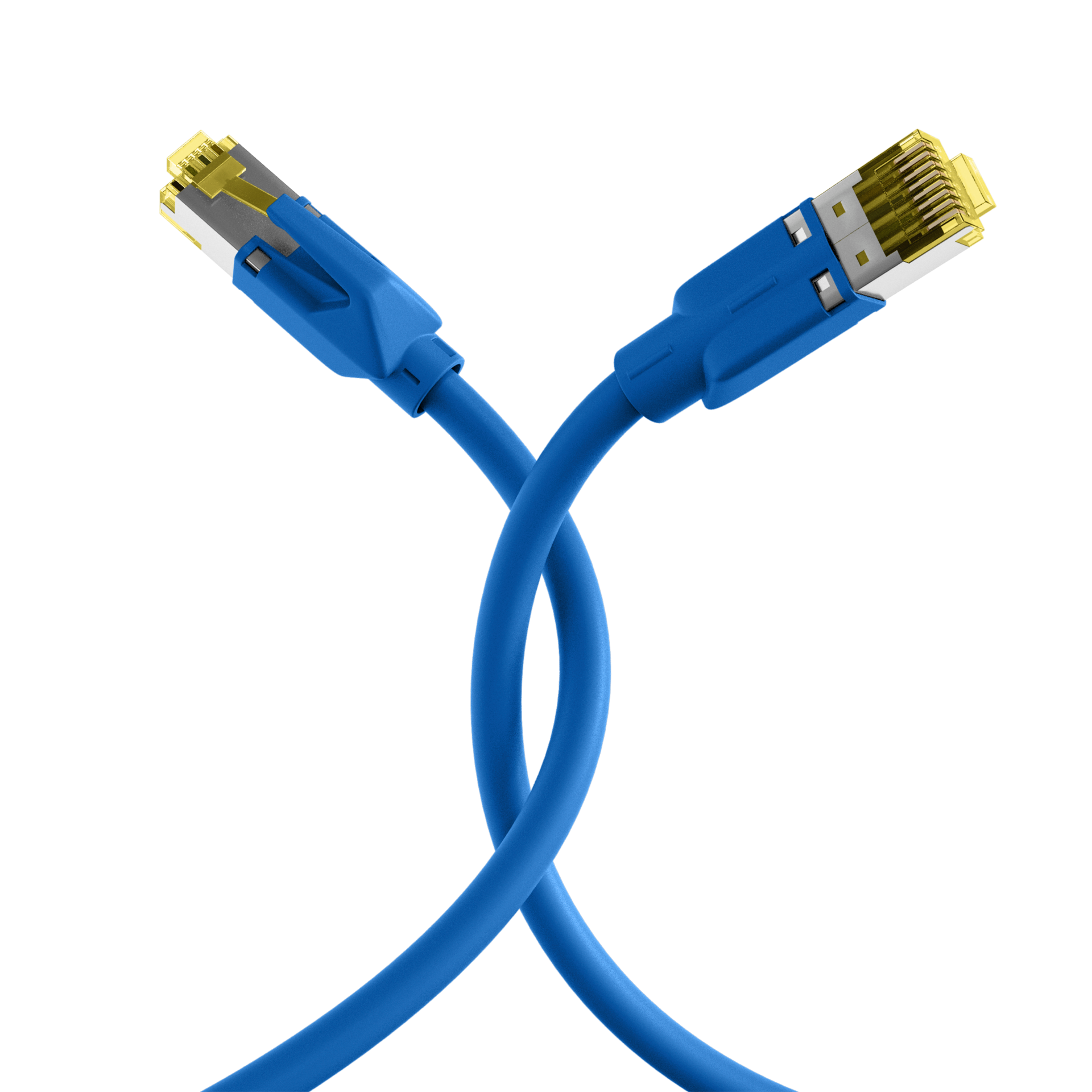

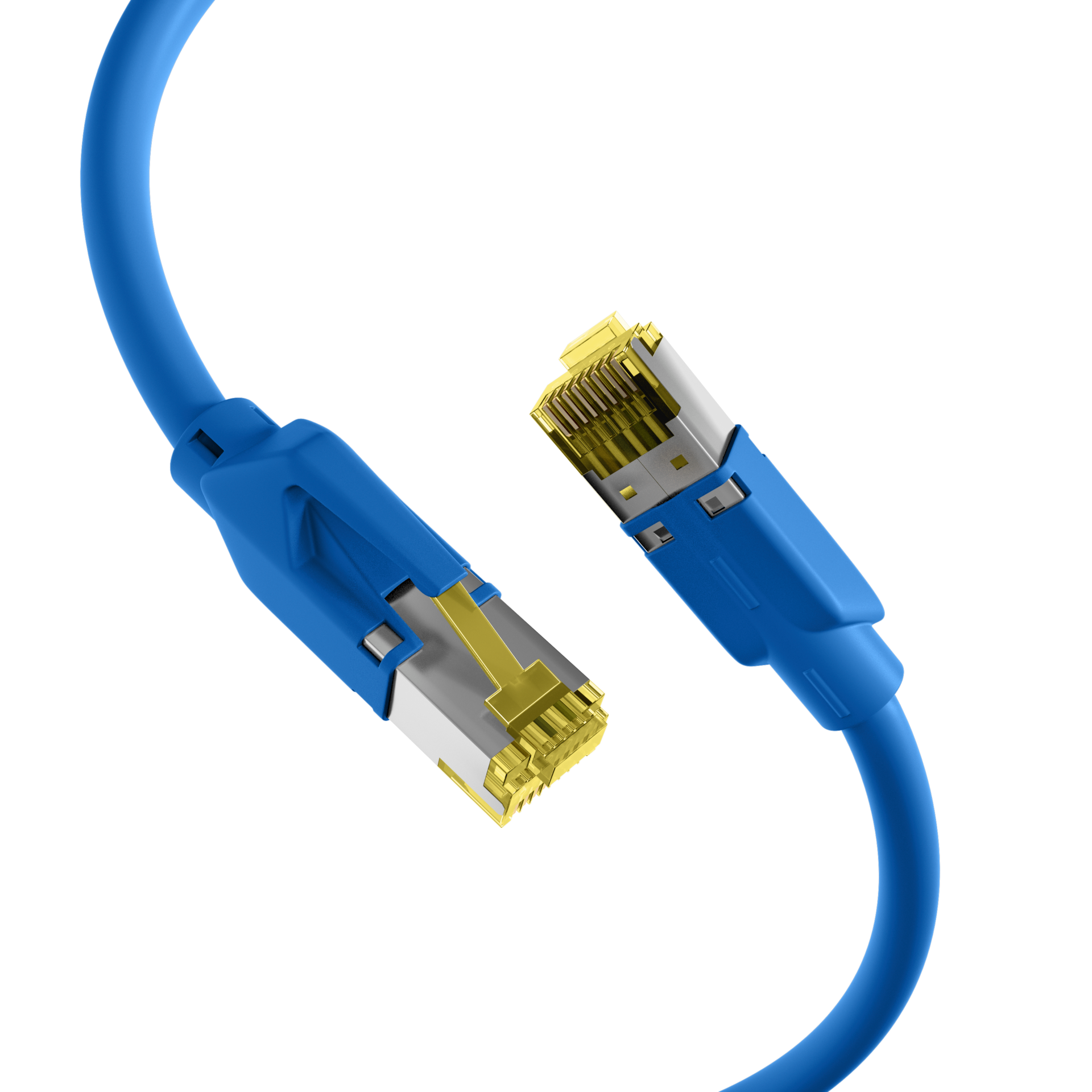

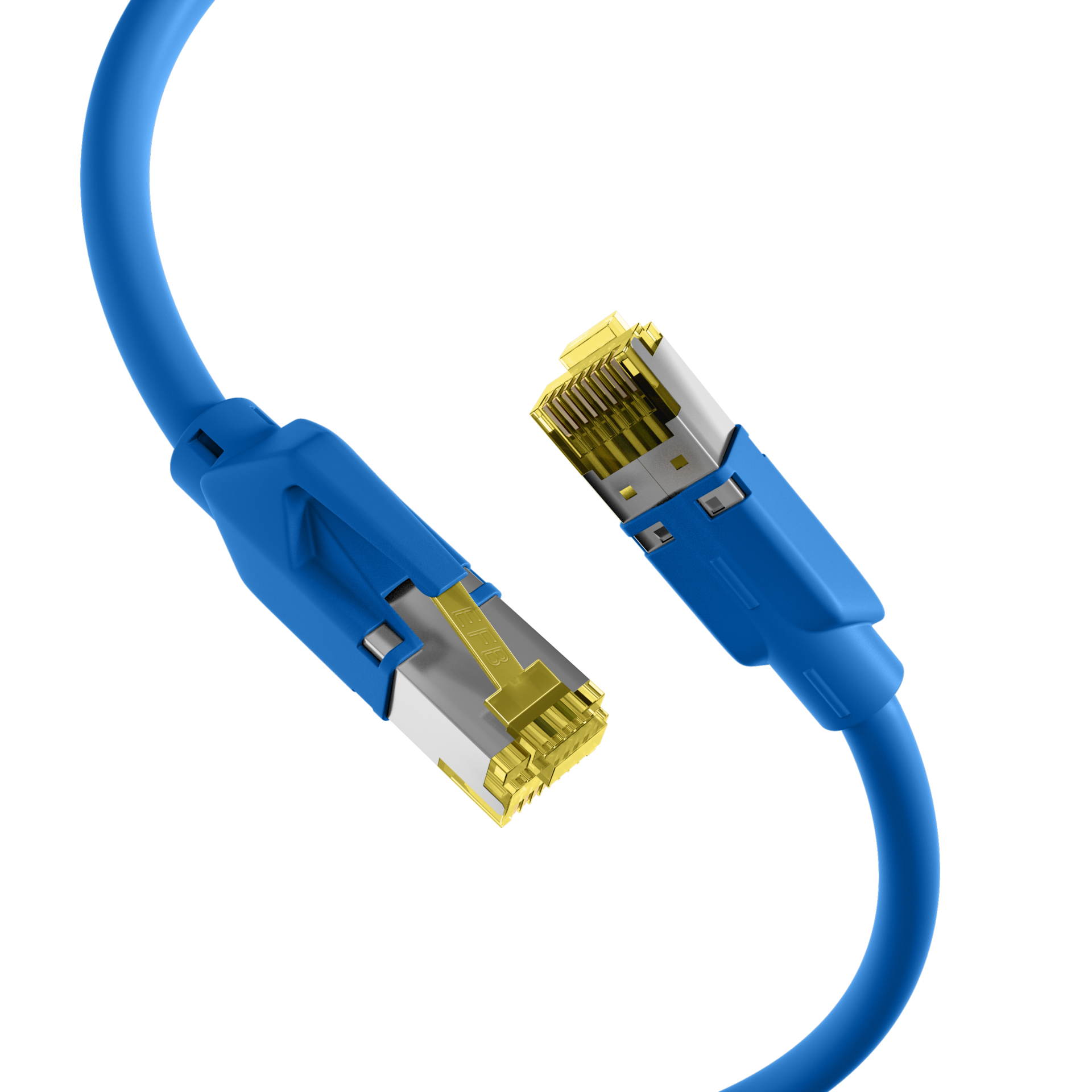

RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau

RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 0,5m
Artikelnummer: K8580BL.0,50
EAN Nr.: 4049759017415

Produktinformationen für RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 0,5m

RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31

Das Cat.6A (TIA) Patchkabel hat vergoldete Kontakte und ermöglicht als Übertragungsstandard 10Gbit Ethernet.

Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG26/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der gelben TM31-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B.

Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Die Bandbreite beträgt 500 MHz.

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6A (TIA)
Mantel-Farbe: blau
(Halogenfrei): Ja
AWG-Querschnitt: 26/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,8 mm
Bandbreite: 500MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >20 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: blau
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100 ±5 Ω

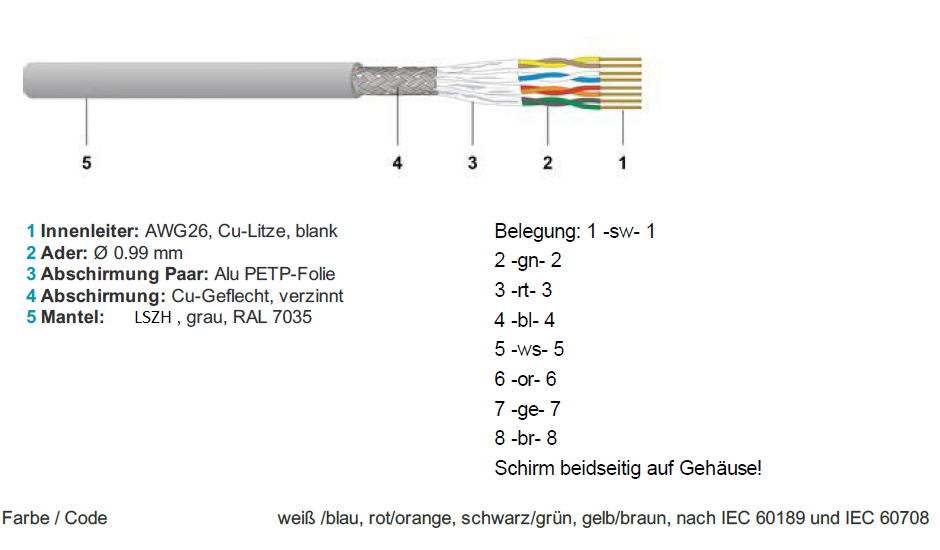

Kabelkonstruktion: 4x2
Kabeltyp: S/FTP
Kabeltyp nach Hersteller: Dätwyler CU 7702 flex
Knickschutztülle: aufgesteckt
Kontakte: Vergoldet
Leitermaterial: Kupfer
Leiterwiderstand DC: 135 Ω/km
Längenaufdruck: Nein
Mantelmaterial: LSZH
NVP-Wert: 78 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: nach IEC61034
Rohkabel: Cat.7
Schirmkontaktierung: 360° Schirmbefestigung
Schleifenwiderstand: 270 Ω/km
Steckertyp: TM31 gelb
Steckverbinder: IEC 60603-7-51
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich (Betrieb): -20 – 60 °C
Temperaturbereich (Installation): 0 – 50 °C
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 10Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8580BL.0,50 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 0,5m 0,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.1 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 1m 1,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.1,5 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 1,5m 1,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.2 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 2m 2,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.3 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 3m 3,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.5 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 5m 5,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.7,5 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 7,5m 7,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.10 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 10m 10,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.15 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 15m 15,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.20 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 20m 20,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8580BL.25 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 25m 25,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at ±5 %
K8580BL.30 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 30m 30,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at ±5 %
K8580BL.40 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 40m 40,0 m PoE nach IEEE802.3af ±5 %
K8580BL.50 RJ45 Patchkabel Cat.6A S/FTP LSZH Dätwyler 7702 TM31 blau 50m 50,0 m Nein ±5 %
