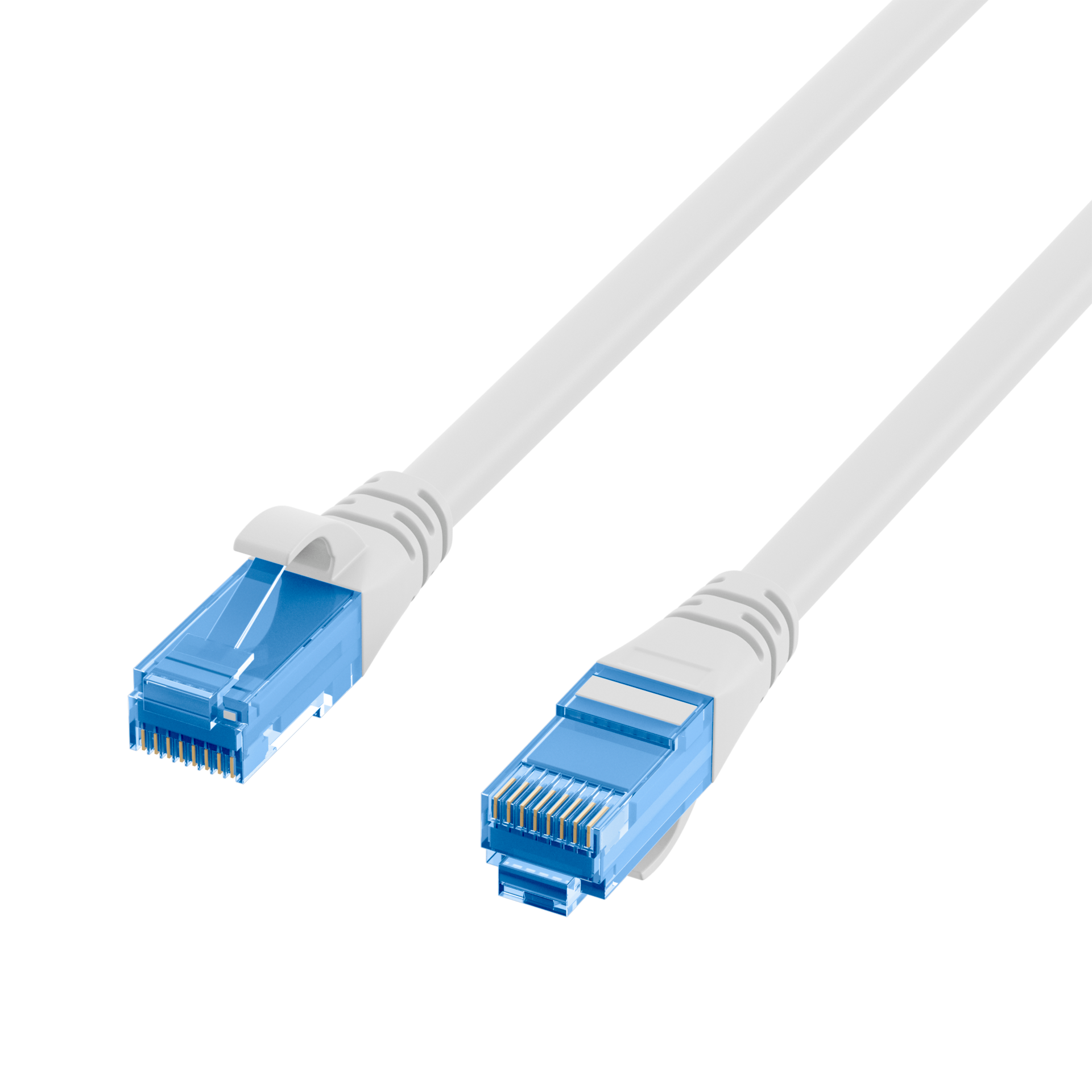

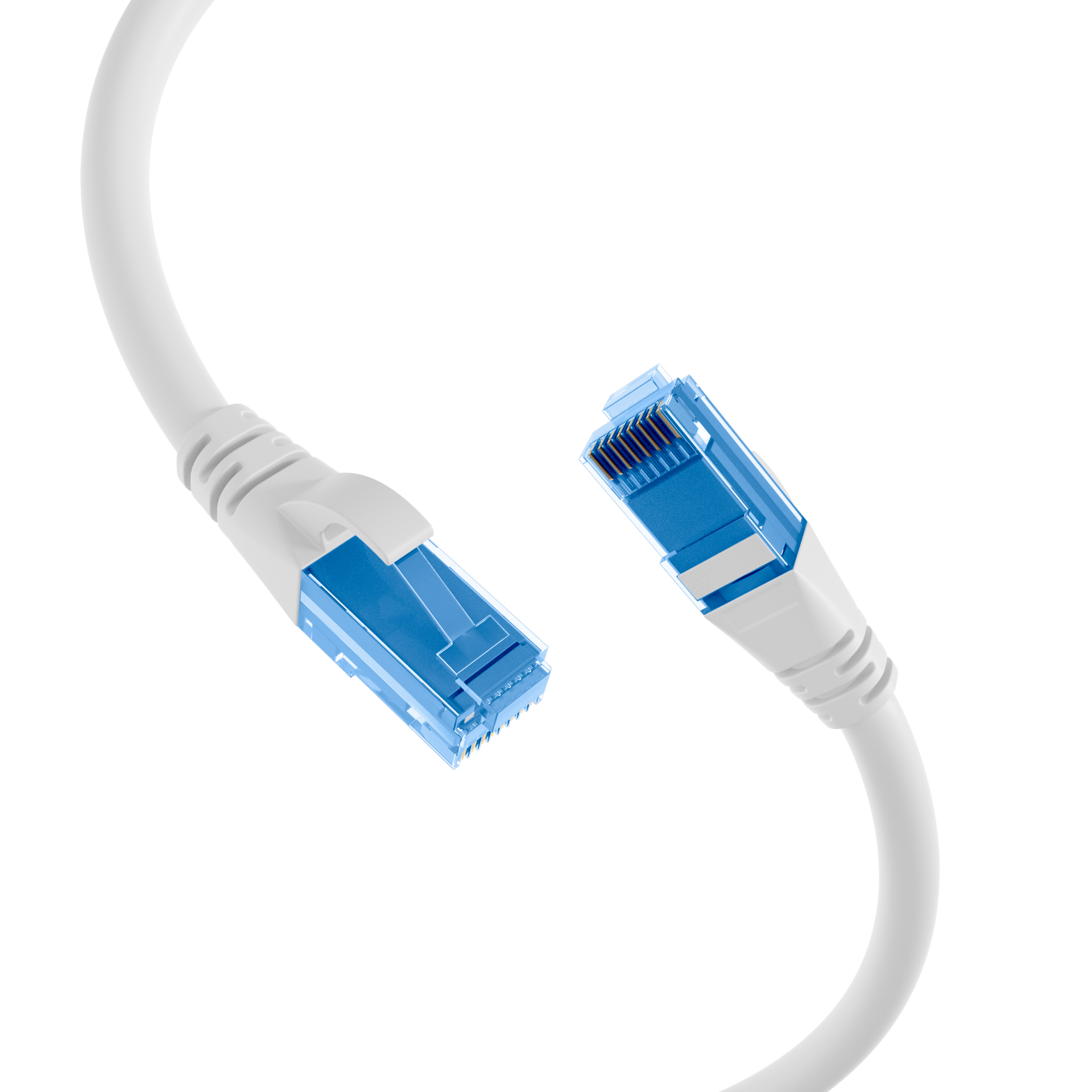

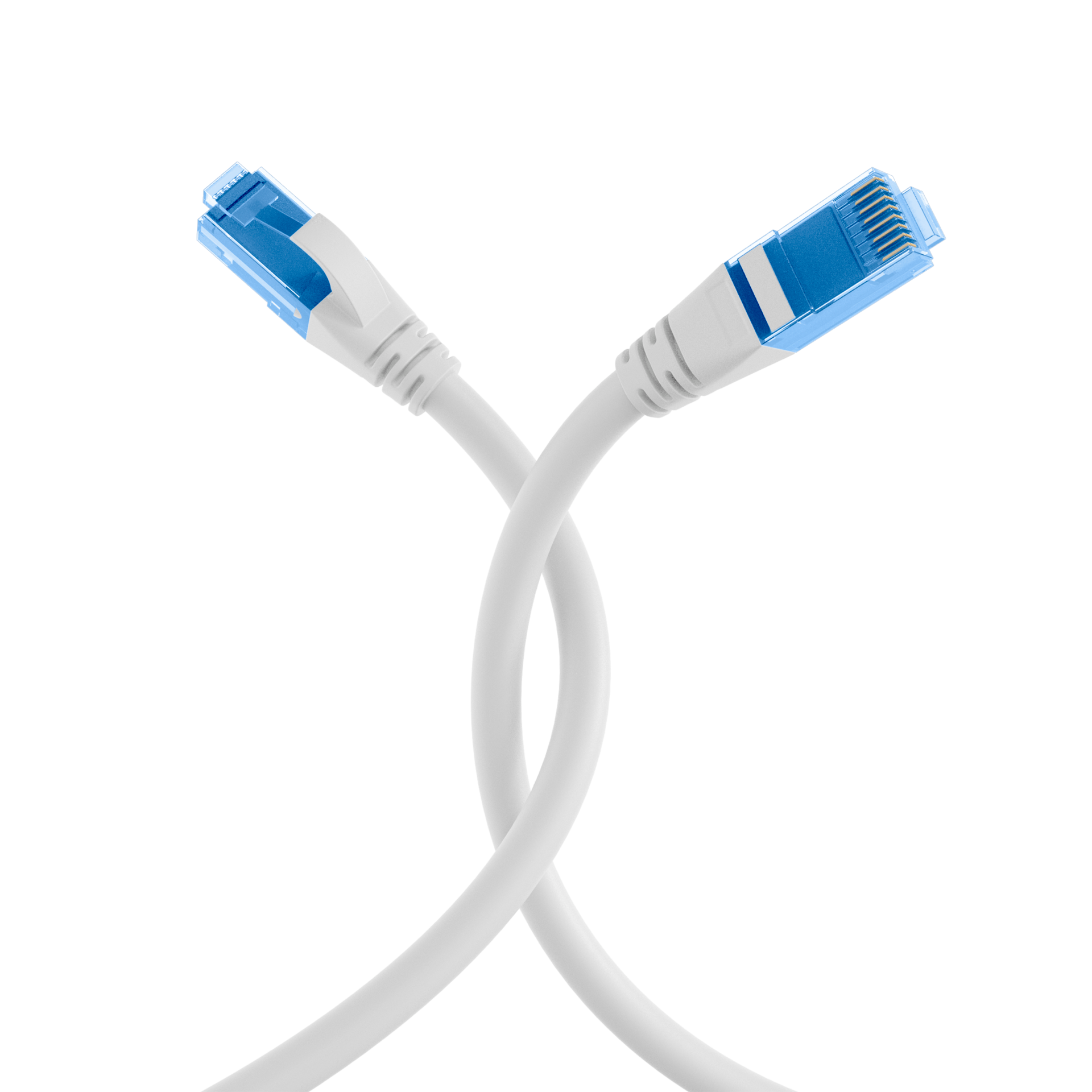

RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß

RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 0,15m
Artikelnummer: K8109WS.0,15
EAN Nr.: 4049759247492

Produktinformationen für RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 0,15m

RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz

Das Cat.6A (TIA) Patchkabel erfüllt die Anforderungen für 10Gbit Ethernet und hat vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6A (TIA)
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Zusätzlich bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der blauen RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Geeignet für den Temperaturbereich 0 – 60 °C.

Das LAN Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich optimal für Applikationen in der strukturierten Gebäudeverkabelung und in Rechenzentren. Eine Bandbreite von bis zu 500 MHz wird dabei ermöglicht.

Technische Eigenschaften

Ausführung: ungeschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6A (TIA)
Mantel-Farbe: weiß
(Halogenfrei): Ja
AWG-Querschnitt: 24/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 6,0 mm
Bandbreite: 500MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >30 mm
Chemisch beständig: Nein
Einsatzgebiet: Industrial Ethernet
Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: weiß
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Impedanz: 100
Kabelaufdruck: Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet***
Kabelkonstruktion: 4x2
Kabeltyp: U/UTP
Knickschutztülle: angespritzt
Kontakte: Vergoldet µ" Vergoldet
Leitermaterial: Kupfer
Längenaufdruck: Ja
Mantelmaterial: LSZH
NVP-Wert: 0 %
Ozon beständig: Nein
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: Ja
Schirmkontaktierung: Nein
Steckertyp: RJ45 Standard blau
Steckverbinder: IEC 60603-7-41
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: 0 – 60 °C
Verkabelungsstandard: ANSI/TIA-568
EN50173

ISO/IEC 11801
Ölbeständig: Nein
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 10Gbit

Varianten

Art. Nr. Bezeichnung Länge POE Klasse Längentoleranz
K8109WS.0,15 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 0,15m 0,15 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.0,25 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 0,25m 0,25 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.0,5 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 0,5m 0,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.1 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 1m 1,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.1,5 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 1,5m 1,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.2 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 2m 2,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.3 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 3m 3,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.5 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 5m 5,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.7,5 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 7,5m 7,5 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.10 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 10m 10,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
K8109WS.15 RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz weiß 15m 15,0 m PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt ±5 %
