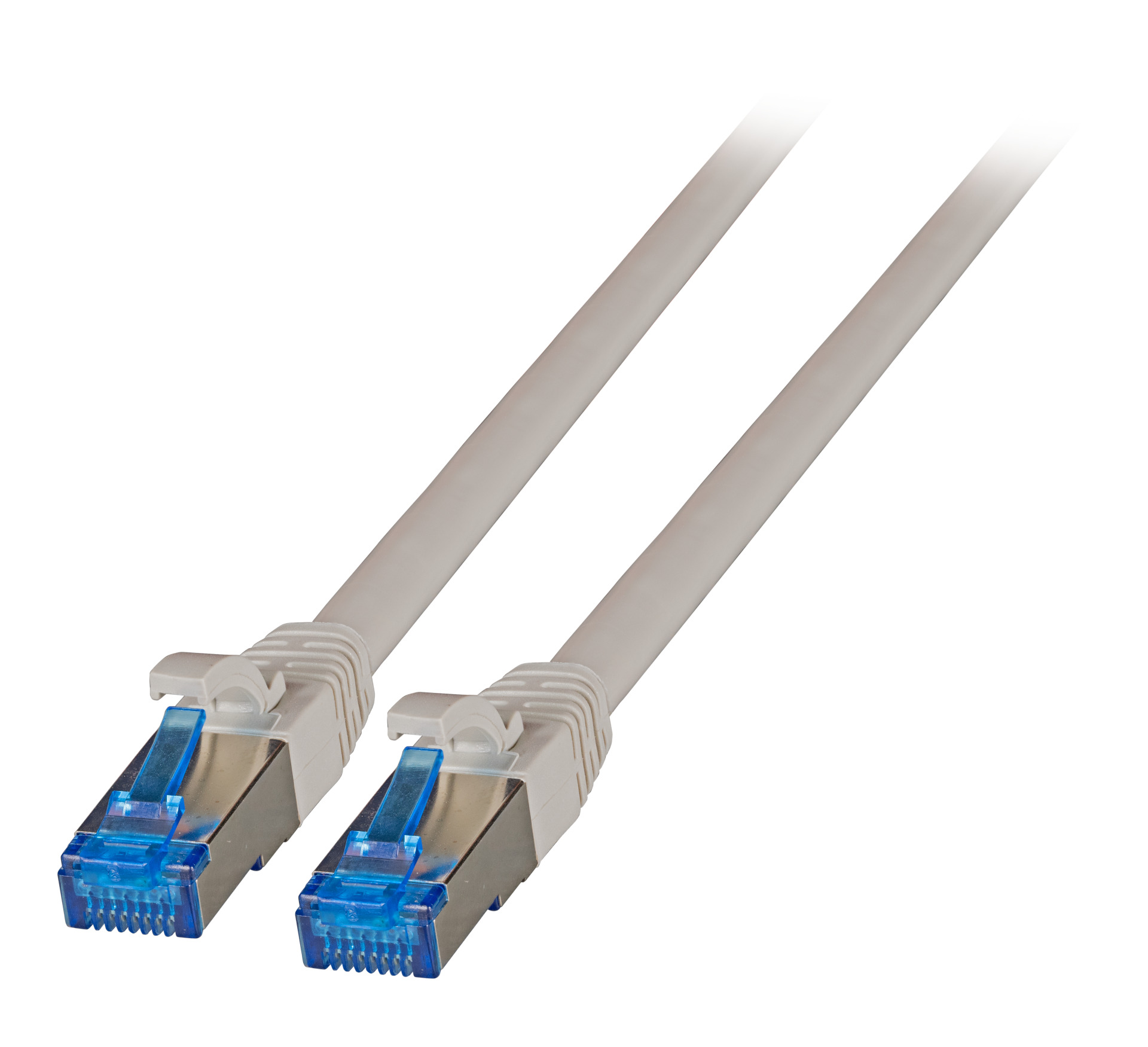

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 0,15m
Artikelnummer: K5525FGR.0,15
EAN Nr.: 4049759187262
Stück

Produktinformationen für RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 0,15m

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex

Das Cat.6A (IEC) Patchkabel ermöglicht als Übertragungsstandard 10Gbit Ethernet und hat vergoldete Kontakte.

Technische Produkteigenschaften
• Cat.6A (IEC)
• S/FTP Kabel mit AWG26/7
• Mantelmaterial aus halogenfreiem TPE/LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte

Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem TPE/LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Zusätzlich bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

Die Belegung der blauen RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Geeignet für den erweiterten Temperaturbereich -20 – 75 °C.

Das Datenkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Der Frequenzbereich beträgt 500 MHz.

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6A (IEC)
Mantel-Farbe: grau
AWG-Querschnitt: 26/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 6,5 mm
Bandbreite: 500MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >32,5 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Farbe der Knickschutztülle: grau
Geeignet für Schutzart (IP): IP20
Halogen frei: nach IEC60754-2
Halogenfrei: Ja
Impedanz: 100 ±25 Ω
Isolationswiderstand: 100 MΩ
Kabelaufdruck: Cat.6A Patchcord SUPERFLEX S/FTP www.efb-elektronik.de
Kabelkonstruktion: 4x2
Kabeltyp: S/FTP
Knickschutztülle: angespritzt
Kontakte: 50 µ" Vergoldet
Kontaktwiderstand: 30 mΩ
Leitermaterial: Kupfer
Leiterwiderstand DC: 142 Ω/km
Längenaufdruck: Ja
Mantelmaterial: TPE/LSZH
NVP-Wert: - %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: nach IEC61034
Rohkabel: Cat.7
Schirmkontaktierung: 360° Schirmbefestigung
Schleifenwiderstand: 284 Ω/km
Silikonfrei: Ja
Steckertyp: RJ45 Standard blau
Steckverbinder: IEC 60603-7-51
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich: -20 – 75 °C
Verkabelungsstandard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Widerstandsunsymmetrie: 2 %
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein
Übertragung: 10Gbit

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K5525FGR.0,15 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 0,15m 0,15 m ±5 %
K5525FGR.0,25 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 0,25m 0,25 m ±5 %
K5525FGR.0,5 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 0,5m 0,5 m ±5 %
K5525FGR.1 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 1m 1,0 m ±5 %
K5525FGR.1,5 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 1,5m 1,5 m ±5 %
K5525FGR.2 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 2m 2,0 m ±5 %
K5525FGR.3 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 3m 3,0 m ±5 %
K5525FGR.5 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 5m 5,0 m ±5 %
K5525FGR.7,5 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 7,5m 7,5 m ±5 %
K5525FGR.10 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 10m 10,0 m ±5 %
K5525FGR.15 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 15m 15,0 m ±5 %
K5525FGR.20 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 20m 20,0 m ±5 %
K5525FGR.25 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 25m 25,0 m ±5 %
K5525FGR.30 RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grau 30m 30,0 m ±5 %

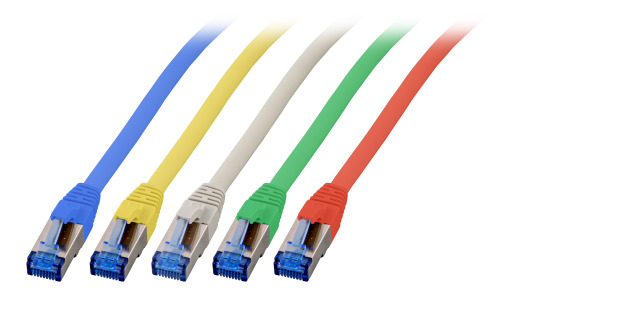

Ähnlicher Artikel

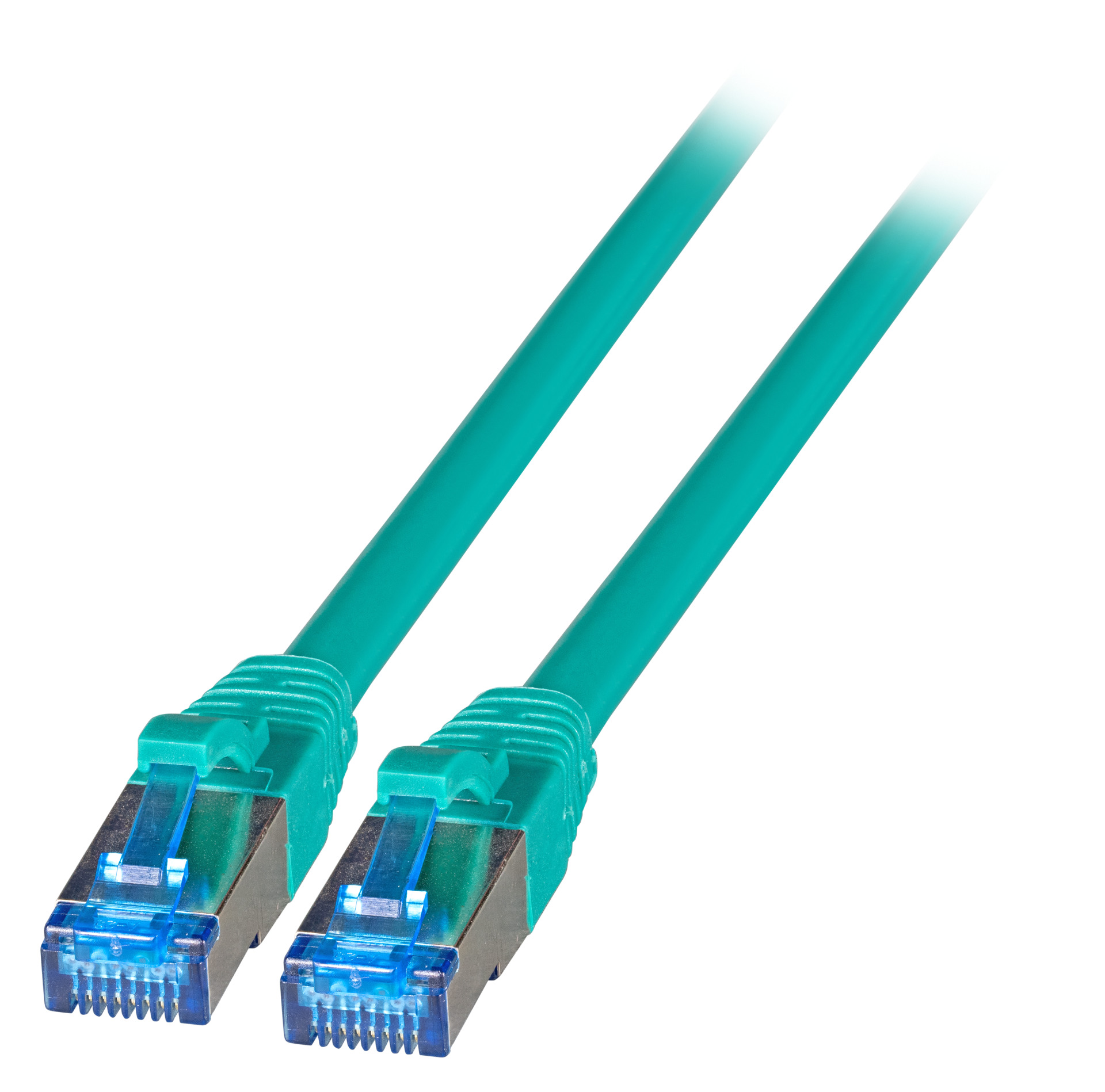

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex grün 1m
RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex blau 1m

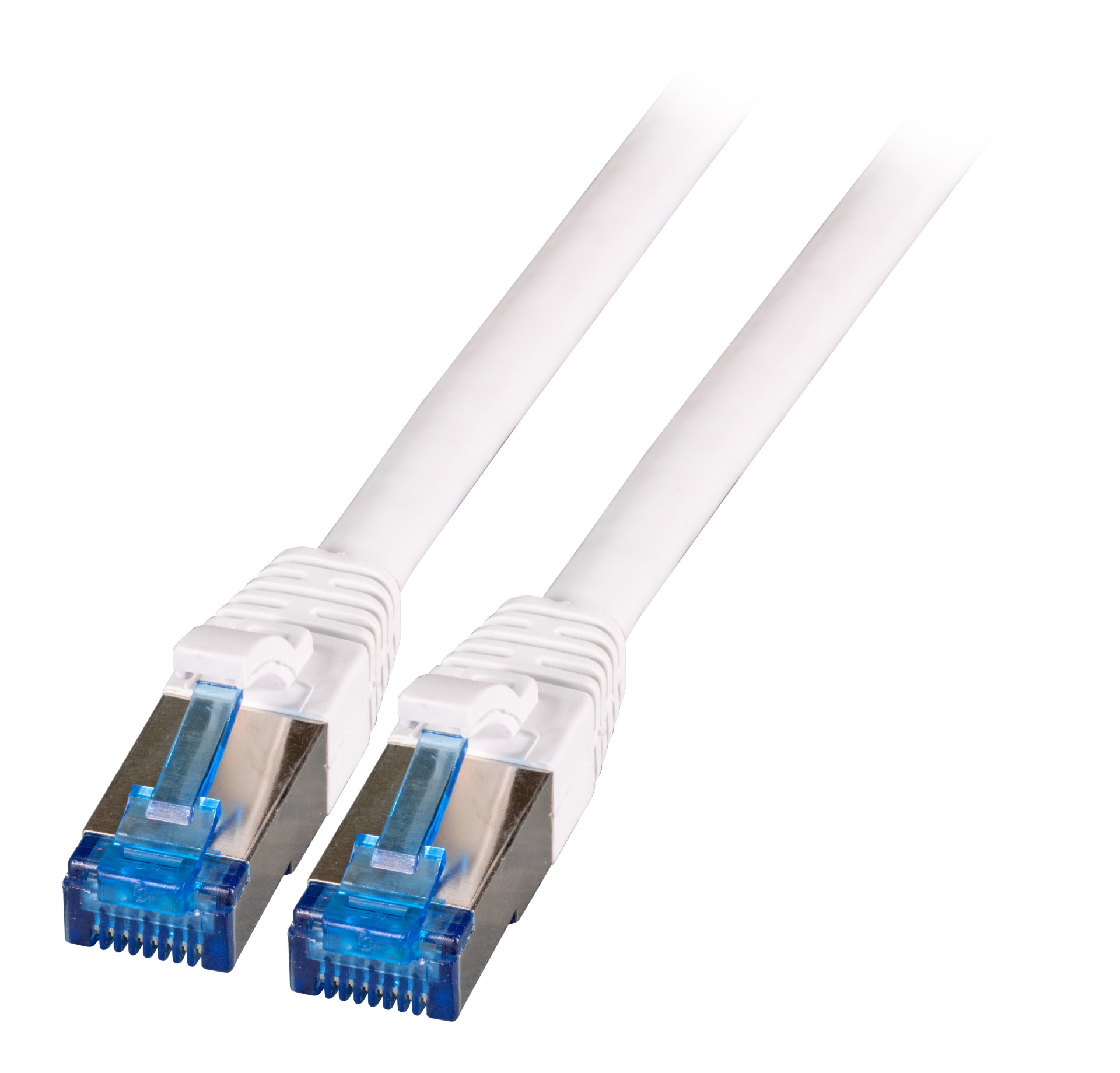

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex weiß 1m

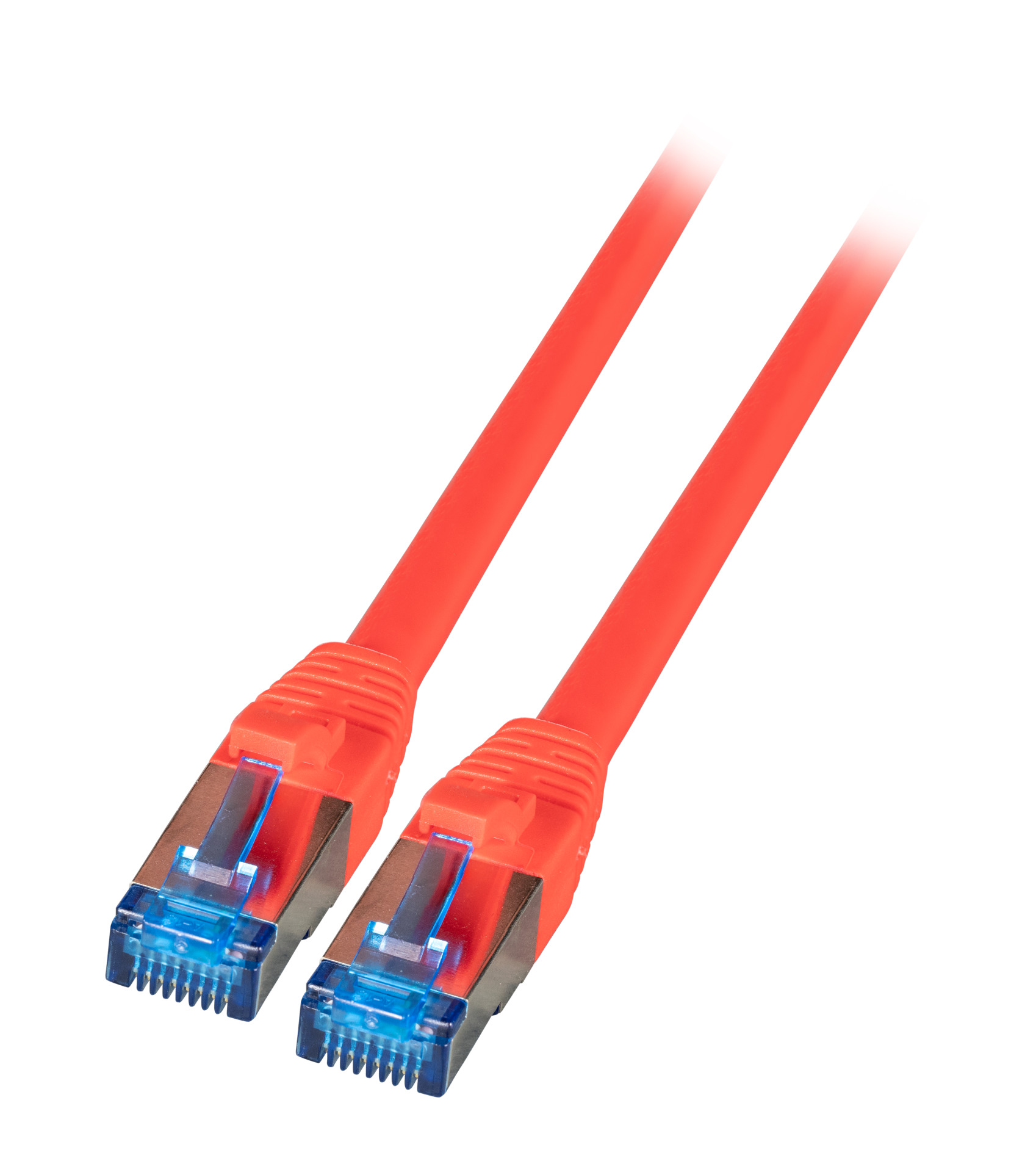

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex rot 1m

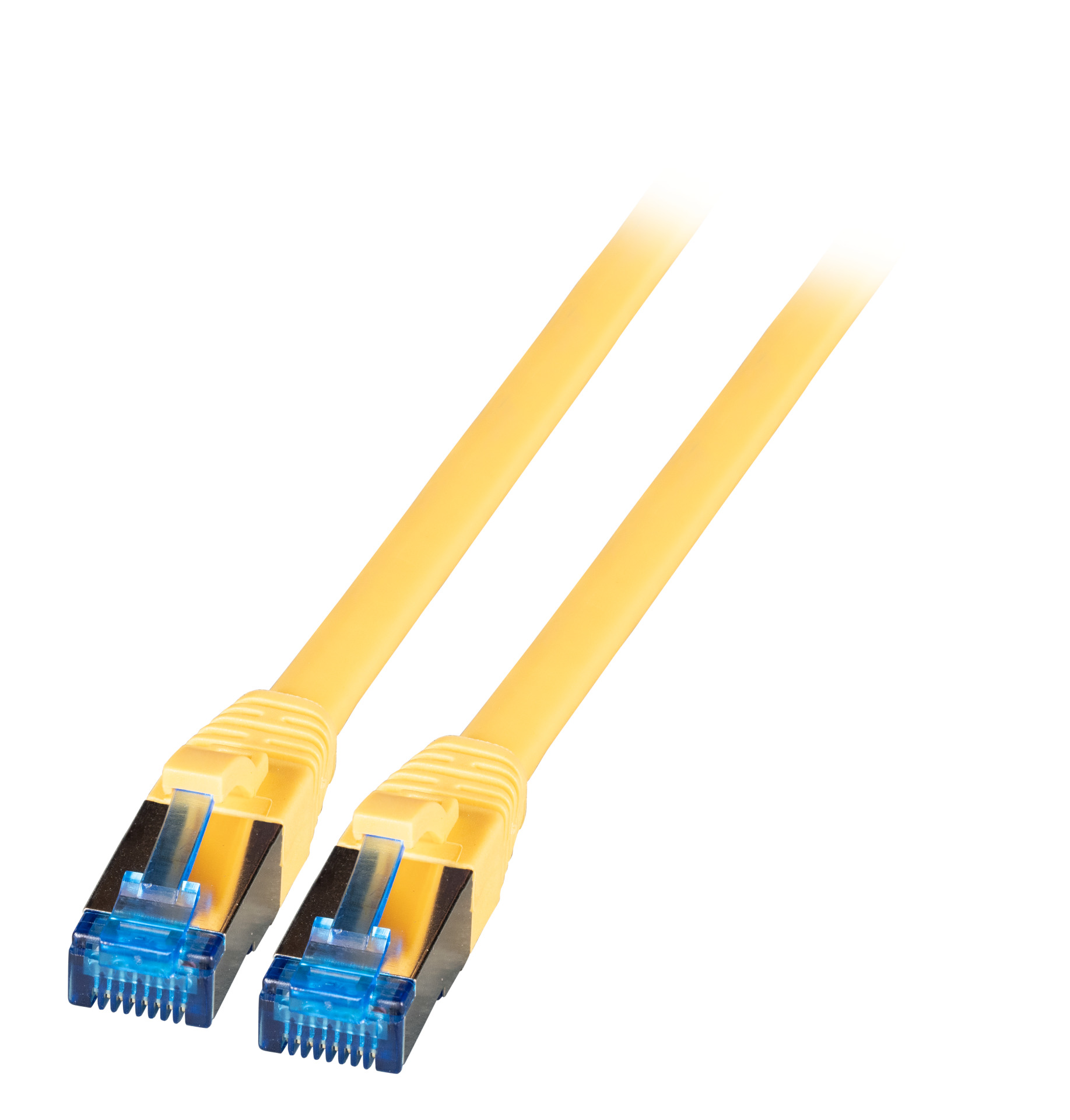

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex gelb 1m

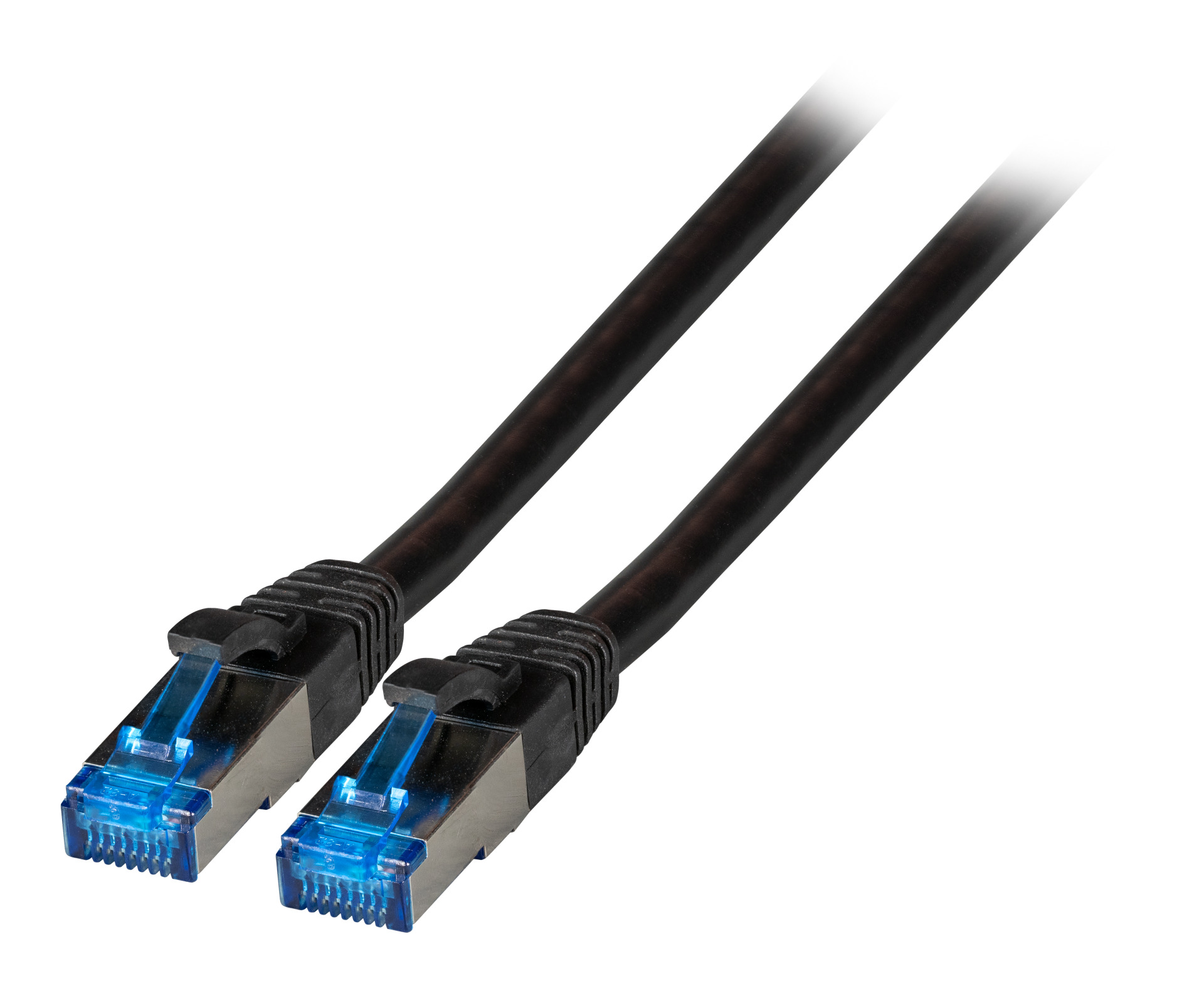

RJ45 Patchkabel Cat.6A S/FTP TPE Cat.7 Rohkabel superflex schwarz 1m
