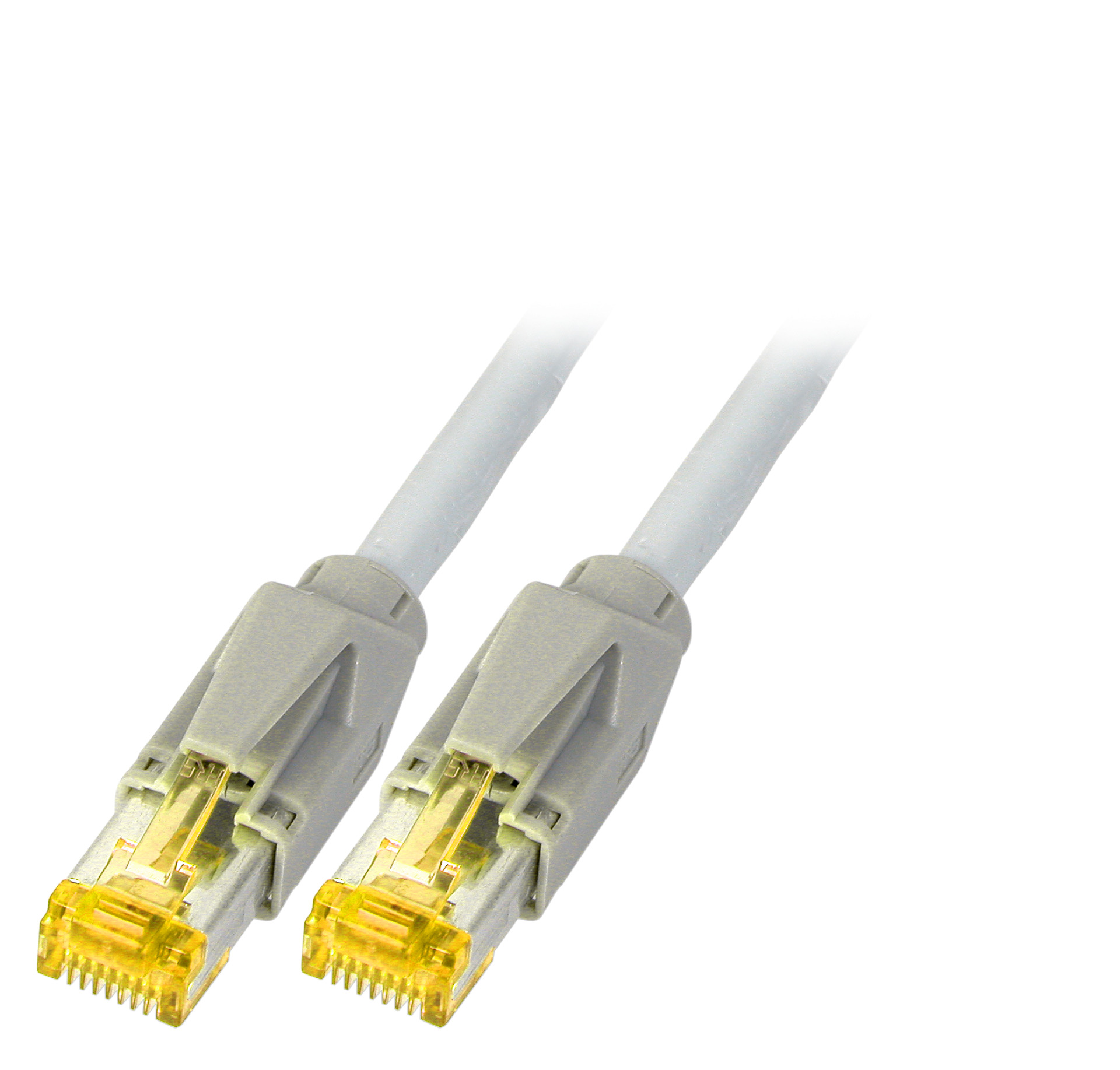

RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, grau

Preise nur für eingeloggte Nutzer sichtbar

RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 0,15m, grau
Artikelnummer: K8560GR.0,15
EAN Nr.: 4049759236687
Stück

Produktinformationen für RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 0,15m, grau

Das in Europa gefertigte Cat.6A RJ45 Patchkabel gewährleistet sehr gute Eigenschaften für 10 Gigabit Ethernet Anwendungen. Zusammengesetzt ist das Patchkabel aus dem Cat.7 Rohkabel UC900 SS27 von Draka und TM31 Steckern von Hirose.

Querschnitt 4 x 2 x AWG27/7
Montierte Knickschutztülle

Technische Eigenschaften

Ausführung: Geschirmt
Steckverbindertyp Anschluss 1: RJ45 8(8)
Steckverbindertyp Anschluss 2: RJ45 8(8)
Kategorie: 6A (TIA)
Mantel-Farbe: grau
AWG-Querschnitt: 27/7
Ausführung flammwidrig: Ja
Außendurchmesser des Kabels: 5,9 mm
Bandbreite: 500MHz
Belegung: nach TIA/EIA 568B
Betriebs-/Bemessungsspannung: max. 50 V DC
Biegeradius: >25 mm
Einsatzgebiet: Industrial Ethernet
Rechenzentrum

Strukturierte Gebäudeverkabelung
Euroklasse: Eca
Farbe der Knickschutztülle: grau
Flammwidrig: nach IEC60332-1
Geeignet für Schutzart (IP): IP20
Gesamtabschirmung: ca. 45 %
Halogen frei: nach IEC60754-2
Halogenfrei: Ja
Harmonisierte Norm: EN 50575
Impedanz: 100 ±5 Ω
Isolationswiderstand: > 2000 MΩ
Kabelkonstruktion: 4x2
Kabeltyp: S/FTP
Kabeltyp nach Hersteller: Draka UC900 SS27
Knickschutztülle: aufgesteckt
Kontakte: Vergoldet
Leitermaterial: Kupfer
Leiterwiderstand DC: 170 Ω/km
Mantelmaterial: LSZH
NVP-Wert: 79 %
POE Klasse: 4PPoE nach IEEE802.3bt
PoE+ nach IEEE802.3at

PoE nach IEEE802.3af
Pinbelegung: 1:1
Prüfspannung: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Rasthebelschutz: Ja
Raucharm: nach IEC61034
Rohkabel: Cat.7
Schirmkontaktierung: 360° Schirmbefestigung
Schleifenwiderstand: < 340 Ω/km
Steckertyp: TM31 gelb
Steckverbinder: IEC 60603-7-51
Steckzyklen: ≥750
Strombelastbarkeit: max. 1 A
Temperaturbereich (Betrieb): -20 – 60 °C
Temperaturbereich (Installation): 0 – 50 °C
Widerstandsunsymmetrie: < 3 %
Ölbeständig nach EN 60811-2-1: Nein
Ölbeständig nach EN 60811-404: Nein

Varianten

Art. Nr. Bezeichnung Länge Längentoleranz
K8560GR.0,15 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 0,15m, grau 0,15 m ±5 %
K8560GR.0,25 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 0,25m, grau 0,25 m ±5 %
K8560GR.0,50 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 0,5m, grau 0,5 m ±5 %
K8560GR.1 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 1m, grau 1,0 m ±5 %
K8560GR.1,5 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 1,5m, grau 1,5 m ±5 %
K8560GR.2 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 2m, grau 2,0 m ±5 %
K8560GR.3 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 3m, grau 3,0 m ±5 %
K8560GR.5 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 5m, grau 5,0 m ±5 %
K8560GR.7,5 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 7,5m, grau 7,5 m ±5 %
K8560GR.10 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 10m, grau 10,0 m ±5 %
K8560GR.15 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 15m, grau 15,0 m ±5 %
K8560GR.20 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 20m, grau 20,0 m ±5 %
K8560GR.25 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 25m, grau 25,0 m ±5 %
K8560GR.30 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 30m, grau 30,0 m ±5 %
K8560GR.40 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 40m, grau 40,0 m ±5 %
K8560GR.50 RJ45 Patchkabel S/FTP, Cat.6A, TM31, UC900, 50m, grau 50,0 m ±5 %
