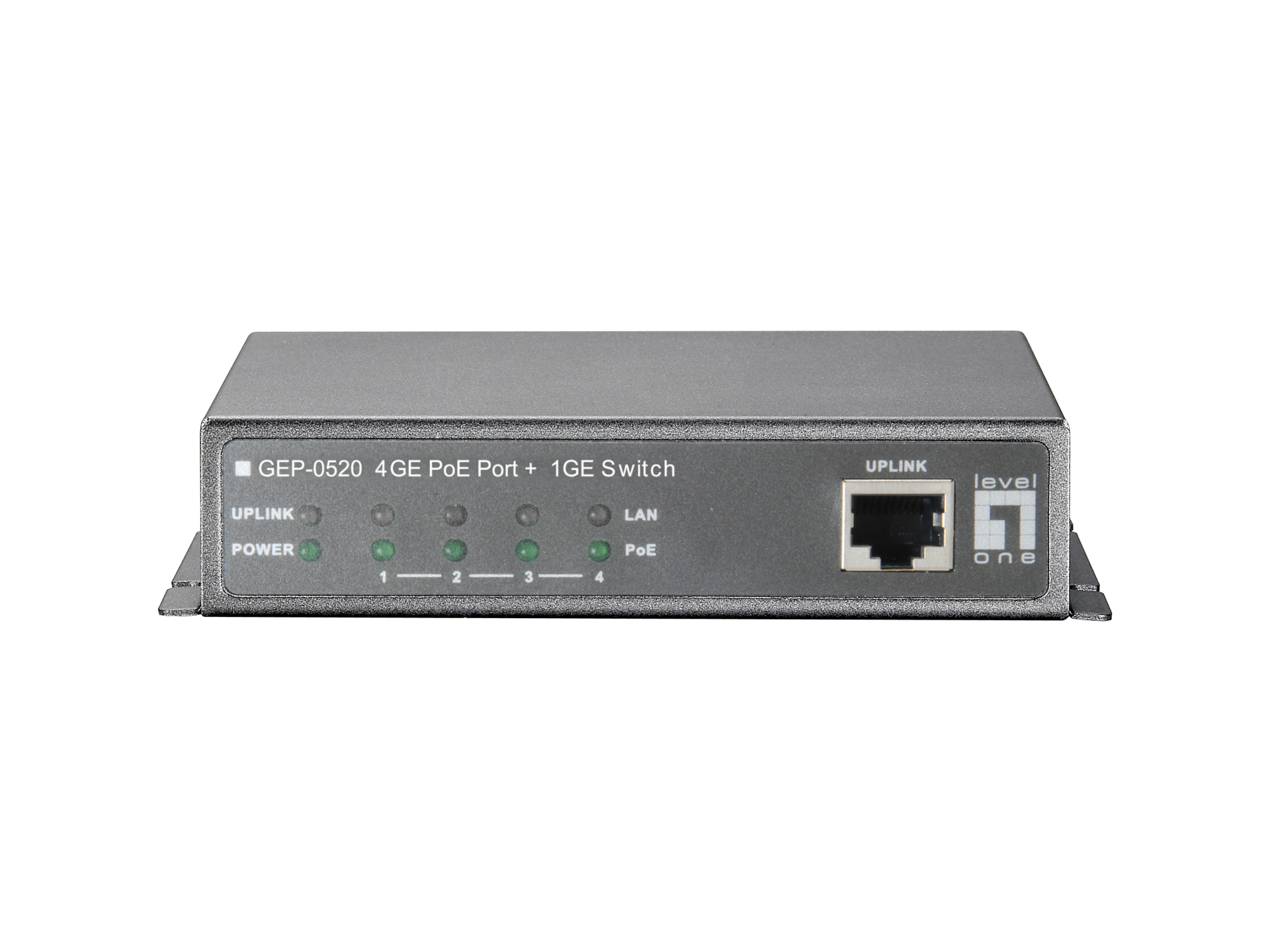

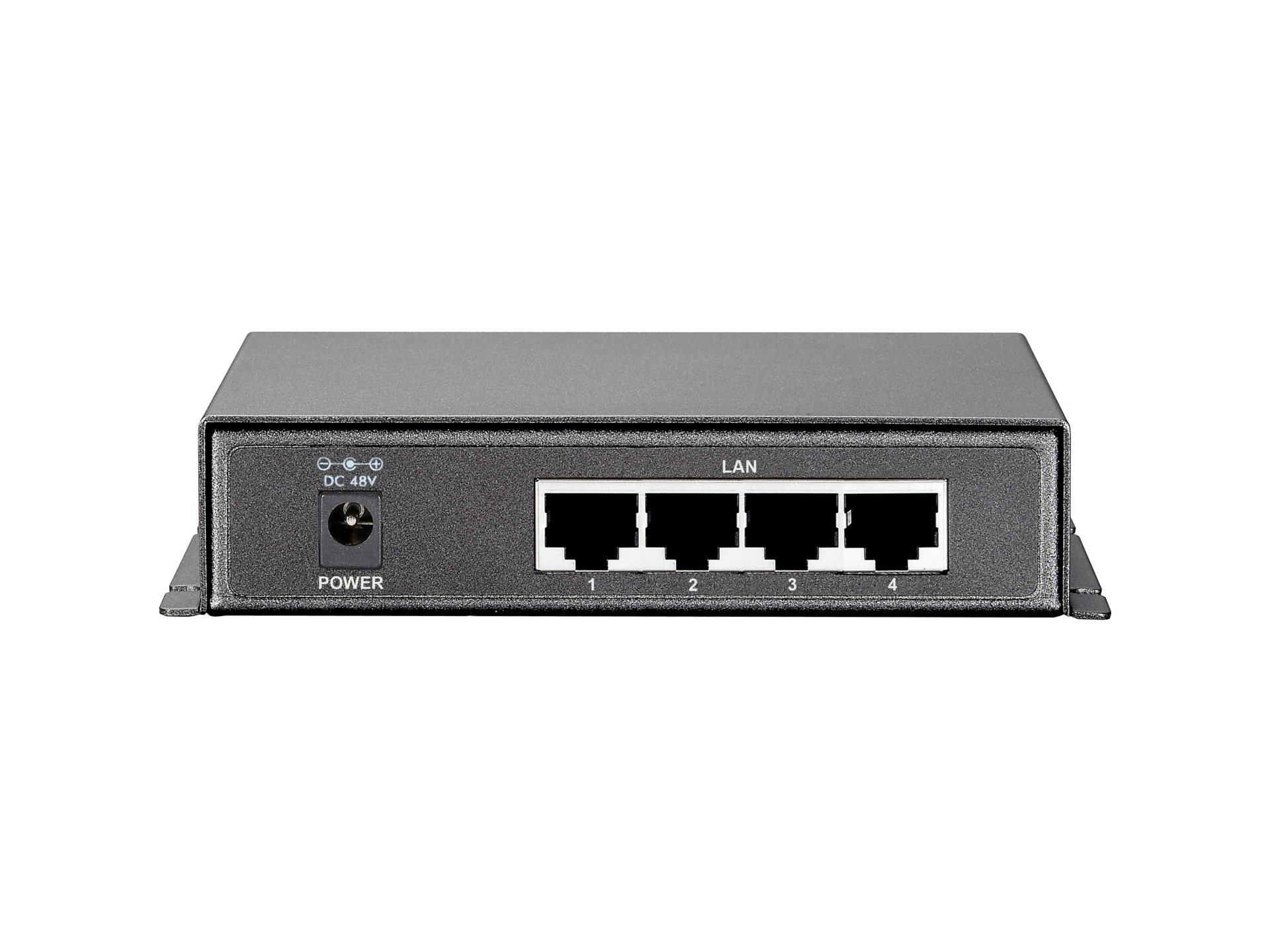

GEP-0520, 4GE PoE + 1GE Switch
1-Port Gigabit Ethernet + 4-Port PoE Desktop PSE Switch
Item number:
GEP-0520
EAN no.:
4015867158135
Product information for 1-Port Gigabit Ethernet + 4-Port PoE Desktop PSE Switch
Advanced PoE solution
The LevelOne GEP-0520 is a high-performance
10/100/1000Mbps Gigabit PoE Switch with 4 Gigabit
PoE ports + 1 Gigabit uplink port. Any PoE port
can be supplied with up to 15.4W. The entire
PoE power budget is 61.6W. The switch is
an ideal solution for office and home users who
a combination of PoE and non-PoE devices
want to use. It automatically recognizes them
IEEE 802.3af compatible devices and supplies power
and data via a single patch cable.
The GEP-0520 has a compact design, so it
is ideal for desktop users. you also have
the possibility of up to 8 GEP-0520 in a 19" chassis
(POC-6000) for a large-scale rack PoE solution
to install.
Stable and reliable network
The GEP-0520 allows users to have a
stable and reliable high-speed LAN environment
to build. With store-and-forward switching architecture, the GEP-0520 offers a stable and
reliable packet error filtering and non-blocking
Packet forwarding. This switch supports
the N-Way Auto-Negotiation Protocol, which
automatically the network speed and
Detects duplex modes.
Easy to handle
The GEP-0520 is included for immediate error detection
LED indicators equipped to detect network problems
easy to locate.
The LevelOne GEP-0520 is a high-performance
10/100/1000Mbps Gigabit PoE Switch with 4 Gigabit
PoE ports + 1 Gigabit uplink port. Any PoE port
can be supplied with up to 15.4W. The entire
PoE power budget is 61.6W. The switch is
an ideal solution for office and home users who
a combination of PoE and non-PoE devices
want to use. It automatically recognizes them
IEEE 802.3af compatible devices and supplies power
and data via a single patch cable.
The GEP-0520 has a compact design, so it
is ideal for desktop users. you also have
the possibility of up to 8 GEP-0520 in a 19" chassis
(POC-6000) for a large-scale rack PoE solution
to install.
Stable and reliable network
The GEP-0520 allows users to have a
stable and reliable high-speed LAN environment
to build. With store-and-forward switching architecture, the GEP-0520 offers a stable and
reliable packet error filtering and non-blocking
Packet forwarding. This switch supports
the N-Way Auto-Negotiation Protocol, which
automatically the network speed and
Detects duplex modes.
Easy to handle
The GEP-0520 is included for immediate error detection
LED indicators equipped to detect network problems
easy to locate.
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 90.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 28.0 mm |
| Layer 2: | False |
| Layer 3: | False |
| Layer 4: | False |
| Layer 7: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 15 W |
| Mounting method: | Desk type |
| Number of ports 10/100/1000 Mbps RJ45: | 5 |
| Number of ports PoE: | 4 |
| Power over Ethernet (PoE): | 802.3 af (PoE) |
| Width: | 120.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
