Professional patch panels for your network
High-quality patch panels from experts

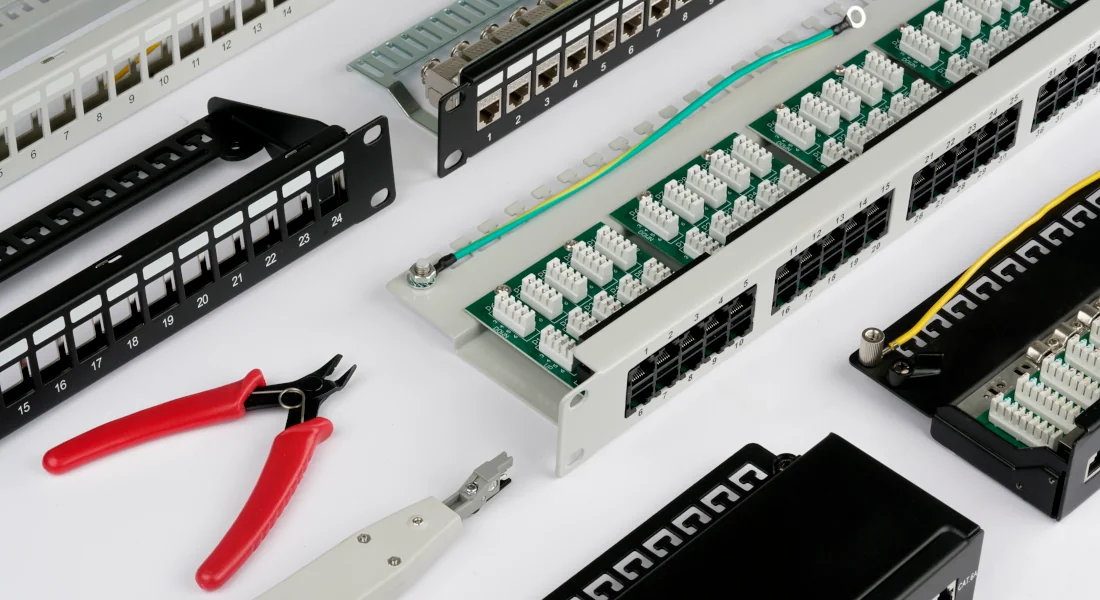

A patch panel (also known as a jack panel or patch bay) is a fundamental component in structured cabling systems, enabling the efficient management of network connections within buildings. Whether you require specific height units, port densities, or shielding options – selecting the right patch panel is critical for maintaining optimal network performance.
At our online shop, you will find a comprehensive selection of premium-quality patch panels, available in standard 10″ and 19″ formats with various port configurations. Complement your installation with compatible keystones and adapters, patch cables, RJ45 connectors, and other essential components for copper cable networks – all available for convenient direct order.
For specialized applications or custom requirements, our network experts are available to provide tailored consultation and technical support. Get in touch with your dedicated contact person for expert advice.
At our online shop, you will find a comprehensive selection of premium-quality patch panels, available in standard 10″ and 19″ formats with various port configurations. Complement your installation with compatible keystones and adapters, patch cables, RJ45 connectors, and other essential components for copper cable networks – all available for convenient direct order.
For specialized applications or custom requirements, our network experts are available to provide tailored consultation and technical support. Get in touch with your dedicated contact person for expert advice.
Request consultation Further information
Sort by
Item no. 37736.8
Mini-Patchpanel STP 8xRJ45 Cat.6, 10“ 1U, RAL7035, grey
Color:
grey
Number of buses/couplings:
8
RAL number:
7035
Item no. 37736.12
Mini-Patchpanel STP 12xRJ45 Cat.6, 10“ 1U, RAL7035 grey
Color:
grey
Number of buses/couplings:
12
RAL number:
7035
Item no. 37667SW.1M
Patchpanel STP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005
Item no. 37666SW.1M
Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005 black
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005
Item no. 37737.12
Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1U, RAL7035 grey
Color:
grey
Number of buses/couplings:
12
RAL number:
7035
Item no. 37737.8
Mini-Patchpanel STP 8xRJ45 Cat.6A, 10“ 1U, RAL7035 grey
Color:
grey
Number of buses/couplings:
8
RAL number:
7035
Item no. 37598.1
CAT.6A 24-Port Patch-Panel 19" 1U armed with mounting-adapter
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005
Item no. 11324126
ECOLAN® Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
Colour:
black
Number of buses/couplings:
24
RAL-number:
9005
Item no. 37585.1
Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, 180°, RAL9005 black
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005
Item no. 37583SW.1
Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005
Item no. 37668.1M
Patchpanel STP 24xRJ45 Cat.5e, 19“ 1U, RAL7035 grey
Color:
grey
Number of buses/couplings:
24
RAL number:
7035
Item no. 37656.1
Patchpanel STP 24xRJ45 Cat.6A/Class EA, 19“ 1U, RAL9005 black
Color:
schwarz
Number of buses/couplings:
24
RAL number:
9005

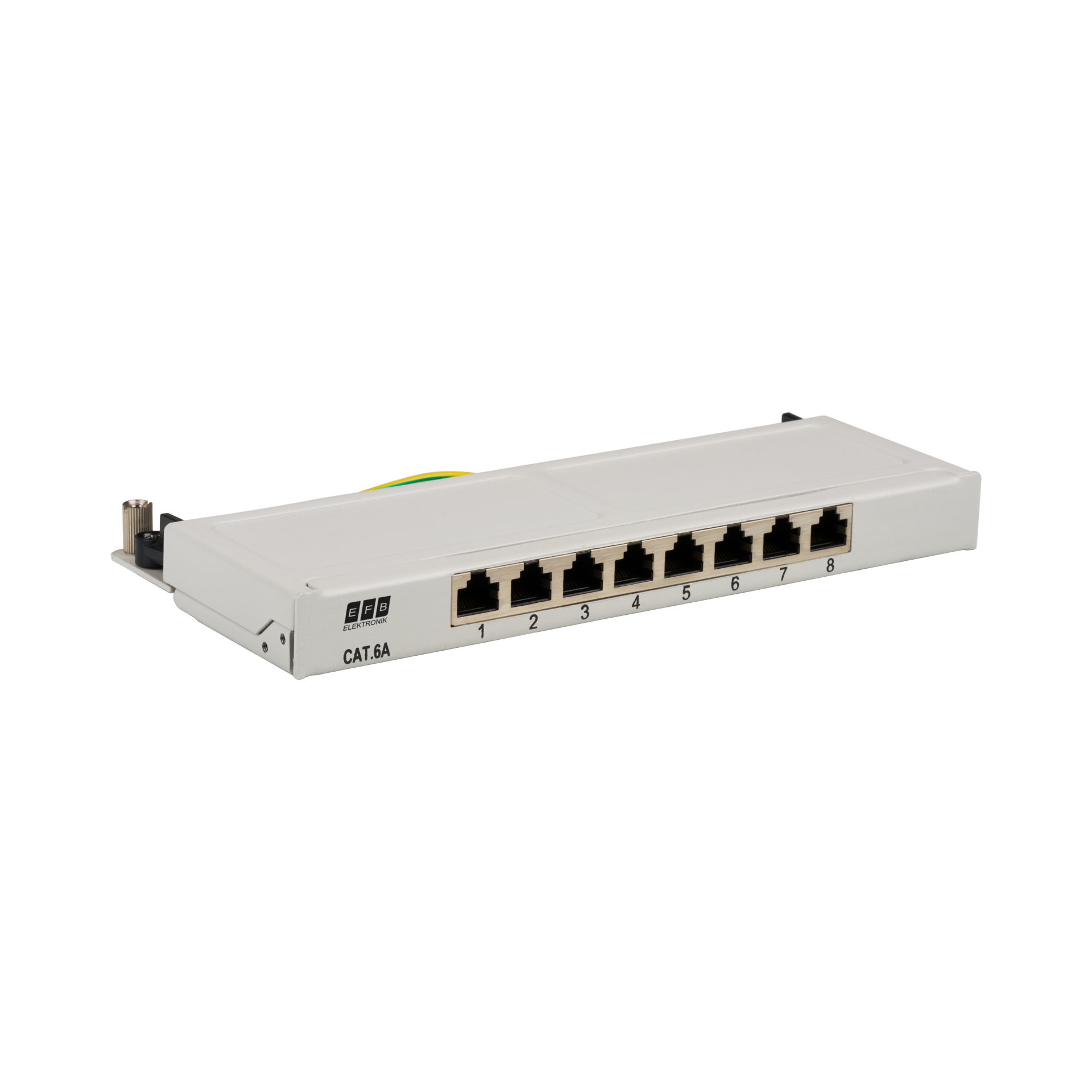

Item no. 37738.8
Mini-Patchpanel STP 8xRJ45 Cat.6A, 10“ 0,5U, RAL7035 grey
Color:
grey
Number of buses/couplings:
8
RAL number:
7035
Item no. 37738.12
Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 0,5U, RAL7035 grey
Color:
grey
Number of buses/couplings:
12
RAL number:
7035
Extensive selection: Patch panels from EFB-Elektronik
EFB-Elektronik patch panels are engineered for durability, ease of installation, and superior reliability. Designed for long-term use in professional network environments, they provide the foundation for stable and high-performance data transmission. Our range includes solutions for enterprise-grade network infrastructures as well as high-demand private applications. Explore our product lineup to find the ideal fit for your network setup:
- 19-inch patch panels:
- Designed for rack-mounted network cabinets, server racks and wall housings.
- Available in multiple port configurations (e.g. 24, and 48 ports).
- Shielded (STP) and unshielded (UTP) variants to meet specific interference protection requirements.
- 10-inch patch panels:
- Mini patch panels for small networks or space-constrained environments.
- Offered in various port configurations with both UTP and STP options.
- Suitable for wall-mounted installations and top-hat rail (DIN rail) mounting.
- Modular keystone patch panels:
- Fully customizable with Keystone modules for maximum flexibility.
- Ideal for scalable and adaptable network installations.
- Patch panels in various categories:
- Available in Cat.5e, Cat.6, and Cat.6A standards.
- Certified for reliable, high-speed data transmission.
- Pre-equipped patch panels with feed-through couplings:
- Example: Cat.6A patch panel with 24 ports.
- Delivered pre-assembled with snap-in installation adapters for rapid deployment.
Cat.5e, Cat.6 & Cat.6A patch panels: Categories & specifications
Selecting the right patch panel requires a solid understanding of the performance characteristics and application scenarios of Cat.5e, Cat.6, and Cat.6A. Each category is designed to meet specific networking demands, ensuring optimal data transmission and reliability.
Cat.5e patch panel:
Cat.6 patch panel:
Cat.6A Patch Panel
Cat.5e patch panel:
- Transmission Performance:Supports data rates of up to 1 Gbit/s with a maximum frequency of 100 MHz.
- Application Area: Suitable for standard networking needs, including internet access, VoIP, and basic data transfer in home networks and small office environments.
- Cable Compatibility: Optimized for Cat.5e cables, with backward compatibility for older cable types.
- Cost Efficiency: A budget-friendly solution for networks with moderate bandwidth requirements.
Cat.6 patch panel:
- Transmission Performance: Handles speeds of up to 1 Gbit/s, operating at a frequency of 250 MHz.
- Application Area: Offers enhanced signal quality and is well-suited for higher-demand applications such as HD video streaming, cloud computing, and IP telephony.
- Cable Compatibility: Designed for Cat.6 cables, while maintaining full backward compatibility with Cat.5e.
- Key Benefit: Improved crosstalk and interference suppression, ensuring more stable data transmission compared to Cat.5e.
Cat.6A Patch Panel
- Transmission Performance: Supports 10 Gbit/s speeds with a 500 MHz frequency, making it ideal for high-performance networks.
- Application Area: Designed for data-intensive environments, including data centers, virtualized networks, and HD video-streaming.
- Cable Compatibility:Engineered for Cat.6A cabling, while remaining compatible with previous cable categories.
- Key Benefit: Superior shielding for maximum interference resistance, supporting longer cable runs at high data rates.
Patch panel vs. switch: Differences & applications
Patch panels and network switches are both fundamental components in structured cabling, but they serve distinct purposes within a network. While patch panels are passive elements that organize and route cabling, switches are active devices that manage and direct network traffic. Used together, they contribute to a well-structured, scalable, and efficient network infrastructure.
A patch panel functions as a central distribution point for network cables, ensuring a tidy and manageable cabling structure. It plays a crucial role in network organization and facilitates maintenance and scalability. Further details:
A switch is an active network device that manages data traffic by intelligently forwarding packets between connected devices. It enables seamless communication between computers, servers, printers, and other network endpoints. Further details:
A patch panel functions as a central distribution point for network cables, ensuring a tidy and manageable cabling structure. It plays a crucial role in network organization and facilitates maintenance and scalability. Further details:
- Passive component for cable management – does not process data.
- Provides structured organization of network cables for clear routing and easy maintenance.
- Equipped with RJ45 sockets for flexible cable connections.
- Installed in server racks or network cabinets to streamline infrastructure.
- Used in LAN environments to reroute connections without reconfiguring active network devices.
- Supports network expansions and maintenance by offering a clear and accessible cable layout.
- Cost-effective compared to active network components.
- Enhances network flexibility and reduces cable clutter.
A switch is an active network device that manages data traffic by intelligently forwarding packets between connected devices. It enables seamless communication between computers, servers, printers, and other network endpoints. Further details:
- Active network component requiring a power supply to process and forward data.
- Intelligent routing based on MAC addresses for efficient data transmission.
- Supports network segmentation via VLANs (Virtual Local Area Networks) for optimized traffic management.
- Directly connects end devices in LAN environments, ensuring smooth communication between PCs, printers, and servers.
- Suitable for home networks, office environments, and data centers.
- Ideal für Netzwerke mit hoher Datenlast und komplexen Anforderungen.
- Designed for high-bandwidth and complex network environments with demanding data loads.
- Enhances network efficiency through features like load balancing and traffic prioritization.
- Supports high-speed connections, including 10 Gbit/s and beyond.
EFB-Elektronik, your specialist for structured cabling, patch panels & network components
Trust in expertise and industry-leading quality – EFB-Elektronik provides high-performance patch panels and structured cabling solutions tailored to professional networking environments. Our products are designed to meet the rigorous demands of industry, data centers, and building infrastructure, ensuring reliability, scalability, and long-term performance.
With decades of experience in structured cabling, our team of specialized engineers and network experts is available to assist you with technical inquiries, product selection, and project planning. Upon request, we provide customised consulting and hands-on support, working closely with you to implement a cabling solution that aligns with your specific requirements.
With decades of experience in structured cabling, our team of specialized engineers and network experts is available to assist you with technical inquiries, product selection, and project planning. Upon request, we provide customised consulting and hands-on support, working closely with you to implement a cabling solution that aligns with your specific requirements.
