IP protection classes: Safe against dust & water
Whether continuous rain, sandstorm or snowstorm: Especially outdoors, electronics must be protected from dust and water. For applications outside or in damp rooms, dusty factory halls or even under water, you will find suitable products at EFB-Elektronik. We explain what IP protection classes are all about and what the IP designations mean.
Request a consultation on IP protection
Request a consultation on IP protection
IP protection classes: Safe against dust & water
Whether continuous rain, sandstorm or snowstorm: Especially outdoors, electronics must be protected from dust and water. For applications outside or in damp rooms, dusty factory halls or even under water, you will find suitable products at EFB-Elektronik. We explain what IP protection classes are all about and what the IP designations mean.
Request a consultation on IP protection
Request a consultation on IP protection
Applications with IP protection classes
The IP protection class describes the protective effect of products against foreign bodies and moisture. Particularly in harsh environments, reliable data transmission that defies external influences is essential. Whether in dusty industrial halls or outdoors, where the components are exposed to the weather.
Safe protection in harsh environments
Protection against contact, foreign objects or even dust
Water protection
For industry, outdoor or FTTH
Protection against contact, foreign objects or even dust
Water protection
For industry, outdoor or FTTH
IP protection classes in accordance with IEC 60 529 (EN 60 529)
The abbreviation IP stands for International Protection (or Ingress Protection). Electrical components and devices are subdivided according to their suitability for different environmental conditions according to an IP coding. This consists of a two-digit code number. The first digit of the protection class stands for the scope of protection of a plug connection with regard to contact or foreign bodies.
The second digit classifies the protection against moisture.
Non-protected marketing terms such as "waterproof" do not provide a standardized definition of the extent to which a product is protected against moisture, ingress and dirt. The IP protection classes, on the other hand, designate the degree of protection specifically and in a standardized manner.
Non-protected marketing terms such as "waterproof" do not provide a standardized definition of the extent to which a product is protected against moisture, ingress and dirt. The IP protection classes, on the other hand, designate the degree of protection specifically and in a standardized manner.
All IP protection types: Explanation
Dust protection (first code number) can have a value from 1 to 6. As the number increases, the ability of the product to resist the ingress of foreign objects and dust increases. For example, a product with an IP2X rating can resist foreign objects 12.5 mm or larger in size, while an object with an IP6X rating is dustproof.
The second code number, liquid protection, follows the same format but can have a value from 1 to 8. The higher the number, the higher the protection against liquid penetration. For example, devices with an IPX4 protection rating can withstand 5 minutes of continuous splashing water. To be rated, certain angles, physical pressure and volume requirements must be met during testing. The IP rating system's rigorous testing process ensures standardization among testing facilities around the world.
Dust protection (first code number) can have a value from 1 to 6. As the number increases, the ability of the product to resist the ingress of foreign objects and dust increases. For example, a product with an IP2X rating can resist foreign objects 12.5 mm or larger in size, while an object with an IP6X rating is dustproof.
The second code number, liquid protection, follows the same format but can have a value from 1 to 8. The higher the number, the higher the protection against liquid penetration.
The second code number, liquid protection, follows the same format but can have a value from 1 to 8. The higher the number, the higher the protection against liquid penetration.
For example, devices with an IPX4 protection rating can withstand 5 minutes of continuous splashing water. To be rated, certain angles, physical pressure and volume requirements must be met during testing. The IP rating system's rigorous testing process ensures standardization among testing facilities around the world.
Alle IP Schutzarten: Tabelle mit Erklärung
| Ziffer 1: Schutz vor Eindringen & Staub | Ziffer 2: Schutz vor Feuchtigkeit & Wasser | ||
|---|---|---|---|
| (oder X): Kein besonderer Schutz. | 0 | 0 | (oder X): Kein besonderer Schutz. |
| Schutz vor versehentlichem Berühren z. B. mit einer Hand und vor festen Gegenständen mit einem Durchmesser von mehr als 50 mm. | 1 | 1 | Schutz gegen senkrecht fallende Tropfen, wie z. B. Kondenswasser. |
| Schutz gegen Finger oder andere Gegenstände mit einer Länge von nicht mehr als 80 mm und einem Durchmesser von nicht mehr als 12 mm (versehentlicher Fingerkontakt). | 2 | 2 | Schutz gegen Tropfwasser bei einer Neigung von bis zu 15°. |
| Schutz vor dem Eindringen von Werkzeugen, Drähten usw. mit einem Durchmesser von 2,5 mm oder mehr. | 3 | 3 | Schutz gegen Sprühwasser bis zu 60° gegen die Senkrechte. |
| Schutz vor Fremdkörpern, die größer als 1 mm sind (Drähte, Nägel, Schrauben, größere Insekten und andere potenziell invasive kleine Gegenstände). | 4 | 4 | Keine schädlichen Auswirkungen bei Wasserspritzern aus allen Richtungen. Mindestens 10 Minuten lang mit einem oszillierenden Strahl getestet. |
| Teilweiser Schutz gegen Staub, der die Ausrüstung beschädigen könnte. | 5 | 5 | Keine schädlichen Auswirkungen bei Niederdruck-Strahlwasser (6,3 mm) aus allen Richtungen. |
| Vollständig staubdicht. Vollständiger Schutz gegen Staub und andere Partikel, einschließlich einer Vakuumdichtung, die gegen einen kontinuierlichen Luftstrom getestet wurde. | 6 | 6 | Schutz gegen direktes Strahlen mit hohem Druck. |
| 7 | Keine schädlichen Auswirkungen bei vollständigem Untertauchen bis zu 30 Minuten in einer Tiefe zwischen 15 cm und 1 Meter. | ||
| 8 | Schutz gegen längeres Eintauchen unter höherem Druck (d. h. in größeren Tiefen). Die genauen Parameter dieser Prüfung werden vom Hersteller festgelegt und bekannt gegeben und können je nach Gerätetyp zusätzliche Faktoren wie Temperaturschwankungen und Durchflussmengen umfassen. |
The most common IP protection classes for EFB-Elektronik products
- IP40: Components with IP40 protection are protected against foreign objects with a diameter greater than 1 mm.
- IP54 & IP55: IP54 and IP55 products are protected against dust and water. IP54 provides protection against splashing water from any direction. IP55 products even protect against a jet of water from a nozzle impinging from all directions.
- IP65: With IP65 protection, there is protection against water jets as well as against the entry of dust (dust-tight).
- IP67 & IP68: IP67 and IP68 products are dustproof and waterproof. They provide 100% protection against touch, moisture and the elements. Our IP67 connectors protect against water when submerged. IP68 connector systems even provide protection for continuous submersion.
IK Protection according to IEC 62262
The IK protection class describes the protection against shocks or impacts. According to EN 50102 and EN 62262, or internationally according to IEC 62262, the impact energies that an enclosure can withstand are described. In practice, this refers to the resistance of outdoor enclosures to vandalism, for example.
| IK-code | Impact energy in joules |
|---|---|
| IK00 |
no protection |
| IK01 |
0,14, fist punch |
| IK02 |
0,2, fist punch |
| IK03 |
0,35, fist punch |
| IK04 |
0,5, fist punch |
| IK05 |
0,7, fist punch |
| IK06 |
1,0, Blow with a 500-gram hammer from a distance of 20 cm |
| IK07 |
2,0, Blow with a 500-gram hammer from a distance of 40 cm |
| IK08 |
5,0, Blow with a 1.7 kg hammer from a distance of 30 cm |
| IK09 |
10,0, Blow with a 5 kg hammer from a distance of 20 cm |
| IK10 |
20,0, 20.0 joules, hitting with a 5 kg hammer, baseball bat, kicking or throwing projectiles from a distance of 40 cm |
| IK10+ |
50,0, Vandal-proof, e.g. for warehouses, sports halls, surveillance cameras |
Our products with IP protection class

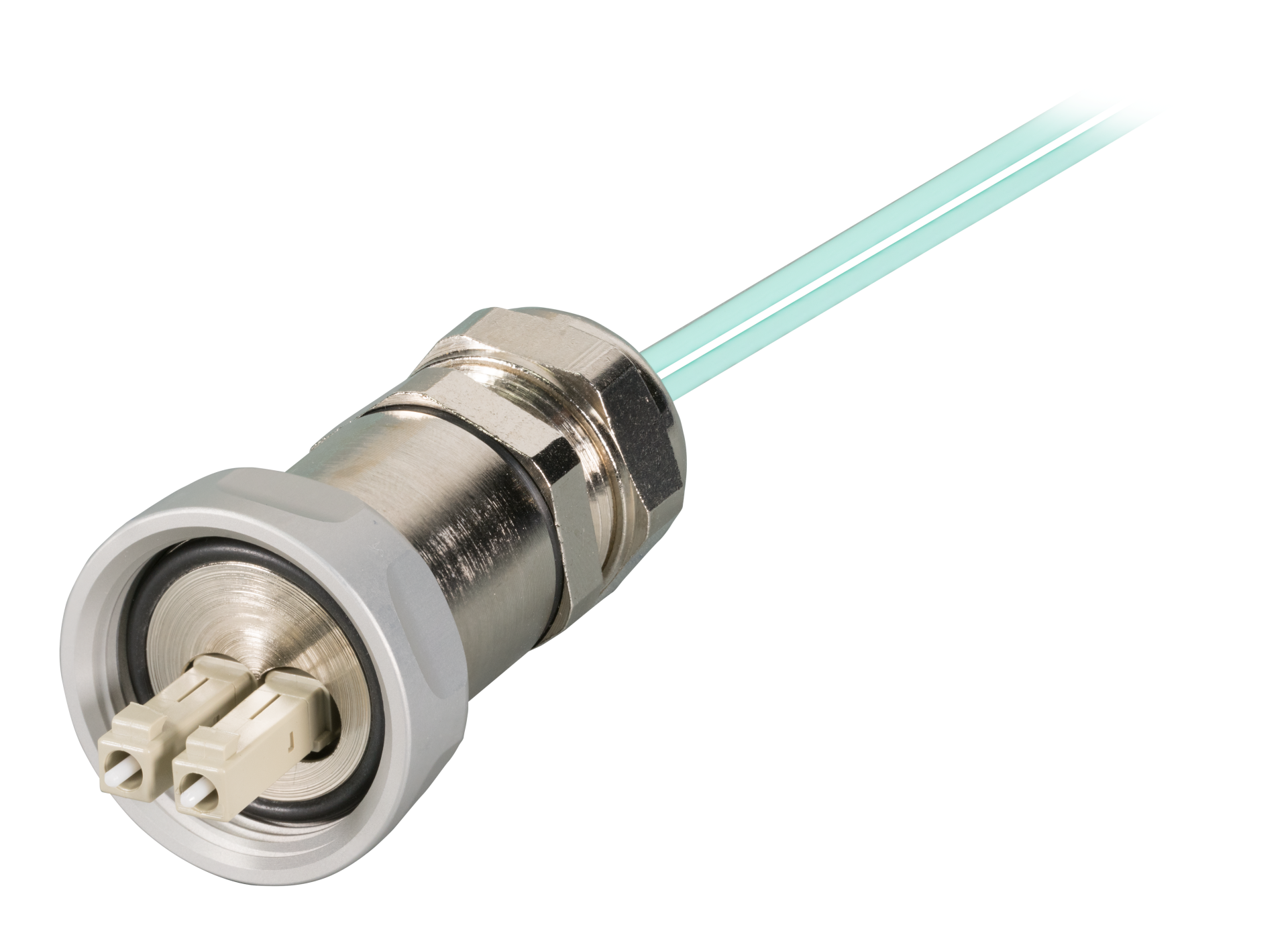

Item no. IP67KVLCDOM3-5,0
IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OM3, 5m
Length:
5.0 m
Item no. KS55-2488GR.1,5
19" Cabinet 24U IP55 with Side Cooling 1.5 kW
Cooling capacity, usable at 35 °C:
1420 W
U:
24
With Air Funnel Ø 150 mm:
False

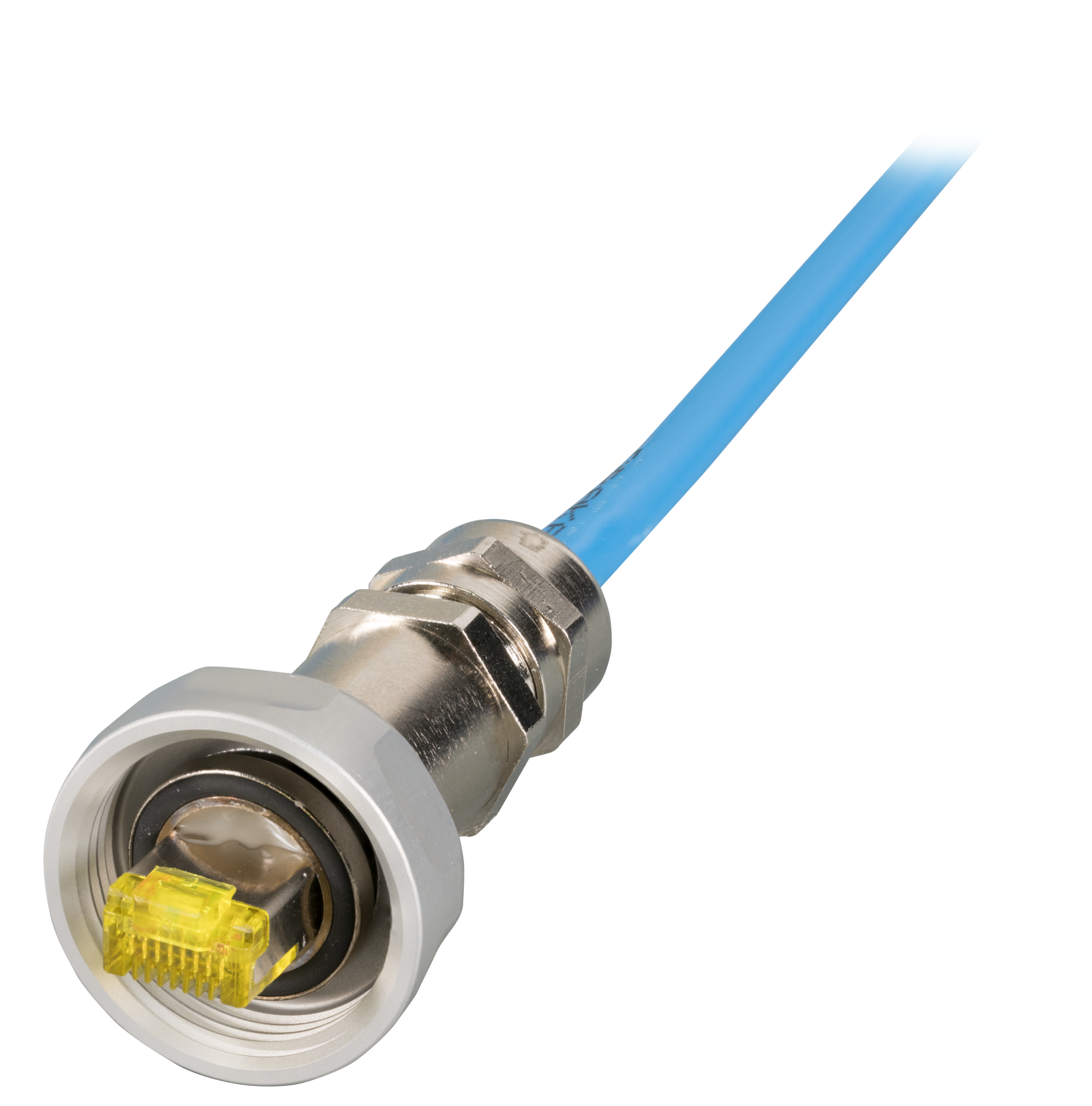

Item no. IP67KVRJ45TM31-5,0
IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m
Length:
5.0 m

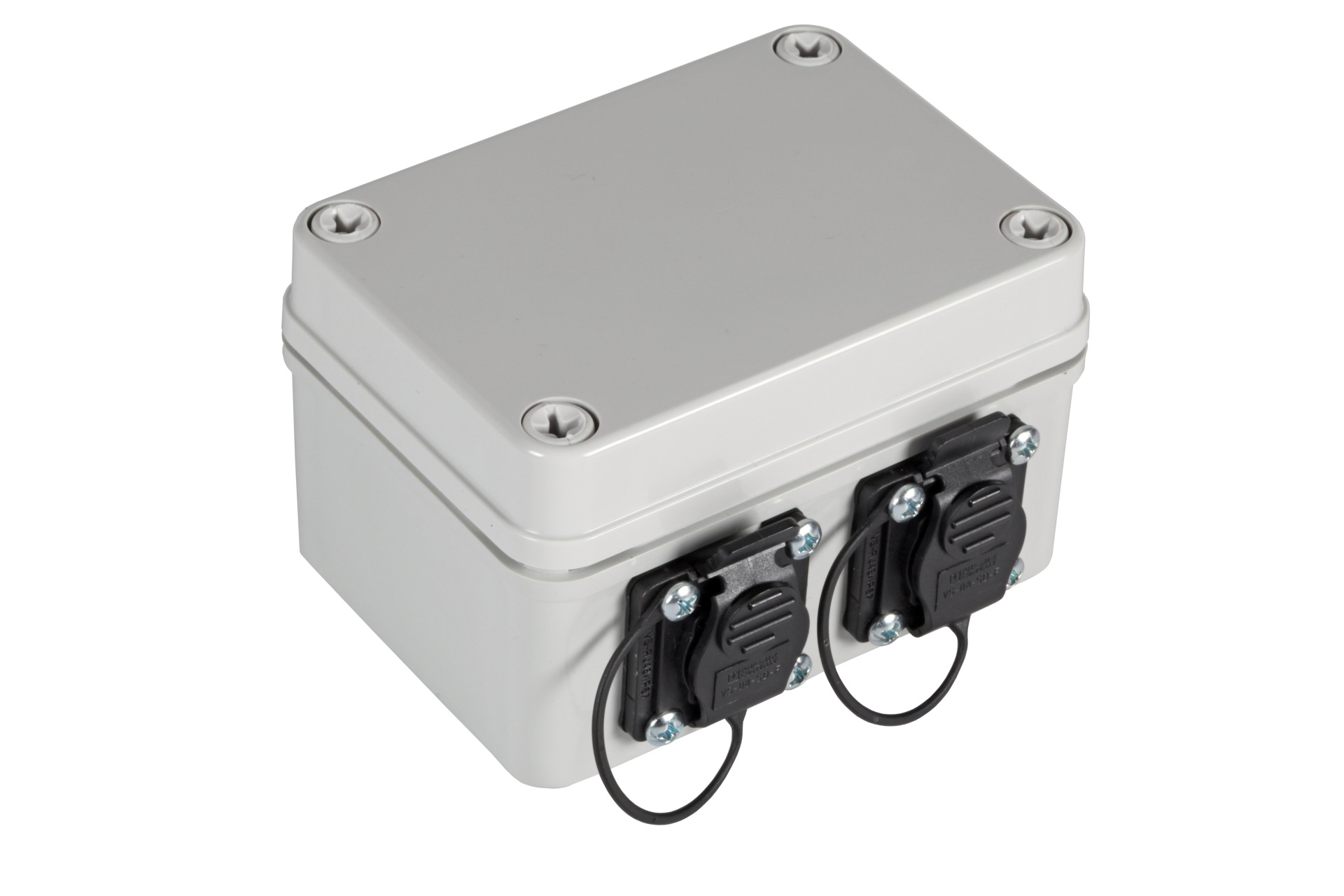

Item no. K8670.7,5
RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 7,5m
Length:
7.5 m

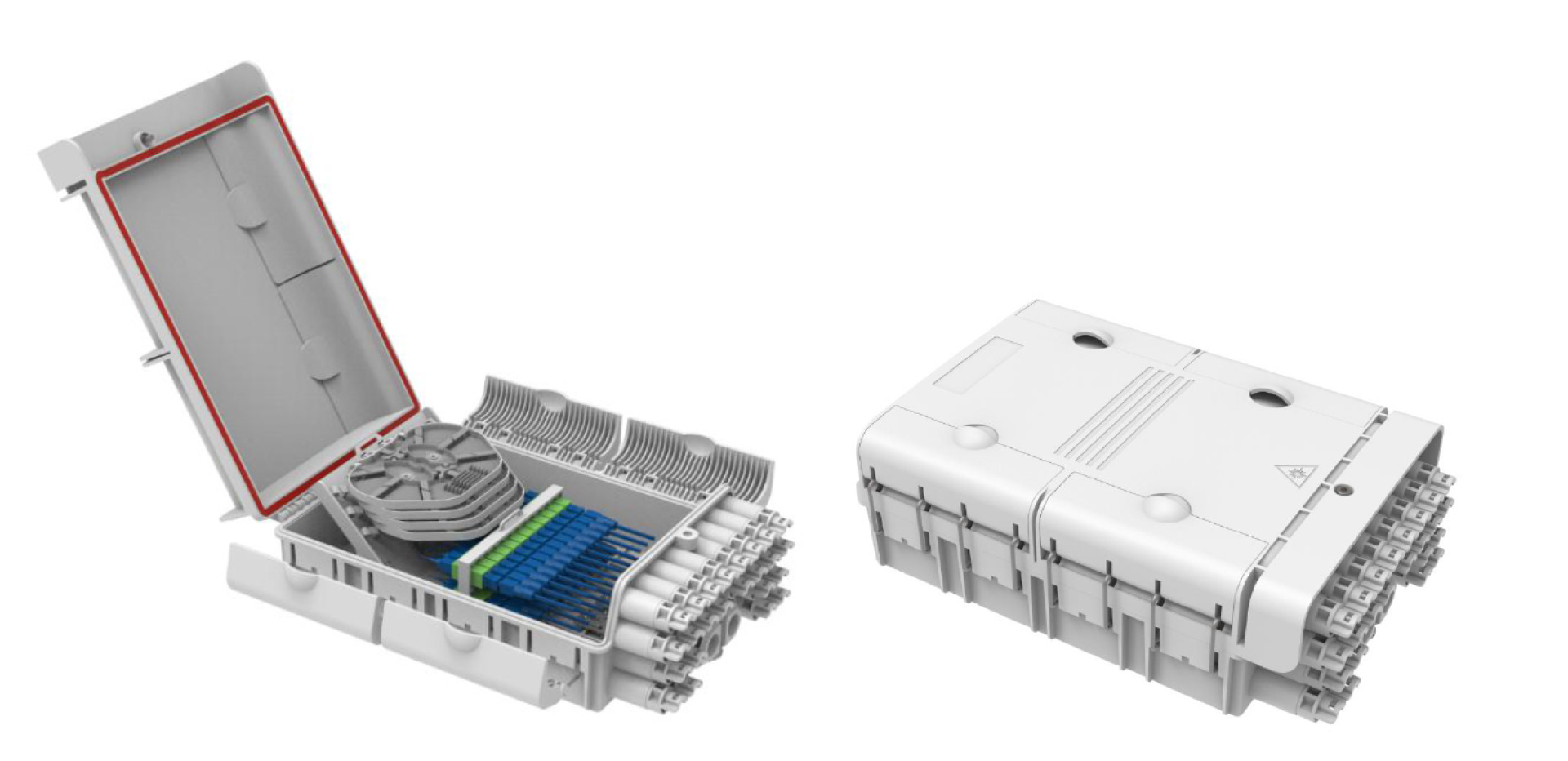

Item no. FTTH-BOX-OUT-2
FTTH IP65 Connectionbox for 16fiber, 8adapter and Fiber overlength box
Access Control:
Special screw/ Seal

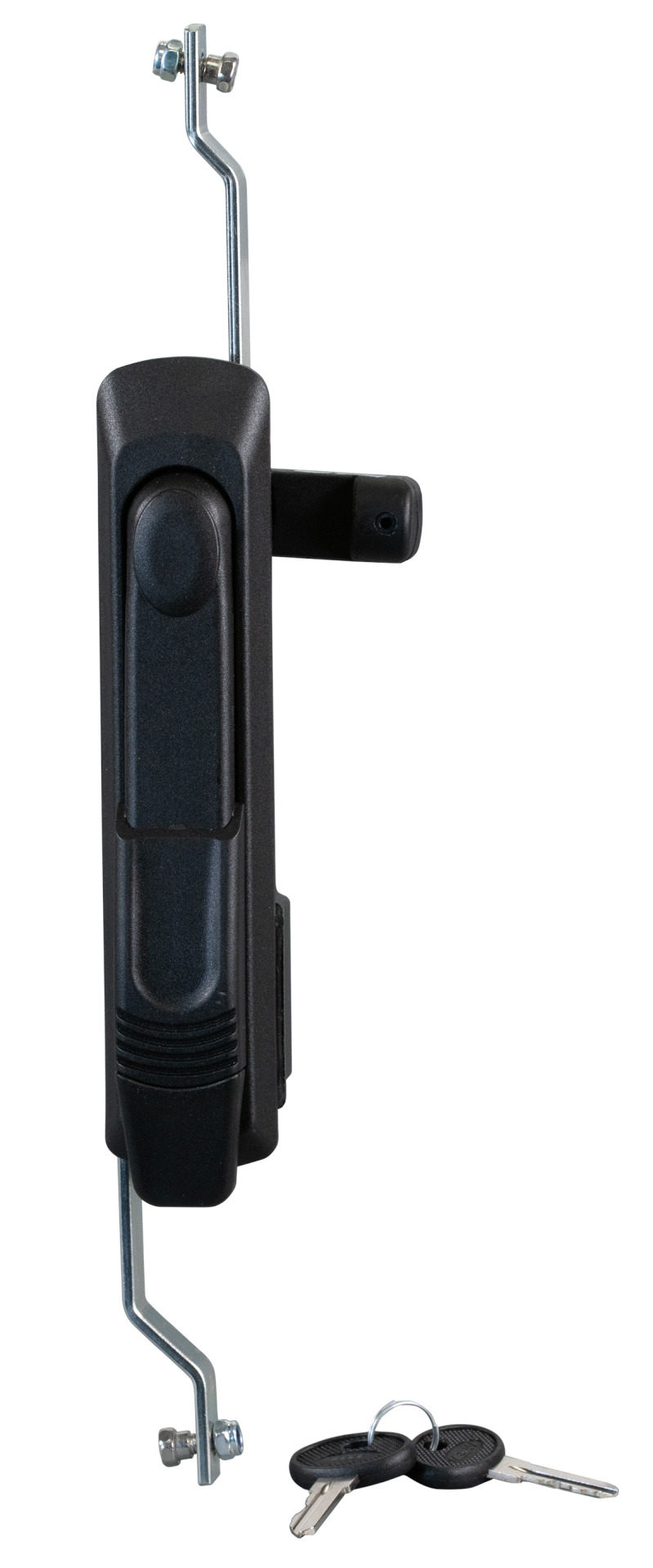

Item no. 691709IP55.2G
19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035
Colour:
grey
Depth:
600 mm
Height:
540 mm
Max. Load:
100 kg
Item no. IP67DFKLCDMHS
IP67 Metal adapter, M25, LC Duplex ceramic sleeve, service port, guy rope
Item no. 692524IP55.TS
19" Network Cabinet 24U 600x600, IP55, with Pre-Assembled Plinth, RAL9005
Colour:
black
Depth:
600 mm
Number of height units:
24 U
Width:
600 mm

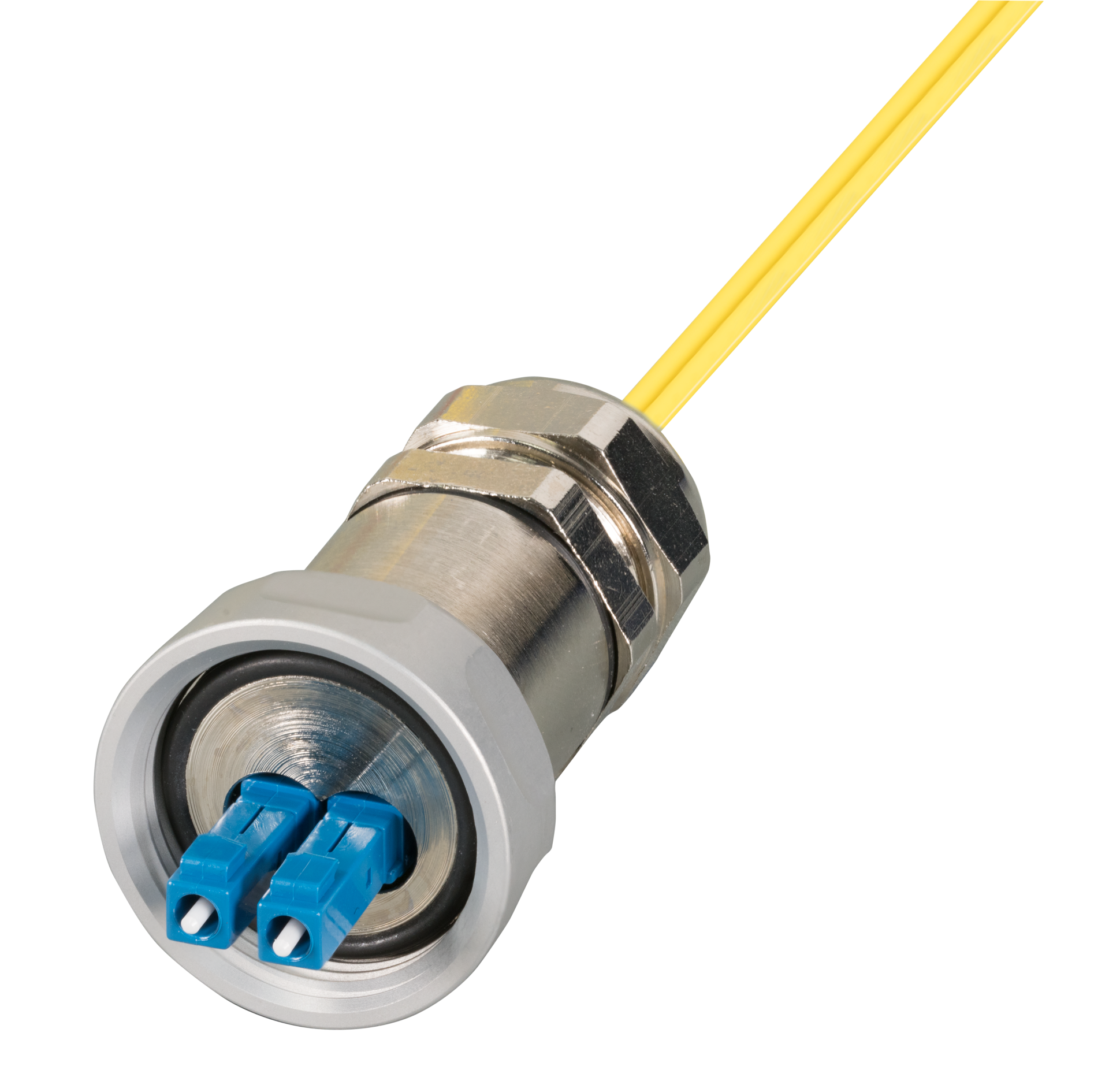

Item no. IP67KVLCDOS2-5,0
IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m
Length:
5.0 m
Item no. 691707IP55.1
19" Wall Housing IP55, 7U, Steel Door, Depth 450 mm, RAL7035
Colour:
grey
Depth:
450 mm
Height:
450 mm
Max. Load:
100 kg
Item no. 692724IP55.GR
19" Network Cabinet 24U 800x800, IP55, with Pre-Assembled Plinth, RAL7035
Colour:
grey
Depth:
800 mm
Number of height units:
24 U
Width:
800 mm

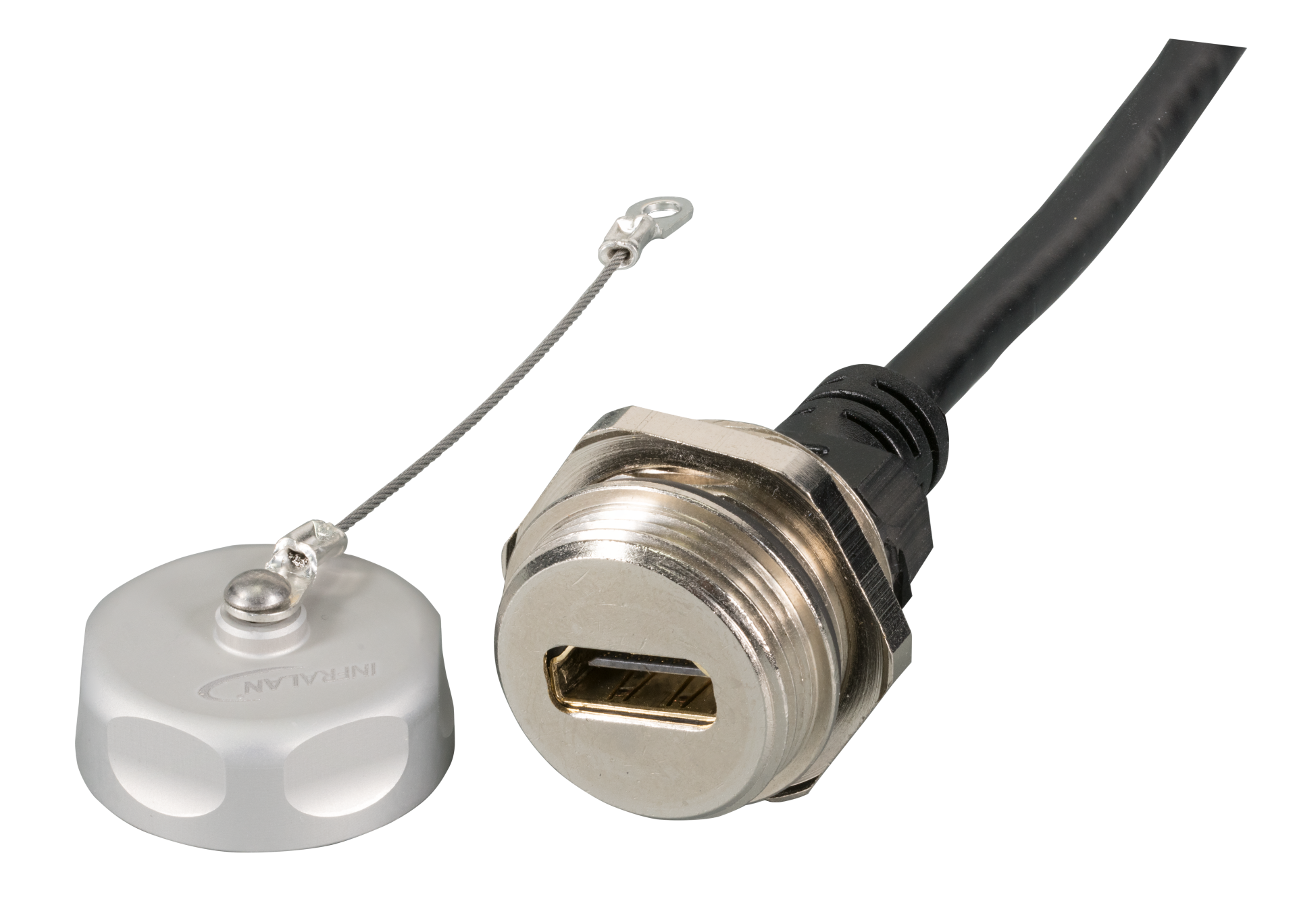

Item no. IP67EBHDMIA-A1,0FL
IP67 Receptacle, M25, HDMI, F-M, A-A, 1.0m
Colour:
black
Length:
1.0 m
Item no. FTTH-BOX-OUT-7
FTTH IP65 Connectionbox for 144 fiber and Fiber overlength box
Access Control:
Special screw/ Seal

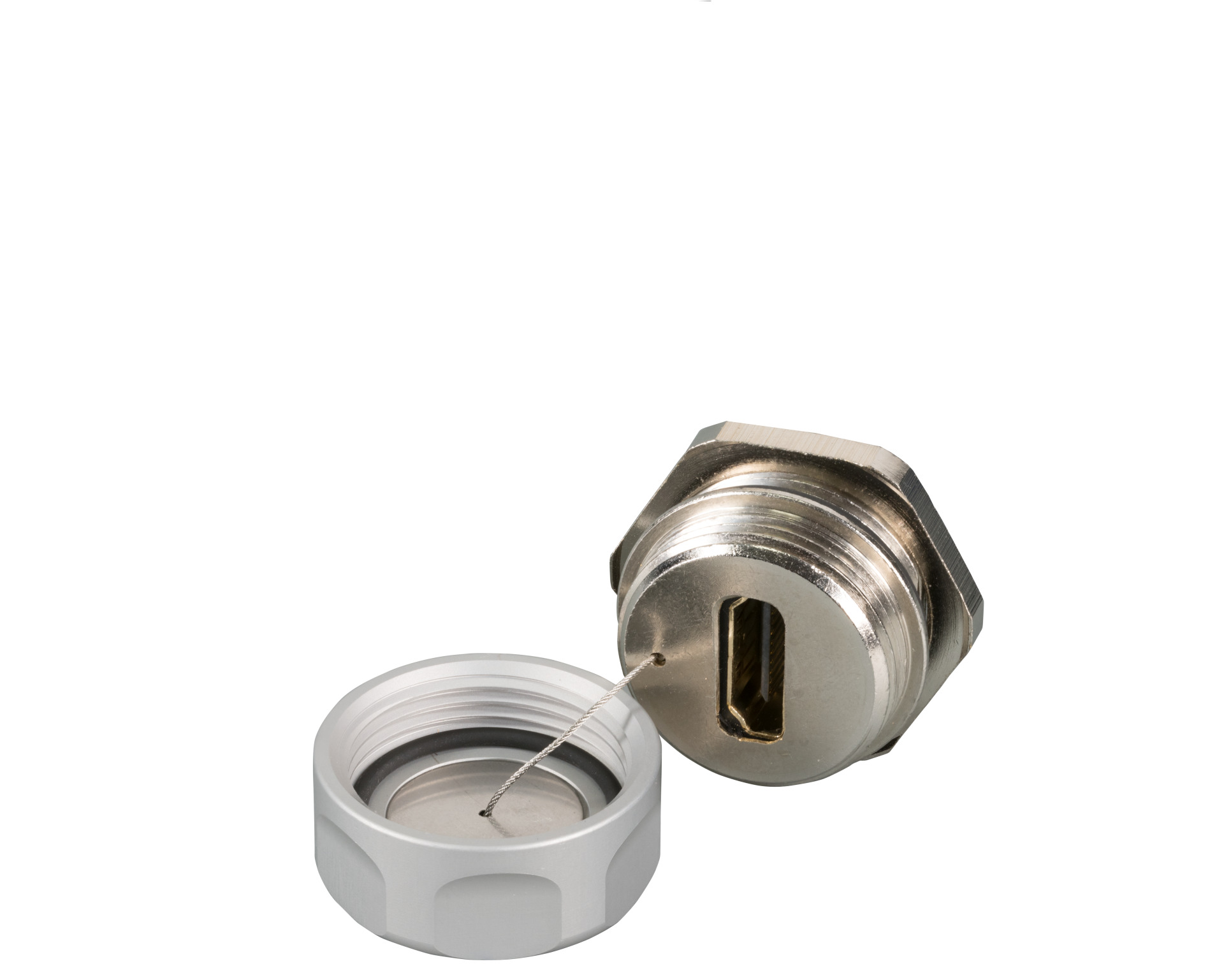

Item no. IP67DFKHDMIFLHS
IP67 Metal adapter, M25, HDMI, F-F, A-A, service port, guy rope

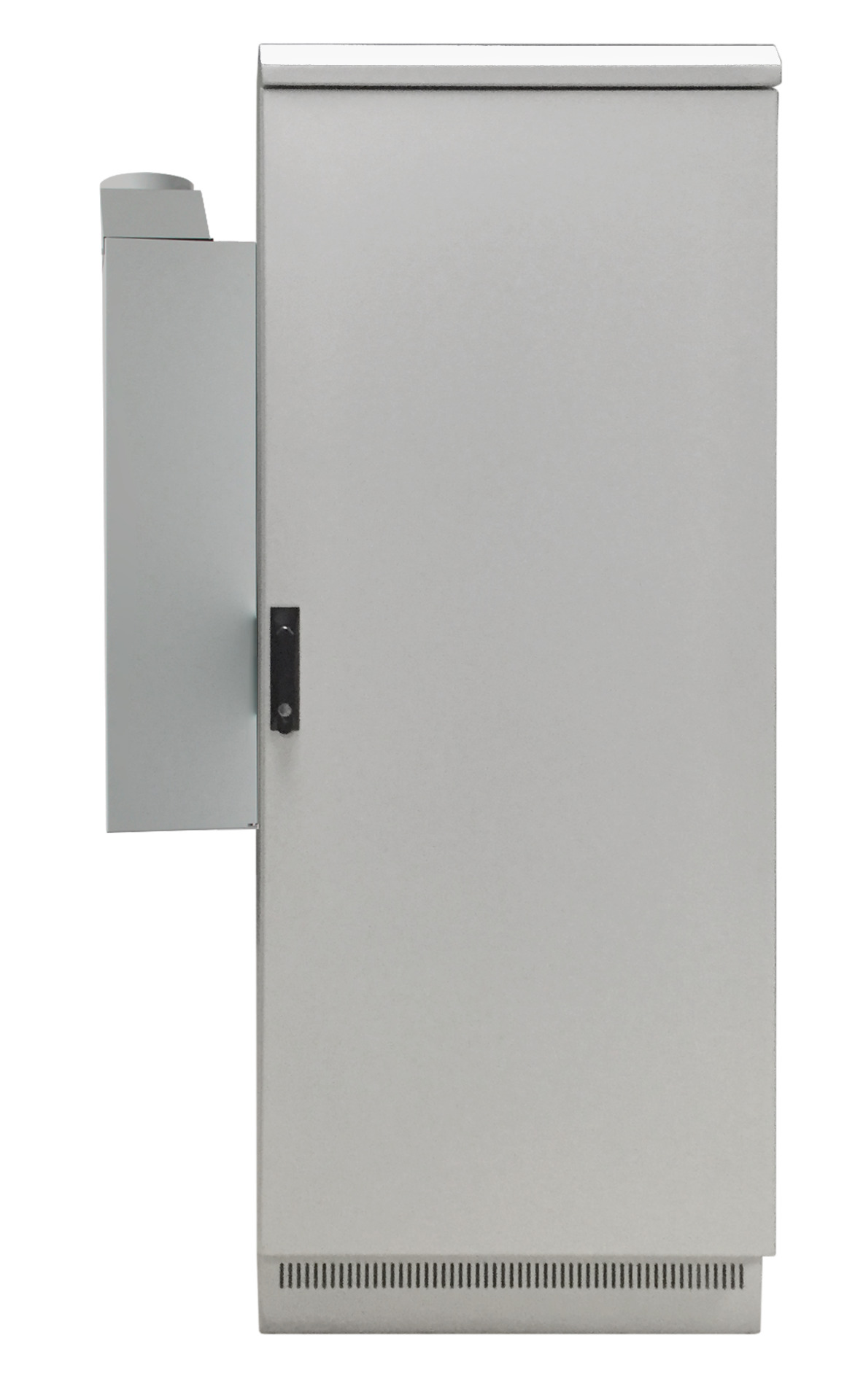

Item no. KS55-4280GR.1,9
19" Cabinet 42U IP55 with Side Cooler 1.9 kW
Cooling capacity, usable at 35 °C:
1960 W
U:
42
With Air Funnel Ø 150 mm:
False

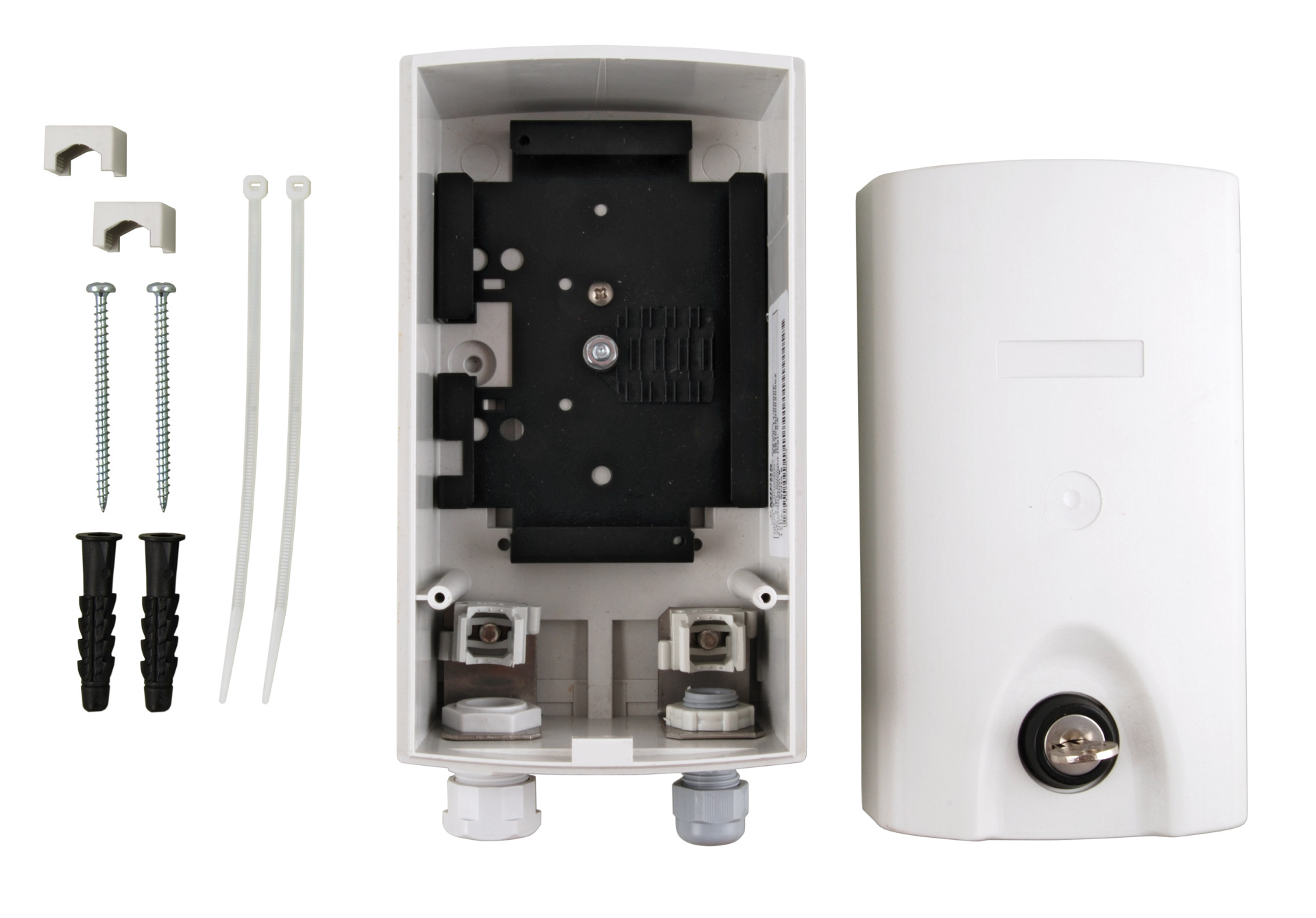

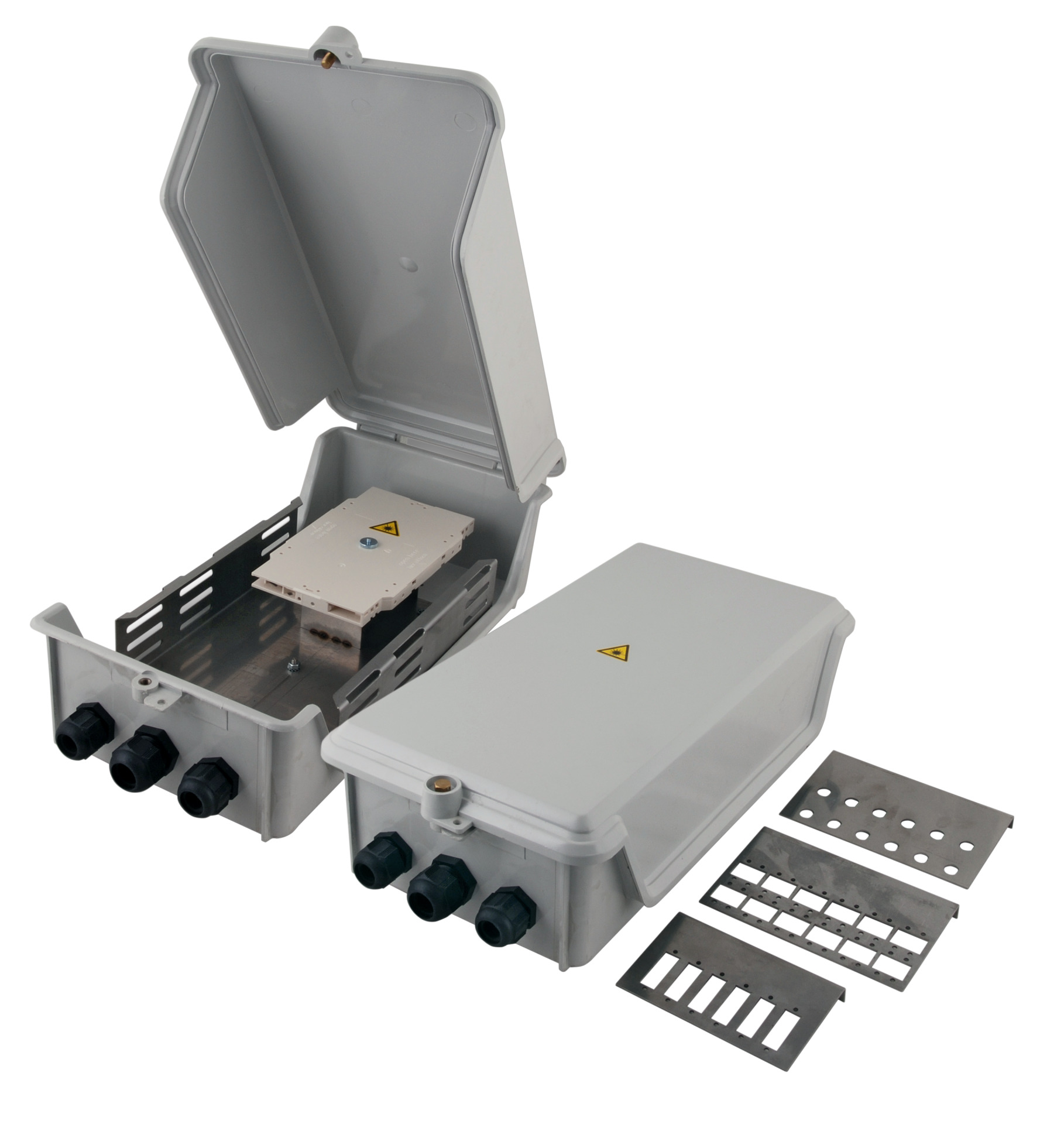

Item no. 53706.2
House connection box IP54 unassembled, max 8x SC-S/LC-D, w/o lock
Access Control:
without
Item no. 692524IP55.GR
19" Network Cabinet 24U 600x600, IP55, with Pre-Assembled Plinth, RAL7035
Colour:
grey
Depth:
600 mm
Number of height units:
24 U
Width:
600 mm
Item no. 691712IP55.1G
19" Wall Housing IP55, 12U, Glass Door, Depth 450 mm, RAL7035
Colour:
grey
Depth:
450 mm
Height:
670 mm
Max. Load:
100 kg
Item no. IP67KVHDMIA-A1,0
IP67 Cable gland, M25, HDMI, Plug Type-A to Plug Type-A, 1.0m
Colour:
black
Length:
1.0 m
Item no. 692442IP55.GR
19" Network Cabinet 42U 800x1000, IP55, with Pre-Assembled Plinth, RAL7035
Colour:
grey
Depth:
1000 mm
Number of height units:
42 U
Width:
800 mm
Item no. 691666.2
Replacement filter for wall housing IP55 120 x 120 x 10 mm coarse filter mat
Item no. 691742IP55.GR
19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL7035
Colour:
grey
Depth:
800 mm
Number of height units:
42 U
Width:
800 mm
Item no. 691709IP55.2
19" Wall Housing IP55, 9U, Steel Door, Depth 600 mm, RAL7035
Colour:
grey
Depth:
600 mm
Height:
540 mm
Max. Load:
100 kg

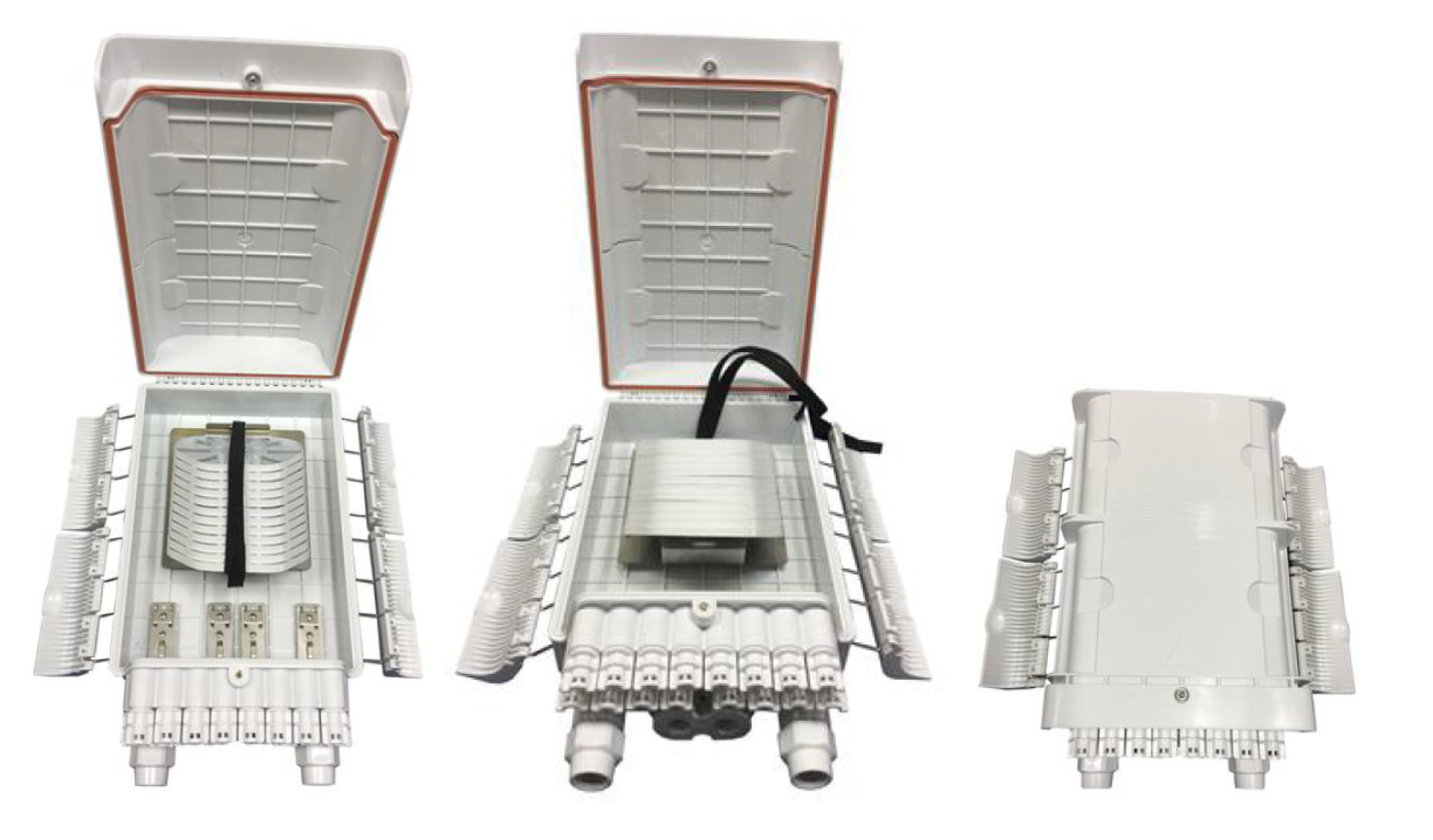

Item no. FTTH-BOX-OUT-6
FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Access Control:
Special screw/ Seal
Item no. 692724IP55.TS
19" Network Cabinet 24U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
Colour:
black
Depth:
800 mm
Number of height units:
24 U
Width:
800 mm
Item no. IP67EBRJ45KSFL
IP67 Receptacle, M25, RJ45 Cat.6A E-20070, for Cat.5/6/7 cable
Colour:
silver

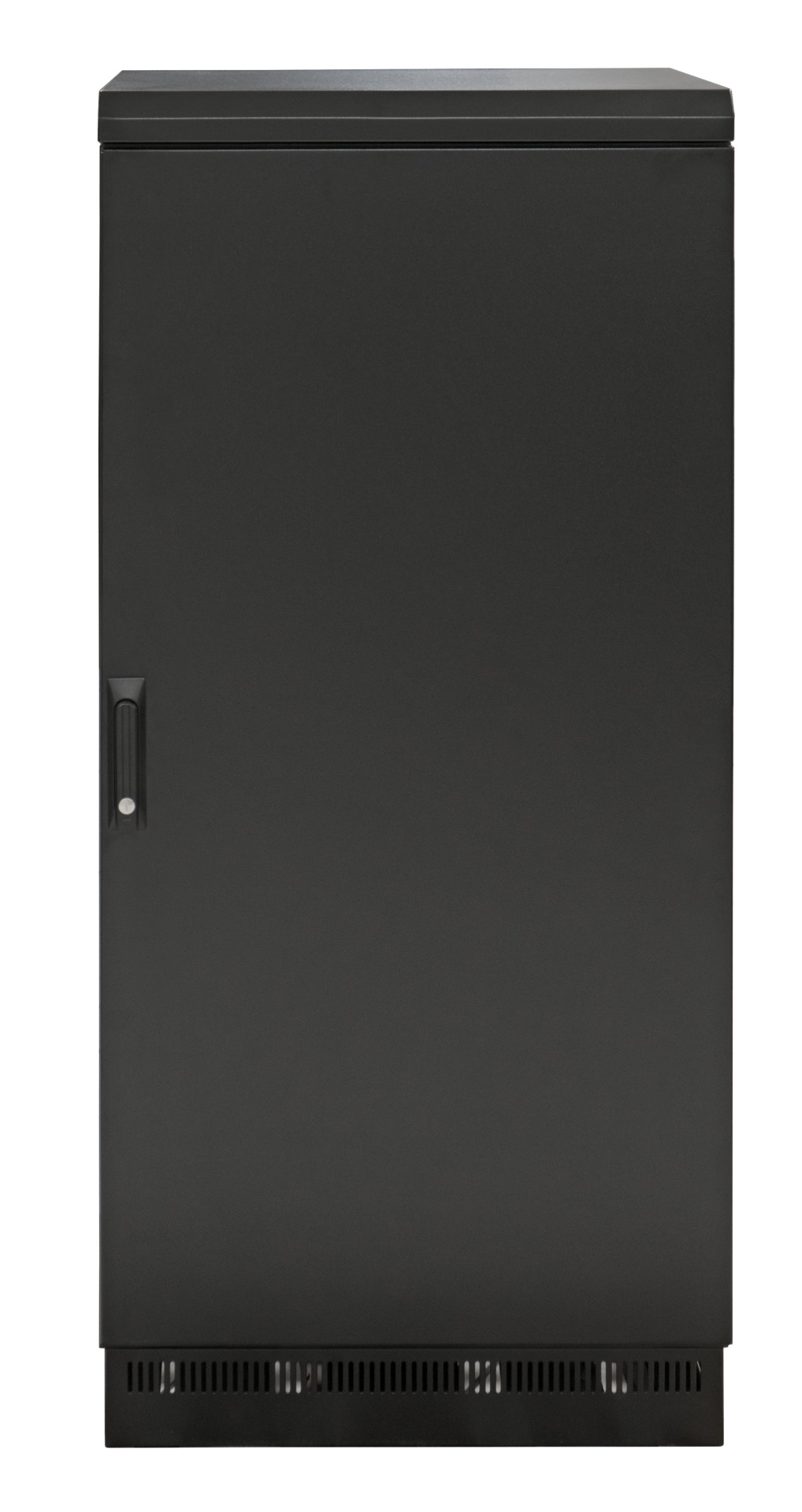

Item no. 692442IP55.TS
19" Network Cabinet 42U 800x1000, IP55, with Pre-Assembled Plinth, RAL9005
Colour:
black
Depth:
1000 mm
Number of height units:
42 U
Width:
800 mm
Item no. 691742IP55.TS
19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
Colour:
black
Depth:
800 mm
Number of height units:
42 U
Width:
800 mm
Item no. 691750WIP.1
Plinth for 19" Wall Housing IP55, Depth 450 mm, RAL7035
Colour:
grey
Height:
100 mm
Suitable for enclosure building depth:
450 mm
Suitable for enclosure building width:
600 mm
Item no. IP67KVUSBA-A1,0
IP67 Cable gland, M20, USB2.0 Plug Type-A to Plug Type-A, 1,0m
Colour:
grey
Length:
1.0 m

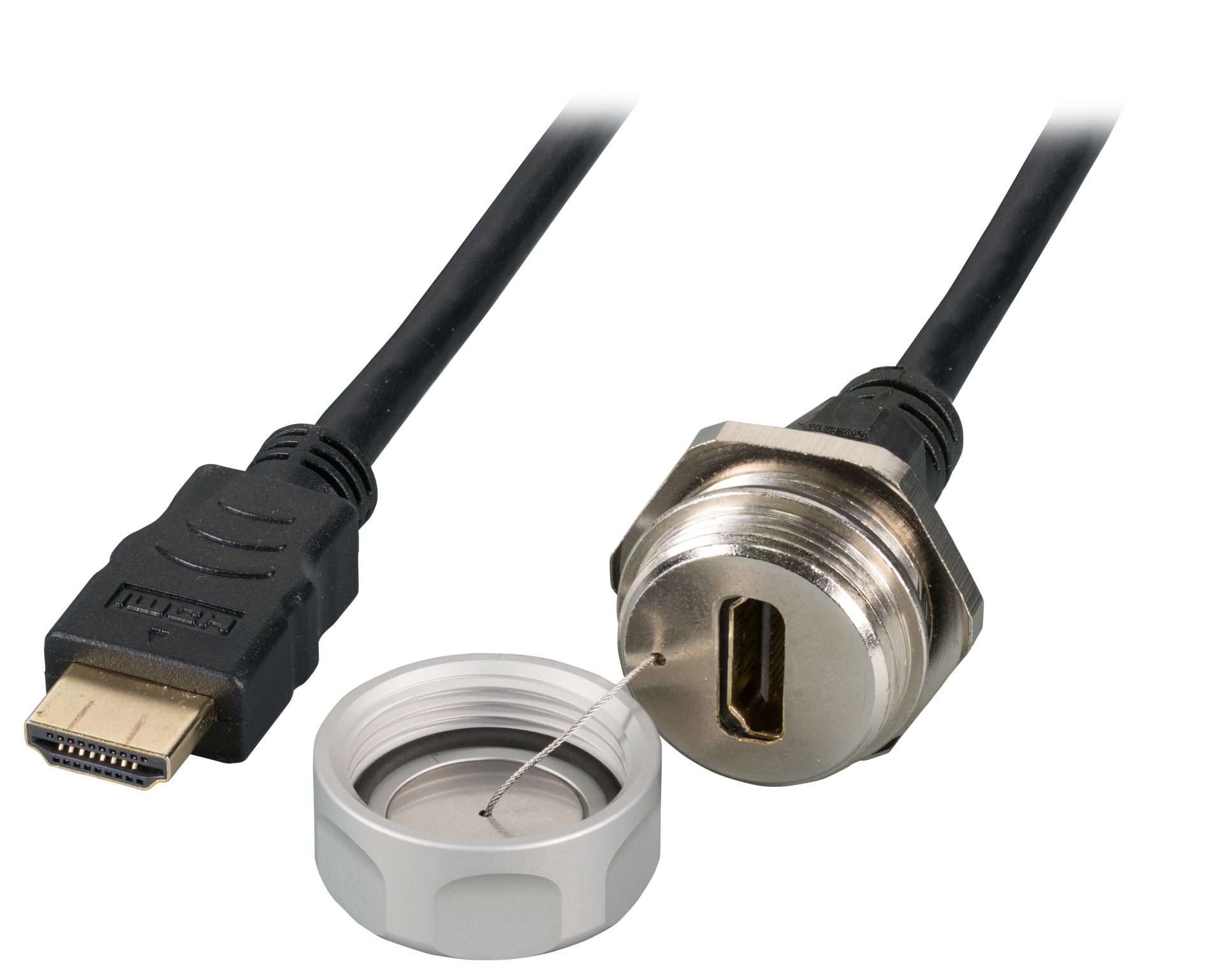

Item no. IP67EBHDMIA-A1,0FLHS
IP67 Receptacle, M25, HDMI, F-M, A-A, service port, guy rope, 1.0m
Colour:
black
Length:
1.0 m

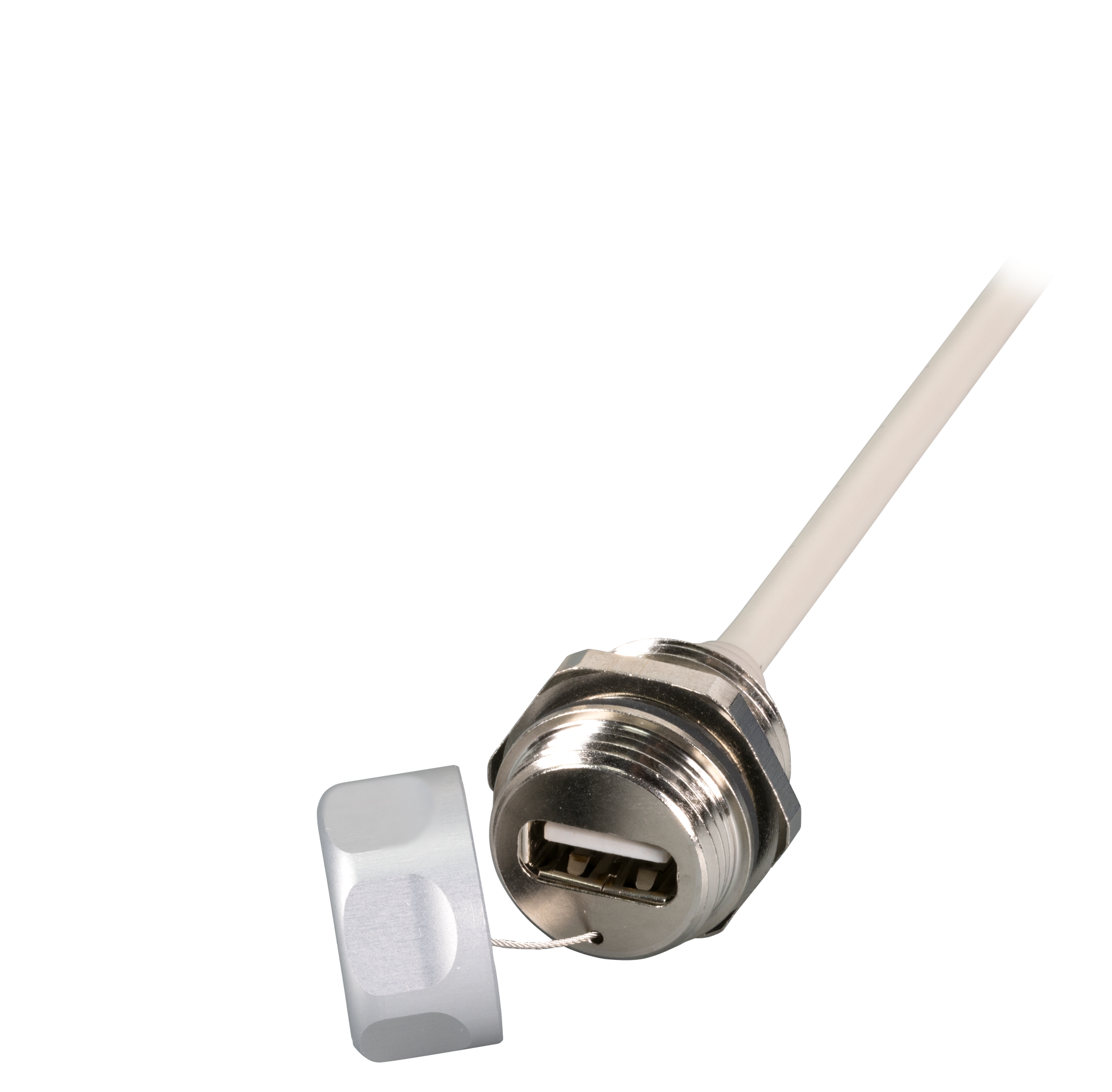

Item no. IP67EBUSBA-A0,5FLHS
IP67 Receptacle, M20, USB2.0, F-M, A-A, service port, guy rope, 0.5m
Colour:
grey
Length:
0.5 m
Item no. IP67DFKRJ45FLHS
IP67 Metal adapter, M25, RJ45 Cat.6A, F-F, service port, guy rope
Item no. IP67DFKUSBFLHS
IP67 Metal adapter, M20, USB3.0, F-F, A-A, service port, guy rope

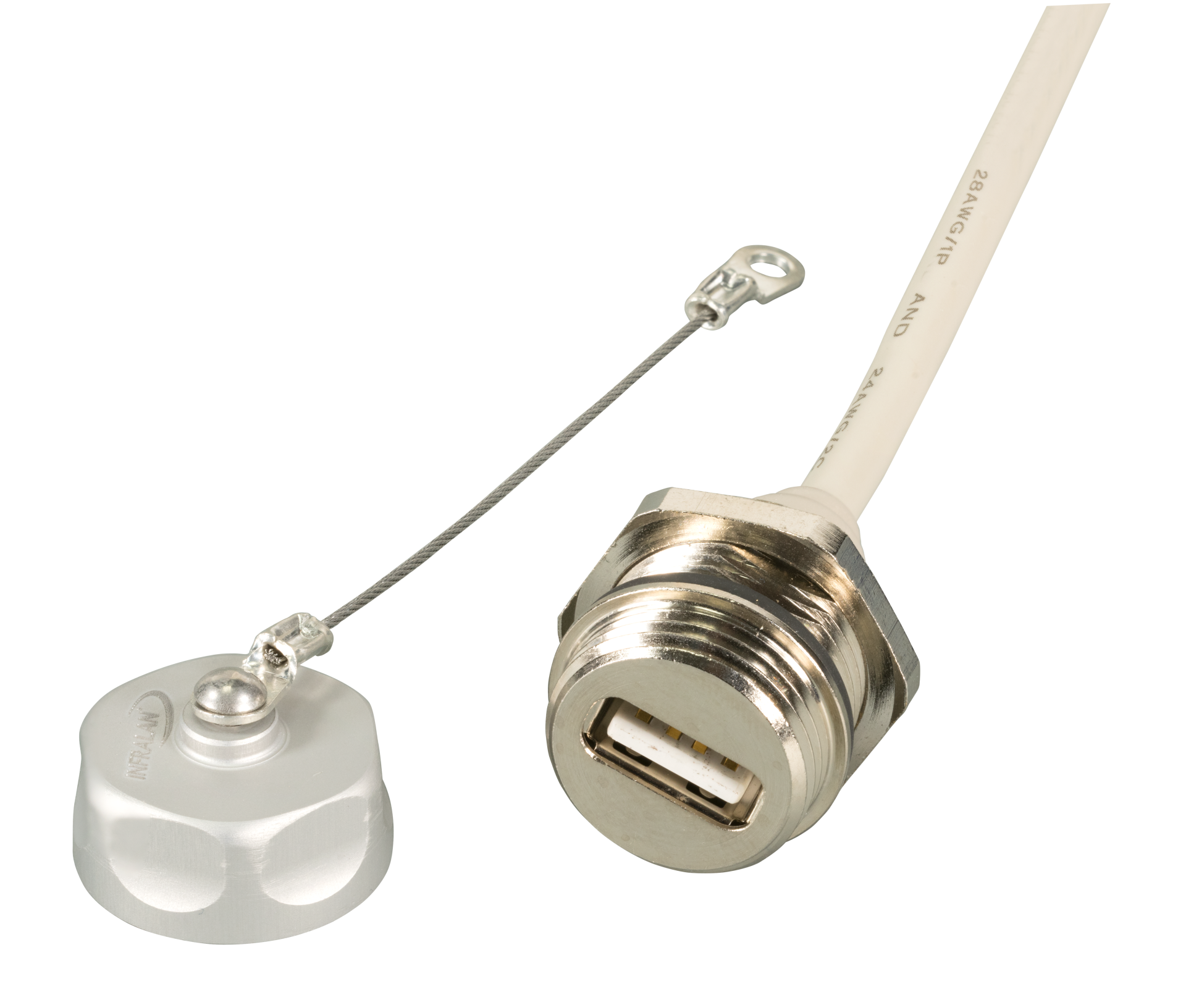

Item no. IP67EBUSBA-A0,5FL
IP67 Receptacle, M20, USB2.0, F-M, A-A, 0.5m
Colour:
grey
Length:
0.5 m

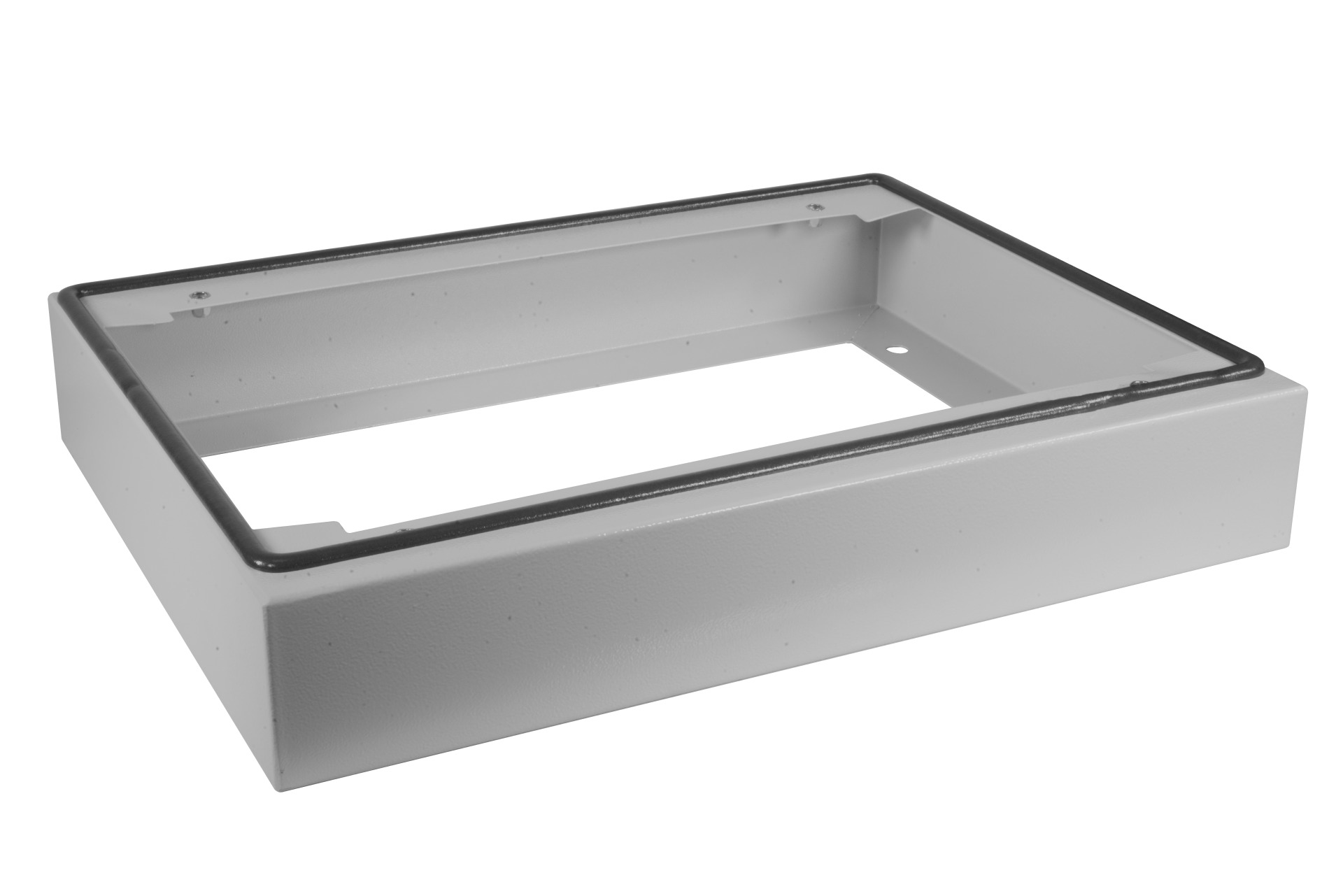

Item no. 691750WIP.2
Plinth for 19" Wall Housing IP55, Depth 600 mm, RAL7035
Colour:
grey
Height:
100 mm
Suitable for enclosure building depth:
600 mm
Suitable for enclosure building width:
600 mm
