The first aid

You get more flexibility if you select the components separately. Since the front panels and splice cassettes are already equipped, you save some time during installation.

  • Time-saving installation
  • Components can be combined modularly
2. way to fiber optic cabling

Weitere Blindplatten

  • Time-saving installation
  • Components can be combined modularly










OS2 / Singlemode

Equipped Front Panels OS2

Item no. SB-FP-6SC-D-V-OS2

Equiped 12 Port Front Panel with 6x Duplex adapter OS2 vertical, grey
Category: OS2
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-12SC-D-V-OS2

Equipped Front Panel with 12 x SC Duplex Adapter OS2 vertical, grey
Category: OS2
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-12SC-S-OS2

Equipped Front Panel with 12 x LC Duplex Adapter OS2, grey
Category: OS2
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-24SC-D-V-OS2

Equipped Front Panel with 24 x SC Duplex Adapter OS2 vertical, grey
Category: OS2
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-6SC-S-OS2

Equiped 12 Port Front Panel with 6 x LC Duplex Adapter OS2 vertical, grey
Category: OS2
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-24SC-S-OS2

Equipped Front Panel with 24 x LC Duplex Adapter OS2, grey
Category: OS2
Colour: grey
Connection type front: LC
Connection type rear: LC

Equipped Splice cassettes OS2

Item no. 53100.212

Equipped splice cassette with coloured stripped pigtails LC/APC OS2
APC version: True
Category: OS2 acc. to ITU-T G.652.D
Colour: 12-colours
Type of connector: LC/APC

Item no. 53100.211

Equipped splice cassette with coloured stripped pigtails SC OS2
APC version: False
Category: OS2 acc. to ITU-T G.652.D
Colour: 12-colours
Type of connector: SC

Installation cables Singlemode

Item no. 54408.1A-CPR

INFRALAN® U-DQ(ZN)BH 8E 9/125µ, G657A1, LSZH black CPR Dca
Construct: 08E ( 1 x 8 ) Singlemode G.657.A1
New

Item no. 54424.1D-E2

INFRALAN® U-DQ(ZN)BH OS2 24E (1x24),Eca 2000N LSZH black 5.8mm G657A1
Construct: 24E ( 1 x 24 ) Singlemode G.657.A1
Number of fibres: 24
Outer diameter approx.: 5.8 mm
New

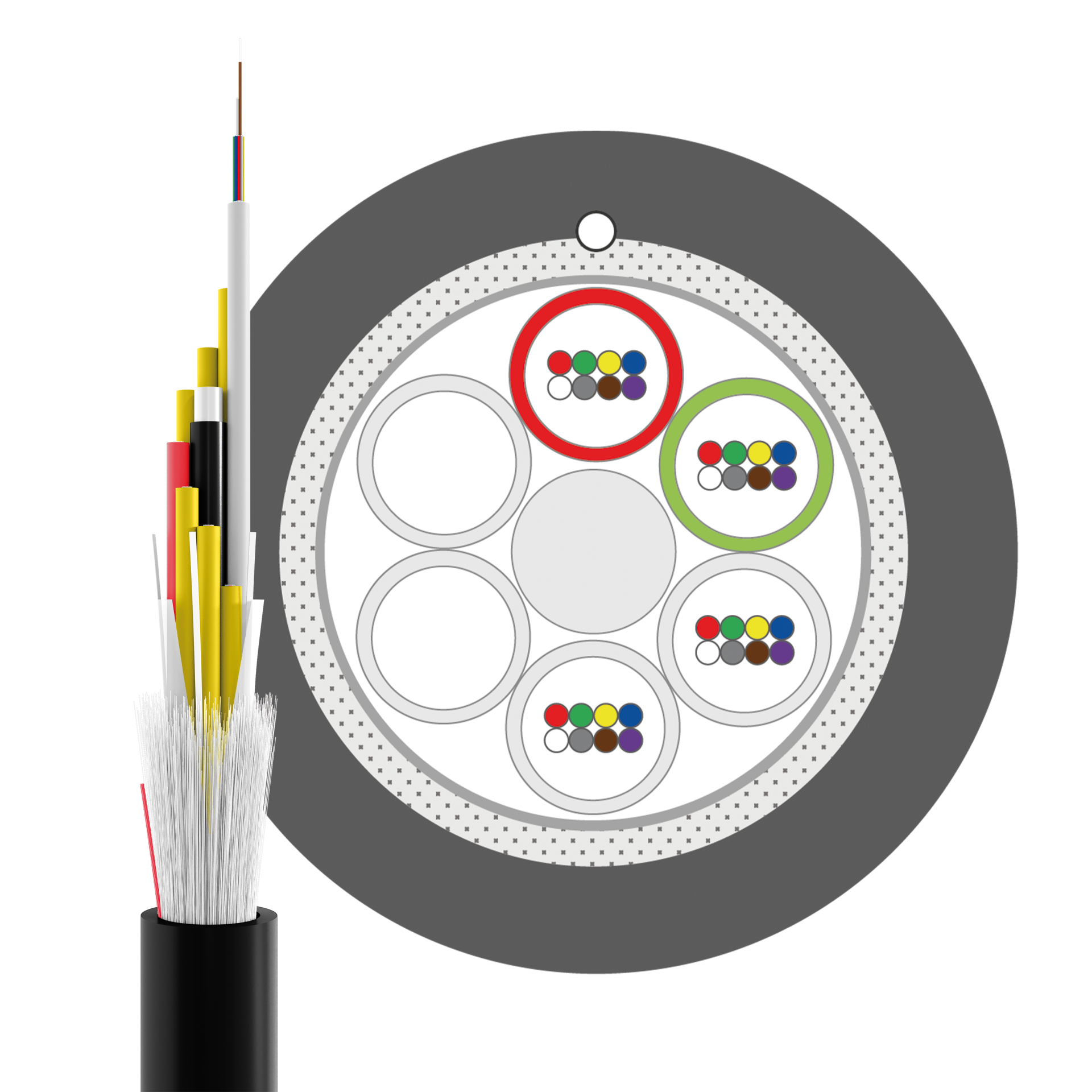

Item no. 54448.1D-E5

INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1
Construct: 48E ( 4 x 12 ) Singlemode OS2
Number of fibres: 48

Item no. 54448.1AV-CPR

INFRALAN® U-DQ(ZN)BH 4x12E 9/125µ, G657A1, 3000N, LSZH black CPR Eca
Construct: 48E ( 4 x 12 ) Singlemode G.652D

Item no. 54424.3LOS2-CPR

INFRALAN® U-DQ(ZN)BH OS2 24E (2x12) B2ca 5000N LSZH black 11.2mm G657A1
Construct: 24E ( 2 x 12 ) Singlemode G.657.A1

Item no. 54448.1L-CPR

INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1
Construct: 48E ( 4 x 12 ) Singlemode G.657.A1

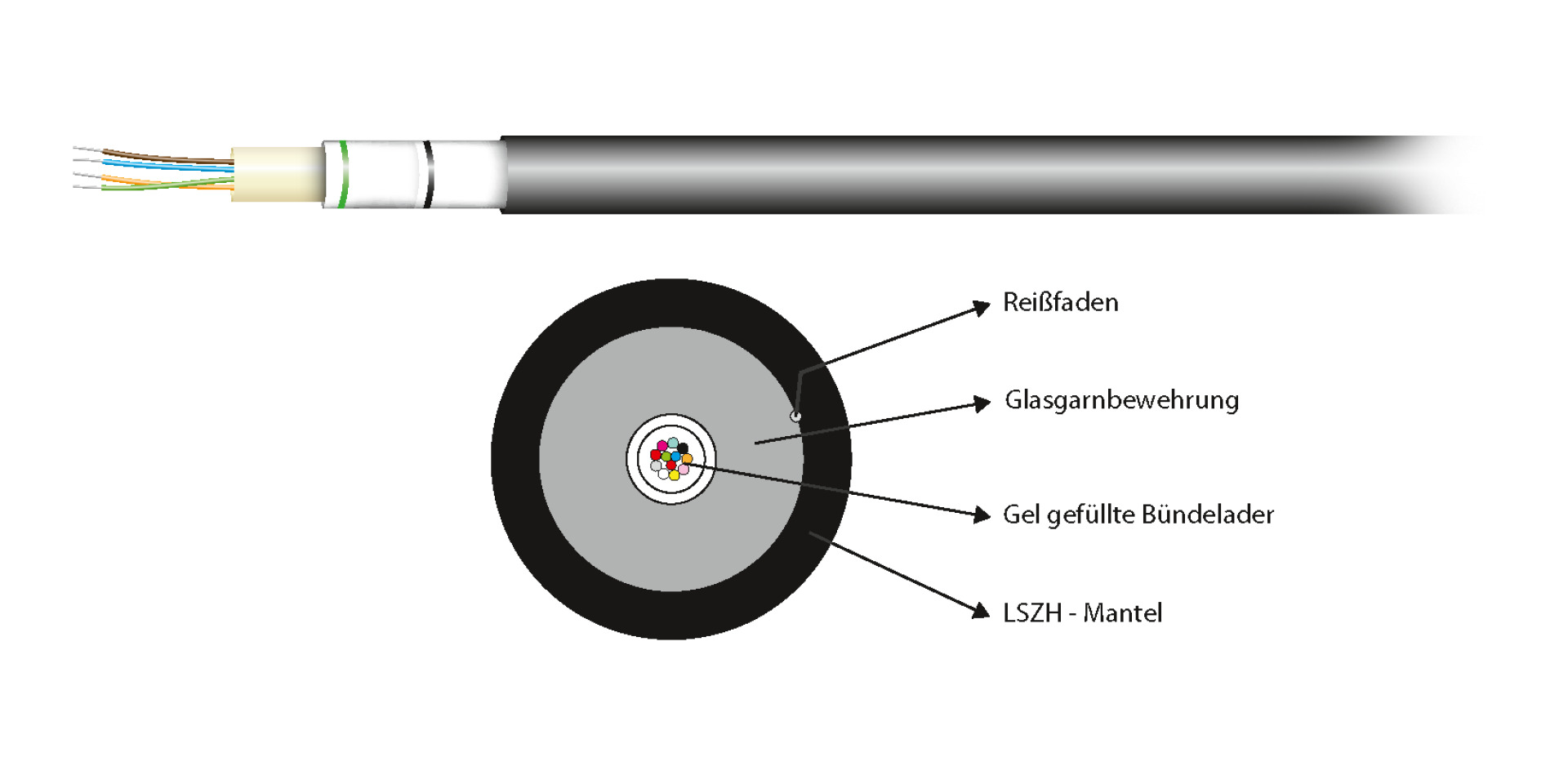

Item no. 54448.1A-CPR

INFRALAN® U-DQ(ZN)BH 4x12E 9/125µ, G657A1, LSZH black CPR Eca
Construct: 48E ( 4 x 12 ) Singlemode G.652D

Item no. 54404.1L-CPR

INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Dca 1750N LSZH black 7.0mm G657A1
Construct: 04E ( 1 x 4 ) Singlemode G.657.A1
Installation cables Singlemode






OM3

Equipped Front Panels OM3

Item no. SB-FP-12SC-D-V-OM3

Equipped Front Panel with 12 x SC Duplex Adapter OM3 vertical, grey
Category: OM3
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-24SC-D-V-OM3

Equipped Front Panel with 24 x SC Duplex Adapter OM3 vertical, grey
Category: OM3
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-6SC-D-V-OM3

Equiped 12 Port Front Panel with 6xSC Duplex Adapter OM3 vertical, grey
Category: OM3
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-6SC-S-OM3

Equiped 12 Port Front Panel with 6x LC duplex adapter OM3 vertical, grey
Category: OM3
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-12SC-S-OM3

Equipped Front Panel with 12 x LC Duplex Adapter OM3, grey
Category: OM3
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-24SC-S-OM3

Equipped Front Panel with 24 x LC Duplex Adapter OM3, grey
Category: OM3
Colour: grey
Connection type front: LC
Connection type rear: LC

Installation cables OM3

New

Item no. 54548.1D-E5

INFRALAN® U-DQ(ZN)BH OM3 48G (4x12) Eca 5000N LSZH black 11.2mm
Construct: 48G ( 4 x 12 ) Singlemode OM3
Number of fibres: 48

Item no. 54548.1AV-CPR

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ OM3, 3000N, LSZH black CPR Eca
Construct: 48G ( 4 x 12 ) Multimode OM3
New

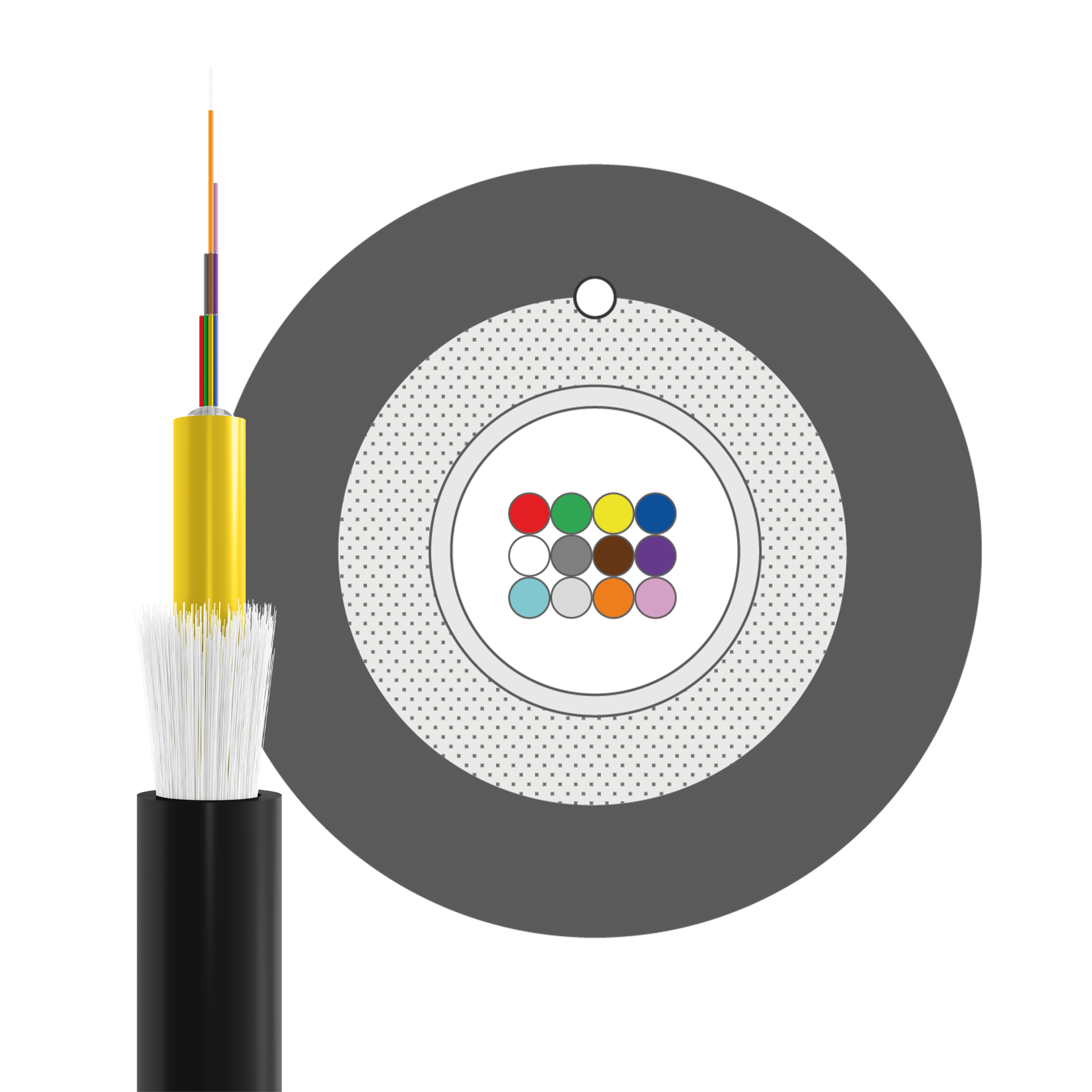

Item no. 54512.1D-E2

INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) Eca 2000N LSZH black 5.8mm
Construct: 12G ( 1 x 12 ) Multimode OM3
Number of fibres: 12
Outer diameter approx.: 5.8 mm

Item no. 54508.1L-CPR

INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) Dca 1750N LSZH black 7.0mm
Construct: 8G ( 1 x 8 ) Multimode OM3

Item no. 54424.3LOM3-CPR

INFRALAN® U-DQ(ZN)BH OM3 24G (2x12) B2ca 5000N LSZH black 11.2mm
Construct: 24G ( 2 x 12 ) Multimode OM3

Item no. 54524.1A-CPR

INFRALAN® U-DQ(ZN)BH 2x12G 50/125µ, OM3, LSZH black CPR-Dca
Construct: 24G ( 2 x 12 ) Multimode OM3

Item no. 54548.1A-CPR

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ, OM3, LSZH black CPR Eca
Construct: 4x12G ( 4 x 12 ) Multimode OM3

Item no. 54548.1L-CPR

INFRALAN® U-DQ(ZN)BH OM3 48G (4x12) Eca 5000N LSZH black 11.2mm
Construct: 48G ( 4 x 12 ) Multimode OM3
Installation cables OM3






OM4

Equipped Front Panels OM4

Item no. SB-FP-12SC-D-V-OM4

Equipped Front Panel with 12 x SC Duplex Adapter OM4 vertical, grey
Category: OM4
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-24SC-D-V-OM4

Equipped Front Panel with 24 x SC Duplex Adapter OM4 vertical, grey
Category: OM4
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-6SC-D-V-OM4

Equiped 12 Port Front Panel with 6xSC Duplex adapter OM4 vertical, grey
Category: OM4
Colour: grey
Connection type front: SC
Connection type rear: SC

Item no. SB-FP-12SC-S-OM4

Equipped Front Panel with 12 x LC Duplex Adapter OM4, grey
Category: OM4
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-24SC-S-OM4

Equipped Front Panel with 24 x LC Duplex Adapter OM4, grey
Category: OM4
Colour: grey
Connection type front: LC
Connection type rear: LC

Item no. SB-FP-6SC-S-OM4

Equiped 12 Port Front Panel with 6x LC Duplex adapter OM4 vertical, grey
Category: OM4
Colour: grey
Connection type front: LC
Connection type rear: LC
Installation cables OM4

Installation cables OM4

Item no. 54508.2A-CPR

INFRALAN® U-DQ(ZN)BH 8G 50/125µ, OM4, LSZH black CPR Dca
Construct: 8G ( 1 x 8 ) Multimode OM4
New

Item no. 54548.2D-E5

INFRALAN® U-DQ(ZN)BH OM4 48G (4x12) Eca 5000N LSZH black 11.2mm
Construct: 48G ( 4 x 12 ) Singlemode OM4
Number of fibres: 48

Item no. 54408.3LOM4-CPR

INFRALAN® U-DQ(ZN)BH OM4 8G (1x8) B2ca 5000N LSZH black 11.2mm
Construct: 8G ( 1 x 8 ) Multimode OM4
New

Item no. 54508.2D-E2

INFRALAN® U-DQ(ZN)BH OM4 8G (1x8) Eca 2000N LSZH black 5.8mm
Construct: 8G ( 1 x 8 ) Multimode OM4
Number of fibres: 8
Outer diameter approx.: 5.8 mm

Item no. 54512.2L-CPR

INFRALAN® U-DQ(ZN)BH OM4 12G (1x12) Dca 1750N LSZH black 7.0mm
Construct: 12G ( 1 x 12 ) Multimode OM4

Item no. 54548.2A-CPR

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ, OM4, LSZH black CPR Eca
Construct: 4x12G ( 4 x 12 ) Multimode OM4

Item no. 54548.2AV-CPR

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ OM4, 3000N, LSZH black CPR Eca
Construct: 48G ( 4 x 12 ) Multimode OM4

Item no. 54548.2L-CPR

INFRALAN® U-DQ(ZN)BH OM4 48G (4x12) Eca 5000N LSZH black 11.2mm
Construct: 48G ( 4 x 12 ) Multimode OM4





Splice protection
