The OM3, OM4, OM5 and OS2 fiber optic systems of the INFRALAN^® brand are manufactured in the SC and LC versions. In both variants, the splice boxes are already fully populated: The pigtails are distributed, inserted into the splice tray and the couplings are mounted and connected. The offered permanent link system excels with its fiber optic TA (Glaser Fiber Type Approval), which is unparalleled on the market. In order to offer our customers traceability, all components used have the INFRALAN^® logo.

An office equipped with INFRALAN products

INFRALAN^® Fiber Optic Cabling System

High-quality products which allow for advanced optical fiber installations in times of increasing data volumes.
Structured system consisting of splice boxes, installation cables, and corresponding connection materials
Certifications by GHMT, VDE, etc.
Compliance with current transmission properties according to IEC 14763-3 up to 400Gbit/s.
All installation cables are certified according to the Construction Products Regulation (CPR).

Selection of the currently available fiber categories

Singlemode
OM3
OM4
OM5

Selection of available plug faces

Certification by Euroclasses

B2ca
Cca
Dca
Eca

INFRALAN^® Fiber Optic System components

Fiber optic installation cables

INFRALAN® I-B(ZN)BH OM3 12G (1x12) B2ca 1500N LSZH aqua 6.5mm

Fields of application:For building connectionsFor campus cablingFor use in plastic pipe systemsFor installation in cable ducts and on flatbedsCharacteristics:Easy to use constructionGel-free cable construction for clean and fast assemblySmall dimensionsHigh laying stabilityFire behaviour tested and certified according toConstruction Products Regulation (see Euro fire class)Cable diameter may vary

Select variants

INFRALAN® I-B(ZN)BH OM3 24G (2x12) B2ca 3000N LSZH aqua 8.3mm

Select variants

INFRALAN® I-B(ZN)BH OM4 12G (1x12) B2ca 1500N LSZH erica violet 6.5mm

Select variants

INFRALAN® I-B(ZN)BH OM4 48G (4x12) B2ca 3000N LSZH erica violet 8.3mm

Select variants

INFRALAN® I-B(ZN)BH OS2 12E (1x12) B2ca 1500N LSZH yellow 6.5mm G657A1

Select variants

INFRALAN® I-B(ZN)BH OS2 48E (4x12) B2ca 3000N LSZH yellow 8.3mm G657A1

Select variants

INFRALAN® U-DQ(ZN)BH 8E 9/125µ, G657A1, LSZH black CPR Dca

Areas of application:For connecting buildingsTo the campus cablingFor direct burial (according to installation instructions)For insertion in plastic pipe systemsFor installation in cable ducts and on platformsSaving of splicing work at building entranceCharacteristics:Easy to process constructionTearing thread for opening/removing the cable sheathGel-free cable construction for clean and quick installationSmall dimensionsHigh installation stabilityFire behaviour tested and certified according toConstruction Products Ordinance (see Euro Fire Class)The cable diameter can vary

Select variants

INFRALAN® U-DQ(ZN)BH 2x12G 50/125µ, OM2, LSZH black CPR Dca

Select variants

INFRALAN® U-DQ(ZN)BH 2x12G 50/125µ, OM3, LSZH black CPR-Dca

Select variants

INFRALAN® U-DQ(ZN)BH 8G 50/125µ, OM4, LSZH black CPR Dca

Select variants

INFRALAN® U-DQ(ZN)BH 4x12E 9/125µ, G657A1, LSZH black CPR Eca

Select variants

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ, OM2, LSZH black CPR Eca

Select variants

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ, OM3, LSZH black CPR Eca

Select variants

INFRALAN® U-DQ(ZN)BH 4x12G 50/125µ, OM4, LSZH black CPR Eca

Select variants

INFRALAN® U-DQ(ZN)BH OM2 24G (1x24) Dca 1750N LSZH black 7.5mm

Application:For fixed installation indoor and outdoorIn cable ducts, tubes and interconnectionsMechanical installation by winch is permitted only when using force meters with recording functionNot suitable for underground laying (direct buried)Characteristics:Universale cableSuitable for connector assemblyThe cable diameter can vary

Select variants

INFRALAN® U-DQ(ZN)BH OM3 24G (2x12) B2ca 5000N LSZH black 11.2mm

Select variants

INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) Dca 1750N LSZH black 7.0mm

Select variants

INFRALAN® U-DQ(ZN)BH OM3 48G (4x12) Eca 5000N LSZH black 11.2mm

Select variants

INFRALAN® U-DQ(ZN)BH OM4 8G (1x8) B2ca 5000N LSZH black 11.2mm

Select variants

INFRALAN® U-DQ(ZN)BH OM4 12G (1x12) Dca 1750N LSZH black 7.0mm

Select variants

INFRALAN® U-DQ(ZN)BH OM4 48G (4x12) Eca 5000N LSZH black 11.2mm

Select variants

INFRALAN® U-DQ(ZN)BH OM5 12G (1x12) Dca 1750N LSZH black 7.0mm

Select variants

INFRALAN® U-DQ(ZN)BH OS2 24E (2x12) B2ca 5000N LSZH black 11.2mm G657A1

Select variants

INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Dca 1750N LSZH black 7.0mm G657A1

Select variants

INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1

Select variants

Fiber optic pigtails & patch cables

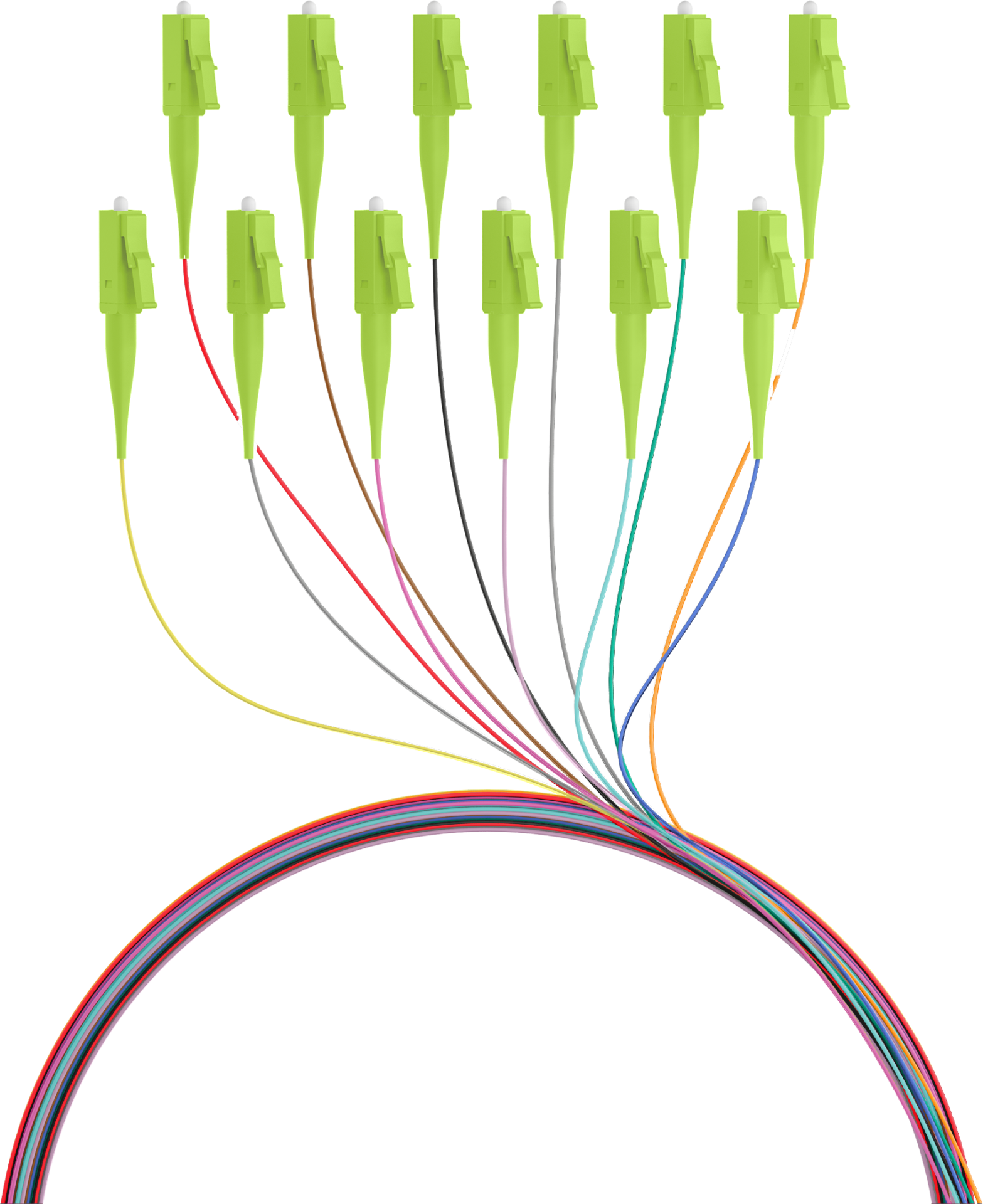

INFRALAN® Fiber Pigtail LC OM5 -colored set 2m - 12 pieces

The INFRALAN® LC fiber pigtail set consists of 12 fiber pigtails whose colors are colored according to colour code DIN VDE 0888 in the colours red, green, blue, yellow, white, grey, brown, violet, aqua, black, orange and pink. The colour of the 900µ coating is dyed through on the 250µ coating. The single pigtail has a semi tight buffer, which allows the splicing process in a splice cassette to be carried out in a user-friendly way. The INFRALAN® singlemode fiber pigtails correspond to quality class B/2 according to IEC 61753-1 SM, the multimode fiber pigtails correspond to quality class A/1 according to IEC 61753-122-2 MM.The INFRALAN® fiber pigtails are packed in a poly bag, in which the plugs are enclosed separately with a poly bag. The fiber and the connector of the INFRALAN® fiber pigtail are marked with the INFRALAN® logo.

Select variants

INFRALAN® Fiber Pigtail LC OS2 G652D-colored set 2m - 12 pieces

Select variants

INFRALAN® Fiber Pigtail LC/APC OS2 G652D-colored set 2m - 12 pieces

Select variants

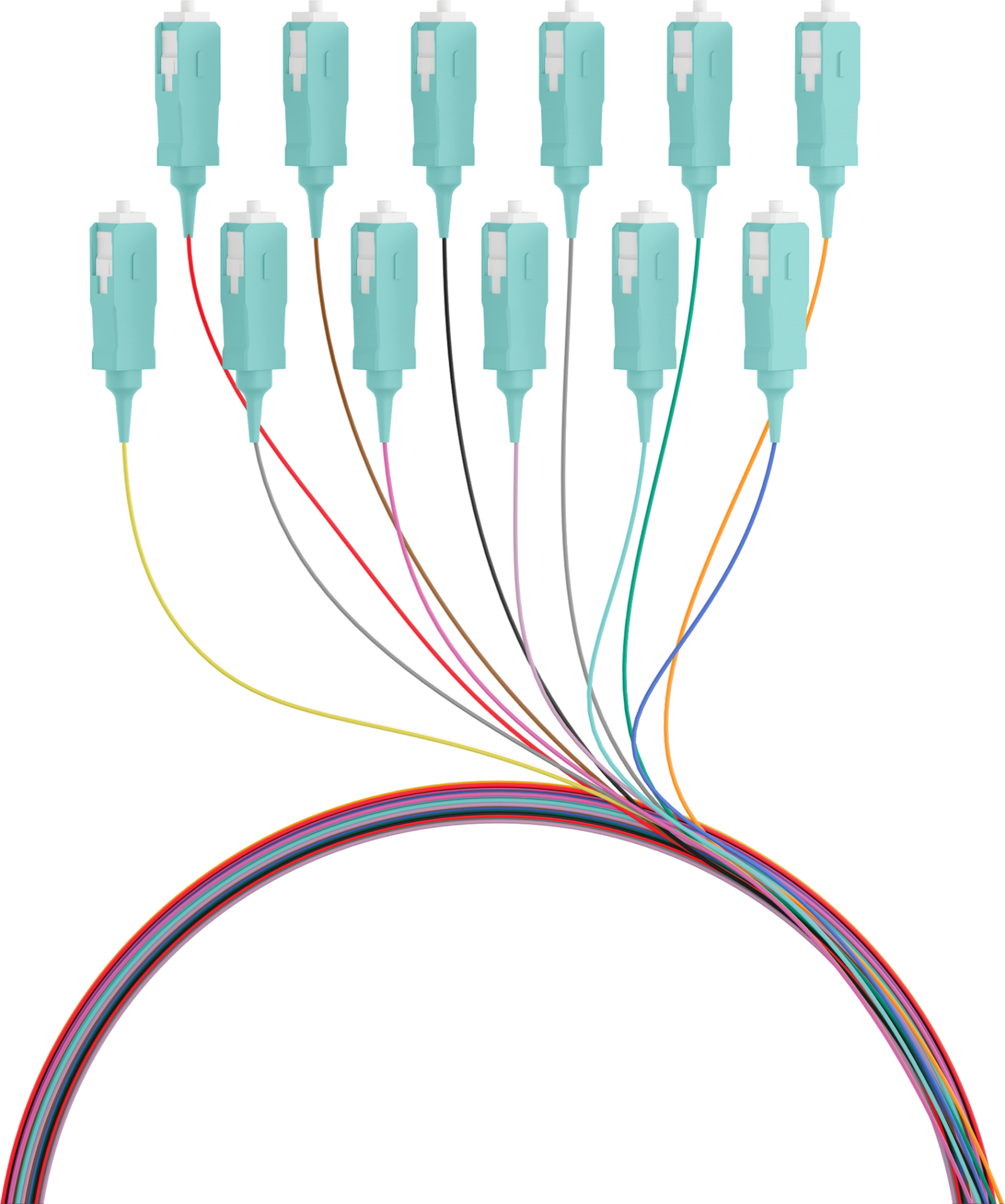

INFRALAN® Fiber Pigtail SC OM3 -colored set 2m - 12 pieces

The INFRALAN® SC fiber pigtail set consists of 12 fiber pigtails whose colors are colored according to colour code DIN VDE 0888 in the colours red, green, blue, yellow, white, grey, brown, violet, aqua, black, orange and pink. The colour of the 900µ coating is dyed through on the 250µ coating. The single pigtail has a semi tight buffer, which allows the splicing process in a splice cassette to be carried out in a user-friendly way. The INFRALAN® singlemode fiber pigtails correspond to quality class B/2 according to IEC 61753-1 SM, the multimode fiber pigtails correspond to quality class A/1 according to IEC 61753-122-2 MM.The INFRALAN® fiber pigtails are packed in a poly bag, in which the plugs are enclosed separately with a poly bag. The fiber and the connector of the INFRALAN® fiber pigtail are marked with the INFRALAN® logo.

Select variants

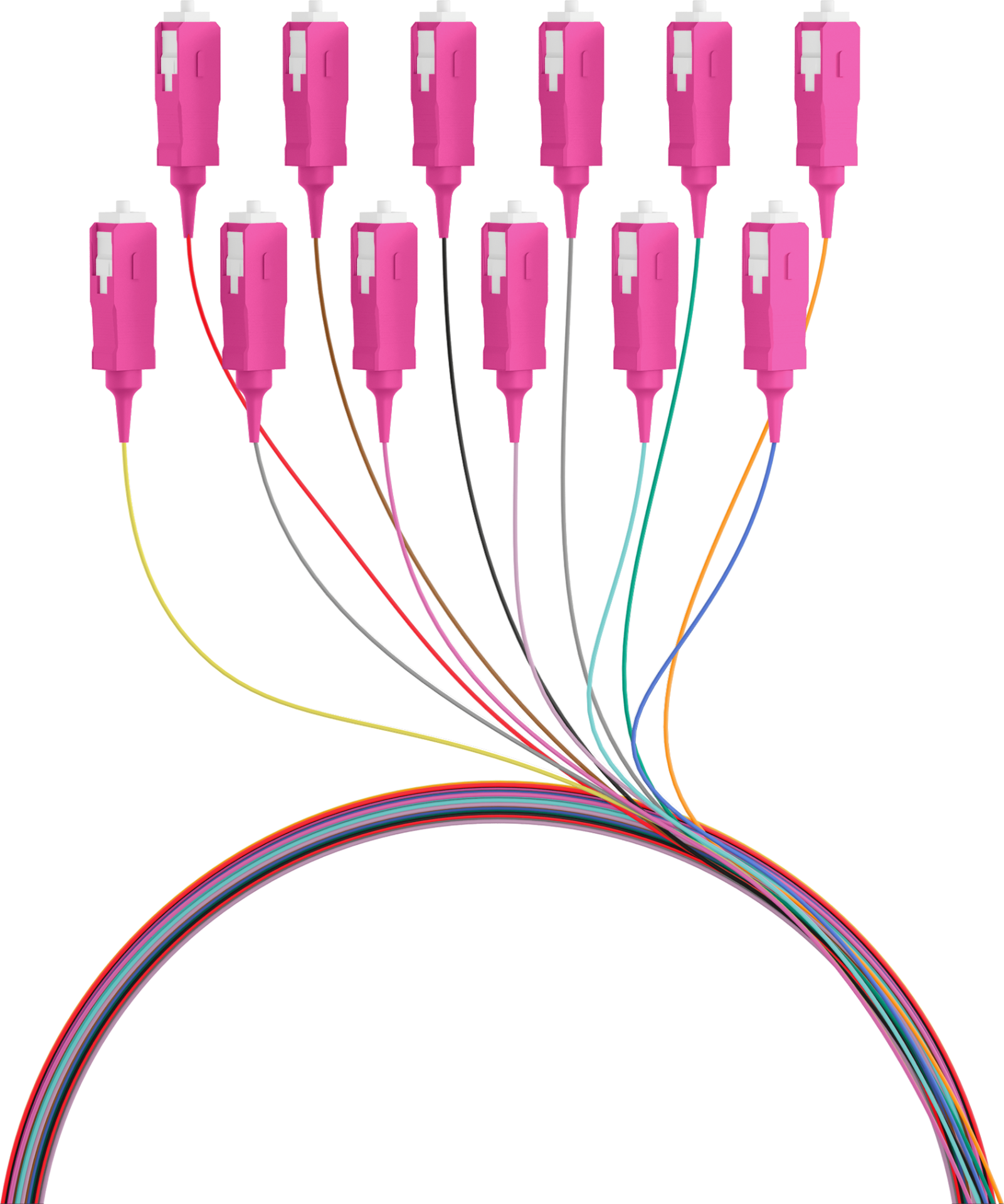

INFRALAN® Fiber Pigtail SC OM4 -colored set 2m - 12 pieces

Select variants

INFRALAN® Fiber Pigtail SC OM5 -colored set 2m - 12 pieces

Select variants

INFRALAN® Fiber Pigtail SC OS2 G652D-colored set 2m - 12 pieces

Select variants

INFRALAN® Fiber Pigtail SC/APC OS2 G652D-colored set 2m - 12 pieces

Select variants

Fiber optic adaptors

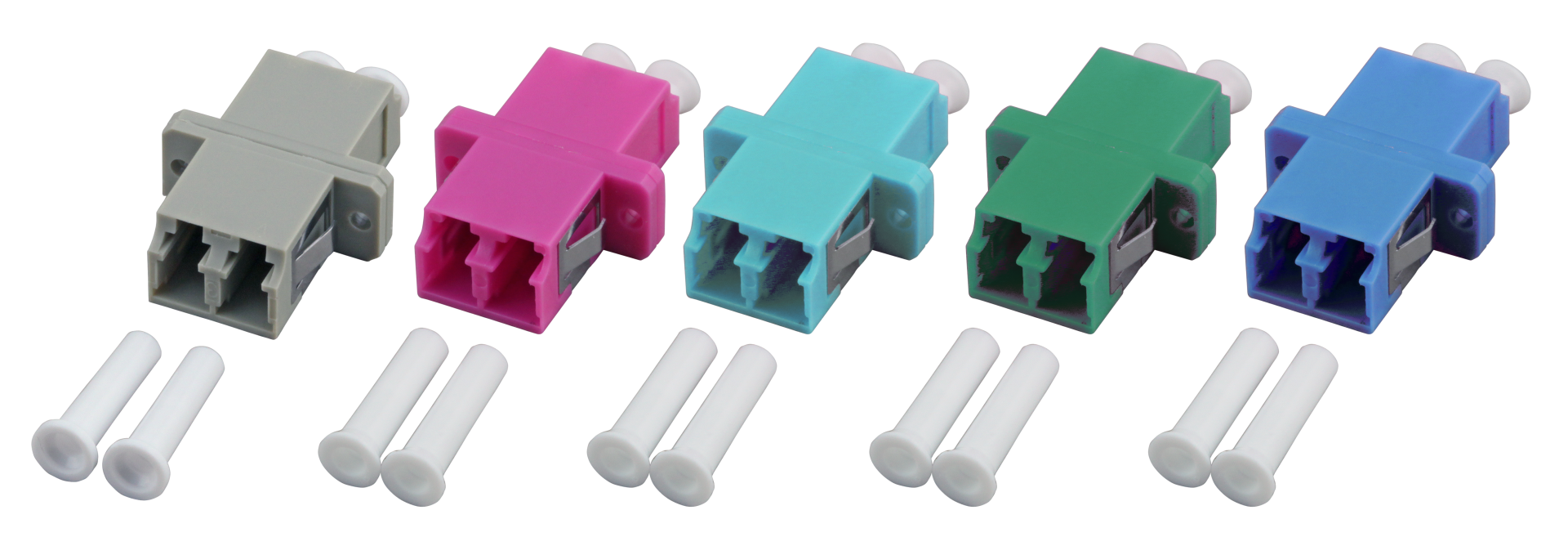

INFRALAN® adapter LC Duplex OM3 aqua

The INFRALAN® LC Duplex adapter in coloured plastic housing according to fiber classFor SC-Simplex breakoutsConform to DIN EN 61754-20Higher stability due to one-piece design and low sensitivity to temperature fluctuations Mounting options via clips or sheet metal screws ST2.5

Select variants

INFRALAN® adapter LC Duplex OM4 erica violet

Select variants

INFRALAN® adapter LC Duplex OM5 lime green

Select variants

INFRALAN® adapter LC Duplex OS2 blue

Select variants

INFRALAN® adapter LC Duplex OS2 metal housing

The INFRALAN® LC Duplex adapter in metal housingFor SC-Simplex breakoutsConform to DIN EN 61754-20High stability due to metal housing and lower sensitivity to temperature fluctuationsMounting options via clips or M2 threaded screws

Select variants

INFRALAN® adapter LC/APC Duplex OS2 green

Select variants

INFRALAN® adapter SC Duplex OM3 aqua

The INFRALAN® SC Duplex adapter in a coloured plastic housing according to the fiber classConform to DIN EN 61754-4Mounting options via clips or sheet metal screws ST2.5

Select variants

INFRALAN® adapter SC Duplex OM4 erica violet

The INFRALAN® SC Duplex adapter in a coloured plastic housing according to the fiber classConform to DIN EN 61754-4Mounting options via clips or sheet metal screws ST2.5

Select variants

INFRALAN® adapter SC Duplex OM5 lime green

The INFRALAN® SC Duplex adapter in a coloured plastic housing according to the fiber classConform to DIN EN 61754-4Mounting options via clips or sheet metal screws ST2.5

Select variants

INFRALAN® adapter SC Duplex OS2 blue

The INFRALAN® SC Duplex adapter in a coloured plastic housing according to the fiber classConform to DIN EN 61754-4Mounting options via clips or sheet metal screws ST2.5

Select variants

INFRALAN® adapter SC Duplex OS2 metal housing

The INFRALAN® SC Duplex adapter in metal housingConform to DIN EN 61754-4High stability due to metal housing and lower sensitivity to temperature fluctuationsMounting options via clips or M2 threaded screws

Select variants

INFRALAN® adapter SC/APC Duplex OS2 green

The INFRALAN® SC Duplex adapter in a coloured plastic housing according to the fiber classConform to DIN EN 61754-4Mounting options via clips or sheet metal screws ST2.5

Select variants

Fiber optic spliceboxes

INFRALAN® Splicebox sliding version 24x LC-Duplex unequipped, grey

INFRALAN® splice box unequipped, extendable for 24 x LC duplex, 1U 19". Front panel to accommodate max. 24 LC duplex adapters. Depth adjustable metal housing with mounting possibility for up to 4 splice cassettes. At the rear side 2 holders each for M20 and M25 cable glands, as well as two oblong holes for cables. Installation via 19" mounting bracket. Delivery including front panel with 24 cut-outs.

Select variants

INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM3

Completely equipped INFRALAN® splice box with adapter and through-dyed pigtailsThe LC Pigtails are stripped off and inserted into the splice cassetteMeasurement protocols of LC Pigtails are stored in the boxMetal housing depth adjustable (45mm) via 19" mounting bracketAll versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm). incl. 1 x PG166 x self-adhesive fiber guides

Select variants

INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4

Select variants

INFRALAN® Splicebox sliding version LC, 24 stripped pigtails/ 12 adapter, OM5

Select variants

INFRALAN® Splicebox sliding version LC/APC, 12 stripped pigtails/ 6 adapter,OS2

Select variants

INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OM3

Completely equipped INFRALAN® splice box with adapter and through-dyed pigtailsThe SC Pigtails are stripped off and inserted into the splice cassetteMeasurement protocols of SC Pigtails are stored in the boxMetal housing depth adjustable (45mm) via 19" mounting bracketAll versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm). incl. 1 x PG166 x self-adhesive fiber guides

Select variants

INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OM4

Select variants

INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OM5

Select variants

INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OS2

Select variants

Fiber optic frame sets

INFRALAN® 2-Port Frame Set FO, RAL9010 for 2xSC-Simplex / 2xLC-Duplex

INFRALAN® frame set for 2 adapter2 ports for SC Simplex, LC Duplex or E2000® Simplexoutlet: 40° Colour: RAL9010, pure whiteOuter ring 80x80mm and central plate 50x50mm according to DIN49075Compatible with any switch range with the adapter plate of the switch range manufacturerIntegrated labelling fieldDelivery unassembledScope of delivery:1 x metal frame1 x outer ring1 x central plate4 x M2 screws

Select variants
