Installation cable: buy long Ethernet cables online
Ethernet cables for indoor & outdoor installation
Reliable and efficient IT infrastructure begins with top-quality installation cables. Our copper-based Ethernet cables are designed to meet the most demanding performance standards, ensuring stable and fast data transmission across networks.
At our online shop, you’ll find an extensive selection of installation tailored to your requirements. From varied sheath materials to diverse diameters and conductor cross-sections, we stock lengths ranging from 1 m to 1000 m. Our cables, suitable for indoor and outdoor applications, support up to 40 Gbps Ethernet in compliance with Cat.8 CLASS I S/FTP standards (up to 2000 MHz). Complement your setup with our range of RJ45 connectors, Ethernet sockets, patch panels, pre-assembled patch cables, keystones and adapters – ensuring seamless integration, all from a single trusted source.
As a leading provider in network technology and structured IT infrastructure, our experts are ready to assist with tailored advice or bespoke solutions. Connect with us for personalised consultation and project support.
Request consultation Further information
At our online shop, you’ll find an extensive selection of installation tailored to your requirements. From varied sheath materials to diverse diameters and conductor cross-sections, we stock lengths ranging from 1 m to 1000 m. Our cables, suitable for indoor and outdoor applications, support up to 40 Gbps Ethernet in compliance with Cat.8 CLASS I S/FTP standards (up to 2000 MHz). Complement your setup with our range of RJ45 connectors, Ethernet sockets, patch panels, pre-assembled patch cables, keystones and adapters – ensuring seamless integration, all from a single trusted source.
As a leading provider in network technology and structured IT infrastructure, our experts are ready to assist with tailored advice or bespoke solutions. Connect with us for personalised consultation and project support.
Request consultation Further information
Sort by
Item no. 99980DX.50-CPR
INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 50m
Colour outer sheath:
orange
Length:
50.0 m
Number of cores:
2x8
RAL colour:
RAL2003
Item no. MK7101.500-CPR
LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
Colour outer sheath:
orange
Length:
500,0 m
Number of cores:
8
RAL colour:
RAL2003
Item no. 99985.500-CPR
INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021, 500m
Colour outer sheath:
rapsgelb
Length:
500,0 m
Number of cores:
8
RAL colour:
RAL1021
Item no. MK7100DX.500-CPR
INFRALAN® Cat.7A 1200 AWG22, S/FTP 2x4P CPR B2ca orange RAL 2003
Colour outer sheath:
orange
Length:
500,0 m
Number of cores:
2x8
RAL colour:
RAL2003
Item no. 99827.500
UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz,LSHF-FR 500m
Colour outer sheath:
gelb
Length:
500,0 m
Number of cores:
8
RAL colour:
RAL1021
Item no. 99733.500-CPR
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m
Colour outer sheath:
black
Length:
500,0 m
Number of cores:
8
Type:
simplex

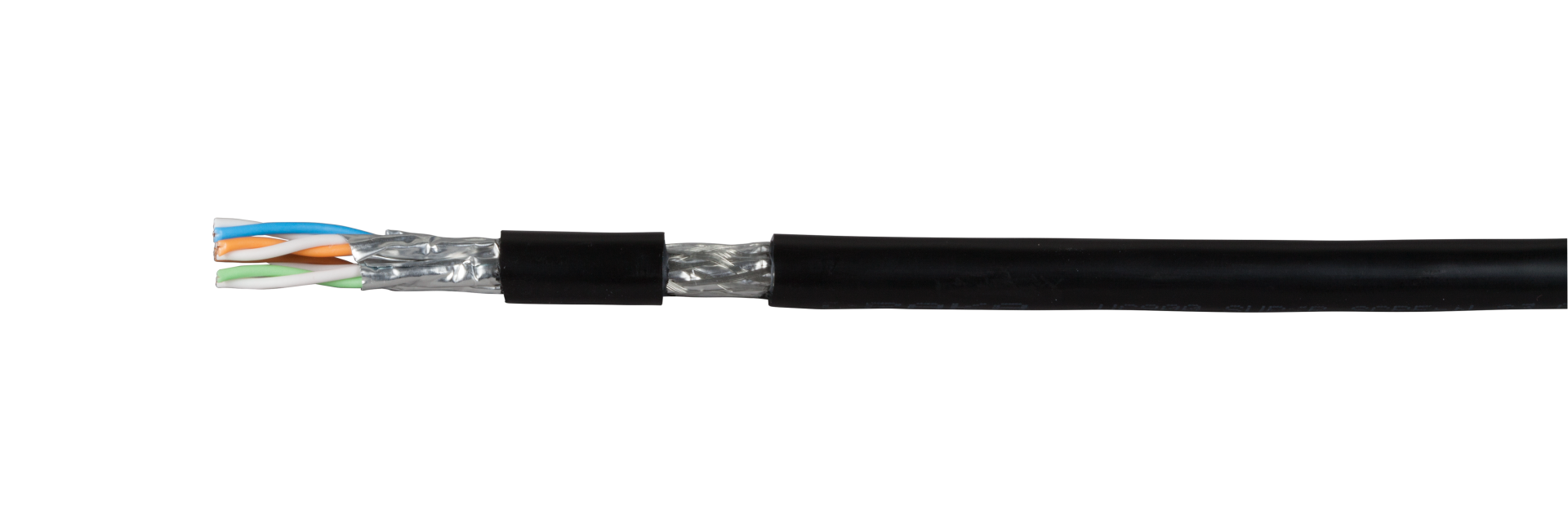

Item no. 99739.1
ICS IE UC900 SS23 Cat.7 (L)H + armouring + PE, UV-resistant, black
Colour outer sheath:
black
Length:
1,0 m
Number of cores:
8
RAL colour:
RAL9005
Item no. 99978.500-CPR
INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Drum, white
Colour outer sheath:
weiß
Length:
500,0 m
Number of cores:
8
RAL colour:
RAL9003
Item no. 99981DX.500-CPR
INFRALAN® Cat.7 1000 AWG23, S/FTP 2x4P CPR Cca orange, 500m
Colour outer sheath:
orange
Length:
500,0 m
Number of cores:
2x8
RAL colour:
RAL2003

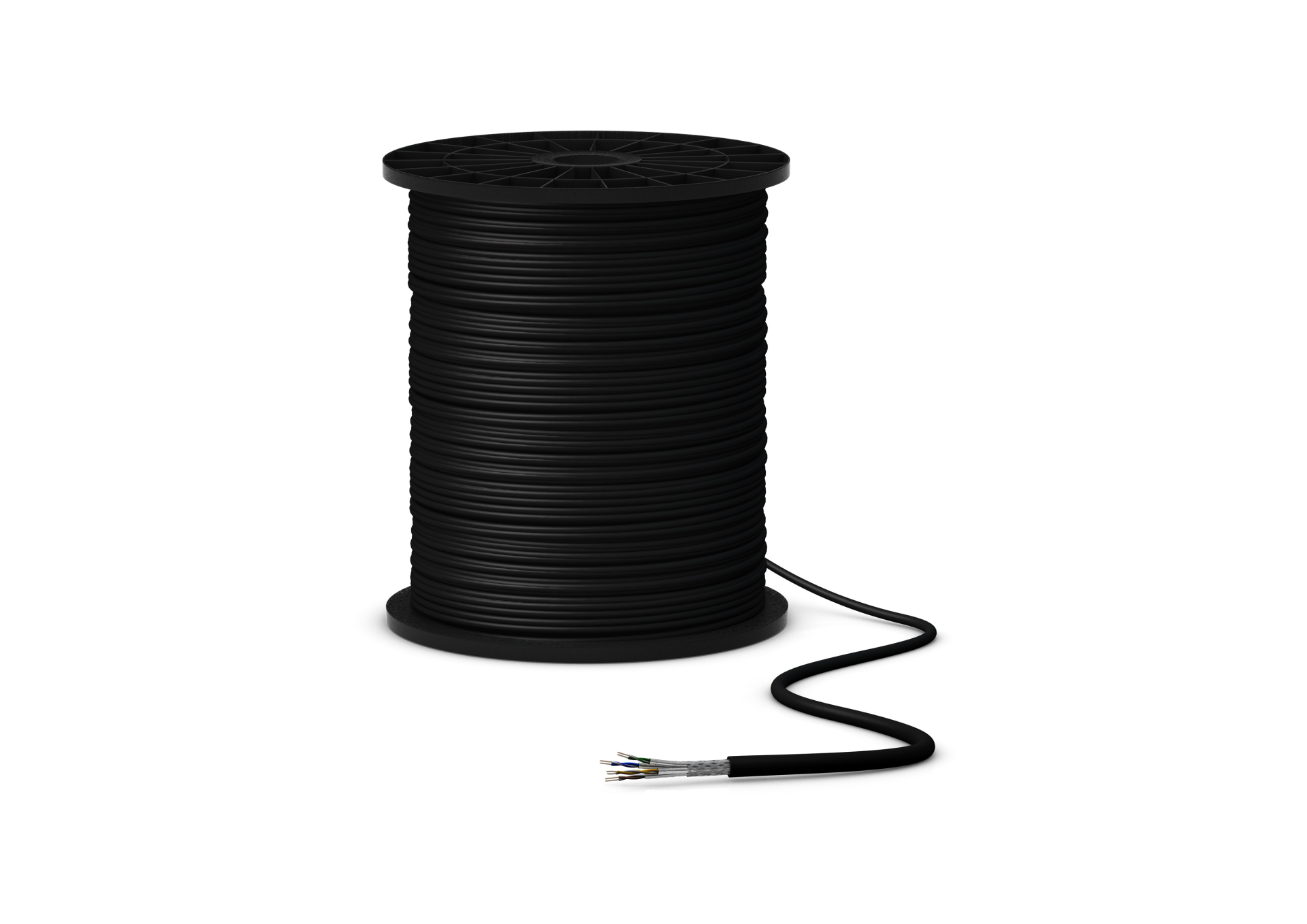

Item no. 99731GC.500
Draka GreenConnect Cat.7 Outdoor Cable S/FTP PE,black, CPR Fca
Colour outer sheath:
black
Length:
500.0 m
Number of cores:
8

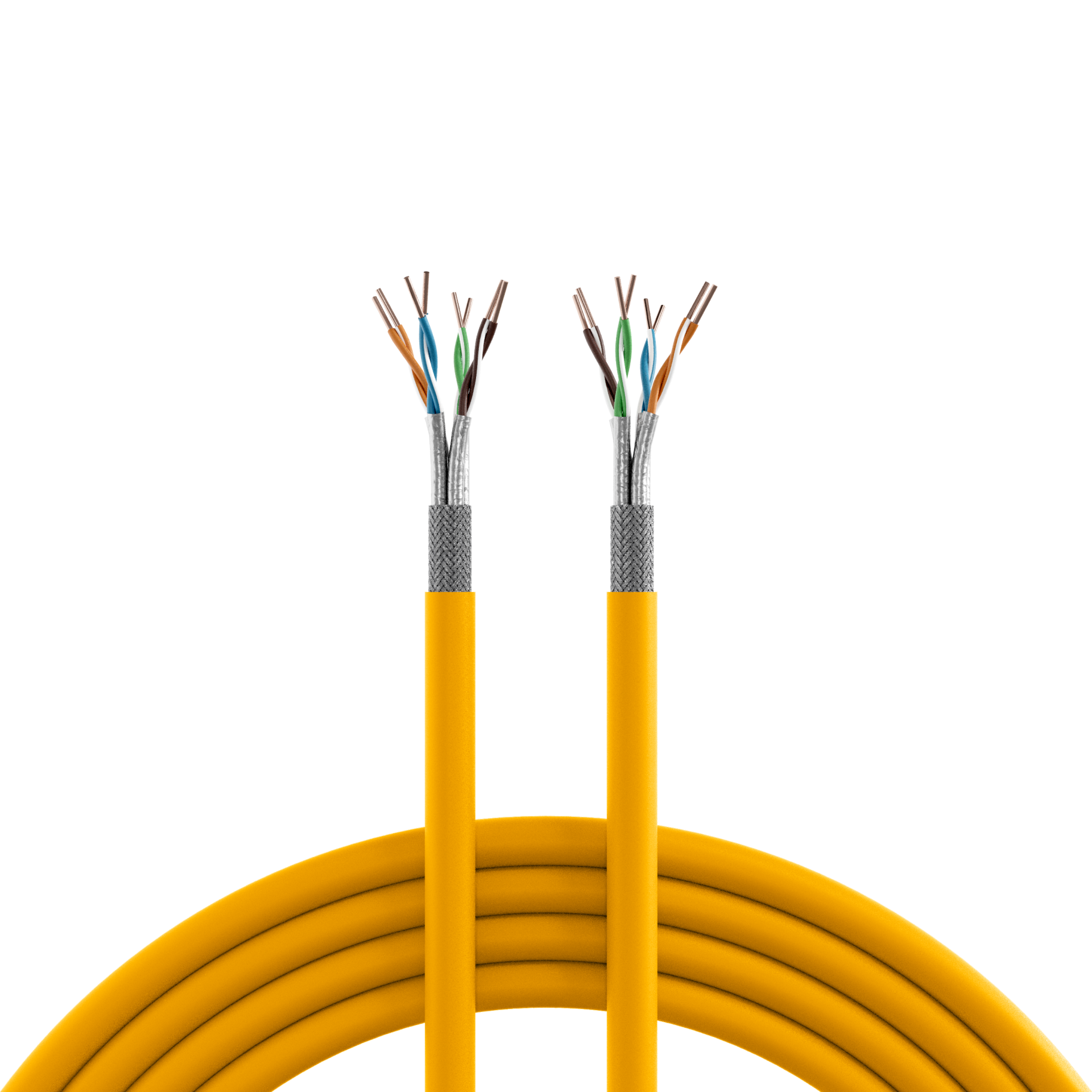

Item no. 999834DX.500-CPR
INFRALAN Cat.7A 1500 AWG22 S/FTP 2x4P CPR Cca melon yellow RAL1028, 500m
Colour outer sheath:
gelb
Length:
500 m
RAL colour:
RAL1028
Item no. 99988.500-CPR
INFRALAN Cat.7 1000 AWG23 S/FTP 4P CPR Cca orange 500m
Colour outer sheath:
orange
Length:
500 m
Number of cores:
8
Type:
simplex

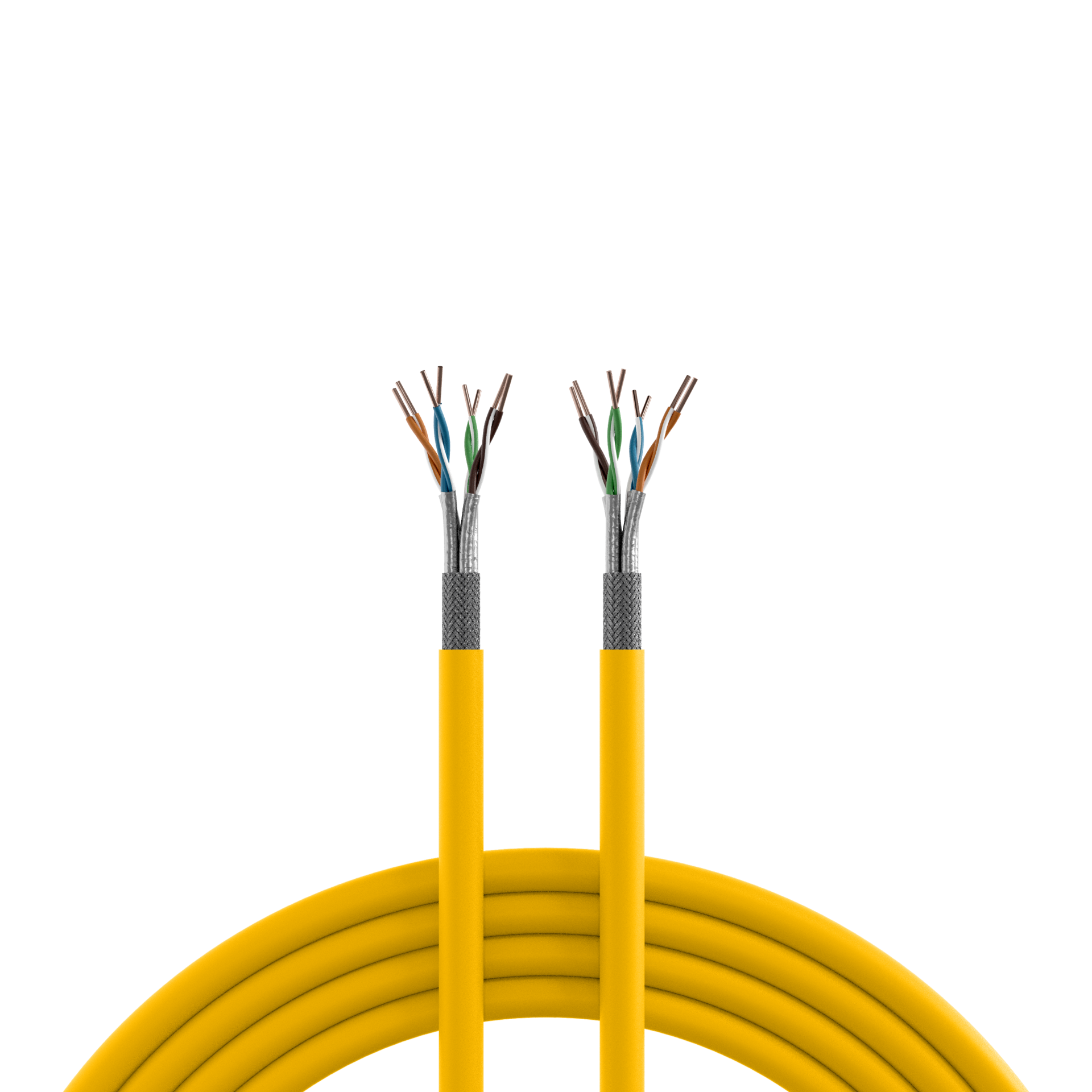

Item no. 999833.1-CPR
INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021
Colour outer sheath:
gelb
Length:
1,00 m
Number of cores:
8
RAL colour:
1021
Item no. MK7101DX.100-CPR
Duplex LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 100m
Colour outer sheath:
orange
Length:
100,0 m
Number of cores:
2x8
RAL colour:
RAL2003
Item no. 99988DX.500-CPR
INFRALAN Cat.7 1000 AWG23 S/FTP 2x4P CPR Cca orange 500m
Colour outer sheath:
orange
Length:
500 m
Number of cores:
2x8
Type:
duplex
Item no. 99731.500
Cat.7 Outdoor cable UC900 SS23/1,4P PE, 500metres
Colour outer sheath:
black
Length:
500.0 m
Number of cores:
8
RAL colour:
9005
Item no. 99965.305-CPR
INFRALAN® Cat.6A 500 AWG23, U/UTP 4P CPR B2ca, RAL5015 blue, 305m
Colour outer sheath:
blau
Length:
305,0 m
Number of cores:
8
RAL colour:
RAL5015
High-quality installation cables for your network: our product range at EFB-Elektronik
- Cat.6A Installation Cable:Enhanced shielding; supports 10 Gbps up to 100 m. Perfect for professional and enterprise-level applications.
- Cat.7 Installation Cable:Advanced shielding for high-performance 10 Gigabit Ethernet. Future-proof and highly resistant to interference.
- Cat.7A Installation Cable:Superior bandwidth for demanding audio and video transmissions. Ideal for specialized applications.
- Cat.8.2 Installation Cable: Designed for data centers and ultra-high-speed networks. Supports up to 40 Gbps and frequencies up to 2 GHz.
- Outdoor Installation Cable: VWeatherproof, UV- and temperature-resistant. Durable Cat.7 cables with S/FTP shielding or underground options for direct burial.
Installation cables are special network cables with a copper core that are used for permanent installation in buildings, systems or infrastructure projects. They are used for data transmission and are designed to be securely laid in walls, ceilings, floors, cable ducts or empty conduits. In the EFB-Elektronik online shop, all installation cables are available unassembled and in various lengths. Choose an Ethernet cable with a length of 25 m, 50 m, 100 m or 500 m. Are you looking for installation cables for your fiber optic cabling? If so, you'll find what you're looking for in our fiber optic installation cables.
Selecting the best Ethernet installation cable for your needs
Choosing the best installation cable depends on various factors. Our team of specialist engineers can guide you through the selection process. Key considerations include:
Application
Shielding Options
Length and flexibility
Flexible installation cables have the advantage of being easy to handle, making them suitable for mobile applications and confined spaces. However, they are prone to wearing out more quickly if they are frequently moved. Rigid installation cables, on the other hand, are more robust and ideal for fixed installations in walls or floors. Although they are more durable, they require more effort to install. When choosing the right cable length, careful planning of the cable route is essential to allow for sufficient leeway for future adjustments. It is also important to consider the maximum transmission distance of the cable category to avoid any loss in transmission speed.
Power over Ethernet (PoE)
Some installation cables are suitable for simultaneous data transmission and power supply. Power over Ethernet makes it possible to transmit both data and power via a single cable, eliminating the need for separating power lines and simplifying installation. This saves time and costs. PoE is particularly practical for devices in places that are difficult to access, such as ceilings or outdoor areas. The network infrastructure must be PoE-capable, which means that either a PoE switch or a PoE injector is required. The devices used (e.g. cameras, access points) should also be PoE-compatible.
Sheath Color
Available in orange, yellow, blue, black, and white, our cables ensure easy identification. Black sheaths are UV-resistant and suitable for outdoor use.
Application
- Home networks: Cat.6 cables provide solid performance for typical applications.
- Office networks: Opt for Cat.6A or Cat.7 cables for higher data rates and robust performance.
- Data centers: Cat.7A or Cat.8.2 cables deliver maximum speed and reliability.
- Industrial environments: Shielded Cat.6A or Cat.7 cables minimize electromagnetic interference.
Shielding Options
- U/UTP: Unshielded cables for low-interference environments.
- F/UTP: Foil-shielded cables for moderate interference, ideal for office use.
- S/FTP: Maximum shielding for high-performance, interference-prone environments.
Length and flexibility
Flexible installation cables have the advantage of being easy to handle, making them suitable for mobile applications and confined spaces. However, they are prone to wearing out more quickly if they are frequently moved. Rigid installation cables, on the other hand, are more robust and ideal for fixed installations in walls or floors. Although they are more durable, they require more effort to install. When choosing the right cable length, careful planning of the cable route is essential to allow for sufficient leeway for future adjustments. It is also important to consider the maximum transmission distance of the cable category to avoid any loss in transmission speed.
Power over Ethernet (PoE)
Some installation cables are suitable for simultaneous data transmission and power supply. Power over Ethernet makes it possible to transmit both data and power via a single cable, eliminating the need for separating power lines and simplifying installation. This saves time and costs. PoE is particularly practical for devices in places that are difficult to access, such as ceilings or outdoor areas. The network infrastructure must be PoE-capable, which means that either a PoE switch or a PoE injector is required. The devices used (e.g. cameras, access points) should also be PoE-compatible.
Sheath Color
Available in orange, yellow, blue, black, and white, our cables ensure easy identification. Black sheaths are UV-resistant and suitable for outdoor use.
Patch cable vs. installation cable
Both patch cables and installation cables are network cables and differ particularly in their application.
- Installation cables are used for fixed installations in walls, floors or cable ducts. They are less flexible and are usually connected to keystone modules or junction boxes.
- Patch cables serve as a connection between end devices (e.g. computers, routers) and network sockets or switches. They are ideal for short-term and mobile applications.
Professional network cable installation
Proper cable installation ensures optimal performance and reliability. Follow these steps:
- Planning:Develop a layout and calculate the required cable length.
- Material selection: Choose suitable cables and tools, such as crimping pliers and testers.
- Laying the cable:Maintain minimum bending radius to preserve cable integrity.
- Termination: Use crimping tools to connect wires to RJ45 sockets, keystones or plugs.
- Testing:Verify connections with a cable tester to ensure precision and reliability.
Why choose EFB-Elektronik for Ethernet installation cables?
EFB-Elektronik is your trusted partner for high-quality installation cables and copper network components. Our products meet the highest industry standards, offering reliability and performance.
Need custom solutions? Our in-house production facilities deliver tailored cables and assemblies to match your specific requirements. Order easily online and benefit from fast delivery backed by expert advice. Contact us today for a consultation or project-specific solutions.
