INFRALAN® Installation Cable U/FTP Cat.6A 500MHz

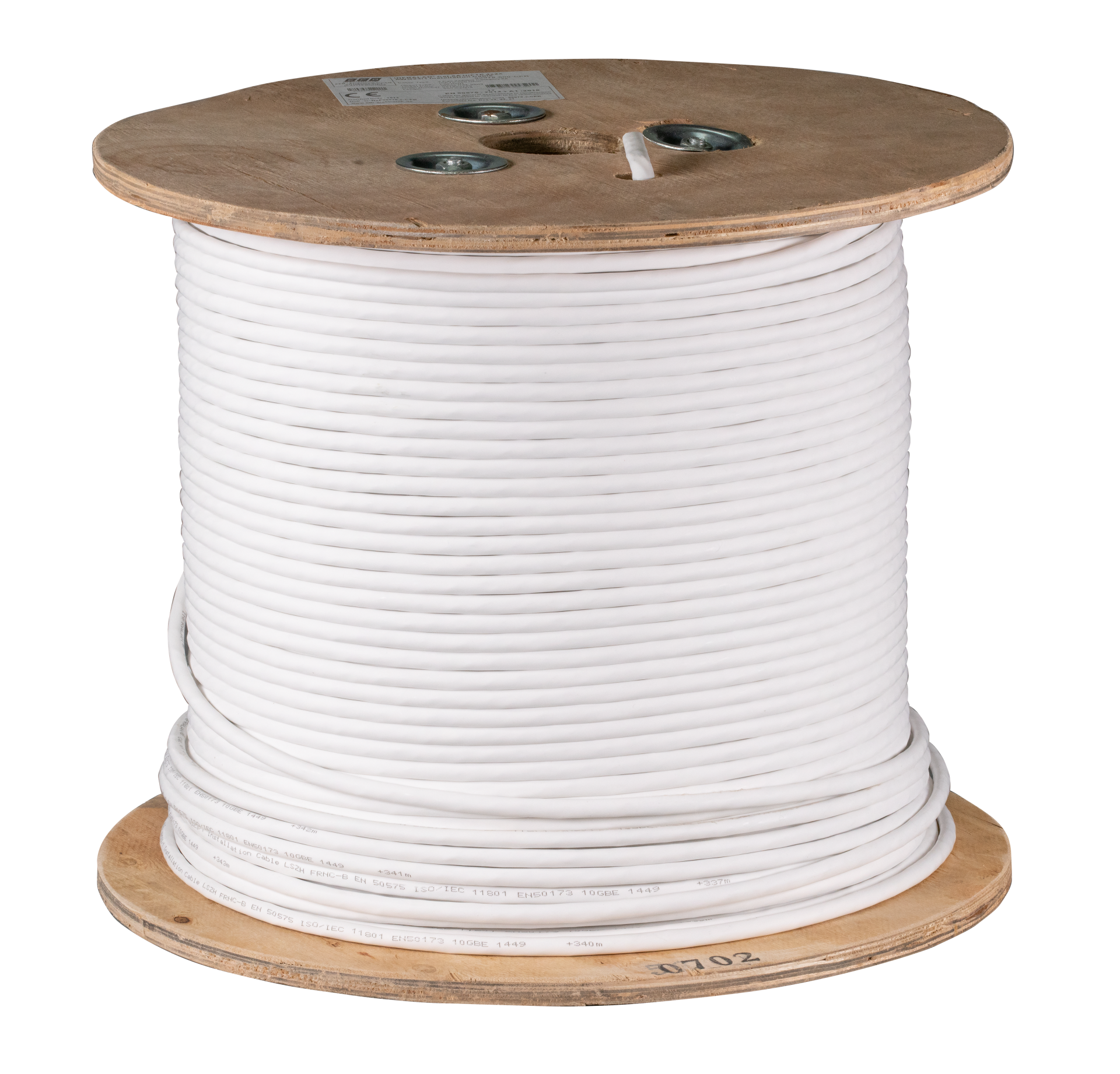

INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Drum, white
Item number:
99978.500-CPR
EAN no.:
4049759207236
Product information for INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Drum, white
INFRALAN® U/FTP Cat.6A Installation Cable
Technical properties
| (Halogenfree): | acc. EN 60754 |
|---|---|
| AWG-size: | 23/1 |
| Bending radius (dynamic): | 57.6 mm |
| Bending radius (static): | 28.8 mm |
| Cable: | IEC 61156-5 |

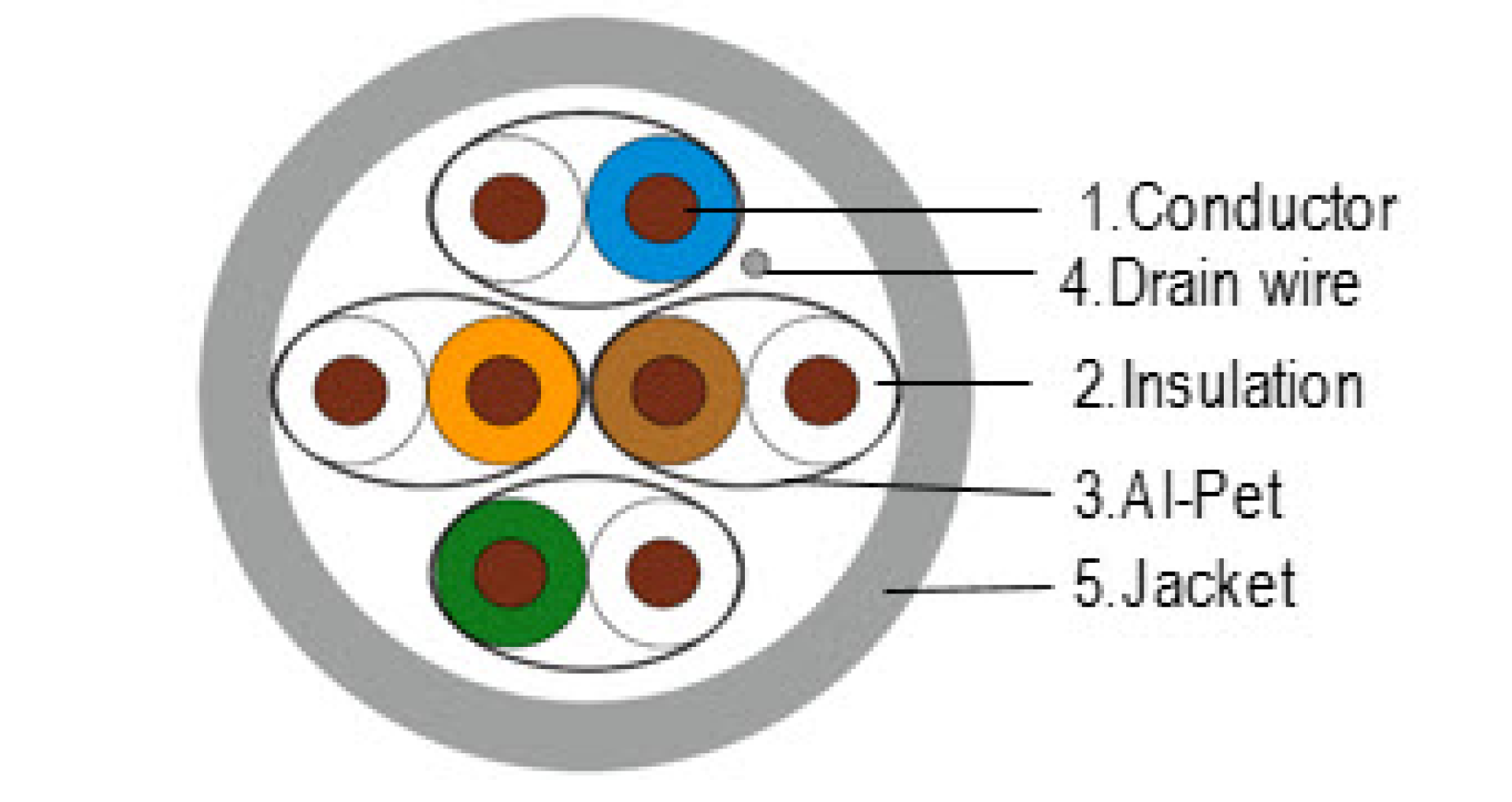

| Cable structure: | U/FTP |
| Cabling standards: | ANSI/TIA 568-C.2 |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173 |
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 15 Ohm |
| Conductor category: | Kl.1 = eindrähtig |
| Conductor material: | Cu, tinned |
| Core identification: | Farbe |
| Core insulation: | Zell-PE |
| Diameter conductor: | 0.55 mm |
| Directive/Regulation: | REACH 1907/2006/EC |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | nach EN 60332-1 |
| Halogen free (according to EN 60754-1/2): | Ja |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | LSZH |
| Loop resistance: | < 196.8 Ohm/km |
| Low smoke: | nach EN 61034 |
| Low smoke (acc. EN 61034-2): | Ja |
| Max. frequency: | 500 MHz |
| NVP value: | 74 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: | nach IEEE802.3af PoE |
| PoE: | nach IEEE802.3bt 4PPoE |
| PoE: | nach IEEE802.3at PoE+ |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | Folie |
| Separation class acc. EN50174-2: | C |
| Stranding element: | Paare |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | Nein |
Variants
| Item no. | Name | Colour outer sheath | Type | Number of cores | RAL colour | Length | Weight | Max. tractive force | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|

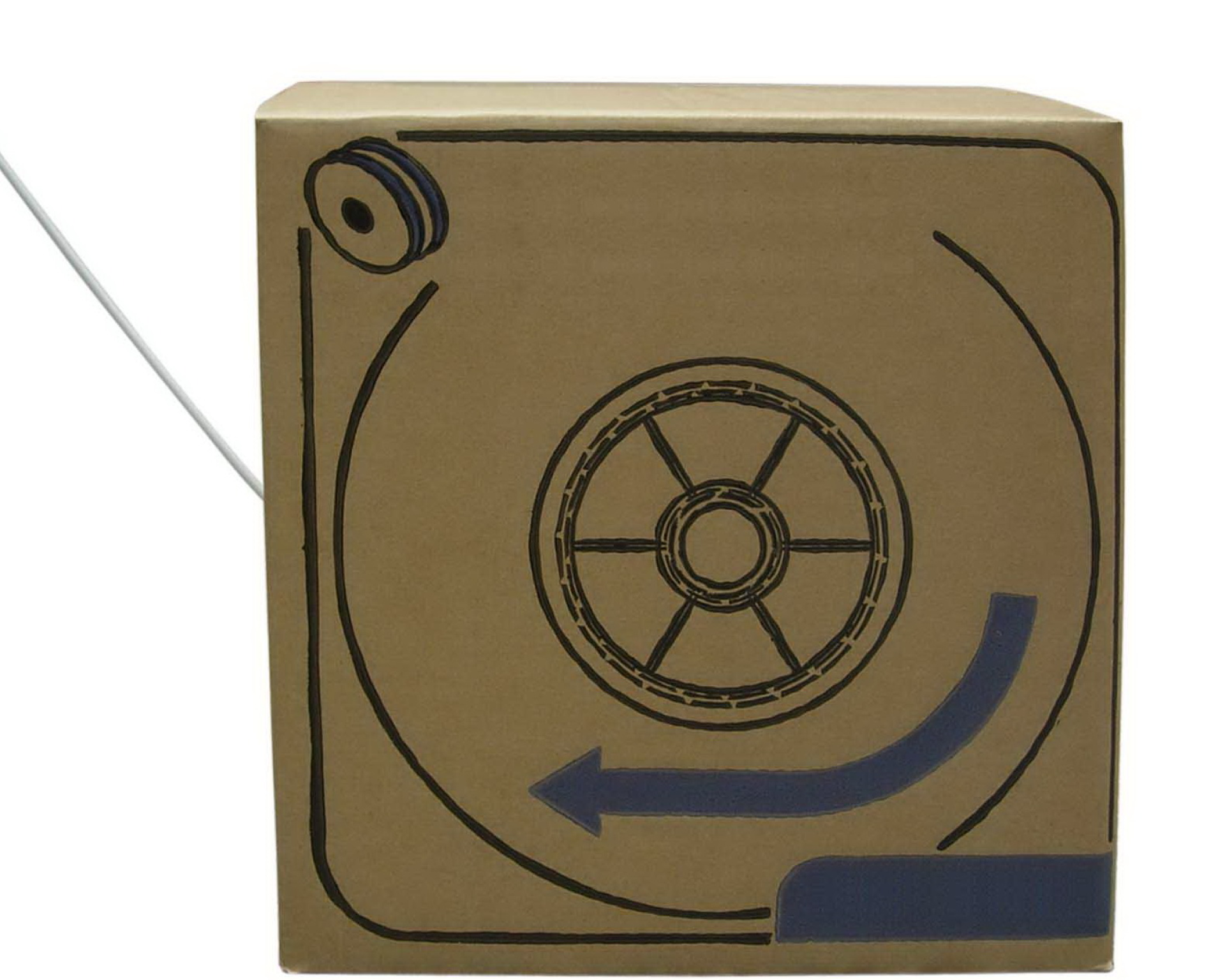

| 99978.305-CPR | INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white | weiß | simplex | 8 | RAL9003 | 305,0 m | 50 kg/km | 100 N | 7.2 mm | |
| 99978.500-CPR | INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Drum, white | weiß | simplex | 8 | RAL9003 | 500,0 m | 50 kg/km | 100 N | 7.2 mm |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
