New: 19" network cabinet series PEL.
Also available in black!
Your new solution, cleverly designed with a convincing
price-performance ratio.
Available pre-assembled or as a FlatPack.
Buy preassembled
Buy flatpack
Buy preassembled
Buy flatpack
Functional. Sophisticated. Attractively priced.
The new 19" PEL network cabinet series is also available in black from stock. These network cabinets are the functional and economical solution for
expanding your network infrastructure. Whether in the server room or in the IT department, the cabinets provide secure and efficient space for your IT components.
Available in four variants in light gray (RAL 7035) and now also in black (RAL 9005). They meet a wide range of requirements in terms of size and space:
You choose what suits your project: pre-assembled for immediate use or as a space-saving flat-pack solution for easy self-assembly. The cabinets are designed for maximum safety and flexibility. They enable structured cabling and support modern cable management - for neat cable routing and clear installation.
Available in four variants in light gray (RAL 7035) and now also in black (RAL 9005). They meet a wide range of requirements in terms of size and space:
- 24U | 600 x 600 mm
- 42U | 600 x 600 mm
- 42U | 800 x 800 mm
- 42U | 800 x 1000 mm
You choose what suits your project: pre-assembled for immediate use or as a space-saving flat-pack solution for easy self-assembly. The cabinets are designed for maximum safety and flexibility. They enable structured cabling and support modern cable management - for neat cable routing and clear installation.
Functional and attractively priced
The new 19" PEL network enclosures provide you with a reliable and economical solution that is both functional and attractively priced.
The new 19" PEL network enclosures provide you with a reliable and economical solution that is both functional and attractively priced.
But you don't have to do without anything
Inexpensive to purchase, powerful in performance: load capacity of up to 800 kg, tested and ready for immediate use - in keeping with EFB quality.
Inexpensive to purchase, powerful in performance: load capacity of up to 800 kg, tested and ready for immediate use - in keeping with EFB quality.
Safely stowed - reliably protected
Lockable, with protection class IP20: The cabinet reliably protects your components from solid foreign bodies and is ideal for indoor use.
Lockable, with protection class IP20: The cabinet reliably protects your components from solid foreign bodies and is ideal for indoor use.
Functional and attractively priced
The new 19" PEL network enclosures provide you with a reliable and economical solution that is both functional and attractively priced.
The new 19" PEL network enclosures provide you with a reliable and economical solution that is both functional and attractively priced.
But you don't have to do without anything
Inexpensive to purchase, powerful in performance: load capacity of up to 800 kg, tested and ready for immediate use - in keeping with EFB quality.
Inexpensive to purchase, powerful in performance: load capacity of up to 800 kg, tested and ready for immediate use - in keeping with EFB quality.
Safely stowed - reliably protected
Lockable, with protection class IP20: The cabinet reliably protects your components from solid foreign bodies and is ideal for indoor use.
Lockable, with protection class IP20: The cabinet reliably protects your components from solid foreign bodies and is ideal for indoor use.
Ready for immediate use: Pre-assembled
Space-saving delivery: Flat Pack
Time is money: Our pre-assembled 19" PEL network cabinets allow you
to get started straight away on site - unpack, set up and get going.
Buy a finished cabinet
Flat Pack network cabinets are practical because they can be transported in a
space-saving manner and are easy to install on site.
Request flatpack
Ready for immediate use: Pre-assembled
Time is money: Our pre-assembled 19" PEL network cabinets allow you
to get started straight away on site - unpack, set up and get going.
Buy a finished cabinet
Space-saving delivery: Flat Pack
Flat Pack network cabinets are practical because they can be transported in a
space-saving manner and are easy to install on site.
Request flatpack
The 19" PEL network cabinet in detail
1
+
×
Cabinet roof with fan plate
2
+
×
2 x 3 depth rails left/
right for heavy load capacity
Profiles depth-adjustable
in steps of 20 mm
3
+
×
Back door (sheet steel) with
1-point latch locking
4
+
×
Cabinet base with cable
entries
5
+
×
Modular plinth, closed
construction
(not levelable)
6
+
×
All cabinet parts internally
earthed
7
+
×
One-piece front door, with window
of certified safety glass (glass
thickness 5 mm)
8
+
×
Turning handle with 1-point
latch locking
and EFB logo
9
+
×
Door opening angle > 180°
through outside hinges
Door hinges
reversible for both front and rear
doors (left/right)
10
+
×
Additional earthing of the left
door strip
11
+
×
Fan unit roof incl. thermostat
- view from below
×
Cabinet roof with fan plate
×
2 x 3 depth rails left/
right for heavy load capacity
Profiles depth-adjustable
in steps of 20 mm
×
Back door (sheet steel) with
1-point latch locking
×
Cabinet base with cable
entries
×
Modular plinth, closed
construction
(not levelable)
×
All cabinet parts internally
earthed
×
One-piece front door, with window
of certified safety glass (glass
thickness 5 mm)
×
Turning handle with 1-point
latch locking
and EFB logo
×
Door opening angle > 180°
through outside hinges
Door hinges
reversible for both front and rear
doors (left/right)
×
Additional earthing of the left
door strip
×
Fan unit roof incl. thermostat
- view from below
Cabinet roof with ventilation plate
2 x 3 depth struts left and right for high load capacity Profiles depth-adjustable in 20 mm increments
Rear door (sheet steel) with 1-point latch lock
Cabinet base with cable entries
Modular base, closed on all sides (non-leveling)
Roof vent incl. thermostat - view from below
Additional ground connection
on the left door strip
Door opening angle > 180° thanks to external hinge pins Door stop can be changed from left to right
Swivel lever with 1-point pre-locking mechanism and EFB logo
Front door in one piece, with viewing window made of certified safety glass (glass thickness 5 mm)
All cabinet parts completely grounded on the inside
Save time: Pre-assembled and ready for use
The pre-assembled 19" PEL network cabinets are ready for immediate use - this means less effort, less assembly time and a quick project start for you. The cabinets are
delivered fully assembled and can be installed immediately without any additional assembly work. Ideal for tight construction site schedules or projects where every minute
counts.
Order - quick and easy
You select the 19" PEL cabinet you require. We take care of the rest.
You select the 19" PEL cabinet you require. We take care of the rest.
We assemble for you
We pre-assemble the network cabinet completely for you. It is then ready for immediate use.
We pre-assemble the network cabinet completely for you. It is then ready for immediate use.
Arrive, connect, start
The pre-assembled network cabinet is delivered ready to use. No on-site assembly - simply set up, equip and get started.
The pre-assembled network cabinet is delivered ready to use. No on-site assembly - simply set up, equip and get started.
Order - quick and easy
You select the 19" PEL cabinet you require. We take care of the rest.
You select the 19" PEL cabinet you require. We take care of the rest.
We assemble for you
We pre-assemble the network cabinet completely for you. It is then ready for immediate use.
We pre-assemble the network cabinet completely for you. It is then ready for immediate use.
Arrive, connect, start
The pre-assembled network cabinet is delivered ready to use. No on-site assembly - simply set up, equip and get started.
The pre-assembled network cabinet is delivered ready to use. No on-site assembly - simply set up, equip and get started.
Item no. PEL-2466GR.G1SV
19''Network Cabinet PEL 24HE 600x600 RAL7035 front glass 1-pc. rear steel 1-pc
Color:
grey
Depth:
600 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-4266GR.G1SV
19''Network Cabinet PEL 42HE 600x600 RAL7035 front glass 1-pc. rear steel 1-pc
Color:
grey
Depth:
600 mm
Front door locking system:
One point
Material front door:
Glass

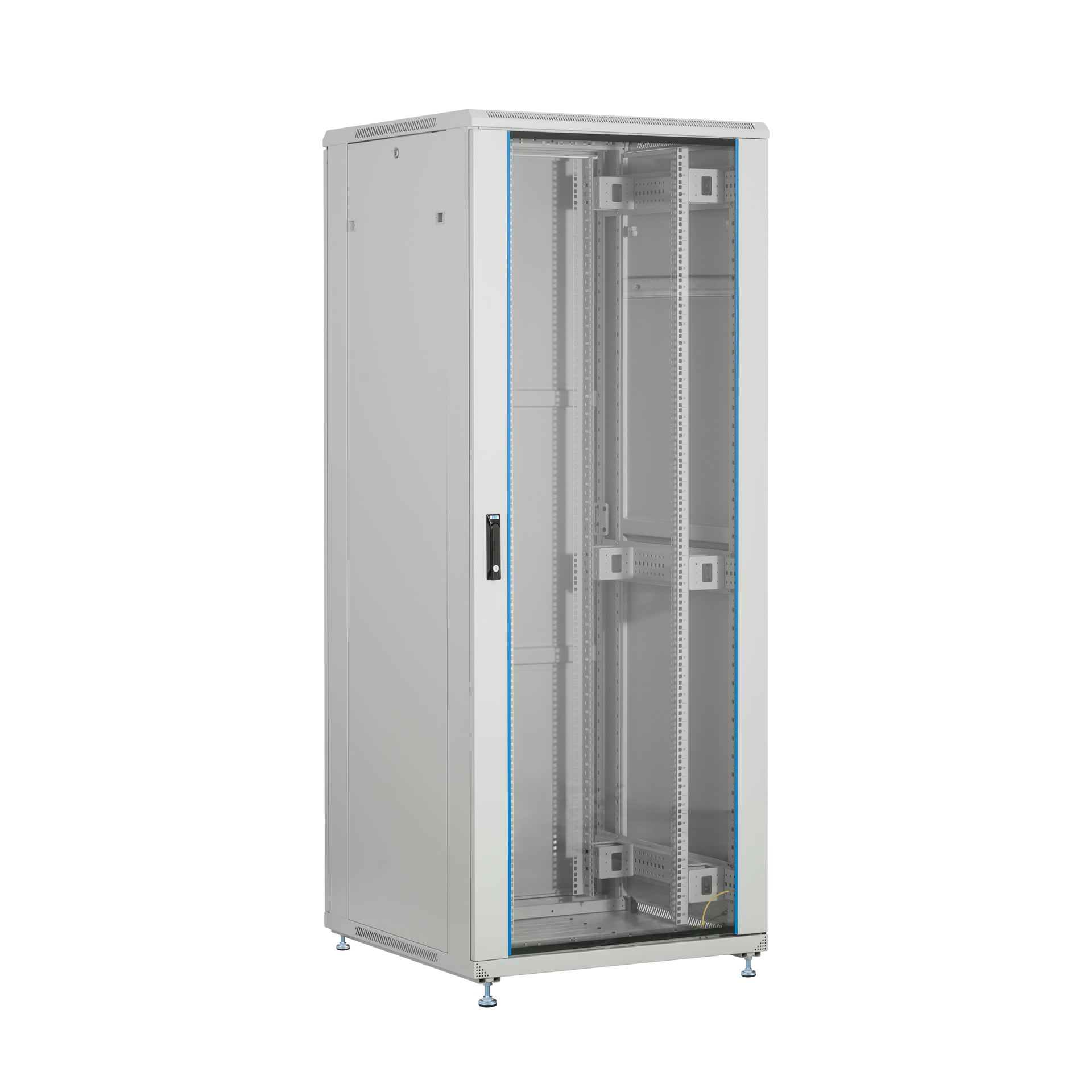

Item no. PEL-4288GR.G1SV
19''Network Cabinet PEL 42HE 800x800 RAL7035 front glass 1-pc. rear steel 1-pc
Color:
grey
Depth:
800 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-4280GR.G1SV
19''Network Cabinet PEL 42HE 800x1000 RAL7035 front glass 1-pc. rear steel 1-pc
Color:
grey
Depth:
1000 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-2466TS.G1SV
19'' Network Cabinet PEL 24HE 600x600 RAL9005 front glass 1-pc. rear steel 1-pc
Color:
black
Depth:
600 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-4266TS.G1SV
19'' Network Cabinet PEL 42HE 600x600 RAL9005 front glass 1-pc. rear steel 1-pc
Color:
black
Depth:
600 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-4288TS.G1SV
19'' Network Cabinet PEL 42HE 800x800 RAL9005 front glass 1-pc. rear steel 1-pc
Color:
black
Depth:
800 mm
Front door locking system:
One point
Material front door:
Glass
Item no. PEL-4280TS.G1SV
19'' Network Cabinet PEL 42HE 800x1000 RAL9005 front glass 1-pc. rear steel 1-pc
Color:
black
Depth:
1000 mm
Front door locking system:
One point
Material front door:
Glass
Suitable accessories for PEL network cabinets
Item no. PEL-LFD04ET.GR
Roof fan 4-way with thermostat, for PEL, RAL7035
Color:
grey
Noise Level:
29 dB
Number of fans:
4
Item no. PEL-SOK66VV.GR
PEL Plinth for 600x600mm, H=100mm, solid, RAL7035
Color:
grey
Depth:
600 mm
Max. load capacity:
1000 kg
Suitable for enclosure building depth:
600

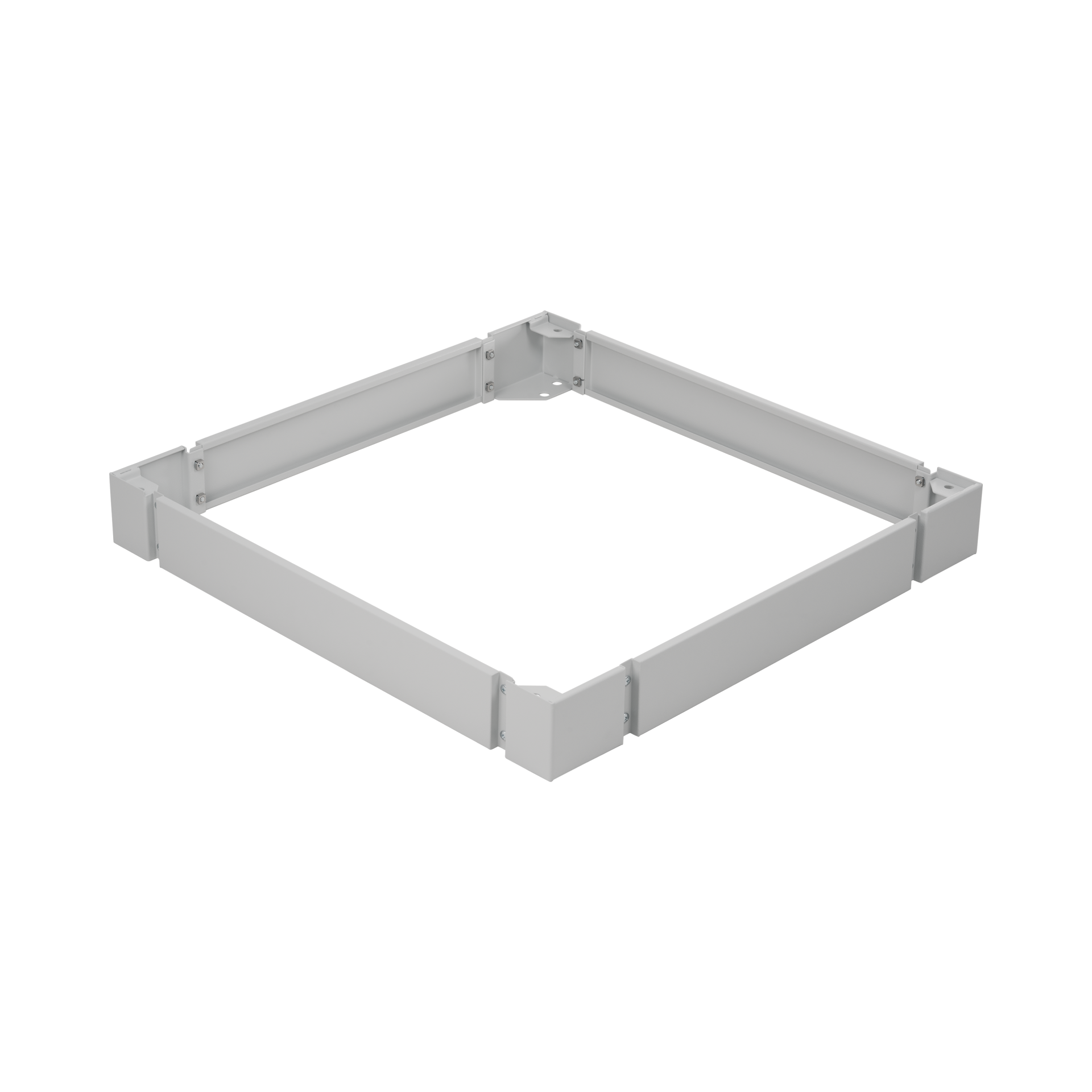

Item no. PEL-SOK80VV.GR
PEL Plinth for 800x1000mm, H=100mm, solid, RAL7035
Color:
grey
Depth:
1000 mm
Max. load capacity:
1000 kg
Suitable for enclosure building depth:
1000
Item no. PEL-SOK88VV.GR
PEL Plinth for 800x800mm, H=100mm, solid, RAL7035
Color:
grey
Depth:
800 mm
Max. load capacity:
1000 kg
Suitable for enclosure building depth:
800
Discover popular accessories
Accessories for interior fittings
Power Supply
Active network components
Space-saving order, storage and easy assembly
The flat-pack version of the 19" PEL network cabinets offers maximum flexibility for
transportation and storage. Thanks to the compact packaging, you save valuable
space - whether in the warehouse, on the construction site or during transportation.
All components can be assembled in a few simple steps, without the need for special
tools. An ideal solution for confined installation situations, fast project
implementation and wherever efficient handling is required.
Note: The delivery on pallet consists of 3 parts.
You must enter all 3 article numbers when ordering!
Request advice
Here you can watch the assembly video
NEW for anyone who assembles by themselves: Step-by-step assembly video to help you build your PEL cabinet.
CO₂ footprint of the life cycle phases
The digital flyer - compact and informative
What you can expect in the digital flyer:
- 19" PEL network enclosures explained in detail
- Available: Pre-assembled or as a flat pack
- NEW: Now also available in black!
- Information on variants and accessories
Download free flyer
