X-Rack - The game changer
From the inside to the outside and all around
X-Rack is the simple solution. Literally. The depth-adjustable wallrack for organizing and cabling network components significantly simplifies the entire data installation process and noticeably reduces the workload!
Thanks to its sophisticated design with adjustable backframe and precisely fitting outer cover, the X-Rack offers maximum flexibility: during installation, you slide the depth of the backframe out so far that you benefit from free movement space and optimum access to the components from all sides. The result: better working conditions, less effort, more efficiency - and an all-round professional result.
Finally, the outer cover of the X-Rack fits to the backframe with millimeter precision, for a clean look and secure hold. Thanks to its sophisticated design, the X-Rack can be assembled effortlessly by just one person. Transportation is also very easy - in the truest sense of the word: the low dead weight makes you independent, lifting, carrying, assembling - without any help and with just one person.
A true all-rounder!
From the inside to the outside and all around
FIND THE RIGHT VARIANT
Thanks to its sophisticated design with adjustable backframe and precisely fitting outer cover, the X-Rack offers maximum flexibility: during installation, you slide the depth of the backframe out so far that you benefit from free movement space and optimum access to the components from all sides. The result: better working conditions, less effort, more efficiency - and an all-round professional result.
Finally, the outer cover of the X-Rack fits to the backframe with millimeter precision, for a clean look and secure hold. Thanks to its sophisticated design, the X-Rack can be assembled effortlessly by just one person. Transportation is also very easy - in the truest sense of the word: the low dead weight makes you independent, lifting, carrying, assembling - without any help and with just one person.
A true all-rounder!
From the inside to the outside and all around
FIND THE RIGHT VARIANT
Don't miss it:
Save the date to your calendar now: Calendar entry (.ics)
X-Rack - The game changer
From the inside to the outside and all around
X-Rack is the simple solution. Literally. The depth-adjustable wallrack for organizing and cabling network components significantly simplifies the entire data installation process and noticeably reduces the workload!
Thanks to its sophisticated design with adjustable backframe and precisely fitting cladding, the X-Rack offers maximum flexibility: during installation, you slide the depth of the backframe out so far that you benefit from free movement space and optimum access to the components from all sides. The result: better working conditions, less effort, more efficiency - and an all-round professional result.
Finally, the outer cover of the X-Rack fits to the backframe with millimeter precision, for a clean look and secure hold. Thanks to its sophisticated design, the X-Rack can be assembled effortlessly by just one person. And transportation is also very easy - in the truest sense of the word: the low dead weight makes you independent, lifting, carrying, assembling - without any help and with just one person.
A true all-rounder!
From the inside to the outside and all around
FIND THE RIGHT VARIANT
Thanks to its sophisticated design with adjustable backframe and precisely fitting cladding, the X-Rack offers maximum flexibility: during installation, you slide the depth of the backframe out so far that you benefit from free movement space and optimum access to the components from all sides. The result: better working conditions, less effort, more efficiency - and an all-round professional result.
Finally, the outer cover of the X-Rack fits to the backframe with millimeter precision, for a clean look and secure hold. Thanks to its sophisticated design, the X-Rack can be assembled effortlessly by just one person. And transportation is also very easy - in the truest sense of the word: the low dead weight makes you independent, lifting, carrying, assembling - without any help and with just one person.
A true all-rounder!
From the inside to the outside and all around
FIND THE RIGHT VARIANT
Easy installation

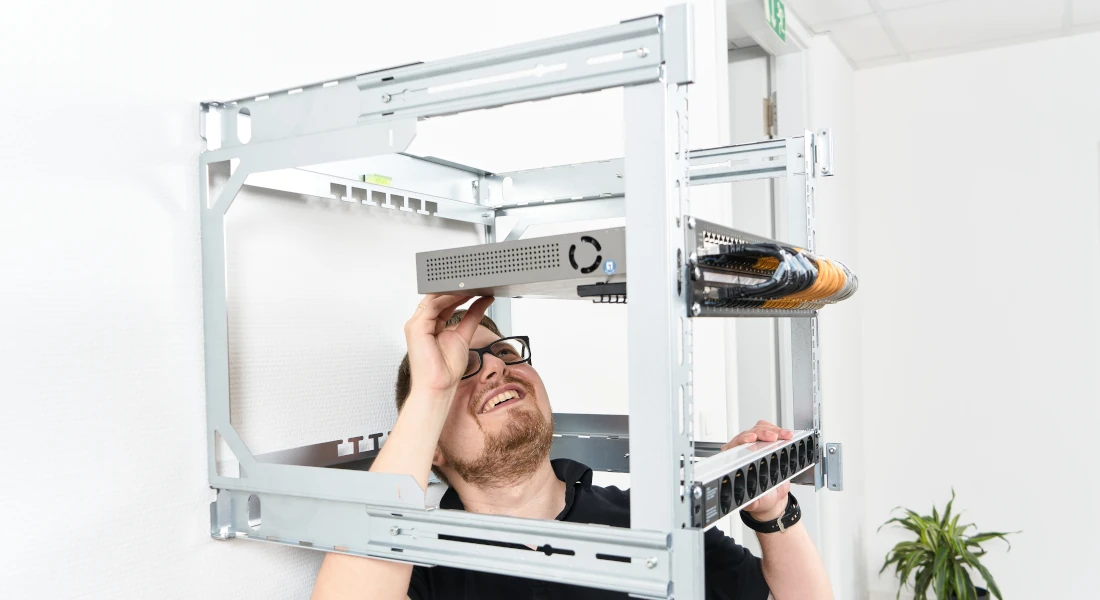

The X-Rack gives you 360-degree access to your components during installation.
View installation
Unique flexibility
X-Rack can grow with your requirements.
The depth can be adjusted from 400 to 600 mm.
Discover a new flexibility
Good economy
Installation has never been as easy and flexible as with X-Rack. Time is money - discover how much you can save.
Let us convince you
Easy installation
The X-Rack gives you 360-degree access to your components during installation.
View installation
Unique flexibility
X-Rack can grow with your requirements.
The depth can be adjusted from 400 to 600 mm.
Discover a new flexibility
Good economy
Installation has never been as easy and flexible as with X-Rack. Time is money - discover how much you can save.
Let us convince you
Easier than ever
Easy installation
The backframe can also be used as a drilling/mounting template. Once screwed to the wall, you can install all network components and cables with plenty of space around them. For optimum freedom of movement and quick installation, the installation part can be pulled out to the maximum depth of 600 mm and can then be pushed in to the corresponding depth of at least 400 mm.

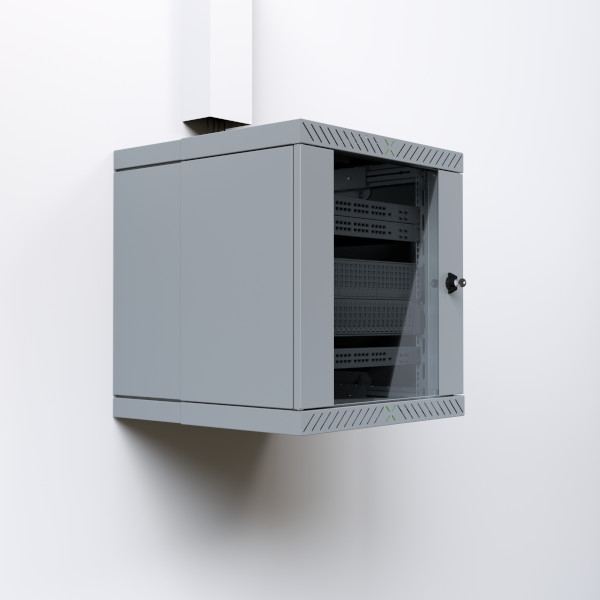

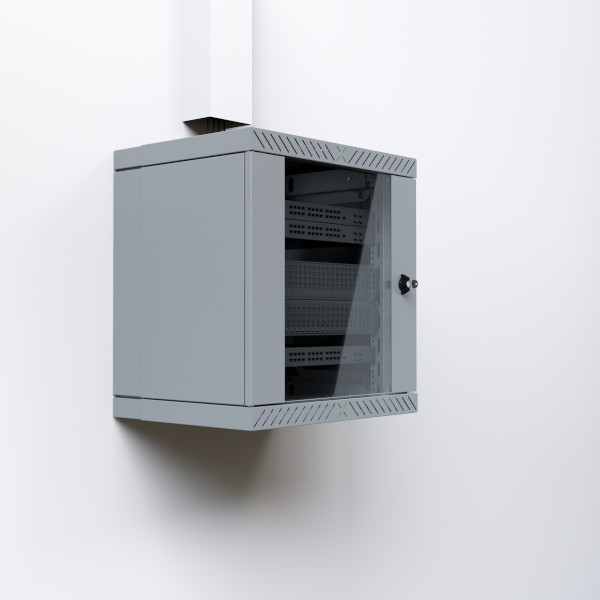

Just like the backframe, the depth of the outer cover can also be adjusted as required: 400-600 mm. Assembly and disassembly is quick, simple and easy and can be carried out in less than 1 minute without any screws coming loose. This is also a great advantage when maintaining or expanding the system, where the cheek housing can grow with the system.

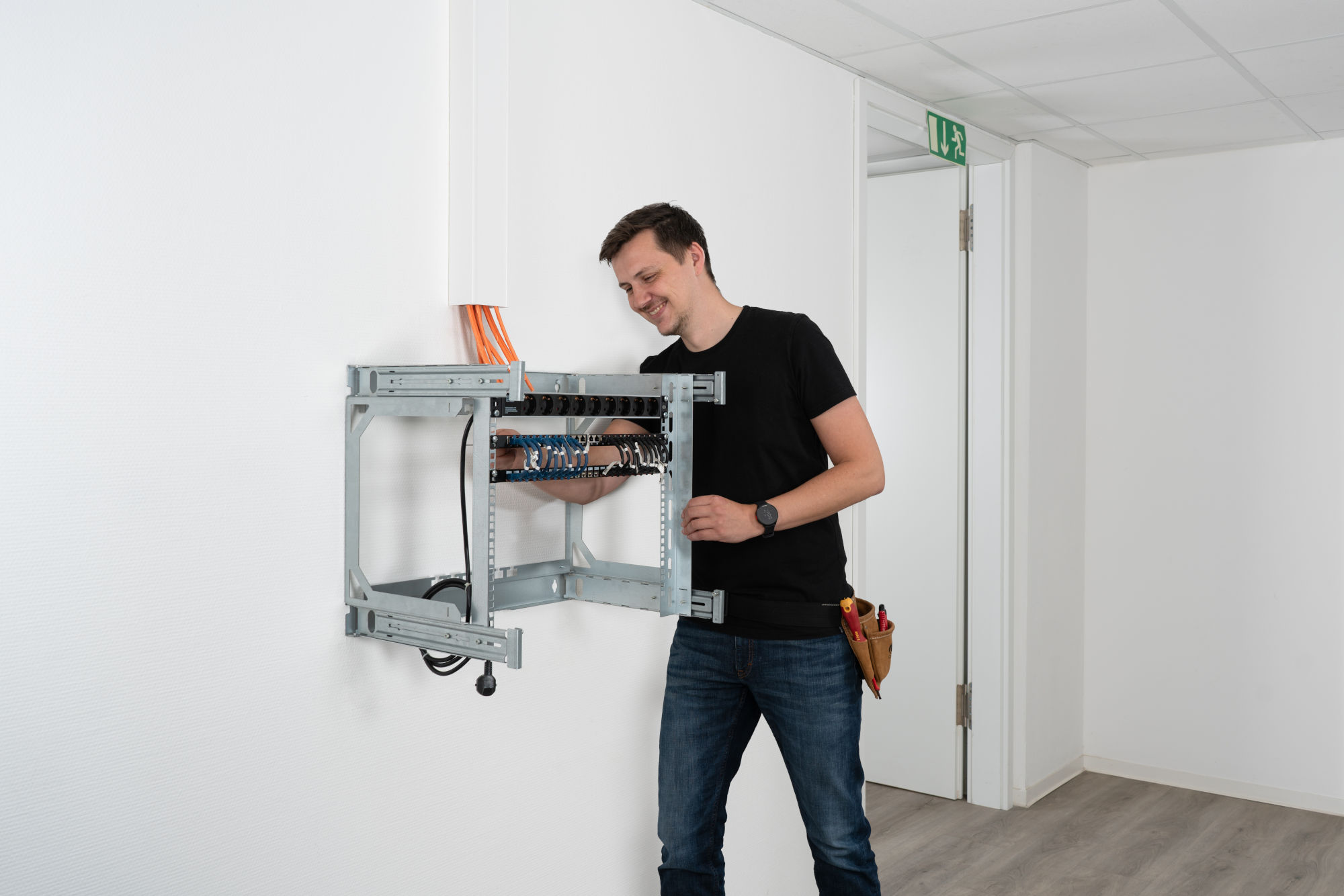

The flexible depth of the backframe makes access to the installation area itself very easy. And the ability to adjust the depth also means that the X-Rack can grow with you if expansion is required.
You can place the backframe on a table and carry out the actual data installation before setting it up. This allows you to remove the entire installation from the cabinet intact if parts need to be replaced or the company needs to move.
The backframe can also be used as a drilling/mounting template. Once screwed to the wall, you can install all network components and cables with plenty of space around them. For optimum freedom of movement and quick installation, the installation part can be pulled out to the maximum depth of 600 mm and can then be pushed in to the corresponding depth of at least 400 mm.
Just like the backframe, the depth of the outer cover can also be adjusted as required: 400-600 mm. Assembly and disassembly is quick, simple and easy and can be carried out in less than 1 minute without any screws coming loose. This is also a great advantage when maintaining or expanding the system, where the cheek housing can grow with the system.
The flexible depth of the backframe makes access to the installation area itself very easy. And the ability to adjust the depth also means that the X-Rack can grow with you if expansion is required.
You can place the backframe on a table and carry out the actual data installation before setting it up. This allows you to remove the entire installation from the cabinet intact if parts need to be replaced or the company needs to move.
Easy to install
Download the assembly instructions as a PDF or watch the step-by-step video.Download the assembly instructions as a PDF or watch the step-by-step video.
DOWNLOAD ASSEMBLY INSTRUCTIONS WATCH ASSEMBLY TUTORIAL
X-Rack takes wall cabinets to a new level
1
+
×
Adjustable depths are marked (400 - 450 - 500 - 550 - 600 mm).
2
+
×
19" profiles at the front can be adjusted in depth, additional profiles are mounted at the rear
3
+
×
Spirit level and drilling template
×
Adjustable depths are marked (400 - 450 - 500 - 550 - 600 mm).
×
19" profiles at the front can be adjusted in depth, additional profiles are mounted at the rear
×
Spirit level and drilling template
1
+
×
The backframe is also a drilling template with spirit level
2
+
×
Foldable and no loose screws
3
+
×
Cable support and uninterruptible cable entry and exit
×
The backframe is also a drilling template with spirit level
×
Foldable and no loose screws
×
Cable support and uninterruptible cable entry and exit
|
FLEXIBILITY. FROM THE INSIDE TO THE OUTSIDE |
- The backframe is also a drilling template with spirit level
- Foldable and no loose screws
- Cable relief and uninterrupted cable entry and exit
- Spirit level and drilling template
- Adjustable depths are marked (400- 450 - 500- 550 - 600 mm.)
- 19" profiles at the front can be adjusted in depth, additional profiles are mounted at the rear
|
CREATED ON THE BASIS OF INSIGHTS |
1
+
×
Extendable: Provides optimum elbow room and unobstructed space during installation. Push in: Installation takes up a minimum of space for the customer.
×
Extendable: Provides optimum elbow room and unobstructed space during installation. Push in: Installation takes up a minimum of space for the customer.
1
+
×

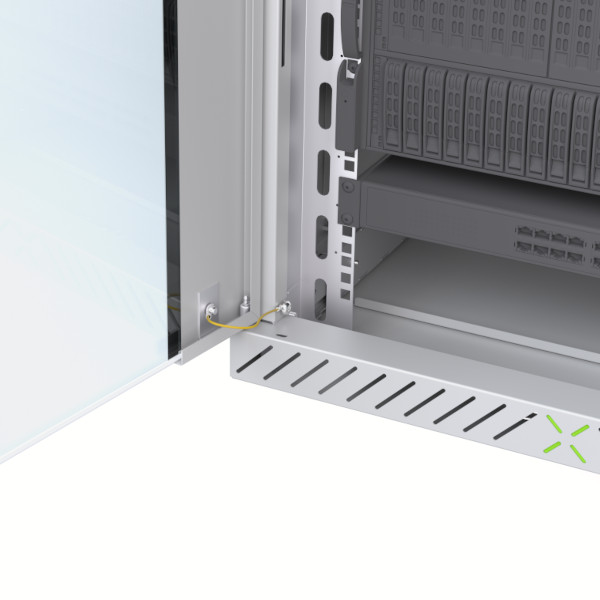

Unique housing earthing: earthing studs on the back, all parts are galvanically connected, and then just one earthing cable to the door. It's that quick and easy.
×
Unique housing earthing: earthing studs on the back, all parts are galvanically connected, and then just one earthing cable to the door. It's that quick and easy.
1
+
×
The door can be hinged on the right and left, is height-adjustable and therefore always closes perfectly.
2
+
×

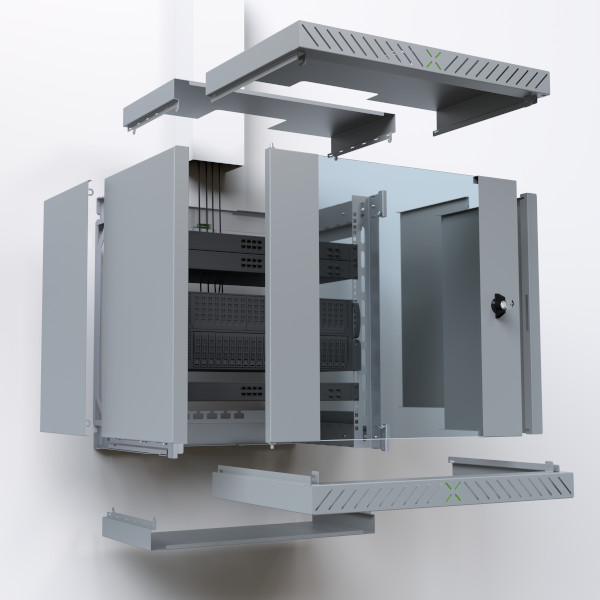

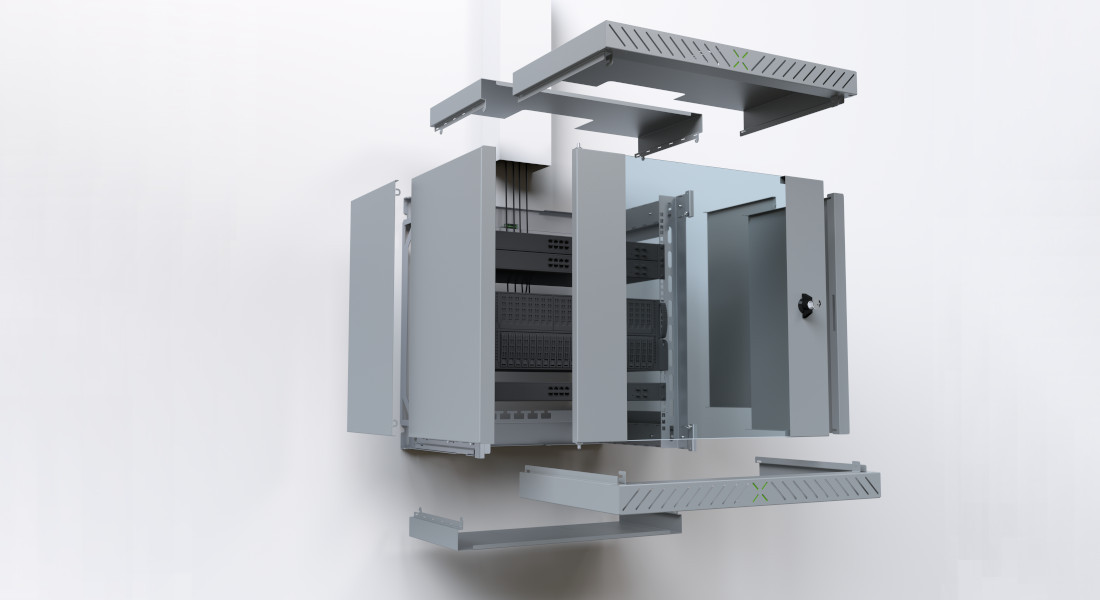

All parts can be removed in less than 1 minute - good for service and maintenance.
×
The door can be hinged on the right and left, is height-adjustable and therefore always closes perfectly.
×
All parts can be removed in less than 1 minute - good for service and maintenance.
- Extendable: Provides optimum elbow room and unobstructed space during installation. Push in: Installation takes up a minimum of space for the customer.
- Unique housing earthing: earthing studs on the back, all parts are galvanically connected, and then just one earthing cable to the door. It's that quick and easy.
- The door can be hinged on the right and left, is height-adjustable and therefore always closes perfectly.
- All parts can be removed in less than 1 minute - good for service and maintenance.
5 reasons why
Easy installation
| >> |
|---|
1 installer, 2 stepsThe process consists of just two steps: mounting and attaching the outer cover. To do this, you use the individual parts that can be easily connected. |
|---|
Unique flexibility
| >> |
|---|
Space for everything - including youThe flexible depth of the X-Rack makes access to the installation area particularly easy. You can adjust the depth of both the backframe and the outer cover (400-600 mm). Pull everything out while you are working and simply push it back in when the job is done. |
|---|
Economic efficiency
| >> |
|---|
Time is moneyFast transport and installation, saving time and labor: This makes the wallrack an investment that can keep pace with the development of your business for years to come. |
|---|
Optimized logistics
| >> |
|---|
No hassleWith the X-Rack, you no longer have to worry about transportation. You can easily carry the packages on your own. The wallrack is also easy to store as it is packed in two identical, flat packages that are so small that they even fit in a normal car trunk. |
|---|
Grow with X-Rack
| >> |
|---|
Developed for the futureAll installations grow over time.X-Rack is designed for quick and easy depth adjustment. X-Rack is made to grow. |
|---|
Easy installation:
1 installer, 2 steps
The process consists of just two steps: mounting and attaching the outer cover. To do this, you use the individual parts that can be easily connected.
Unique flexibility:
Space for everything - including you
The flexible depth of the X-Rack makes access to the installation area particularly easy. You can adjust the depth of both the backframe and the outer cover (400-600 mm). Pull everything out while you are working and simply push it back in when the job is done.
Economic efficiency:
Time is money
Fast transport and installation, saving time and labor: This makes the wallrack an investment that can keep pace with the development of your business for years to come.
Optimized logistics:
No hassle
With the X-Rack, you no longer have to worry about transportation. You can easily carry the packages on your own. The wallrack is also easy to store as it is packed in two identical, flat packages that are so small that they even fit in a normal car trunk.
Grow with X-Rack:
Developed for the future
All installations grow over time.
X-Rack is designed for quick and easy depth adjustment.
X-Rack is made to grow.
X-Rack is designed for quick and easy depth adjustment.
X-Rack is made to grow.
More flexibility, maximum freedom of movement, optimum use of space
- Depth-adjustable backframe and outer cover 400 - 450 - 500 - 550 - 600 mm
- 19" profiles can be adjusted
- Extendable backframe up to a maximum depth of 600 mm for maximum freedom of movement during installation
- Once work is complete, the backframe is pushed back to the minimum depth to make optimum use of the space
- Maintenance and servicing are simple with an X-Rack. The outer cover can be removed quickly and easily and the backframe pulled out, maximizing flexibility
- As the installation grows, so does the X-Rack - a new wallrack is not required, the depth is simply adjusted to the new requirements
Investments that can keep pace with the company's development
-

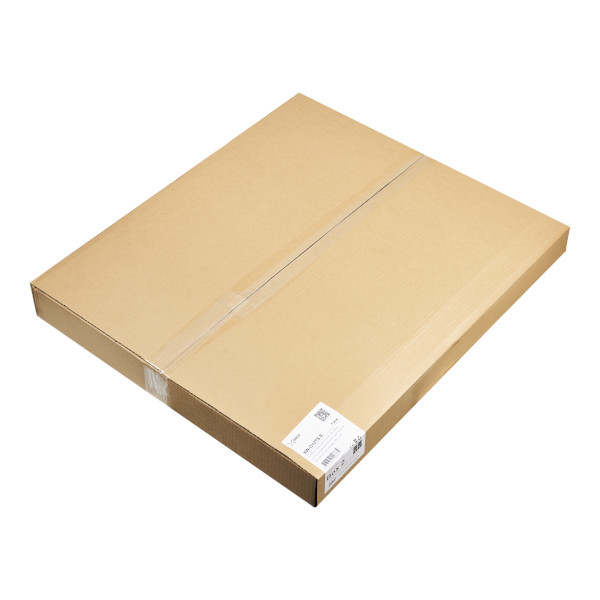

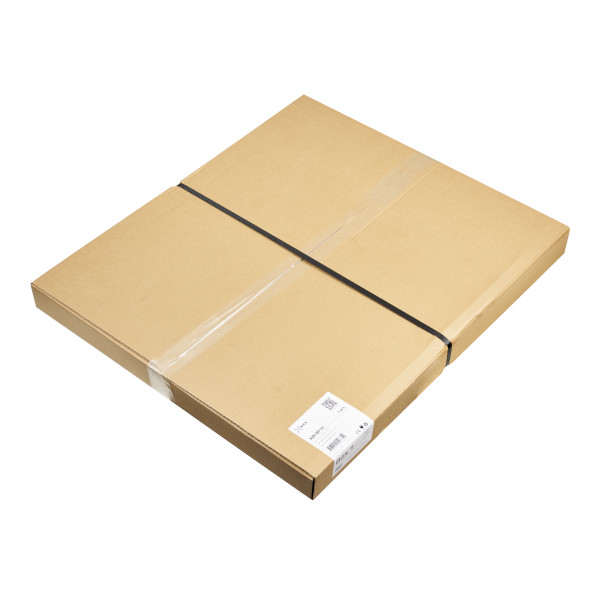

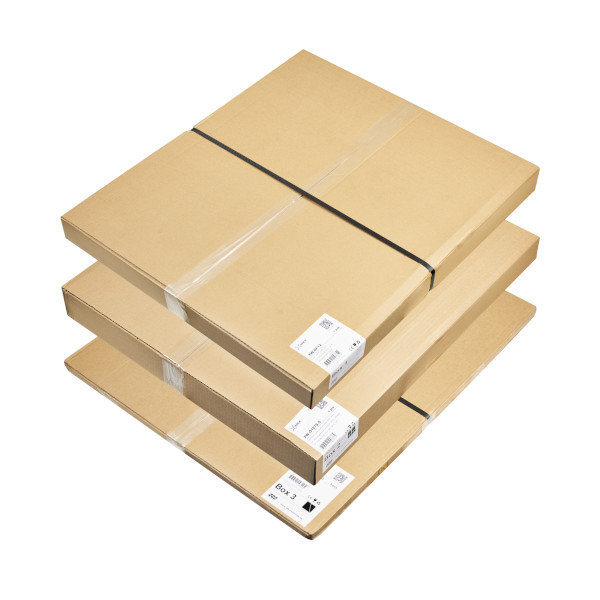

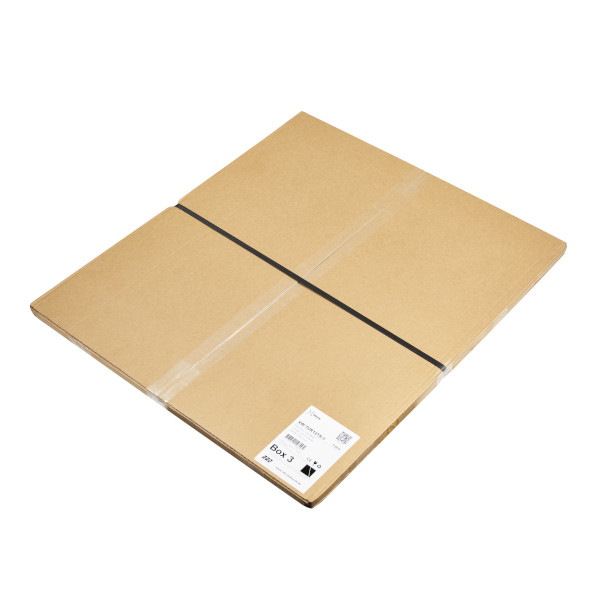

As a flat pack, X-Rack is easy to transport and quick to assemble.
-
X-Rack is a one-man job - from transportation to assembly, installation and even maintenance.
-
X-Rack can be extended and modified as your needs change.
As a flat pack, X-Rack is easy to transport and quick to assemble.
X-Rack is a one-man job - from transportation to assembly, installation and even maintenance.
X-Rack can be extended and modified as your needs change.
Find the right variant for you
Backframe and outer cover with matching glass door in gray or black, 9, 12 and 15 U

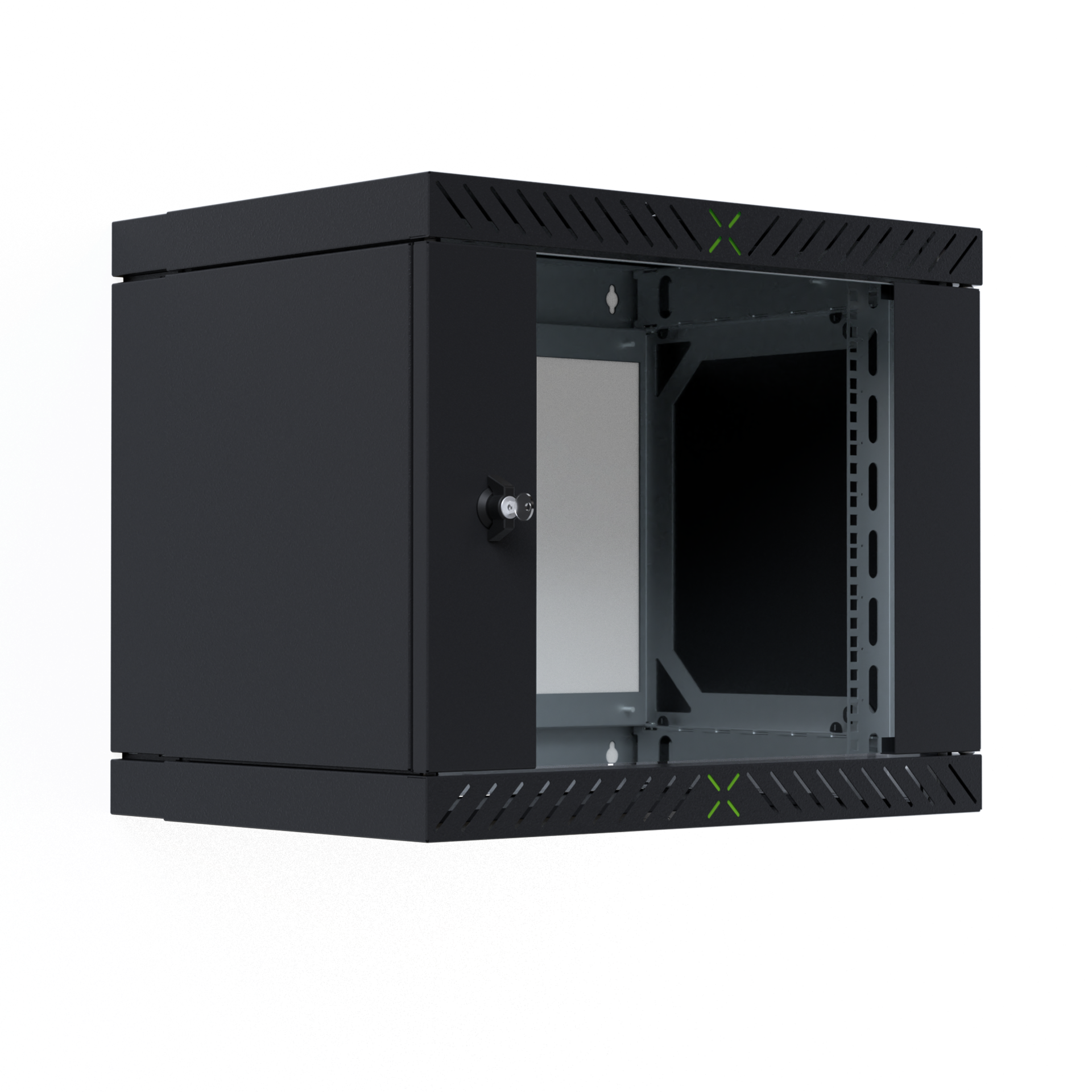

Wall Cabinet X-Rack w. glass door 400-600mm 9U Grey RAL7035
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 9U Black RAL9005
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 12U Grey RAL7035
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 12U Black RAL9005
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 15U Grey RAL7035
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 15U Black RAL9005
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Wall Cabinet X-Rack w. glass door 400-600mm 9U Black RAL9005
Steel sheet housing with swiveling frame, self-ventilated, not pre-assembledHousing continuously depth adjustable from 400 .. 600 mmSecured side walls, can only be removed after opening front doorInside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mmFront door with window of certified safety-glass (4 mm) and latch lockingDoor stop changeable due to stable, spring-loaded metal hingesDoor angle adjustable due to adjustable hingesDoor opening angle 120°Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)Rear sided open frame with additionally positions for cable managementRoof and bottom prepared for accommodation of single fan Art.-No. 691664Cabinet parts inside completely grounded, M5 grounding bolt at base frameMax. load 60 kg (statically equally distributed), protection degree IP20Paint finish RAL7035, light grey / RAL9005, jet blackScope of delivery: 2 x key, earthing cableDelivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)

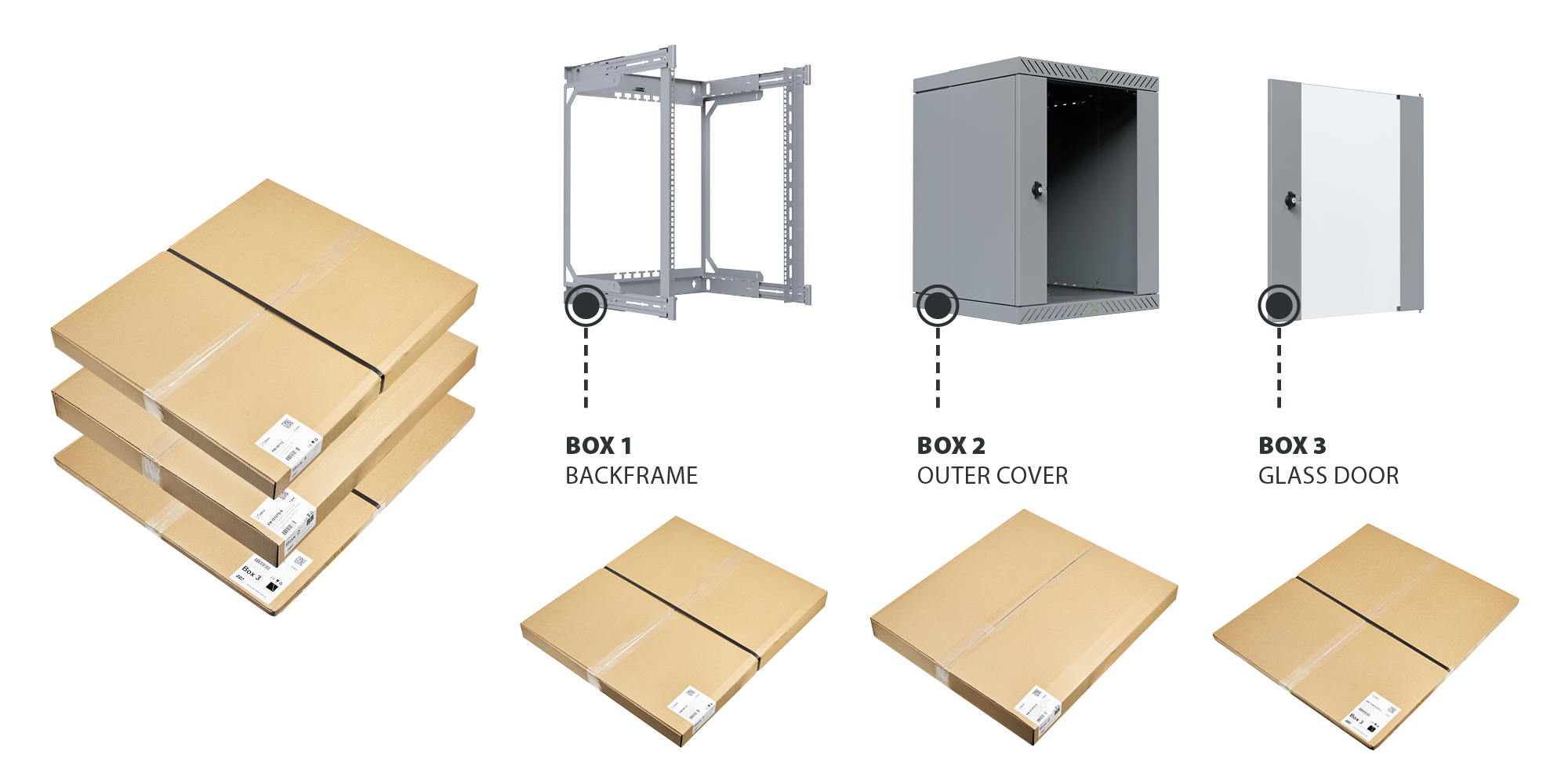

Put together the right set yourself or order individually
You can of course also order all parts individually - ordering is also flexible. So you are free to choose which variant suits you best. Do you only need the backframe for your installation? Do you need to reorder a door? No problem!
1. select backframe in 9, 12 and 15 U
Backframe for Wall X-Rack 400-600mm 9U 600x500mm El-galvinized 1/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job. By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm 19” profiles depth-adjustable 100% Protection against installation error due to equal roof and bottom Maximum load 60 kg for static equal distribution Protection degree IP20 when using the outer coverEl-galvanised steel plates for higher quality Arrangement for cable strain relief in top and bottom Side walls + roof and bottom elements can be ordered separately M5 screw pin, for grounding connection in all 4 frame corners General data:Modular spacing 19” inch, 482,6 mm Material & surface inner parts El-galvanised Z275, steel plate Degree of protection IP20 Maximum load 60 kgWidth 600 mm Height 9U:500 mm / 12U: 600 mm / 15U: 766 mmDepth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile Packaging Package no 1 of 3, recycled cartonboard
Backframe for Wall X-Rack 400-600mm 12U 600x600mm El-galvinized 1/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job. By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm 19” profiles depth-adjustable 100% Protection against installation error due to equal roof and bottom Maximum load 60 kg for static equal distribution Protection degree IP20 when using the outer coverEl-galvanised steel plates for higher quality Arrangement for cable strain relief in top and bottom Side walls + roof and bottom elements can be ordered separately M5 screw pin, for grounding connection in all 4 frame corners General data:Modular spacing 19” inch, 482,6 mm Material & surface inner parts El-galvanised Z275, steel plate Degree of protection IP20 Maximum load 60 kgWidth 600 mm Height 9U:500 mm / 12U: 600 mm / 15U: 766 mmDepth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile Packaging Package no 1 of 3, recycled cartonboard
Backframe for Wall X-Rack 400-600mm 15U 600x766mm El-galvinized 1/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job. By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm 19” profiles depth-adjustable 100% Protection against installation error due to equal roof and bottom Maximum load 60 kg for static equal distribution Protection degree IP20 when using the outer coverEl-galvanised steel plates for higher quality Arrangement for cable strain relief in top and bottom Side walls + roof and bottom elements can be ordered separately M5 screw pin, for grounding connection in all 4 frame corners General data:Modular spacing 19” inch, 482,6 mm Material & surface inner parts El-galvanised Z275, steel plate Degree of protection IP20 Maximum load 60 kgWidth 600 mm Height 9U:500 mm / 12U: 600 mm / 15U: 766 mmDepth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile Packaging Package no 1 of 3, recycled cartonboard
Backframe for Wall X-Rack 400-600mm 12U 600x600mm El-galvinized 1/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover plates (side walls, roof + bottom and front door) can be installed on the final end of the job. By ordering the back frame separately, you can wait to order cover plates and front door until the color are decided.Back frame for 19” wall housing “X-Rack”, depth-adjustable to 400, 450, 500, 550 and 600 mm 19” profiles depth-adjustable 100% Protection against installation error due to equal roof and bottom Maximum load 60 kg for static equal distribution Protection degree IP20 when using the outer coverEl-galvanised steel plates for higher quality Arrangement for cable strain relief in top and bottom Side walls + roof and bottom elements can be ordered separately M5 screw pin, for grounding connection in all 4 frame corners General data:Modular spacing 19” inch, 482,6 mm Material & surface inner parts El-galvanised Z275, steel plate Degree of protection IP20 Maximum load 60 kgWidth 600 mm Height 9U:500 mm / 12U: 600 mm / 15U: 766 mmDepth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Wall hanging support Keyholes for 2 x M8 bolts in upper and lower profile Packaging Package no 1 of 3, recycled cartonboard
2. select matching outer cover in gray or black, in 9, 12 and 15 U
Wall X-Rack outer cover w/o door 9U grey RAL7035 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 9U black RAL9005 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 12U grey RAL7035 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 12U black RAL9005 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 15U grey RAL7035 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 15U black RAL9005 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack outer cover w/o door 15U grey RAL7035 2/3
New generation of wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the coverplates (side, top&buttom + frontdoor), can be installed on the final end of the job. By ordering the back frame & cover parts separately, you can wait to order cover plates and front door until the colour is decided. For 19” wall housing “X-Rack”, adjustable in depth: 400, 450, 500, 550 and 600 mm 100% Protection against installation error. Left/right side plates and roof/bottom plates are equal Steel front door. Possibility to hinge left or right. Adjustable door hinges to secure correct leveling of the door. Secured sidewalls, only to be dismantled from front side behind the front door. 190x90 mm Cable entries in roof and bottom. Mounting holes for single fan-units Art.-No 691664 in roof and bottom Protection degree IP20 El-gavanised steel plates for higher quality Side walls, roof and bottom plates El-galv. powder coating light grey or jet black Quarter turn Lock with key. Can be exchanged to RUKO/ASSA with 699989 turning handles General Data:Type of ventilation Passive Active ventilation Mounting holes for 1 x fan unit in roof & bottom Material & surface side plates El-galvanized Z275, steel plate, powder coating Material & surface top&buttom El-galvanized Z275, steel plate, powder coating Material & surface front door Steel plate door, powder coated, window of certified safety glassFront door hinges Easy pin hinge for left or right side. Adjustable leveling of the door Front door locking Quarter turn handle with standard key. Can be replaced by 699989 handle for RUK/ASSA Side walls locking Protected against unauthorized access. Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Depth Adjustable 400 mm, 450 mm, 500 mm, 550 mm, 600 mm Packaging Package no.2 of 3: recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
3. select suitable glass door in 9, 12 and 15 U
Wall X-Rack Glass door 9U grey RAL7035 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 9U black RAL9005 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 12U grey RAL7035 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 12U black RAL9005 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 15U grey RAL7035 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 15U black RAL9005 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Wall X-Rack Glass door 9U grey RAL7035 3/3
New generation of 19” wall cabinets, which gives the installer 100% flexibility during installation. The assembly process of the rack is done during the installation of hardware into the cabinet. All the cover elements (side walls, roof + bottom + front door) can be installed on the final end of the job. Glass front door with steel frame and window of certified safety glass (thickness 4 mm)Door stop left- or right sided possible Adjustable door hinges to secure correct leveling of the door. Protection degree IP20 4 mm² Grounding wire and additional electrical connection between steel partsNotes:Quarter turn Lock with key is exchangeable for RUKO/ASSA with compact turning handle Art.-No. 699989. The Lock is supplied with the cover package for the cabinet (packaging 2 of3). See e.g. WGX-OxxGR.GGeneral Data:Material & surface front door Steel frame with hardened and tempered glass Front door hinges Easy pin hinges for left or right side, spring-loaded, adjustable leveling of the door Degree of protection IP20 Width 600 mm Height 9U: 500 mm / 12U: 600 mm / 15U: 766 mm Packaging Package no.3 of 3 : recycled cartonboard Paint finish RAL7035, light grey / RAL9005, jet black
Additional equipment
Created on the basis of insights
X-Rack optimizes your workflow because we know what reality looks like for you. It was important to us to incorporate the solution to your challenges into the development and design process right from the start.
To simplify the installation process as much as possible, the X-Rack is designed so that only one person is needed and you can start assembling the components without being restricted by interfering parts. The X-Rack consists of several parts that can be easily plugged together without having to loosen any screws.
To simplify the installation process as much as possible, the X-Rack is designed so that only one person is needed and you can start assembling the components without being restricted by interfering parts. The X-Rack consists of several parts that can be easily plugged together without having to loosen any screws.
-
Makes your job easier
-
No loose screws
-
1-person job
-
Integrated spirit level
-
Folding side panels
Makes your job easier
No loose screws
1-person job
Integrated spirit level
Folding side panels
