INFRALAN® Installation Cable U/FTP Cat.6A 500MHz
INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white
Item number:
99978.305-CPR
EAN no.:
4049759207229
Product information for INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white
INFRALAN® U/FTP Cat.6A Installation Cable
Technical properties
| AWG-size: | 23/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 57.6 mm |
| Bending radius (static): | 28.8 mm |
| Cable: |
EN 50288-4-1 500 IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | U/FTP |
| Cable type: | EFB Cat.6A U/FTP 500 AWG23 Dca |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 6A (IEC) |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Cell-PE |
| Coupling attenuation: | ≥ 50 dB |
| Diameter conductor: | 0.55 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | LSZH |
| Loop resistance: | 196.8 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | MHz MHz |
| NVP value: | 74 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | None |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | C |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | no |
Variants
| Item no. | Name | Colour outer sheath | Type | Number of cores | RAL colour | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

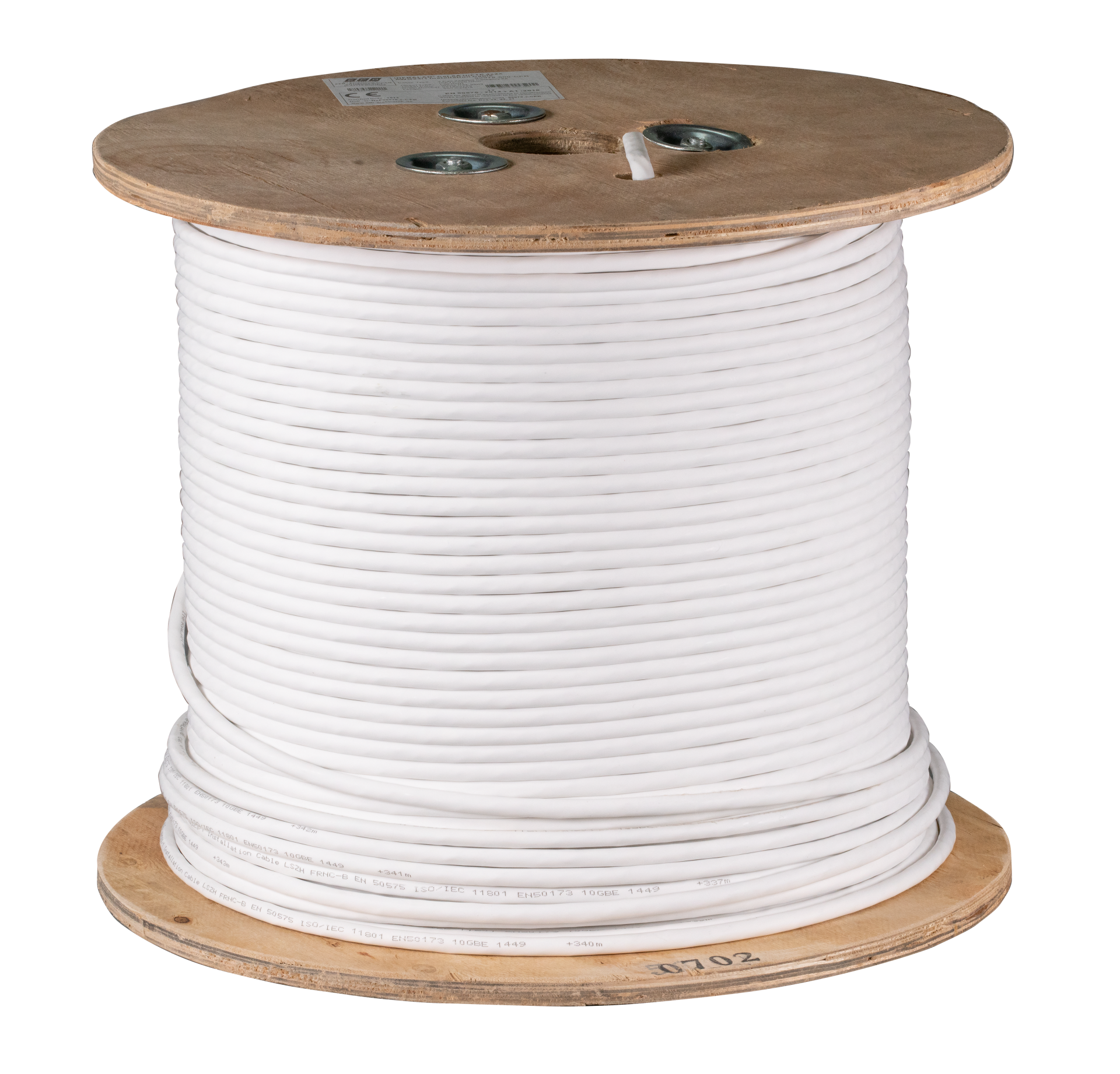

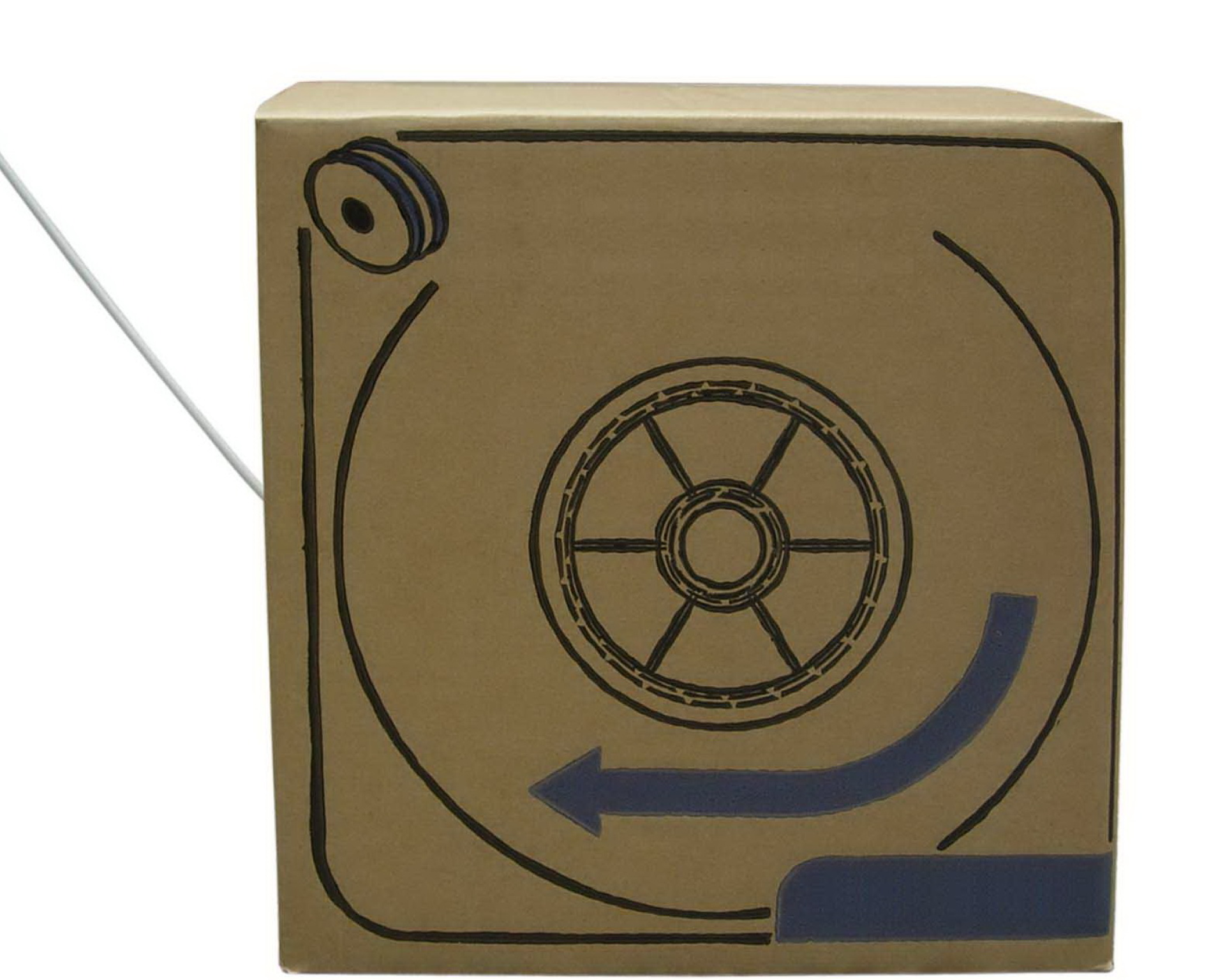

| 99978.305-CPR | INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 305m Box, white | white | simplex | 8 | RAL 9003 | 305.0 m | 20 kg/km | 50 kg/km | 100 N | 7.2 mm | 732 MJ/km | |
| 99978.500-CPR | INFRALAN® U/FTP Cat.6A 500MHz, AWG23 4P Dca, 500m Drum, white | white | simplex | 8 | RAL 9003 | 500.0 m | 20 kg/km | 50 kg/km | 100 N | 7.2 mm | 732 MJ/km |
Safety instructions
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
