IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1
IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1
Item number:
IP68KV6AWP
EAN no.:
4049759291792
Product information for IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A insulation displacement technology to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.
- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
Technical properties
| Category: | 6A (TIA) |
|---|---|
| Construction type: | straight |
| Temperature Range (Operation): | 0 – 70 °C |
| Temperature Range (Storage): | -40 – 85 °C |
| Type of connector: | Other |
| Type of fastening: | Other |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt

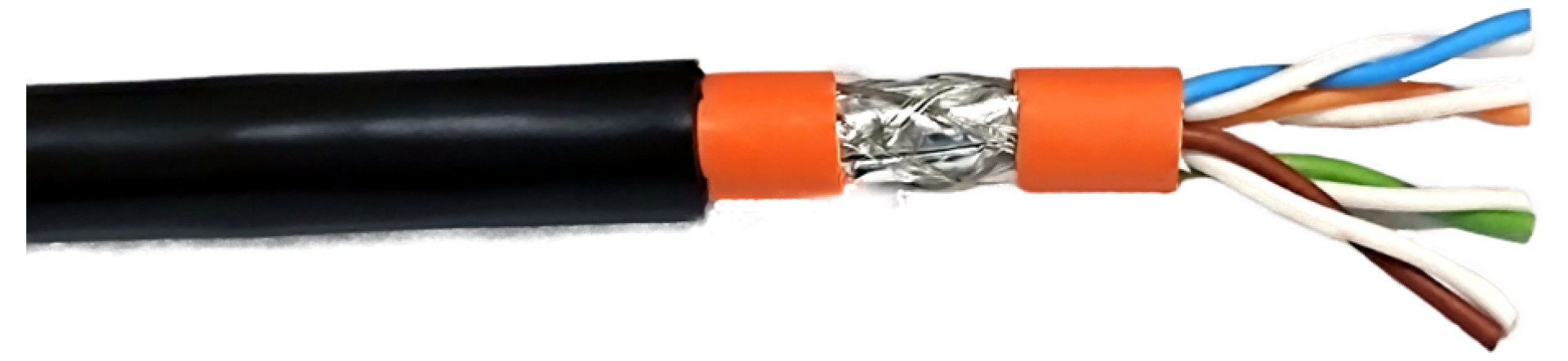

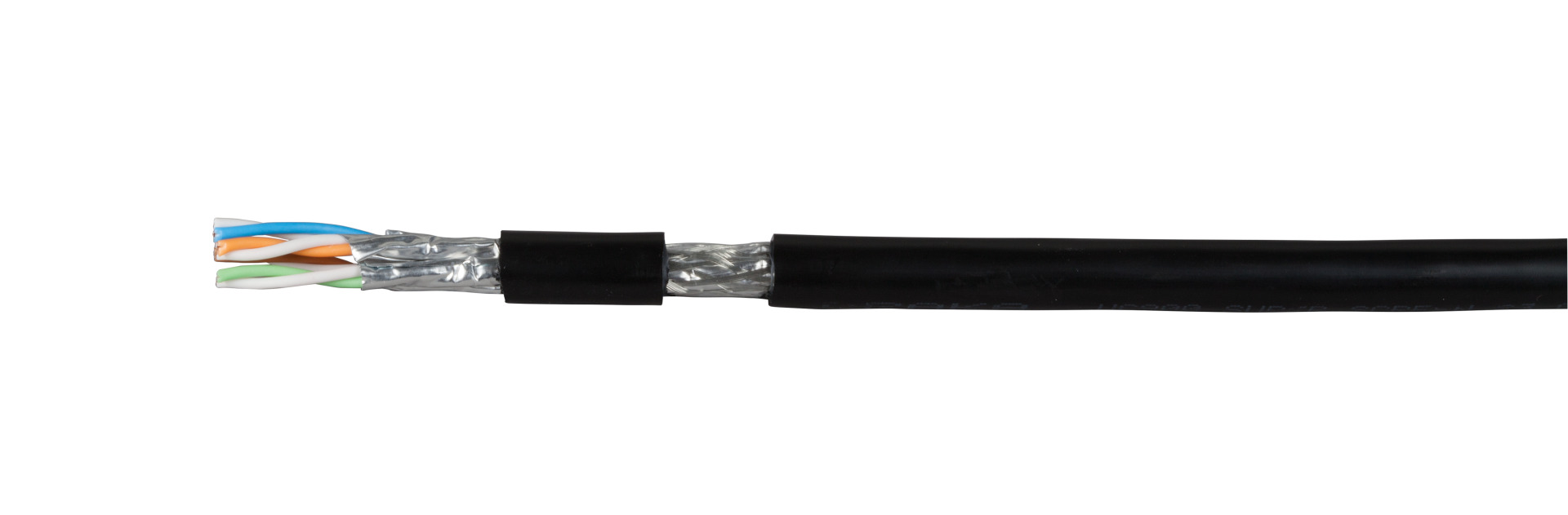

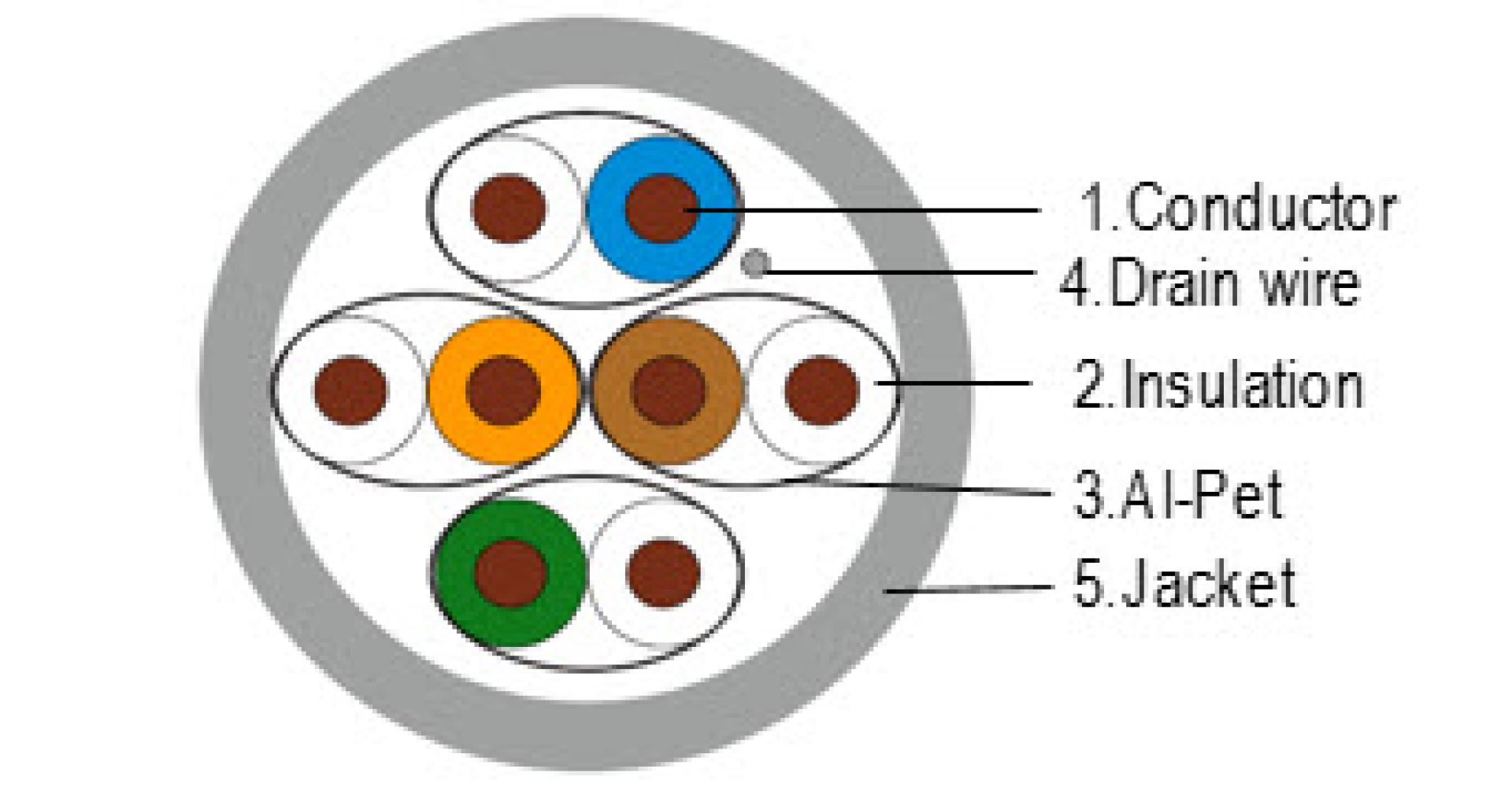

sold with
