INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca

Prices only visible for logged in users

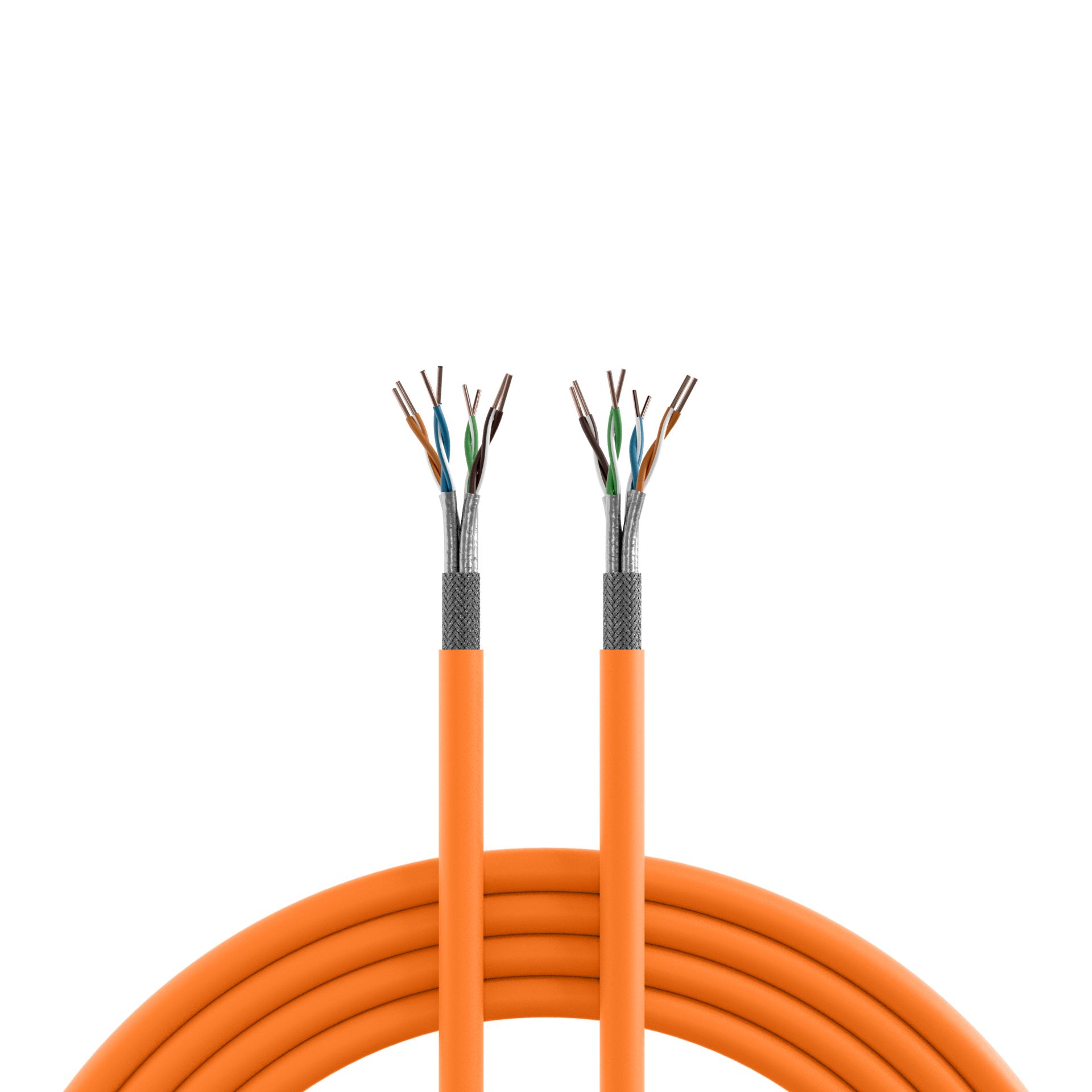

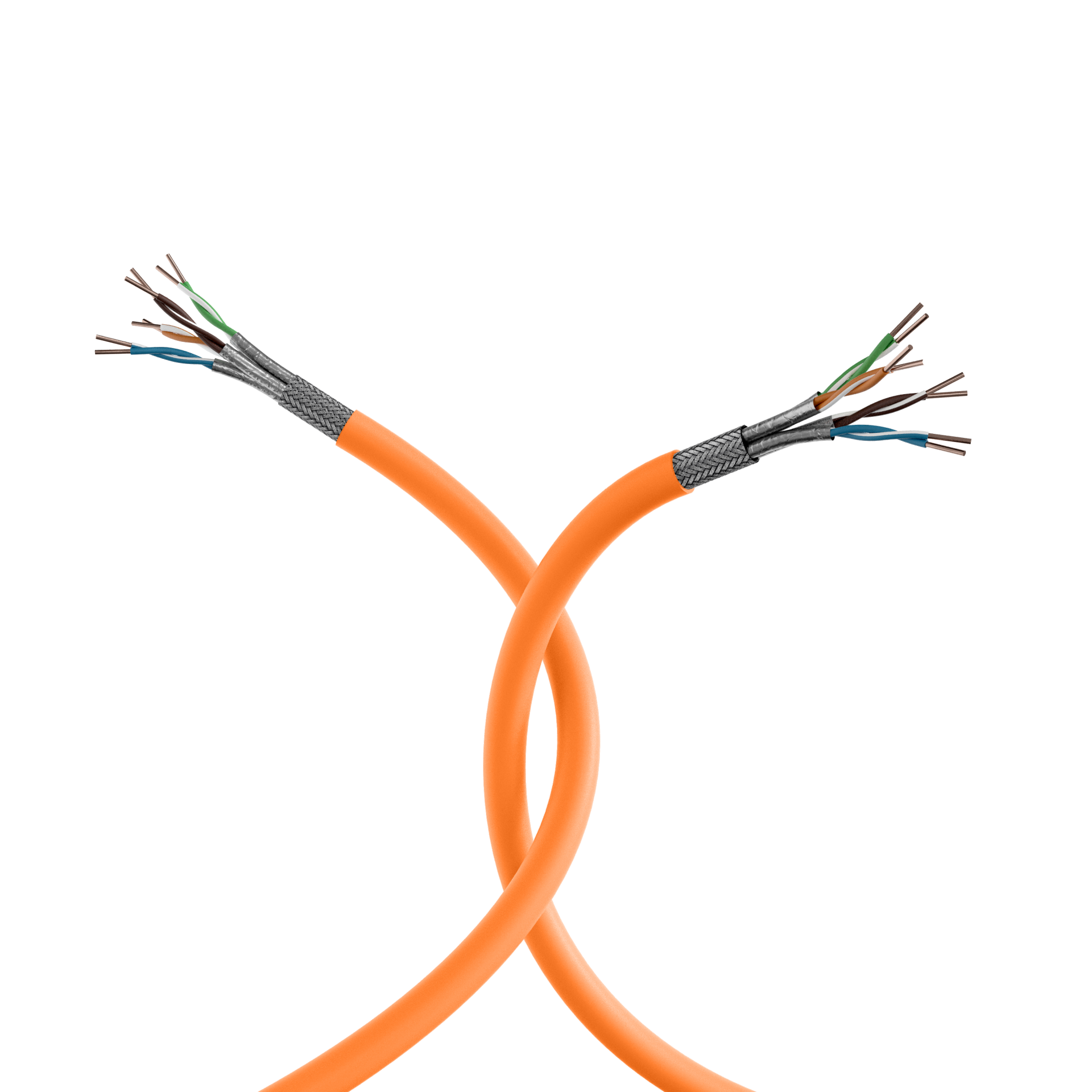

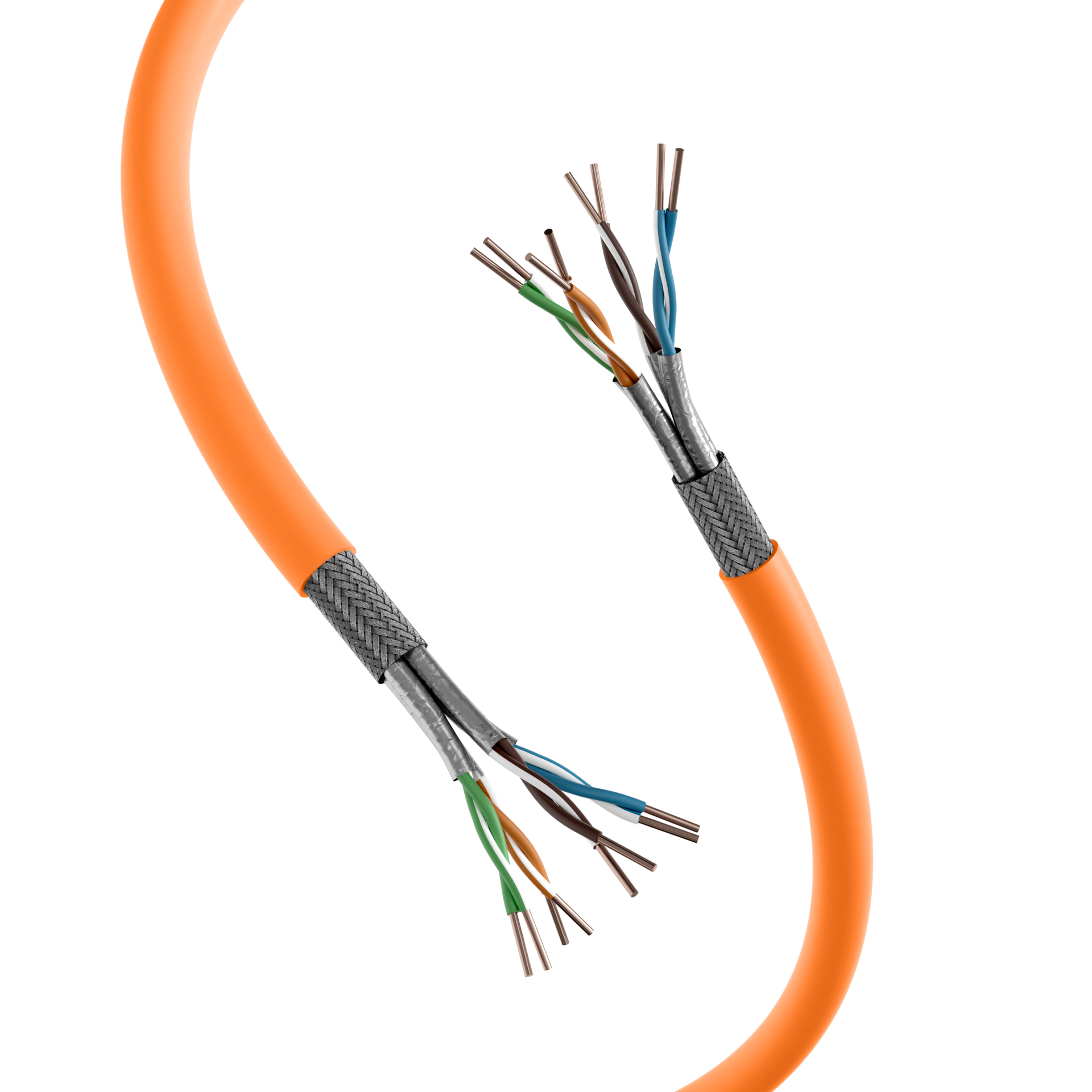

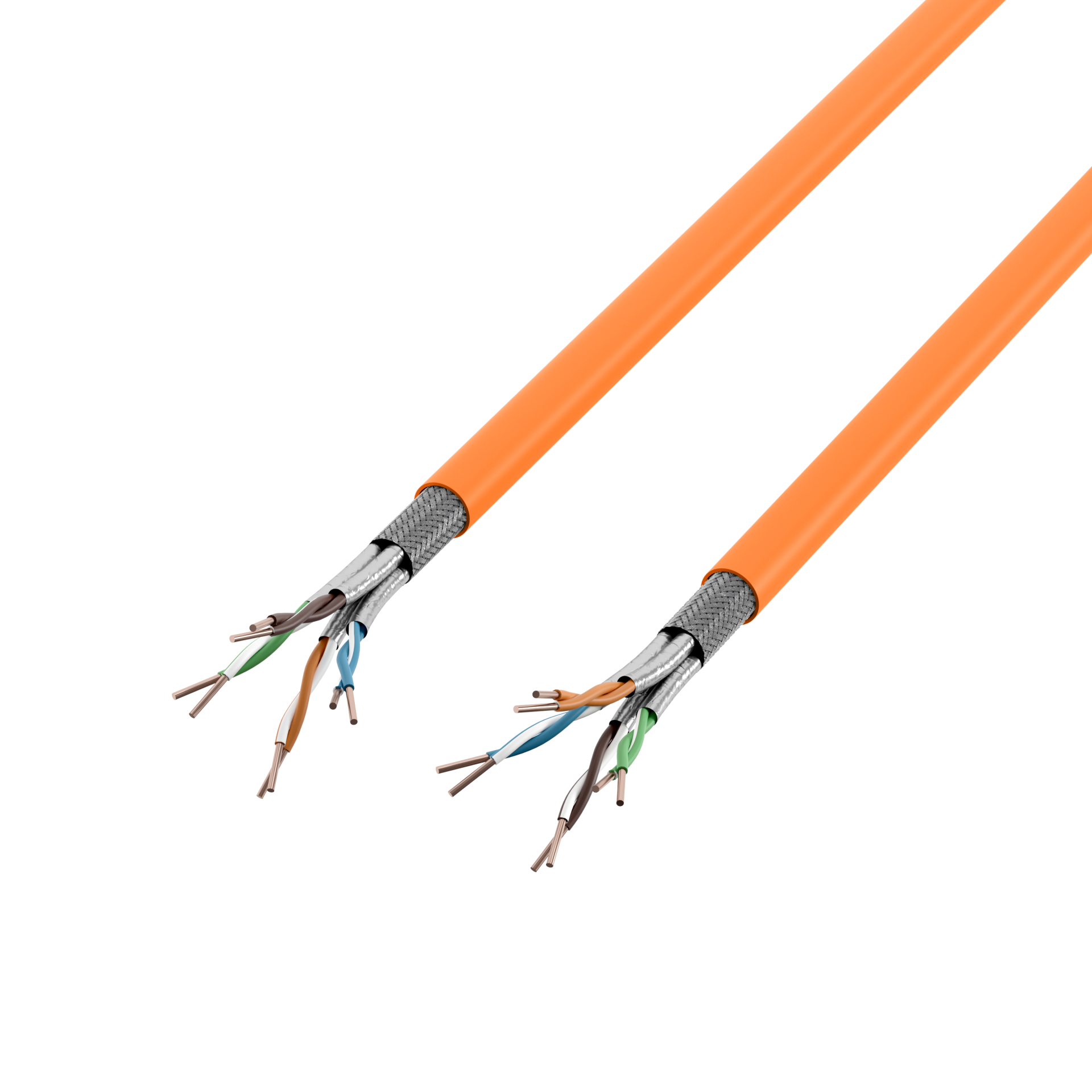

INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange
Item number: 99980.1-CPR
EAN no.: 4049759180775
meter

Product information for INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange

The INFRALAN® installation cable 99980.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

Technical properties

AWG-size: 23/1
Bending radius (dynamic): 8 x OD
Bending radius (static): 4 x OD
Cable: EN 50288-4-1
IEC 61156-5
Cable Construction: S/FTP
Cabling standards: EN 50173-1
EN 50288

ISO/IEC 11801
Capacity to earth: nom. 43 nF/km
Category: 7
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Cu, tinned
Core identification: Colour
Core insulation: Foam-Skin-PE
Coupling attenuation: 80 dB
Coupling attenuation Type: Type 2
Delay skew: ≤ 12 ns/100m
Diameter conductor: 0.56 mm
Euro class: Eca
Flame retardant: acc. EN 60332-1
Halogen free: acc. EN 60754-1/2
Halogen free (acc. EN 50267-2-2): False
Halogen free (according to EN 60754-1/2): True
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Jacket Material: FRNC-B
Loop resistance: 154 Ohm/km
Low smoke: acc. EN 61034
Low smoke (according to EN 61034-2): False
Max. Freuqency: 1000 MHz
NVP value: 79 %
Nominal cross section conductor: 0.26 mm²
Permitted cable outer temperature after assembling without vibration: -20 – 60 °C
Permitted cable outer temperature during assembling/handling: 0 – 50 °C
PoE: acc. to IEEE802.3bt 4PPoE
Resistance unbalance: ≤ 2 %
Screen over stranding: braiding
Screen over stranding element: Foil
Separation class acc. EN50174-2: D
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transfer impedance at 1MHz: 12 mOhm/m
Transfer impedance at 10MHz: 10 mOhm/m
Transfer impedance at 30MHz: 30 mOhm/m
Transmission standards: IEEE 802.3 10Mbit to 10Gbit
UV resistance: no

Variants

Item no. Name Colour outer sheath RAL colour Number of cores Type Length Cu-Zahl Gewicht Max. Zugkraft Außendurchmesser ca. Brandlast
99980.100-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m orange RAL2003 8 simplex 100.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980.1-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange orange RAL2003 8 simplex 1.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980.250-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 250m orange RAL2003 8 simplex 250.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980.25-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 25m orange RAL2003 8 simplex 25.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980.500-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 500m orange RAL2003 8 simplex 500.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980.50-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 50m orange RAL2003 8 simplex 50.0 m 26 kg/km 54,5 kg/km 110 N 7,3 mm 590 MJ/km
99980DX.100-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 100m orange RAL2003 2x8 duplex 100.0 m 52 kg/km 109,2 kg/km 220 N 7,2 x 15,0 mm 1190 MJ/km
99980DX.250-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 250m orange RAL2003 2x8 duplex 250.0 m 52 kg/km 109,2 kg/km 220 N 7,2 x 15,0 mm 1190 MJ/km
99980DX.25-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 25m orange RAL2003 2x8 duplex 25.0 m 52 kg/km 109,2 kg/km 220 N 7,2 x 15,0 mm 1190 MJ/km
99980DX.500-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 500m orange RAL2003 2x8 duplex 500.0 m 52 kg/km 109,2 kg/km 220 N 7,2 x 15,0 mm 1190 MJ/km
99980DX.50-CPR INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 50m orange RAL2003 2x8 duplex 50.0 m 52 kg/km 109,2 kg/km 220 N 7,2 x 15,0 mm 1190 MJ/km

sold with

RJ45 Connector STP, Cat.6, Field-Plug
IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1
RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver

main product

Keystone holder 1-Port, for DIN Rail in subdistribution, plastic
Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter

necessary tools

Stripping Tool for PIMF cable
Stripping Tool for jacket and foil shield

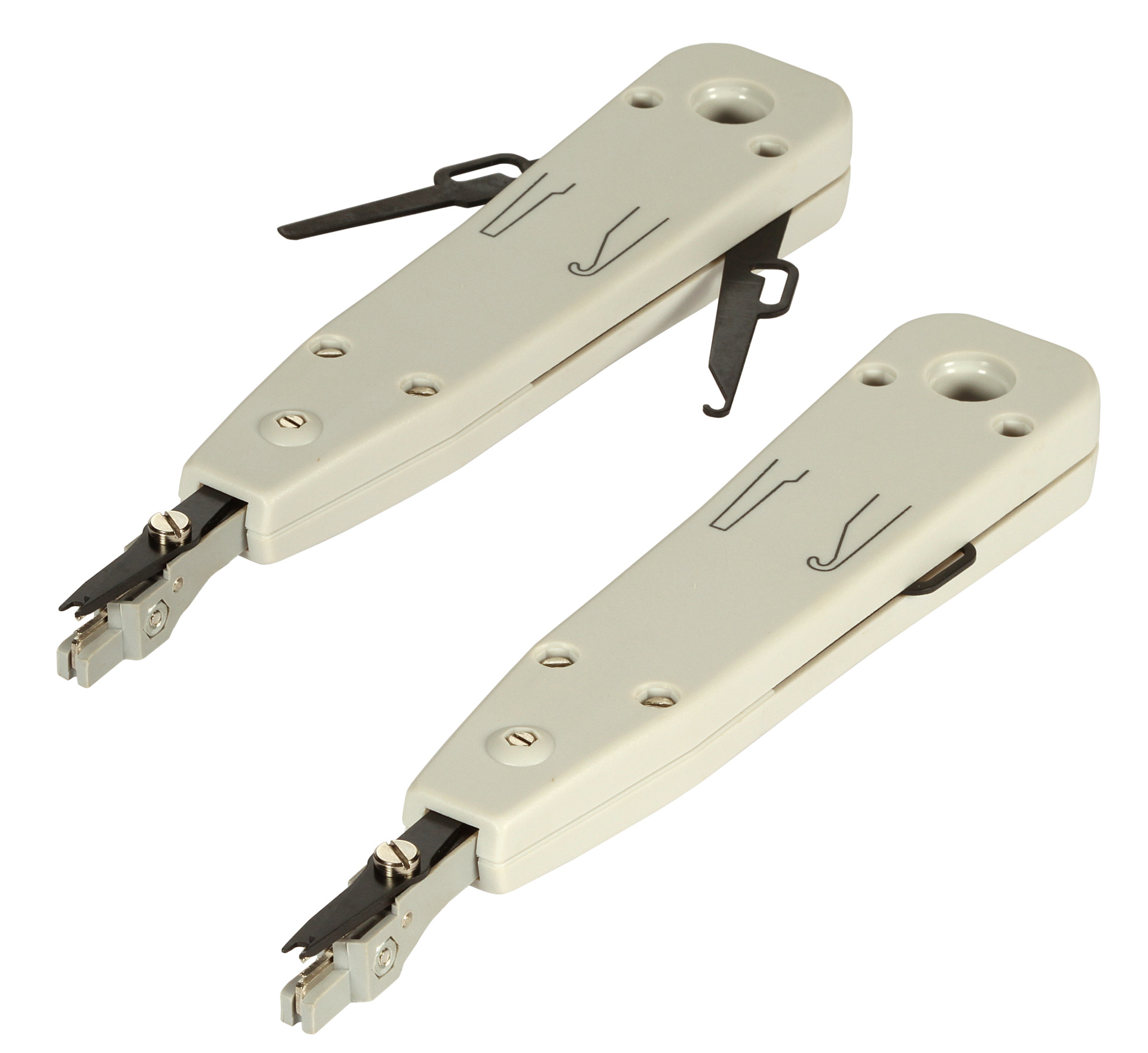

LSA Insertion Tool
