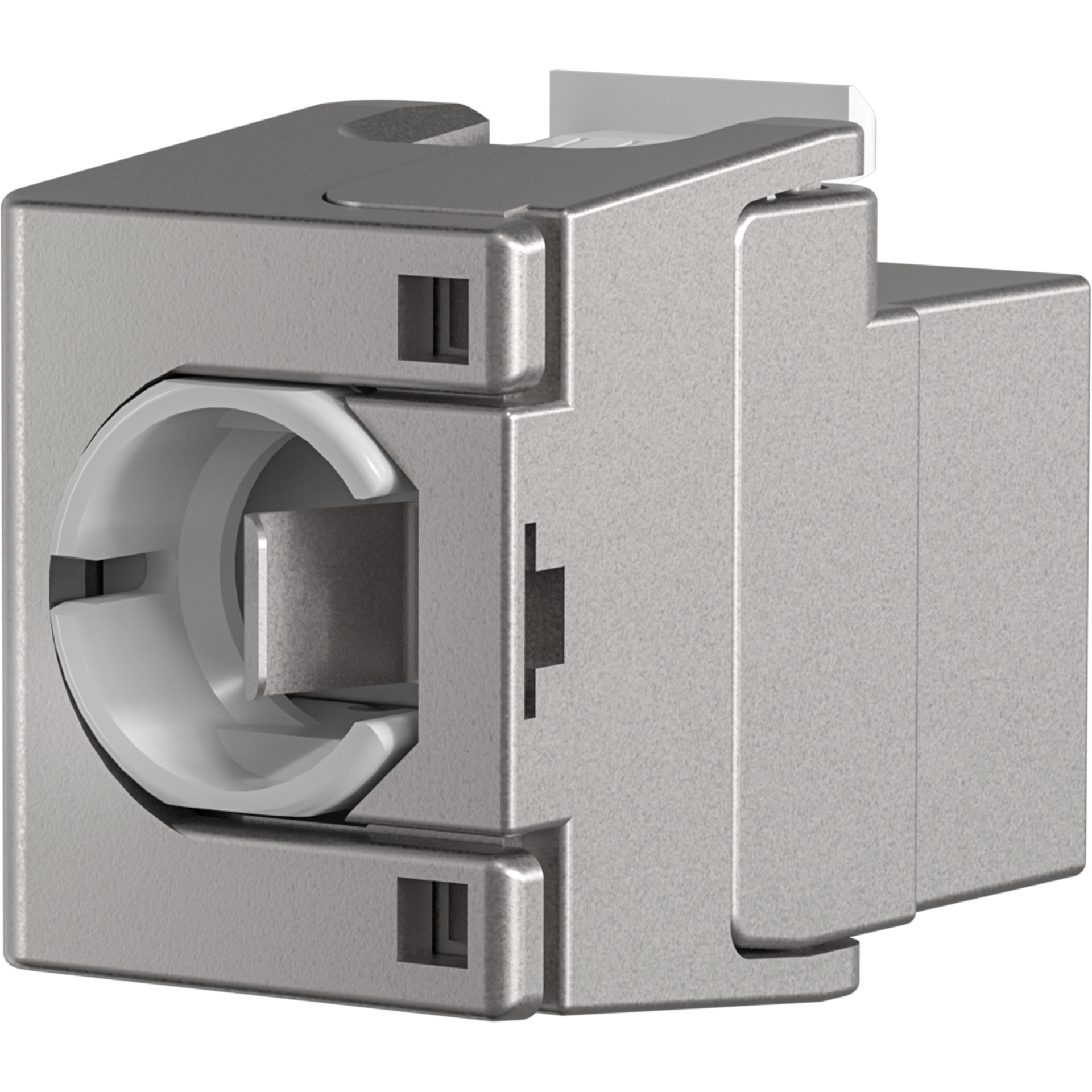

RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
Item number:
E-20093
EAN no.:
4049759251031
Product information for RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
The high quality of the RJ45 Shortbody Keystone Module ensures very good characteristics for 10 Gigabit Ethernet applications. Special tools are not required. The assembly is quick and easy. With the RJ45 module you get a fully shielded module, which offers you good services in your network installation for a long time. Due to its short installation depth of 30.5mm, installation in flush boxes and in limited spaces is even easier compared to standard keystones
Properties:
Installation depth of only 30.5mm

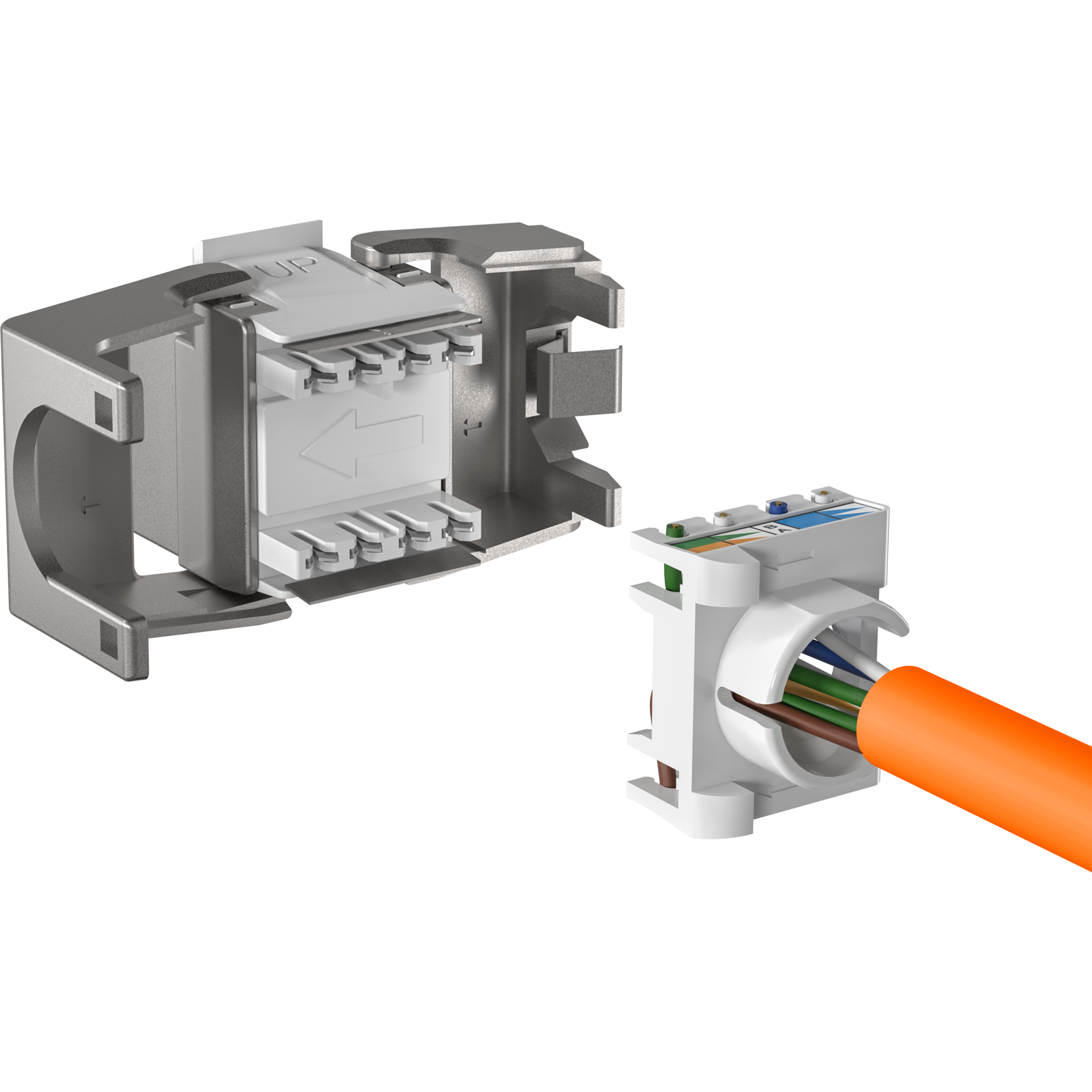

Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:

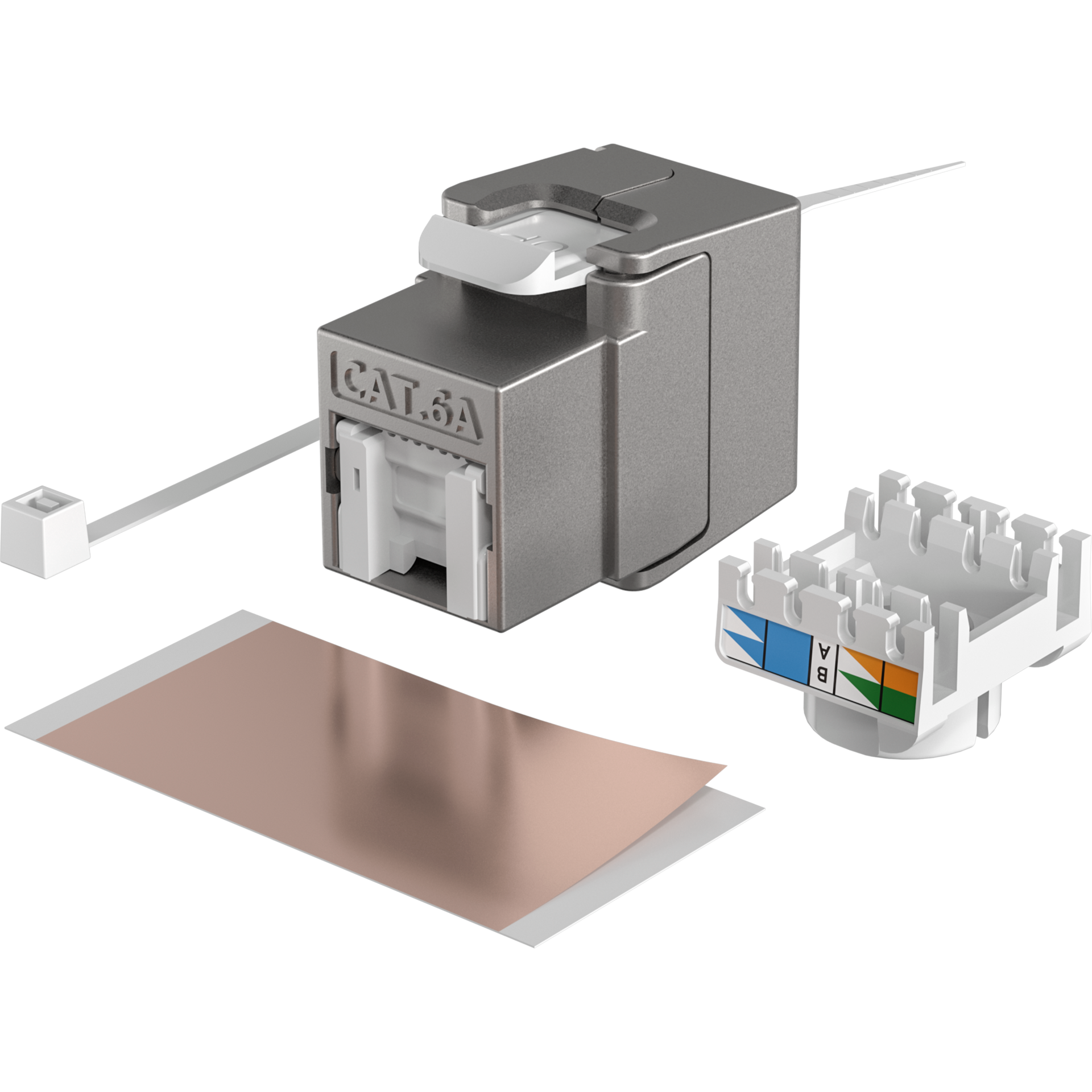

1 x RJ45 Keystone, installation manual (English)
Properties:
Installation depth of only 30.5mm
Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:
1 x RJ45 Keystone, installation manual (English)
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | False |
| AWG-range: | 26 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 10 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true, with internal shutter |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Technical properties
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | False |
| AWG-range: | 26 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 10 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true, with internal shutter |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Product information for RJ45 Shortbody Keystone STP, Cat.6A 500MHz with internal shutter
The high quality of the RJ45 Shortbody Keystone Module ensures very good characteristics for 10 Gigabit Ethernet applications. Special tools are not required. The assembly is quick and easy. With the RJ45 module you get a fully shielded module, which offers you good services in your network installation for a long time. Due to its short installation depth of 30.5mm, installation in flush boxes and in limited spaces is even easier compared to standard keystones
Properties:
Installation depth of only 30.5mm
Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:
1 x RJ45 Keystone, installation manual (English)
Properties:
Installation depth of only 30.5mm
Compact cable pre-sorter for AWG22/1 ... AWG26/1
Pair management according to TIA/EIA 568 A/B colour codes (colour code printed on the cable pre-sorter)
Suitable for distribution panels and support rings with keystone breakout
Scope of supply:
1 x RJ45 Keystone, installation manual (English)
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | False |
| AWG-range: | 26 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 10 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true, with internal shutter |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | False |
| AWG-range: | 26 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 10 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true, with internal shutter |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Skip product gallery
accessory
Item no. WX4500-FA-V2
WireXpert Copper- and Fiber Optic-Cable Certifier up to 2500MHz
Fit for:
Twisted Pair
Item no. 99981.1-CPR
INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange
Colour outer sheath:
orange
Length:
1.0 m
Number of cores:
8
RAL colour:
RAL 2003
Item no. MK7100.1-CPR
INFRALAN® Cat.7A 1200 AWG22, S/FTP 4P CPR B2ca orange RAL 2003
Colour outer sheath:
orange
Length:
1.0 m
Number of cores:
8
RAL colour:
RAL 2003
Item no. 99980.1-CPR
INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange
Colour outer sheath:
orange
Length:
1.0 m
Number of cores:
8
RAL colour:
RAL 2003
Item no. EHT-021
Network parallel pliers 14.2-28mm for assembling keystones+field connectors
Model:
Parallel pliers for RJ45 Keystone
Item no. K5525FGN.1
RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex green 1m
Length:
1.0 m
Item no. 99985.1-CPR
INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021
Colour outer sheath:
Colza yellow
Length:
1.0 m
Number of cores:
8
RAL colour:
RAL 1021
Item no. ET-25091

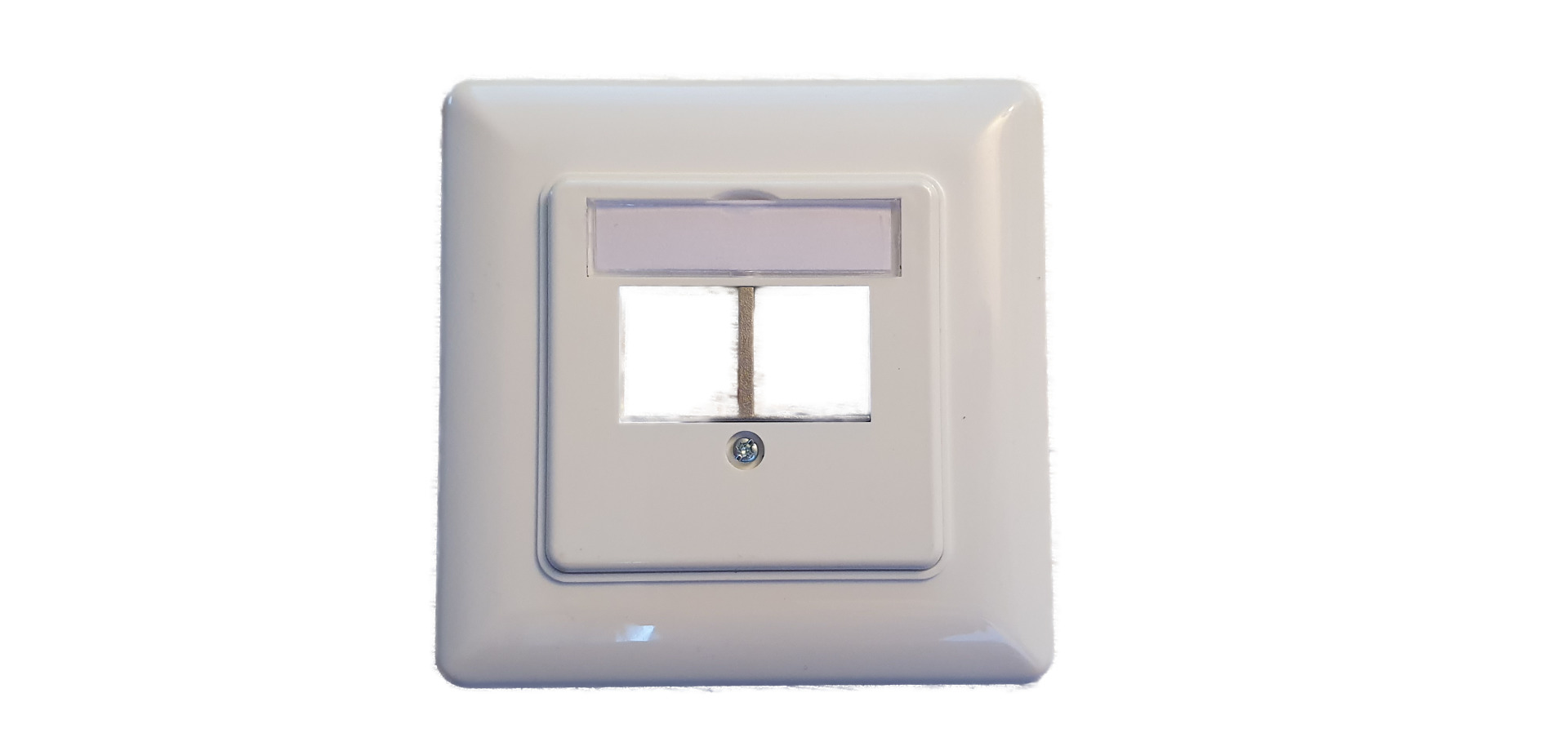

2-Port Frame Set for Keystone, straight outlet, DIN49075, RAL9003 signal white
