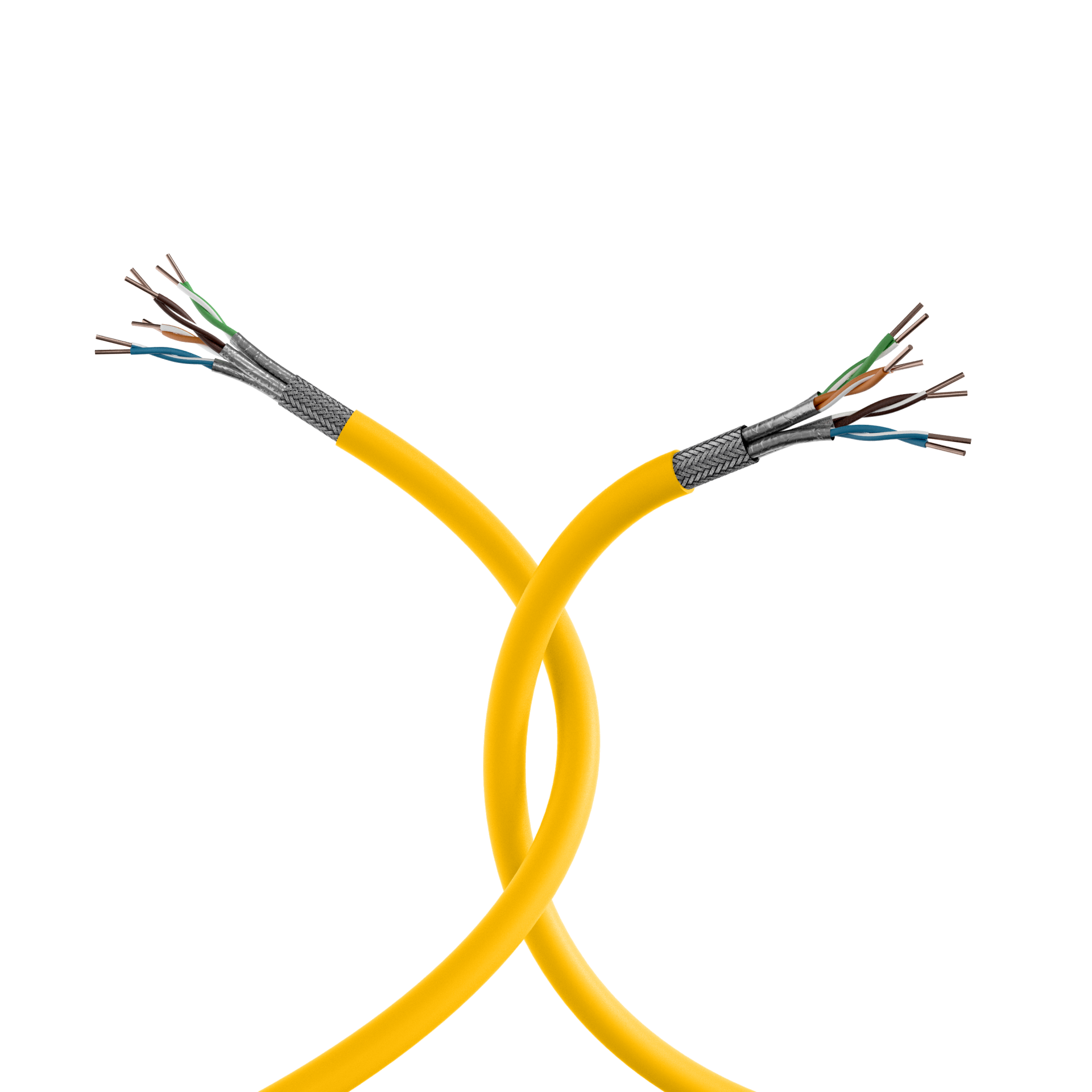

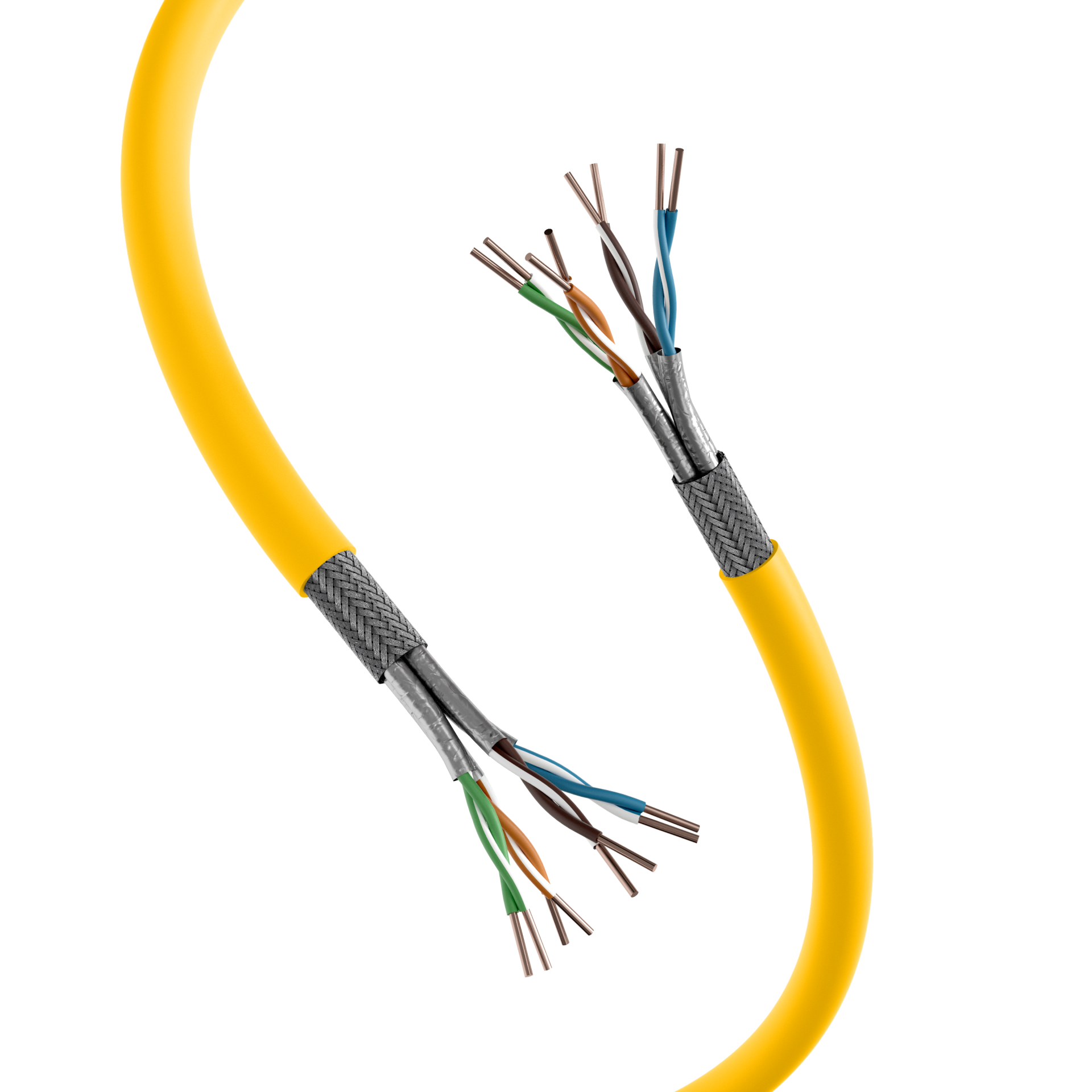

INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca
INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021
Item number:
99985.1-CPR
EAN no.:
4049759180959
Product information for INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021
The INFRALAN® installation cable 99985.x-CPR is constructed for transmissions up to 1250 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Technical properties
| (Halogenfree): | nach EN 60754-1/2 |
|---|---|
| AWG-size: | 23/1 |
| Bending radius (dynamic): | ≥ 60 mm |
| Bending radius (static): | ≥ 30 mm |
| Cable: | EN 50288-9-1 |
| Cable: | IEC 61156-5 |
| Cable silicone free: | Ja |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Capacity to earth: | ≤ 1600 pF/km |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Kl.1 = eindrähtig |
| Conductor material: | Cu, verzinnt |
| Core identification: | Farbe |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Typ 1b |
| Delay skew: | 20 ns/100m |
| Diameter conductor: | 0,56 mm |
| Dielectric strength DC: | 1 kV/1 min |
| Directive/Regulation: | REACH 1907/2006/EC |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Cca |
| Flame retardant: | nach EN 60332-1 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | ≤ 140 Ohm/km |
| Low smoke: | nach EN 61034-2 |
| Max. frequency: | 1250 MHz |
| NVP value: | 78 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | 0 – 50 °C |
| PoE: | nach IEEE802.3af PoE |
| PoE: | nach IEEE802.3bt 4PPoE |
| PoE: | nach IEEE802.3at PoE+ |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | Geflecht |
| Screen over stranding element: | Folie |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Paare |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 20 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 30 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | Nein |
Variants
| Item no. | Name | Type | RAL colour | Number of cores | Colour outer sheath | Length | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99985.1-CPR | INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021 | simplex | RAL1021 | 8 | rapsgelb | 1,0 m | 32 kg/km | 62 kg/km | 95 N | 7,7 mm | 0,64 MJ/m | |
| 99985.500-CPR | INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021, 500m | simplex | RAL1021 | 8 | rapsgelb | 500,0 m | 32 kg/km | 62 kg/km | 95 N | 7,7 mm | 0,64 MJ/m | |
| 99985.100-CPR | INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021, 100m | simplex | RAL1021 | 8 | rapsgelb | 100,0 m | 32 kg/km | 62 kg/km | 95 N | 7,7 mm | 0,64 MJ/m | |

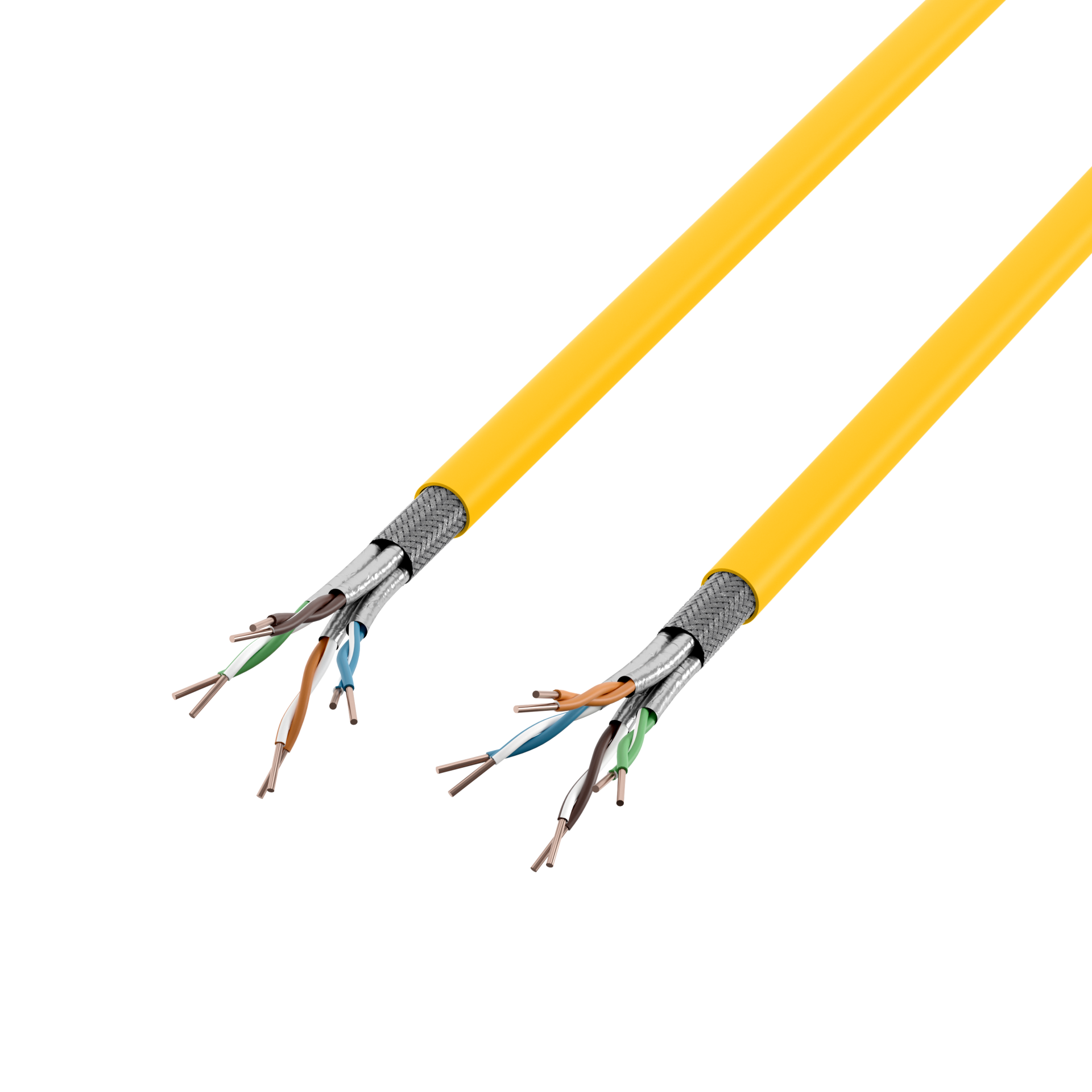

| 99985DX.500-CPR | INFRALAN® Cat.7A 1250 AWG23 S/FTP 2x4P CPR Cca rape yellow RAL1021, 500m | duplex | RAL1021 | 2x8 | rapsgelb | 500,0 m | 64 kg/km | 124 kg/km | 190 N | 7,7 x 16,1 mm | 1,28 MJ/m |
