RJ45 Keystone STP, Cat.6A, 500MHz, components certified, earthing
Prices only visible for logged in users
RJ45 Keystone STP, Cat.6A, 500MHz, component certified
Item number:
E-20091
EAN no.:
4049759129804
Product information for RJ45 Keystone STP, Cat.6A, 500MHz, component certified
The high-quality of the RJ45 keystone modules warrants very good characteristics for 10Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.
Specifications:
Cat.6A component certified acc. to ISO/IEC 11801 and IEC 60603-7-51
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Scope of delivery:

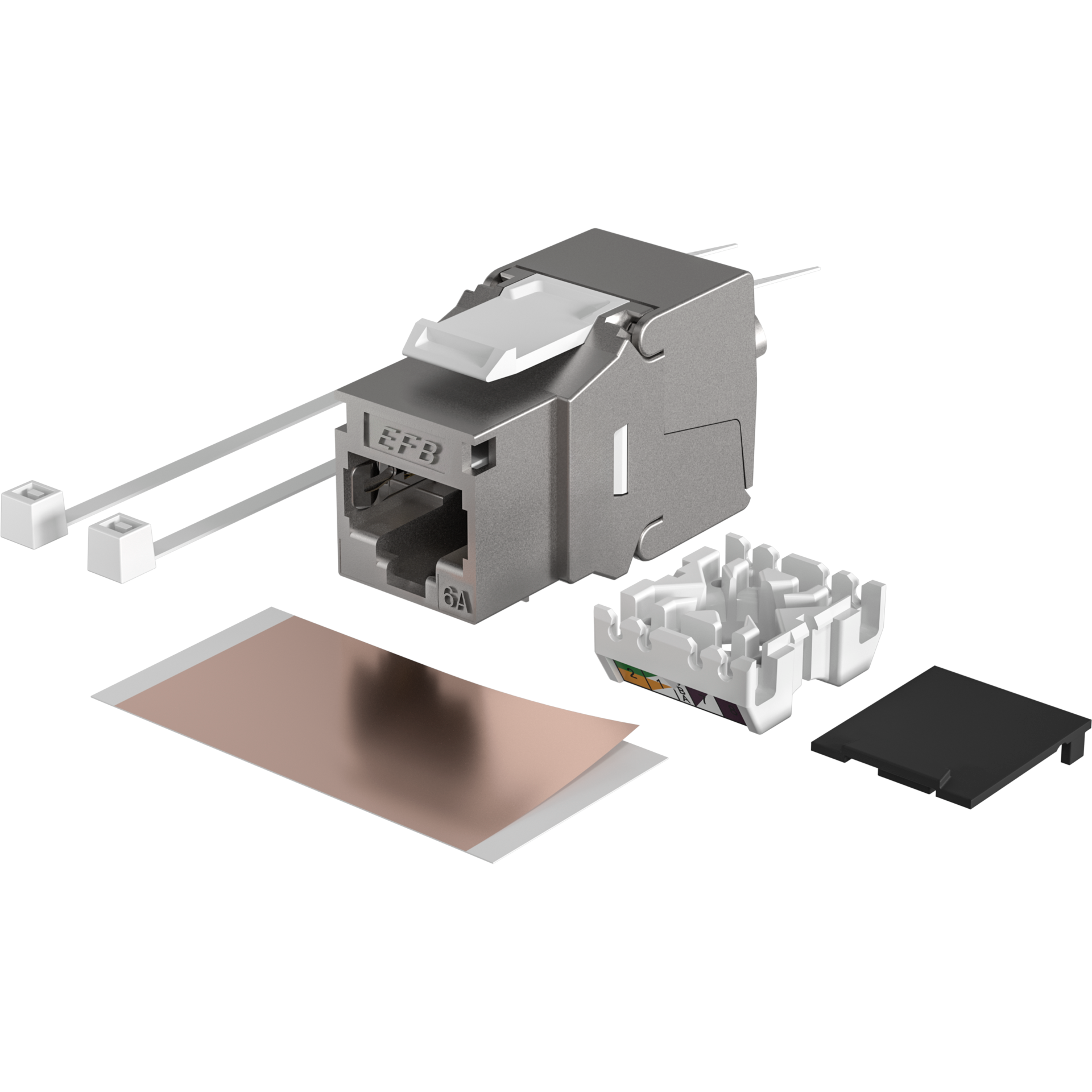

1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Specifications:
Cat.6A component certified acc. to ISO/IEC 11801 and IEC 60603-7-51
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Flexibel strain relief for different cable diameter
Scope of delivery:
1 x RJ45 keystone, Cable coder, captive dust cover, copper foil, cable ties, mounting instruction
Technical properties
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current Rating: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true |
| For UAE suitable: | False |
| Housing material: | Zinc die cast |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 |
| Max. cable diameter: | 8.5 mm |
| Model: | jack |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Temperature range: | -40 – 66 °C |
| Type of connector: | RJ45 8(8) |
| screened: | True |
