Keystone distributor housing 8-Port for DIN rail and wall mounting 8 port
Prices only visible for logged in users

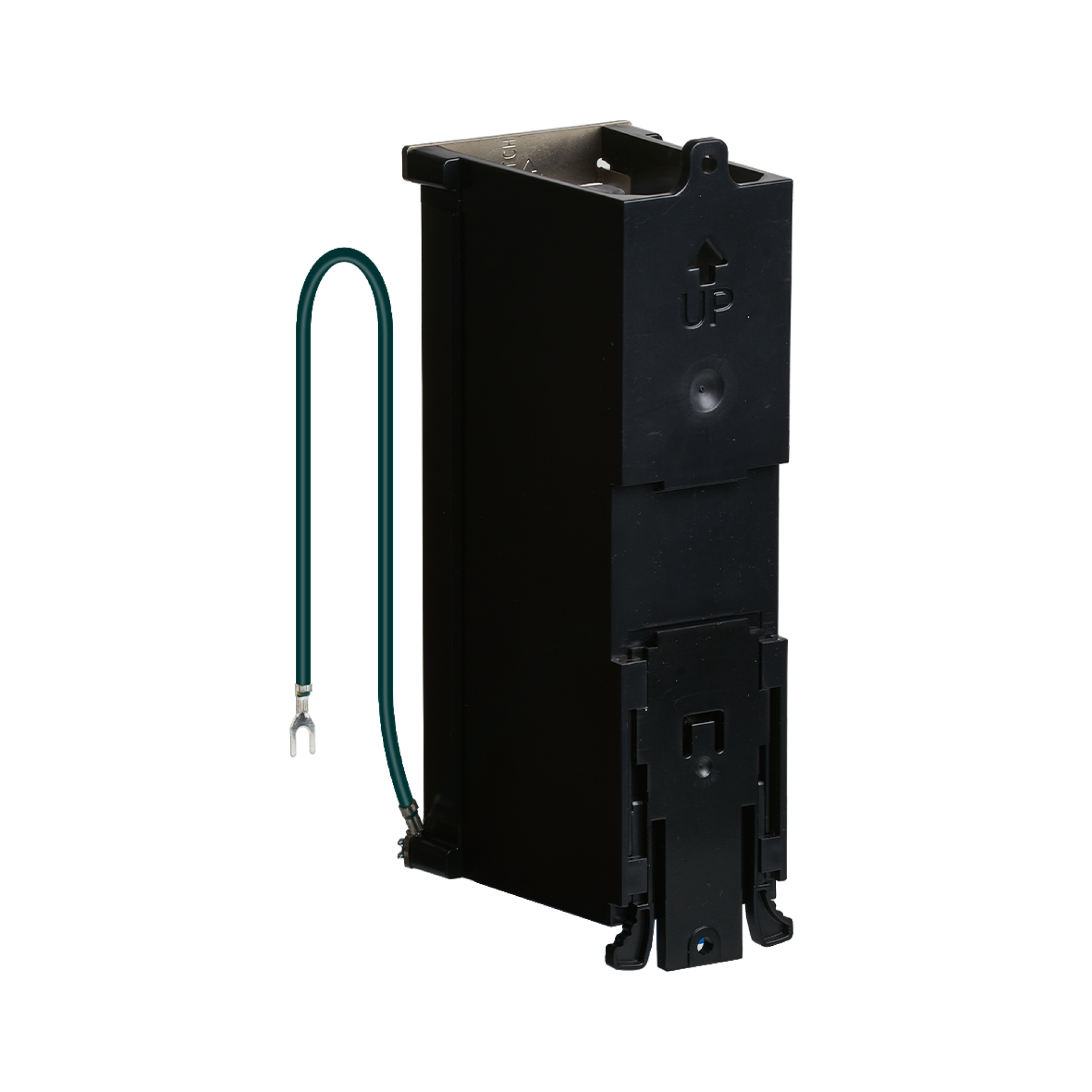

Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
Item number:
ET-25186.2
Product information for Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
The distribution box is suitable for mounting on a TH35 DIN rail for use in sub-distribution boards, switching/network cabinets or for wall mounting. Due to the modular, tiltable module outlets, the housing is flexible and facilitates cable routing as required for the specific application. In addition, the enclosure has a grounding connection that shielded keystones can thus be connected.
Specifications:
- For DIN rail mounting on a 35mm DIN rail (TH35).
- Material: plastic and metal
- Color: black

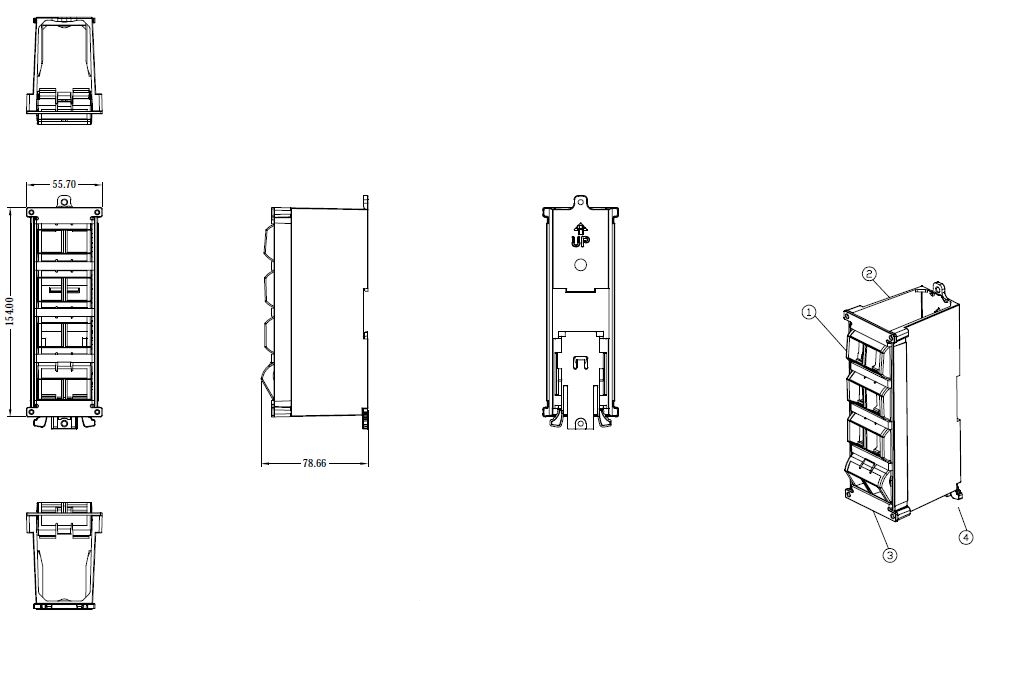

- Dimensions: 55.70 x 154.00 x 78.66 mm
- Suitable for mounting up to 8 Keystone modules
- Output: Angled and straight
Included: 1x 8-port housing, 1x ground wire
Specifications:
- For DIN rail mounting on a 35mm DIN rail (TH35).
- Material: plastic and metal
- Color: black
- Dimensions: 55.70 x 154.00 x 78.66 mm
- Suitable for mounting up to 8 Keystone modules
- Output: Angled and straight
Included: 1x 8-port housing, 1x ground wire
Technical properties
| Abmessungen (WxHxD): | 55.70 x 154.00 x 78.66 mm |
|---|---|
| Colour: | black |
| Material: |
Metal Plastic |
| Stackable: | False |
| Suitable for: | 8 module (Keystone Format) |
| Type of DIN-rail adapter: | Straight |
| Type of fastening: | DIN rail (top hat rail) 35 mm |
| With earthing spring: | True |
| With labeling field: | False |
accessory
