10” wall housing

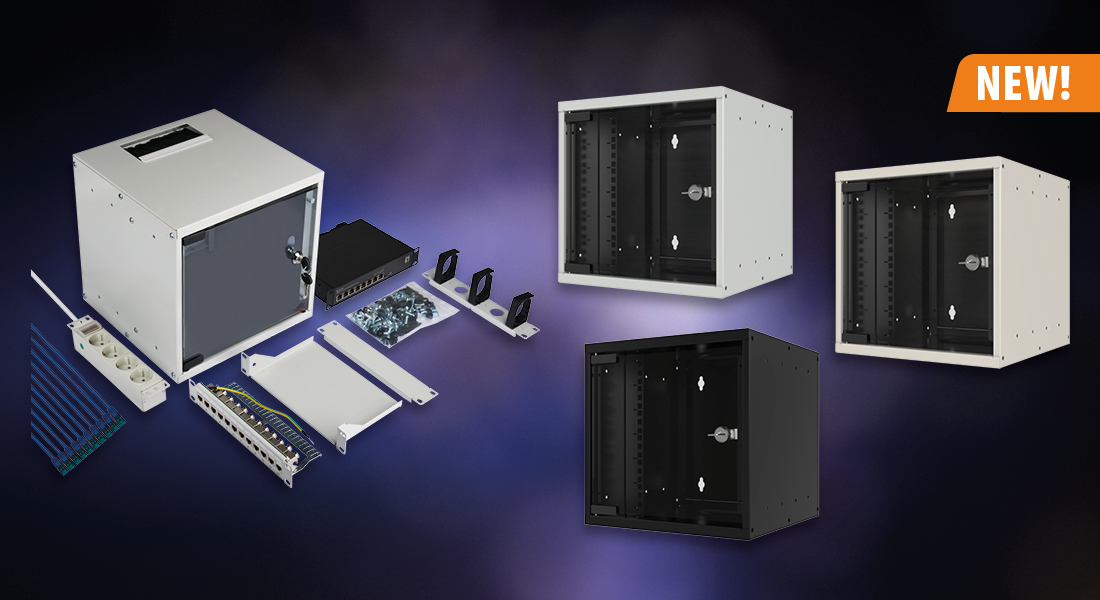

Individually or as a set variant
With our new 10' wall housings, you have the ideal network solution for smaller installations at an attractive price. The housings are equipped with a lockable full glass door, cable entries in the top and bottom and a replaceable brush strip / plastic cover. The wall-mounted housings are available individually or as an attractive set with matching accessories for self-assembly.
10" Wall housing single
- Depth 300 mm
- In 4, 6 or 9 U
- Colour: white, grey or black
- Robust construction
- Ideal for offices, workshops, practices or at home
10" Wall housings
10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9005
Steel sheet housing, self-ventilated, screwed, pre-assembledFront door lockable, with latch, door opening angle 120°Front door fully made of certified safety glass (4 mm)Door stop left-sidedRoof and bottom with cable entry 145 x 70 mmInside 2 x 10“ profile rails, depth adjustable in 60 mm rasterMax. mounting depth 230 mm (at delivery: ca. 170 mm)Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure whiteWidth 312 mm, height 300 mmMax. load 30 kg, protection degree IP20Delivery incl. 1 x brush, 1 x plastic cover, key
10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035
Steel sheet housing, self-ventilated, screwed, pre-assembledFront door lockable, with latch, door opening angle 120°Front door fully made of certified safety glass (4 mm)Door stop left-sidedRoof and bottom with cable entry 145 x 70 mmInside 2 x 10“ profile rails, depth adjustable in 60 mm rasterMax. mounting depth 230 mm (at delivery: ca. 170 mm)Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure whiteWidth 312 mm, height 300 mmMax. load 30 kg, protection degree IP20Delivery incl. 1 x brush, 1 x plastic cover, key
10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9010
Steel sheet housing, self-ventilated, screwed, pre-assembledFront door lockable, with latch, door opening angle 120°Front door fully made of certified safety glass (4 mm)Door stop left-sidedRoof and bottom with cable entry 145 x 70 mmInside 2 x 10“ profile rails, depth adjustable in 60 mm rasterMax. mounting depth 230 mm (at delivery: ca. 170 mm)Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure whiteWidth 312 mm, height 300 mmMax. load 30 kg, protection degree IP20Delivery incl. 1 x brush, 1 x plastic cover, key
10" Wall housing as a set
The set is supplied including accessories for self-assembly. This means that the installation can be customised and adapted to the conditions on site. All products in the set
are technically fine-tuned to work together optimally
and from a single source.
- Complete delivery incl. accessories
- Different U variants (4U, 6U, 9U)
- Complete set of equipment
- Included 8-port Gigabit switch (Level One GES-2208) is manageable + 5-year guarantee
- 12 high-quality Cat.6A keystone modules (Art. No. E-200100)
The sets contain:
- 1x Switch 8-Port Gigabit
- 1x distribution panel incl. 12 keystones
- 1x switchable socket strip
- 1x shelf
- 10x patch cable 0.5m blue
The sets contain:
- 1x Switch 8-Port Gigabit
- 1x distribution panel incl. 12 keystones
- 1x switchable socket strip
- 1x shelf
- 10x patch cable 0.5m blue
Set 10“ 9U wall housing grey RAL7035 including accessories for self-assembly
Complete 10“ network set for installation of your home or SOHO network, consisting of the following components:1 x 10“ 9U Wall housing, RAL7035 (Art.-No. WGB-1009GR.30) 1 x 10“ Shelf, RAL7035 (Art.-No. 691820GR.1)1 x 10“ Cable routing panel, RAL7035 (Art.-No. 691820GR.2)4 x 10“ Dummy plate, RAL7035 (Art.-No. 691820GR.3)1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)1 x 10“ Level-One Managed Gigabit-Switch, 8-Port RJ45 (Art.-No. GES-2208)1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)2 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
Set 10“ 6U wall housing grey RAL7035 including accessories for self-assembly
Complete 10“ network set for installation of your home or SOHO network, consisting of the following components:1 x 10“ 6U Wall housing, RAL7035 (Art.-No. WGB-1006GR.30) 1 x 10“ Shelf, RAL7035 (Art.-No. 691820GR.1)2 x 10“ Dummy plate, RAL7035 (Art.-No. 691820GR.3) 1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)1 x 10“ Level-One Managed Gigabit-Switch, 8 Port RJ45 (Art.-No. GES-2208)1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)1 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Complete 10“ network set for individual self-assembly for your home or SOHO network, consisting of the following components:1 x 10“ 4U Wall housing, RAL7035 (Art.-No. WGB-1004GR.30)1 x 10“ Shelf, RAL7035 (Art.-Nr. 691820GR.1)1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)1 x 10“ Level-One Managed Gigabit-Switch, 8 Port RJ45 (Art.-No. GES-2208)1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)1 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
Matching
INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m
The INFRALAN® installation cable 99980.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Frame Set 2-port, for keystones, DIN49075, RAL9010
For holding all EFB RJ45 Keystone modulesFrame set in 1-port or 2-port40° slanted outletOuter ring 80x80mm and central plate 50x50mm according to DIN49075Compatibel to common switch programms with adapter plateSeparate earthing lead for 6.3mm fast-on connectionWith dust covers and labeling field 12x40mmScope of delivery: Keystone frame, outer ring, central plate
Frame Set 1-port, for keystones, DIN49075, RAL9010
For holding all EFB RJ45 Keystone modulesFrame set in 1-port or 2-port40° slanted outletOuter ring 80x80mm and central plate 50x50mm according to DIN49075Compatibel to common switch programms with adapter plateSeparate earthing lead for 6.3mm fast-on connectionWith dust covers and labeling field 12x40mmScope of delivery: Keystone frame, outer ring, central plate
