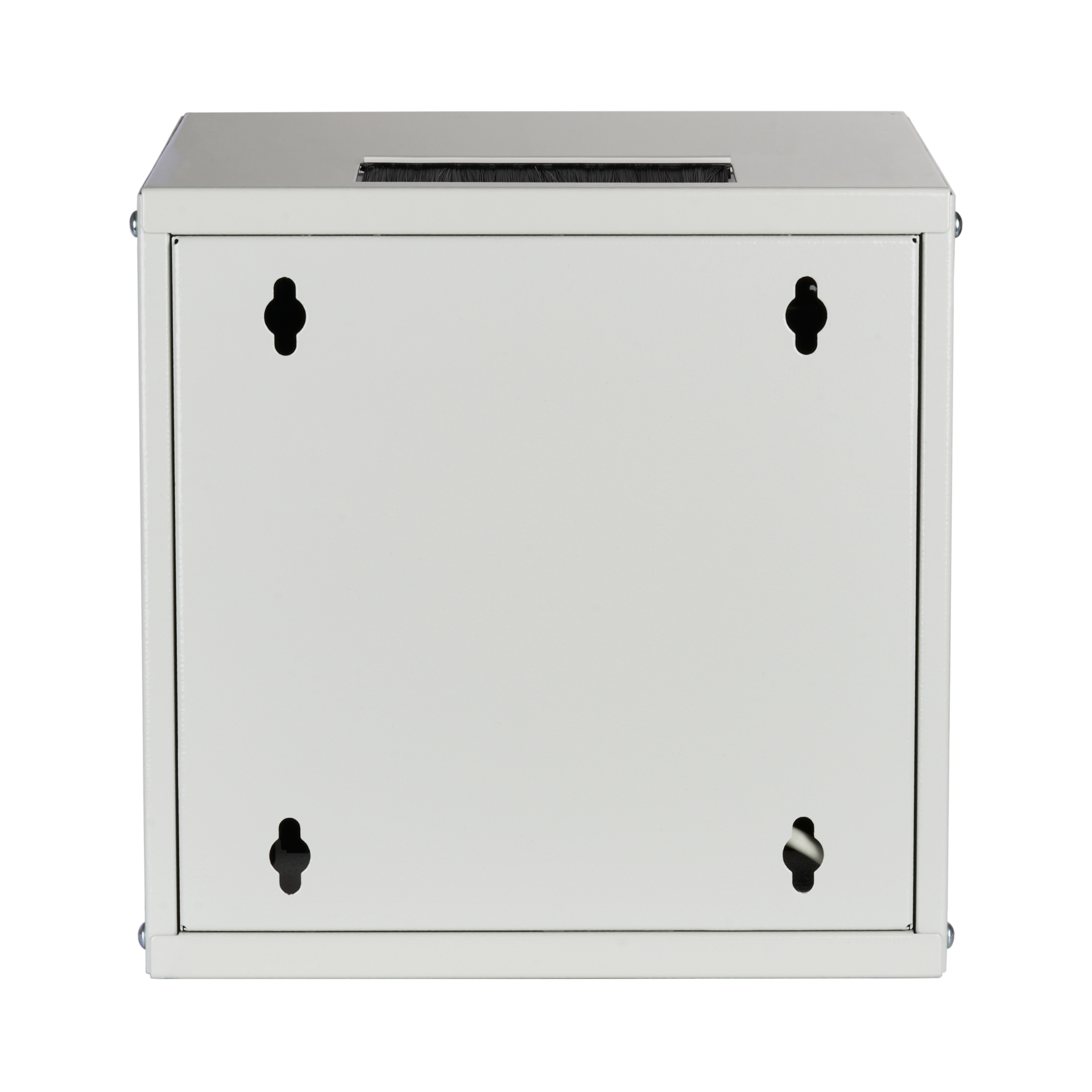

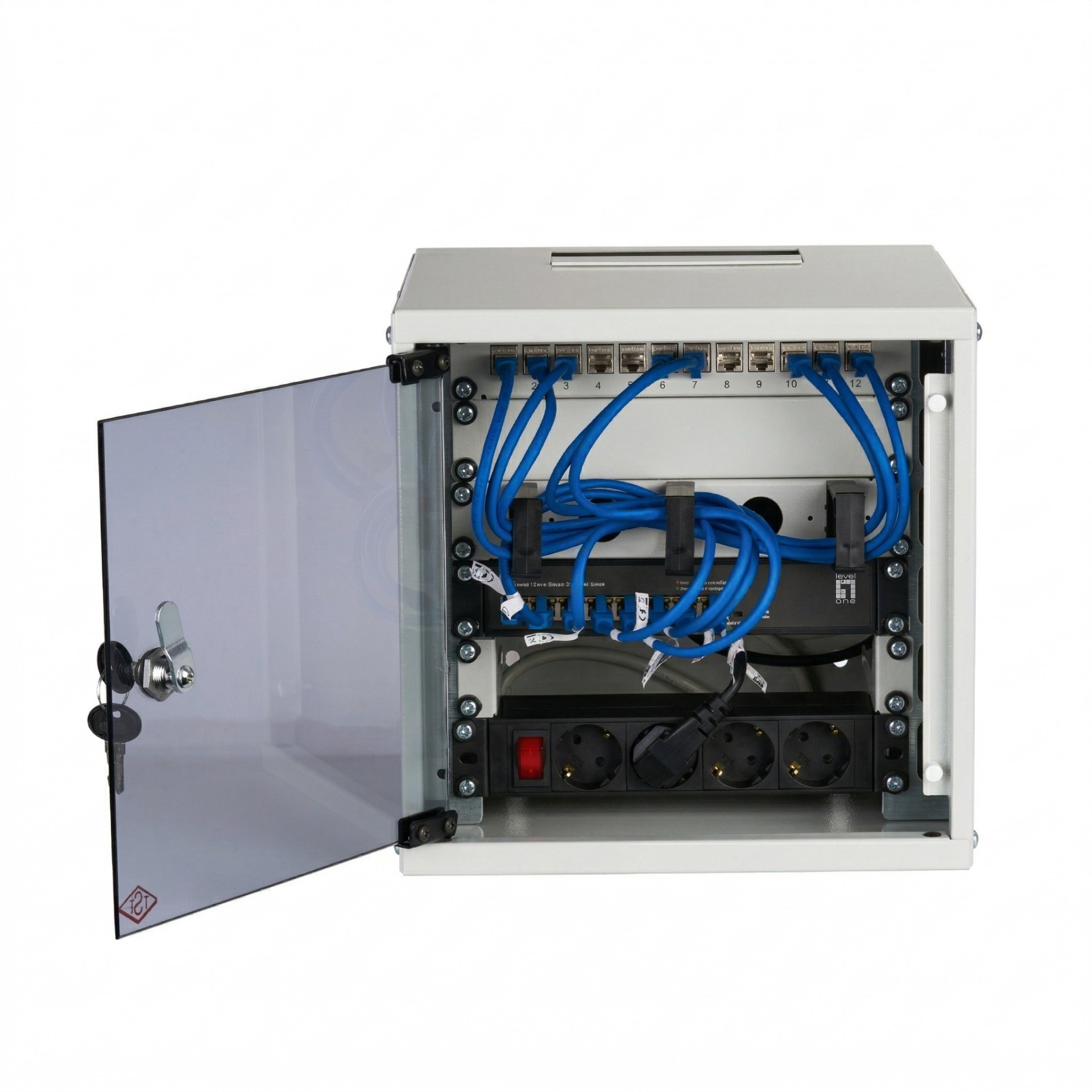

Set 10“ 6U Wall Cabinet grey RAL7035
Set 10“ 6U wall housing grey RAL7035 including accessories for self-assembly
Item number:
WGB-1006GR.30-SET1
EAN no.:
4049759322335
Product information for Set 10“ 6U wall housing grey RAL7035 including accessories for self-assembly

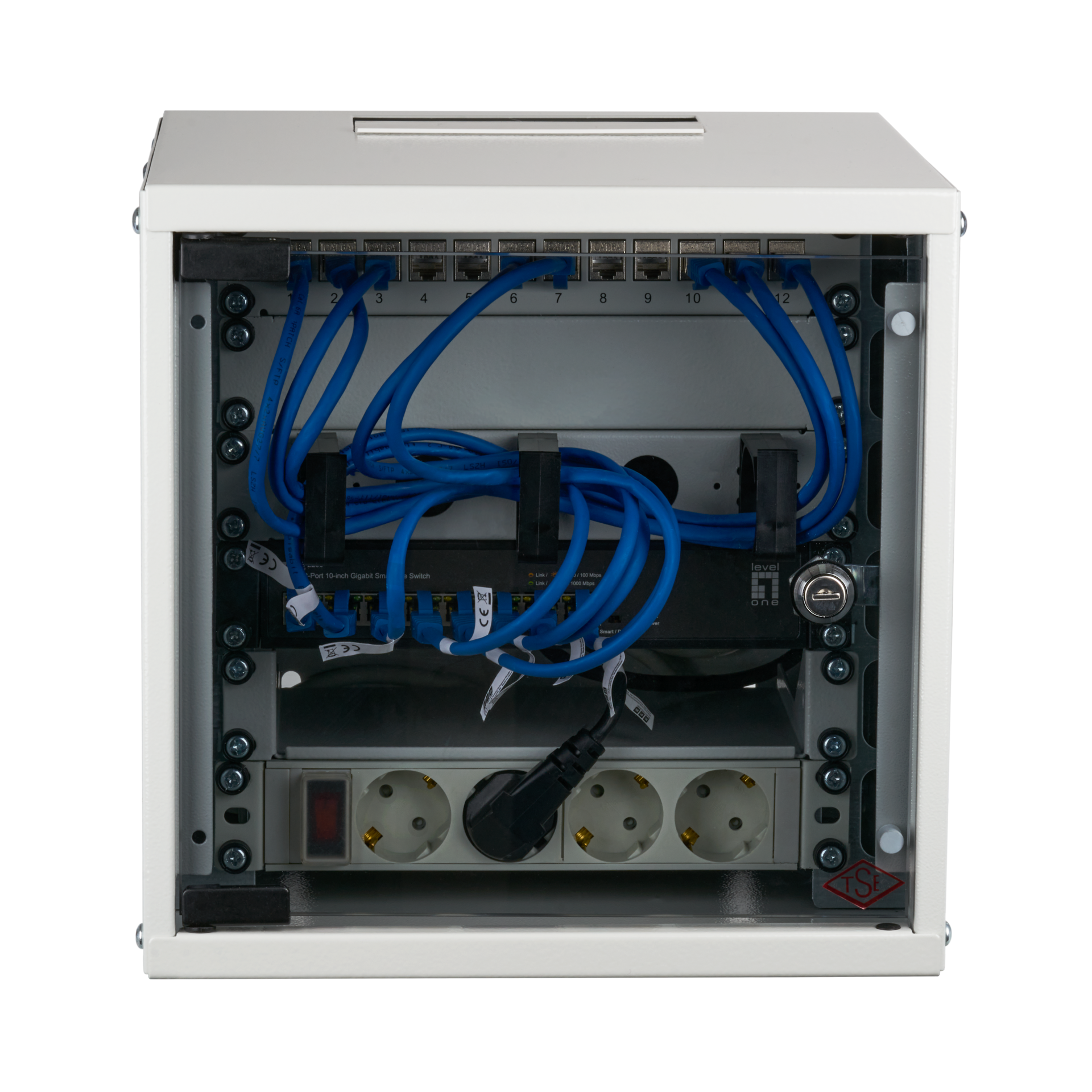

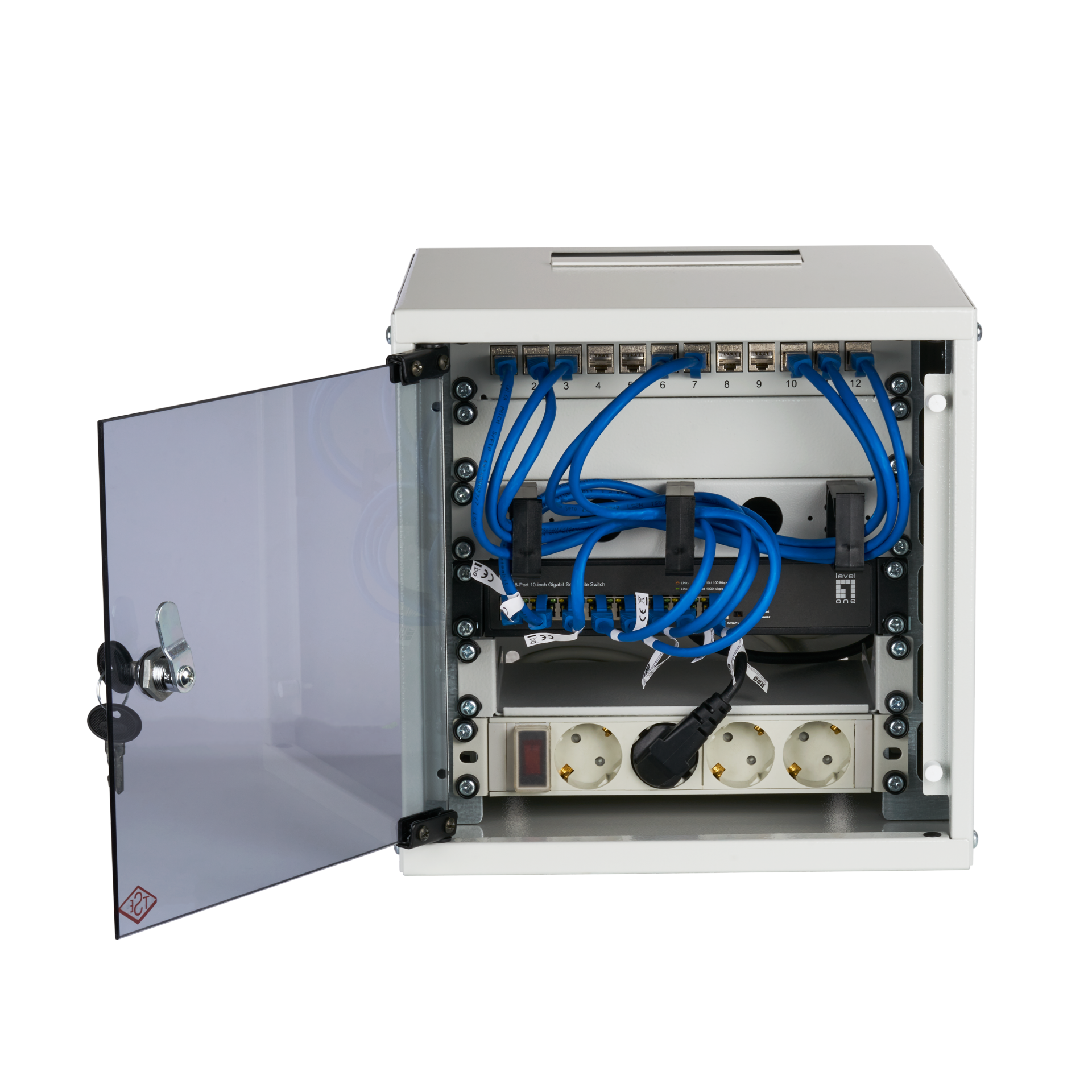

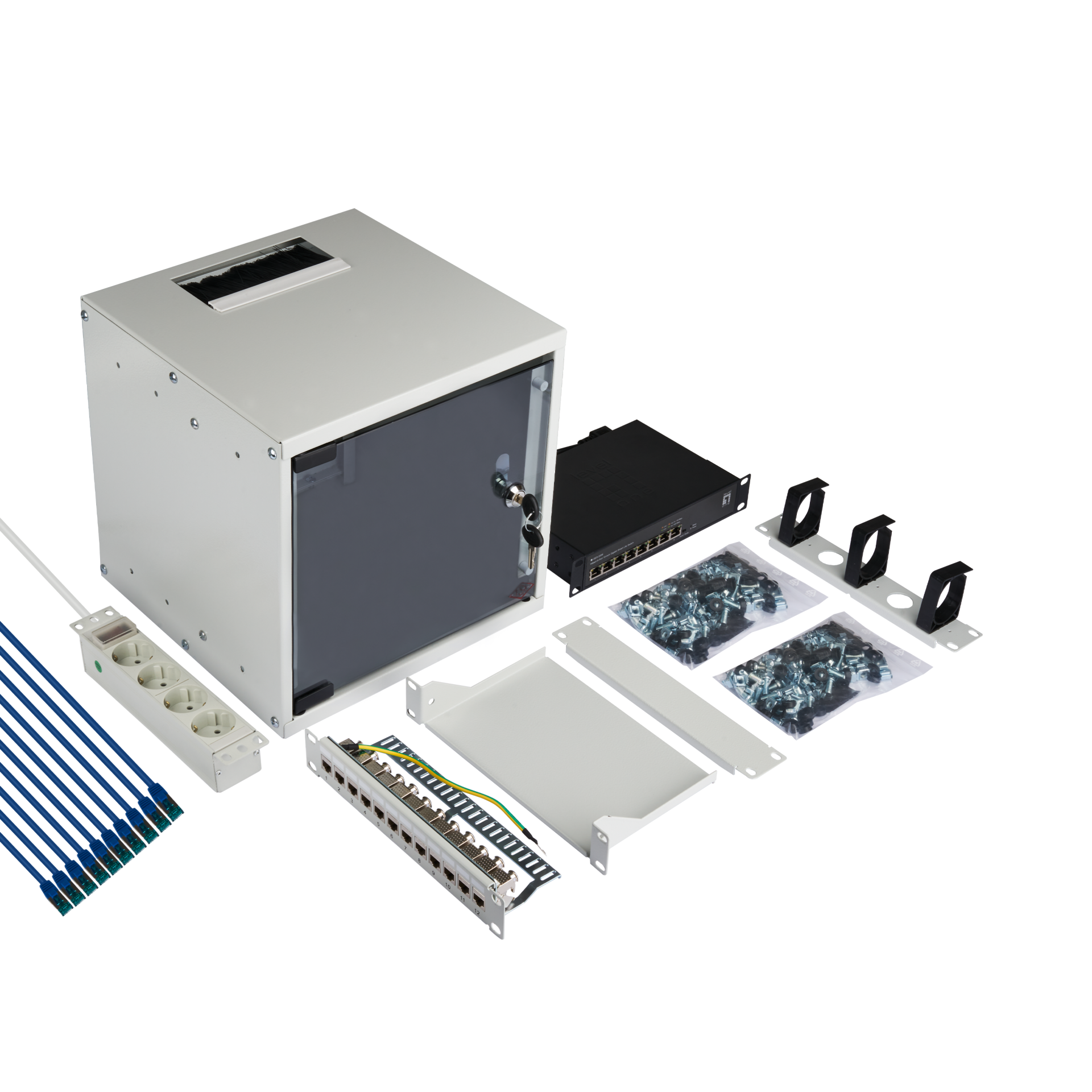

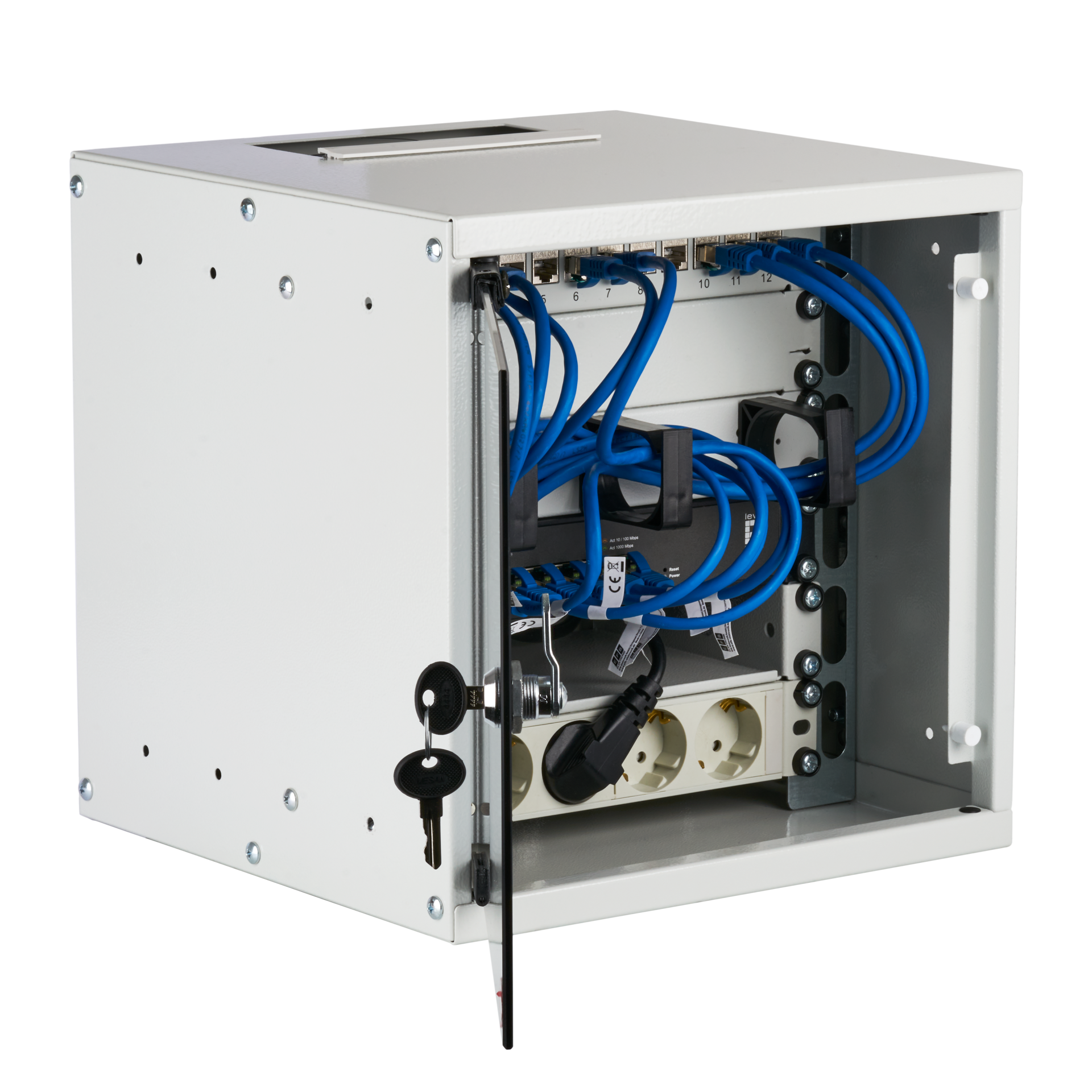

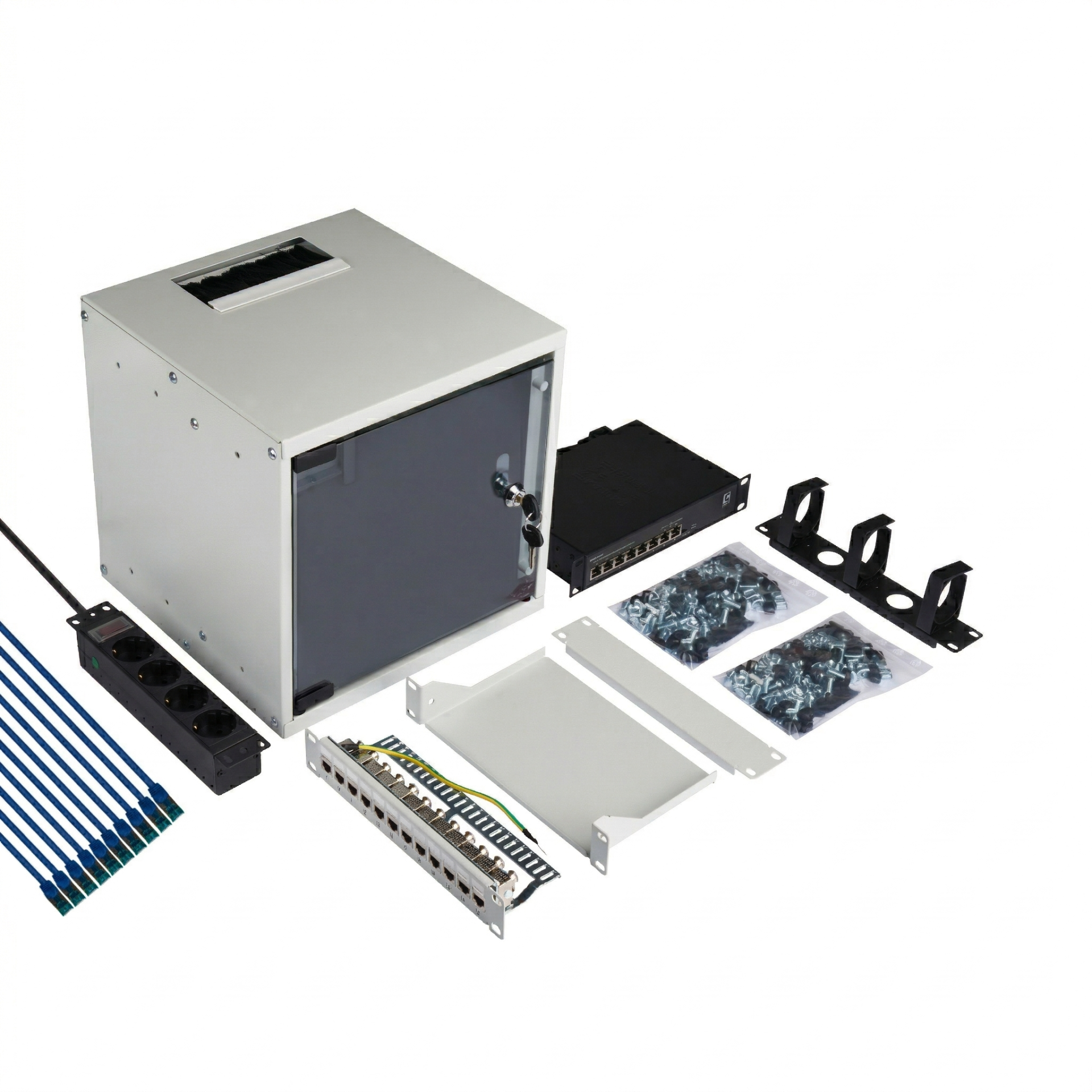

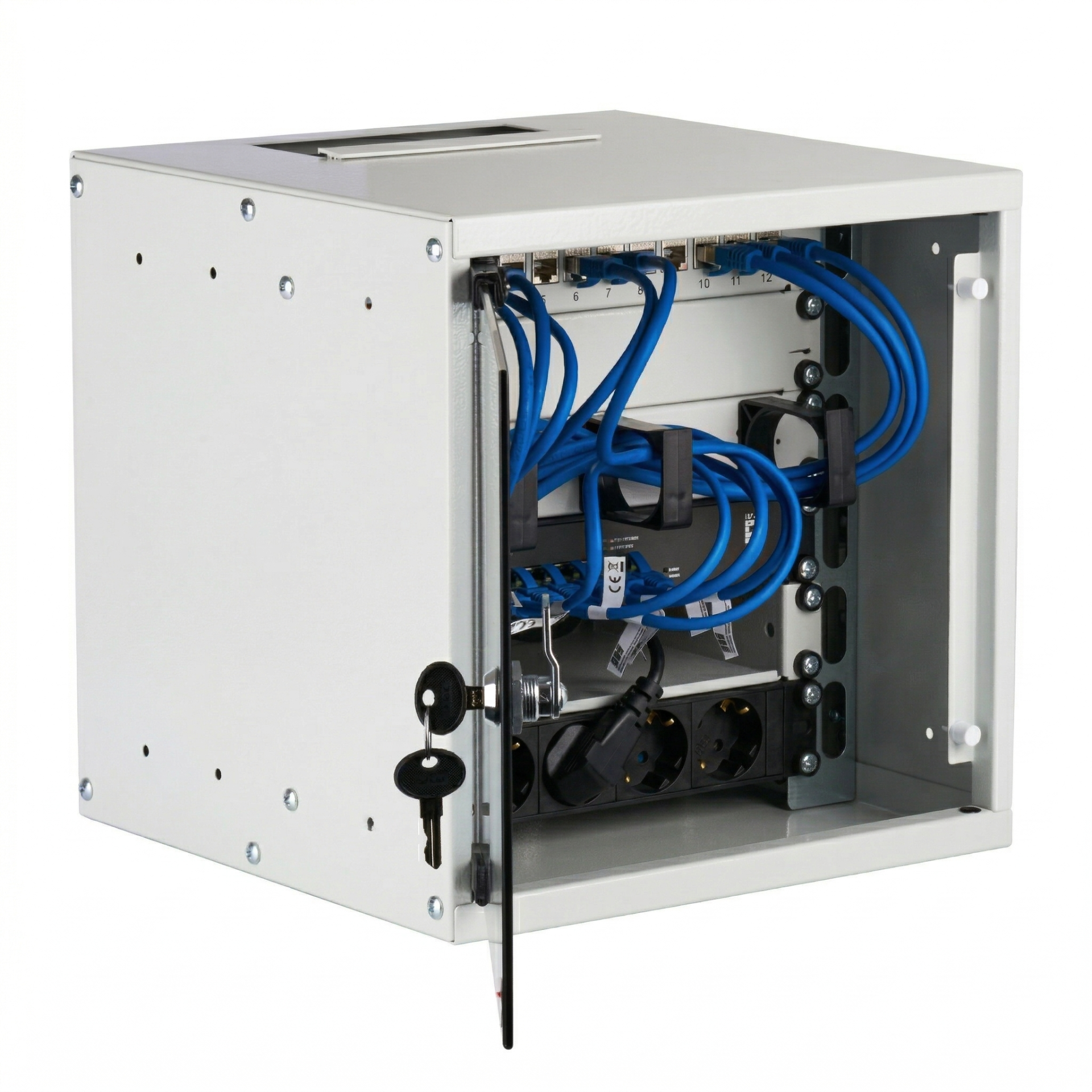

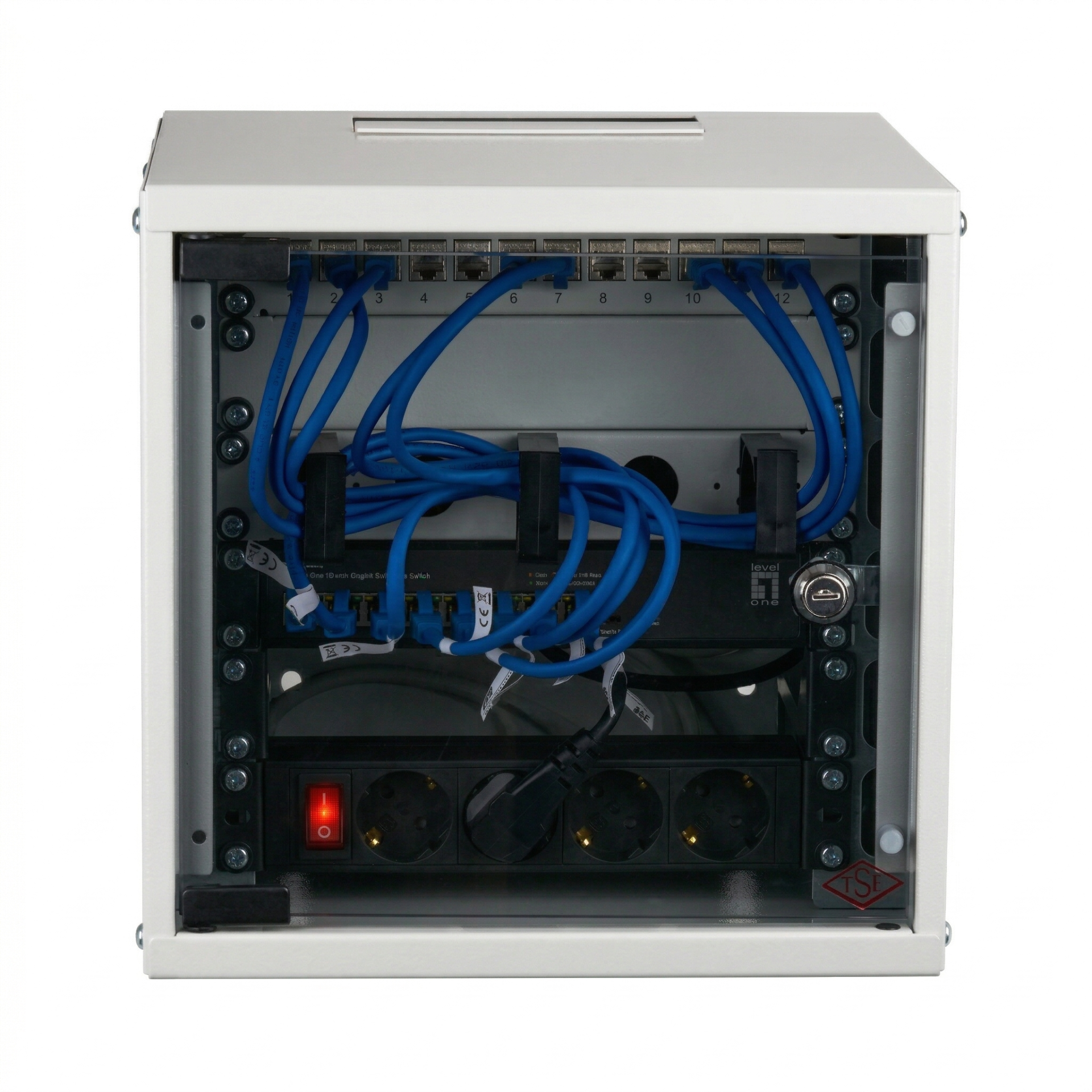

Complete 10“ network set for installation of your home or SOHO network, consisting of the following components:
1 x 10“ 6U Wall housing, RAL7035 (Art.-No. WGB-1006GR.30)
1 x 10“ Shelf, RAL7035 (Art.-No. 691820GR.1)
2 x 10“ Dummy plate, RAL7035 (Art.-No. 691820GR.3)
1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)
1 x 10“ Level-One Managed Gigabit-Switch, 8 Port RJ45 (Art.-No. GES-2208)
1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)
12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)
10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)
1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)
1 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
1 x 10“ 6U Wall housing, RAL7035 (Art.-No. WGB-1006GR.30)
1 x 10“ Shelf, RAL7035 (Art.-No. 691820GR.1)
2 x 10“ Dummy plate, RAL7035 (Art.-No. 691820GR.3)
1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)
1 x 10“ Level-One Managed Gigabit-Switch, 8 Port RJ45 (Art.-No. GES-2208)
1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)
12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)
10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)
1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)
1 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
Technical properties
| Cabinet Series: | 10" Wall Housing BASIC, SET |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 254 mm (10 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of front door: | Full glass door 1-part |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
