RJ45 Keystone Slimline/ Shortbody Cat.6A
EFB-Elektronik
RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
Item number:
E-20094
EAN no.:
4049759296094
Product information for RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
The E-20094 Cat.6A Keystone module combines very high system reserves with a slimline/shortbody housing. The slimline/shortbody housing allows installation in UAE frames and, thanks to the short design, easier installation in underfloor systems and flat data sockets. The high quality standard of the Cat.6A Keystone module ensures very good transmission properties for 10 Gigabit applications, even over a long period of time. Tool-free assembly is very quick and easy; no special tools are required. With the Cat.6A Keystone Module you receive a fully shielded RJ45 module that guarantees long-term and reliable 10 GBit/s Ethernet services in your network installation.
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
- Extremely slim “Slimline” design enables installation in UAE carrier rings, design compatible
- Very short design of only 29, 2mm for easier installation in ducts and flat boxes
- Flexible installation with installation cables or patch cables possible thanks to compact cable pre-sorters for contacting IDC strips AWG27/7..AWG26/7 and AWG24/1..AWG22/1
- Pair management according to TIA/EIA 568 A/B color codes (color code printed on the cable pre-sorter)
- Suitable for all distribution panels, underfloor systems and support rings with Keystone Breakout
- Slidable shield contact adapts to a wide range of cable diameters (5 - 8,5mm)
Scope of delivery:
1 x RJ45 module
1 x cable pre-sorter for installation cable AWG24/ 1 - 22/1 (white)
1 x cable pre-sorter for patch cables AWG27/7..26/7 (gray)
1 x dust cap
1 x quick guide
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Technical properties
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Product information for RJ45 Keystone Slimline/Shortbody Cat.6A Component certified silver
The E-20094 Cat.6A Keystone module combines very high system reserves with a slimline/shortbody housing. The slimline/shortbody housing allows installation in UAE frames and, thanks to the short design, easier installation in underfloor systems and flat data sockets. The high quality standard of the Cat.6A Keystone module ensures very good transmission properties for 10 Gigabit applications, even over a long period of time. Tool-free assembly is very quick and easy; no special tools are required. With the Cat.6A Keystone Module you receive a fully shielded RJ45 module that guarantees long-term and reliable 10 GBit/s Ethernet services in your network installation.
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
Get helpful installation instructions in our short explanatory video on YouTube - watch now.
Features:
- Extremely slim “Slimline” design enables installation in UAE carrier rings, design compatible
- Very short design of only 29, 2mm for easier installation in ducts and flat boxes
- Flexible installation with installation cables or patch cables possible thanks to compact cable pre-sorters for contacting IDC strips AWG27/7..AWG26/7 and AWG24/1..AWG22/1
- Pair management according to TIA/EIA 568 A/B color codes (color code printed on the cable pre-sorter)
- Suitable for all distribution panels, underfloor systems and support rings with Keystone Breakout
- Slidable shield contact adapts to a wide range of cable diameters (5 - 8,5mm)
Scope of delivery:
1 x RJ45 module
1 x cable pre-sorter for installation cable AWG24/ 1 - 22/1 (white)
1 x cable pre-sorter for patch cables AWG27/7..26/7 (gray)
1 x dust cap
1 x quick guide
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 27 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Separate earthing flag: | True |
| Shield contact and strain relief separate: | True |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Skip product gallery
main product
Item no. ET-25186.2
Keystone distributor housing 8-Port for DIN rail and wall mounting, plastic
Assembly:
Unloaded
Number of ports:
8
max. assembly:
8
Item no. ET-25186.V3
Keystone holder 1-Port, for DIN Rail in subdistribution, plastic
Assembly:
Unloaded
Number of ports:
1
max. assembly:
1
Skip product gallery
accessory
%
Item no. 37586.1SW
Distribution panel 19" 0.5U 24-port, metal, black RAL9005
Color:
black
Number of connector holes:
24
Suitable for adapter:
Keystone
Item no. ET-25085V3
Frame Set 2-port, for keystones, DIN49075, RAL9010
Color:
white
Depth of device:
24.4 mm
Height of device:
80 mm
RAL-number (akin):
9010
Item no. ET-25090
Frame Set 2-Port, for slimline keystone module, design capable UAE
Color:
white
Depth of device:
22.64 mm
Height of device:
80 mm
RAL-number (akin):
9010
Item no. ET-25087V3
Frame Set 1-port, for keystones, DIN49075, RAL9010
Color:
white
Depth of device:
24.4 mm
Height of device:
80 mm
RAL-number (akin):
9010
Item no. ET-25111
Frame Set 2-Port, for Keystones, design capable TAE
Color:
Aluminium
Depth of device:
19.02 mm
Height of device:
38.5 mm
RAL-number (akin):
-
Item no. 37578.1V2
Distribution panel 19" 1U, 24-port, metal, grey RAL7035
Color:
grey
Number of connector holes:
24
Suitable for adapter:
Keystone
%
Item no. 37586.1
Distribution panel 19" 0.5U 24-port, metal, grey RAL7035
Color:
grey
Number of connector holes:
24
Suitable for adapter:
Keystone
Item no. ET-25091
2-Port Frame Set for Keystone, straight outlet, DIN49075, RAL9003 signal white
Color:
white
Depth of device:
18.81 mm
Height of device:
80 mm
RAL-number (akin):
9003
Item no. EHT-021
Network parallel pliers 14.2-28mm for assembling keystones+field connectors
Model:
Parallel pliers for RJ45 Keystone
Item no. ET-25111K
Keystone Frame Set 2-Port, for Keystones, design capable TAE
Color:
Aluminium
Depth of device:
16.8 mm
Height of device:
67.3 mm
RAL-number (akin):
-
Item no. ET-25092
Multifunctional frame set with 1- +2-port adapter Keystone Format(HDMI,USB,RJ45)
Anti-bacterial treatment:
False
Color:
white
Depth of device:
33.3 mm
Height of device:
79.8 mm
Item no. ET-25090K
UAE mounting frame for 2x Keystone Module, slimline, design capable
Color:
silber
Depth of device:
23.7 mm
Height of device:
70 mm
RAL-number (akin):
-
Skip product gallery
sold with
Item no. 99733.1-CPR
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m
Colour outer sheath:
black
Length:
1.0 m
Number of cores:
8
Type:
simplex
Item no. 99981.1-CPR
INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange
Colour outer sheath:
orange
Length:
1.0 m
Number of cores:
8
RAL colour:
RAL 2003
Item no. K5525FGR.1
RJ45 Patch Cord Cat.6A S/FTP TPE Cat.7 raw cable superflex grey 1m
Length:
1.0 m
Item no. 99980.1-CPR

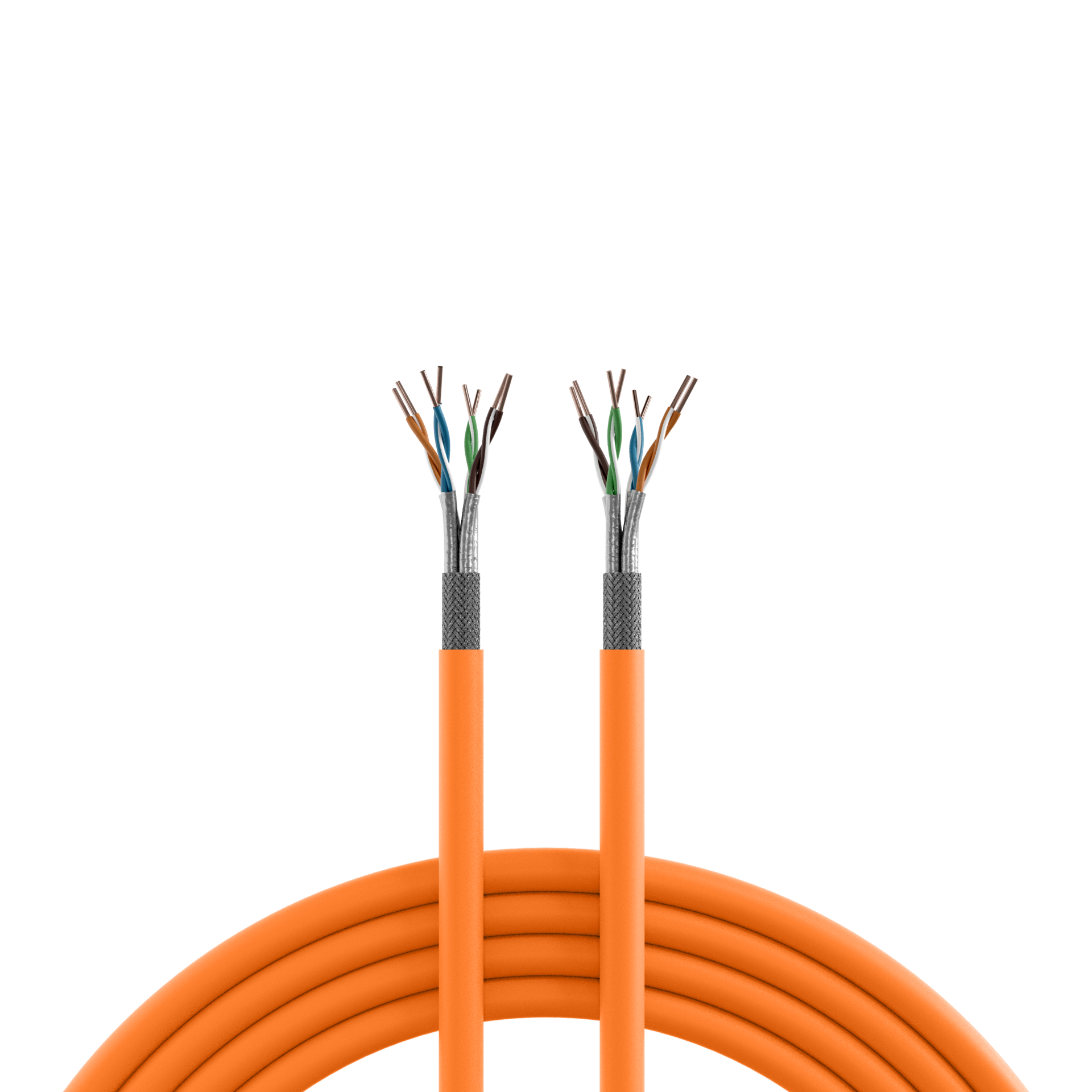

INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange
