Frame Set 2-Port, for slimline keystone module, design capable UAE
Content:
1 Stück

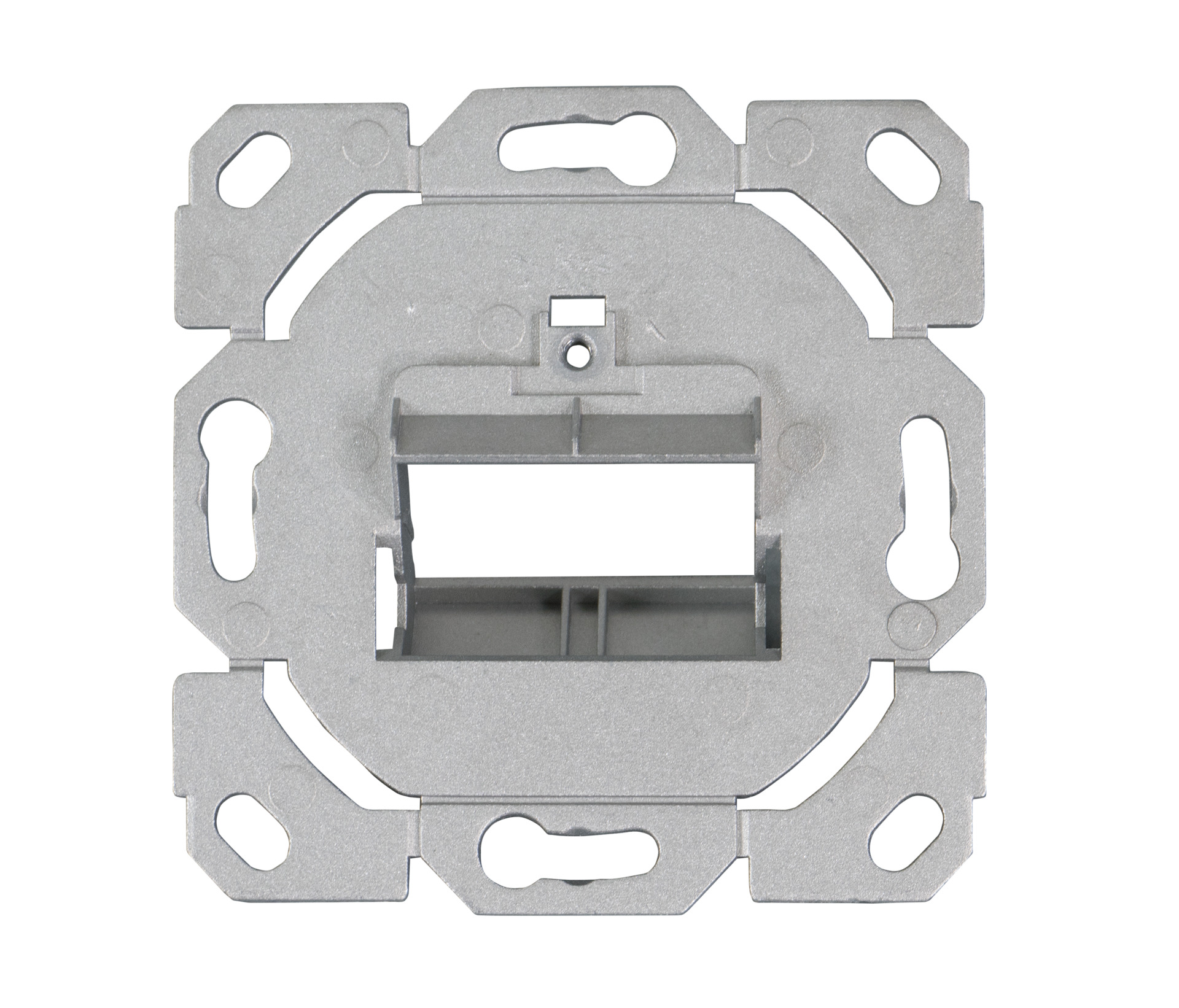

Frame Set 2-Port, for slimline keystone module, design capable UAE
Item number:
ET-25090
EAN no.:
4049759149536
Product information for Frame Set 2-Port, for slimline keystone module, design capable UAE
This designable frameset for 2 x Slimline Keystone from EFB-Elektronik in white is designed for flush-mounted installation and combines a compact design with clear integration into modern network environments. The version with labelling panel, hinged lid and dust cover supports a clean and protected installation.
• Flush-mounted mounting for 2 x Slimline Keystone – Enables space-saving and visually quiet integration into wall installations.
• With hinged lid and dust cover – Protects the inserts in everyday life and contributes to a tidy front.
• Design-ready, halogen-free and in white – blends discreetly into different interior concepts.

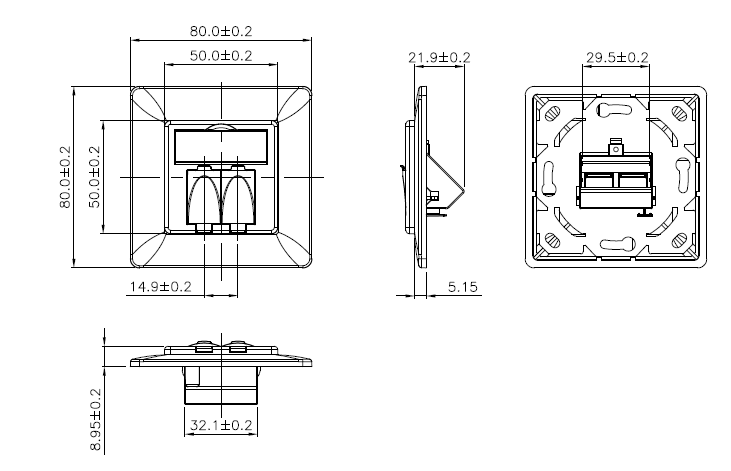

The UAE connection unit and the keystone receptacle support modular use in suitable installations. With a device width and height of 80 mm each and a device depth of 22.64 mm, the design remains compact. The fastening with screw ensures secure installation.
Technical details
• Brand: EFB-Elektronik
• Connection unit: UAE
• Holder for: Keystone
• Colour: white
• With labelling field: Yes
• Designable: Yes
• Halogen-free: Yes
• With hinged lid: Yes
• With dust cover: Yes
• Mounting type: Flush-mounted
• Mounting type: Fastening with screw
• Suitable for number of bushings/couplings: 2
• Device width: 80 mm
• Device height: 80 mm
• Device depth: 22.64 mm
• Flush-mounted mounting for 2 x Slimline Keystone – Enables space-saving and visually quiet integration into wall installations.
• With hinged lid and dust cover – Protects the inserts in everyday life and contributes to a tidy front.
• Design-ready, halogen-free and in white – blends discreetly into different interior concepts.
The UAE connection unit and the keystone receptacle support modular use in suitable installations. With a device width and height of 80 mm each and a device depth of 22.64 mm, the design remains compact. The fastening with screw ensures secure installation.
Technical details
• Brand: EFB-Elektronik
• Connection unit: UAE
• Holder for: Keystone
• Colour: white
• With labelling field: Yes
• Designable: Yes
• Halogen-free: Yes
• With hinged lid: Yes
• With dust cover: Yes
• Mounting type: Flush-mounted
• Mounting type: Fastening with screw
• Suitable for number of bushings/couplings: 2
• Device width: 80 mm
• Device height: 80 mm
• Device depth: 22.64 mm
| Assembly arrangement: | Frame set |
|---|---|
| Connection unit: | UAE |
| Design-compatible: | Yes |
| Halogen free: | True |
| Imprintable label: | with indication plate |
| Material: | Plastic |
| Mounting method: | Flush mounted (plaster) |
| Receptacle for: | Keystone |
| Support ring: | True |
| Temperature: | 0 - 60° °C |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
Technical properties
| Assembly arrangement: | Frame set |
|---|---|
| Connection unit: | UAE |
| Design-compatible: | Yes |
| Halogen free: | True |
| Imprintable label: | with indication plate |
| Material: | Plastic |
| Mounting method: | Flush mounted (plaster) |
| Receptacle for: | Keystone |
| Support ring: | True |
| Temperature: | 0 - 60° °C |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
Product information for Frame Set 2-Port, for slimline keystone module, design capable UAE
This designable frameset for 2 x Slimline Keystone from EFB-Elektronik in white is designed for flush-mounted installation and combines a compact design with clear integration into modern network environments. The version with labelling panel, hinged lid and dust cover supports a clean and protected installation.
• Flush-mounted mounting for 2 x Slimline Keystone – Enables space-saving and visually quiet integration into wall installations.
• With hinged lid and dust cover – Protects the inserts in everyday life and contributes to a tidy front.
• Design-ready, halogen-free and in white – blends discreetly into different interior concepts.
The UAE connection unit and the keystone receptacle support modular use in suitable installations. With a device width and height of 80 mm each and a device depth of 22.64 mm, the design remains compact. The fastening with screw ensures secure installation.
Technical details
• Brand: EFB-Elektronik
• Connection unit: UAE
• Holder for: Keystone
• Colour: white
• With labelling field: Yes
• Designable: Yes
• Halogen-free: Yes
• With hinged lid: Yes
• With dust cover: Yes
• Mounting type: Flush-mounted
• Mounting type: Fastening with screw
• Suitable for number of bushings/couplings: 2
• Device width: 80 mm
• Device height: 80 mm
• Device depth: 22.64 mm
• Flush-mounted mounting for 2 x Slimline Keystone – Enables space-saving and visually quiet integration into wall installations.
• With hinged lid and dust cover – Protects the inserts in everyday life and contributes to a tidy front.
• Design-ready, halogen-free and in white – blends discreetly into different interior concepts.
The UAE connection unit and the keystone receptacle support modular use in suitable installations. With a device width and height of 80 mm each and a device depth of 22.64 mm, the design remains compact. The fastening with screw ensures secure installation.
Technical details
• Brand: EFB-Elektronik
• Connection unit: UAE
• Holder for: Keystone
• Colour: white
• With labelling field: Yes
• Designable: Yes
• Halogen-free: Yes
• With hinged lid: Yes
• With dust cover: Yes
• Mounting type: Flush-mounted
• Mounting type: Fastening with screw
• Suitable for number of bushings/couplings: 2
• Device width: 80 mm
• Device height: 80 mm
• Device depth: 22.64 mm
| Assembly arrangement: | Frame set |
|---|---|
| Connection unit: | UAE |
| Design-compatible: | Yes |
| Halogen free: | True |
| Imprintable label: | with indication plate |
| Material: | Plastic |
| Mounting method: | Flush mounted (plaster) |
| Receptacle for: | Keystone |
| Support ring: | True |
| Temperature: | 0 - 60° °C |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
| Assembly arrangement: | Frame set |
|---|---|
| Connection unit: | UAE |
| Design-compatible: | Yes |
| Halogen free: | True |
| Imprintable label: | with indication plate |
| Material: | Plastic |
| Mounting method: | Flush mounted (plaster) |
| Receptacle for: | Keystone |
| Support ring: | True |
| Temperature: | 0 - 60° °C |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
