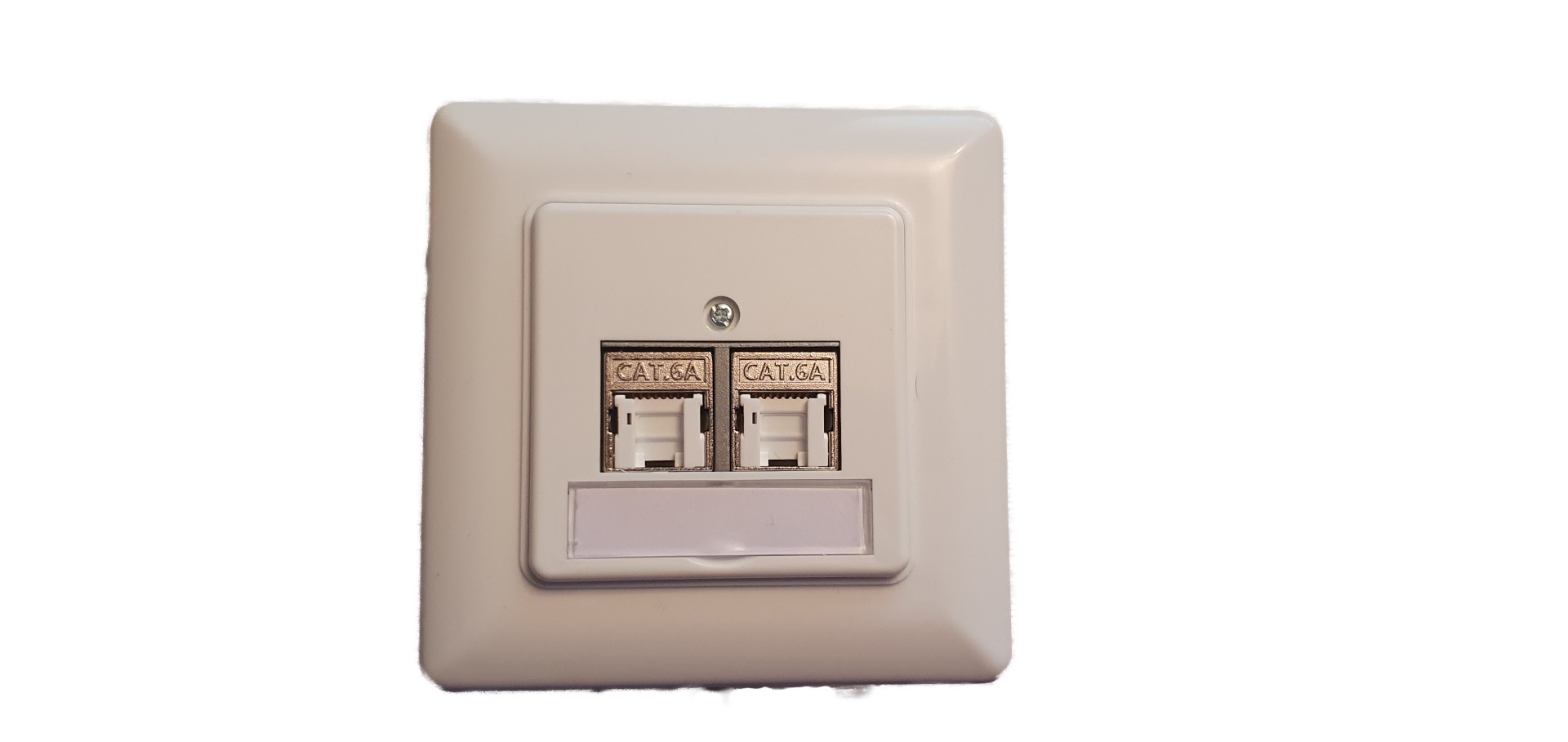

2-Port Frame Set for Keystone, straight outlet DIN49075, RAL9003 signal white
2-Port Frame Set for Keystone, straight outlet, DIN49075, RAL9003 signal white
Item number:
ET-25091
EAN no.:
4049759255022
Product information for 2-Port Frame Set for Keystone, straight outlet, DIN49075, RAL9003 signal white
To accommodate all EFB RJ45 Keystone modules(E-200100, E-20095, 37508.1 excluded)
Frame set in 2-port
straight outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
With integrated labelling field

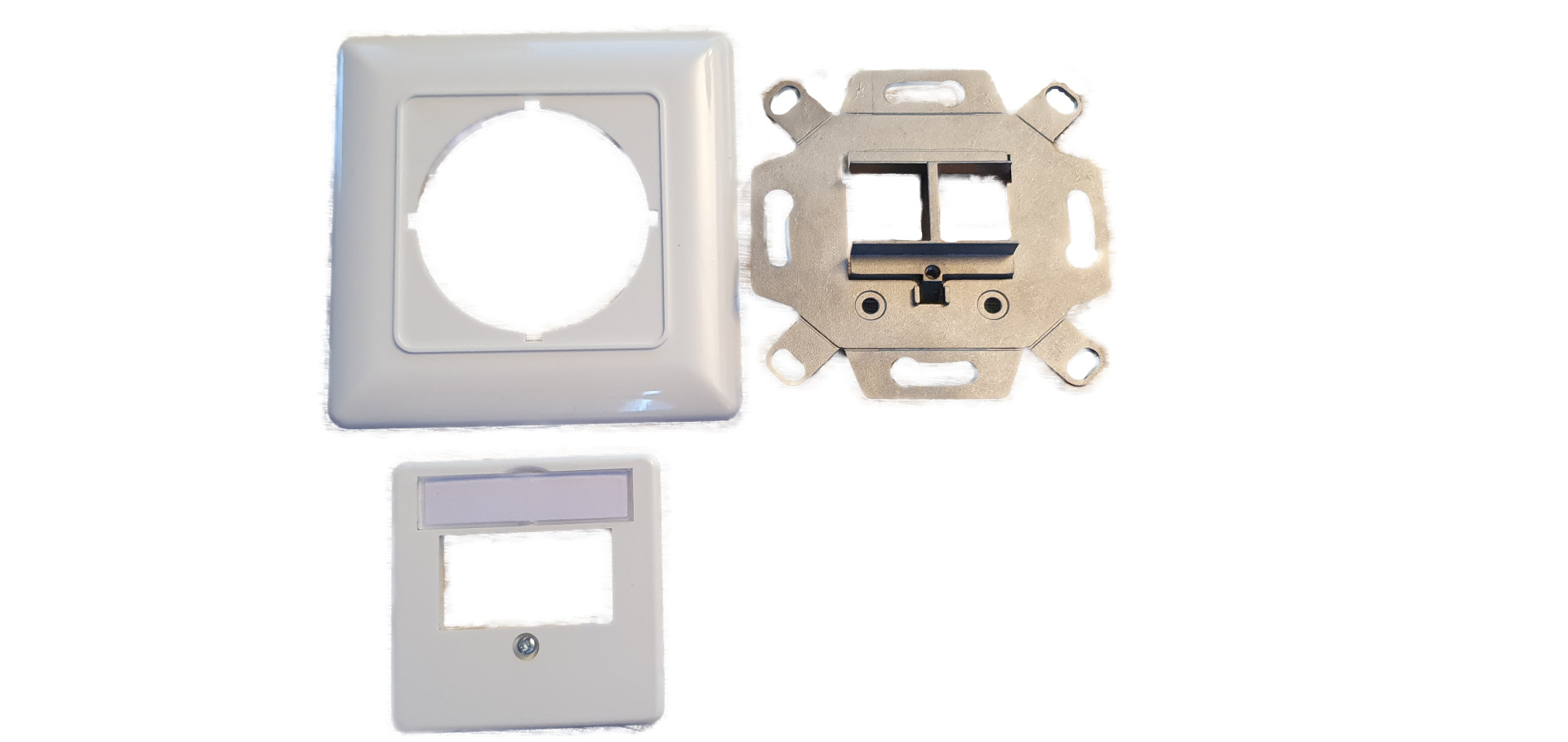

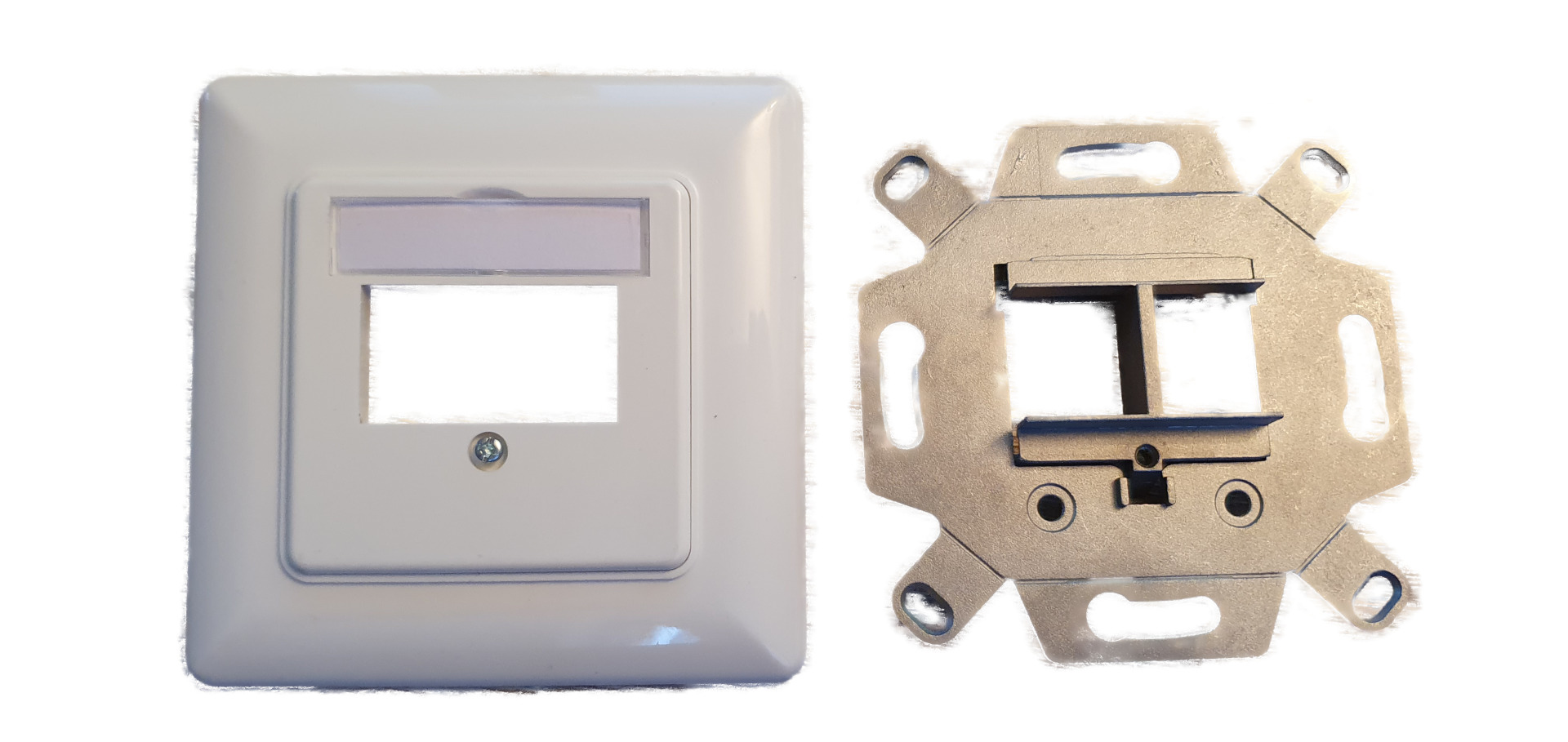

Scope of delivery:Support ring, outer ring, central plate
Frame set in 2-port
straight outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatible with any switch range with the adapter plate of the switch range manufacturer
With integrated labelling field
Scope of delivery:Support ring, outer ring, central plate
Technical properties
| Assembly arrangement: | Basic element with central cover plate |
|---|---|
| Halogen free: | No |
| Imprintable label: | with indication plate |
| Luster terminal: | False |
| Material: | Plastic |
| Material: | Metal |
| Material quality: | other |

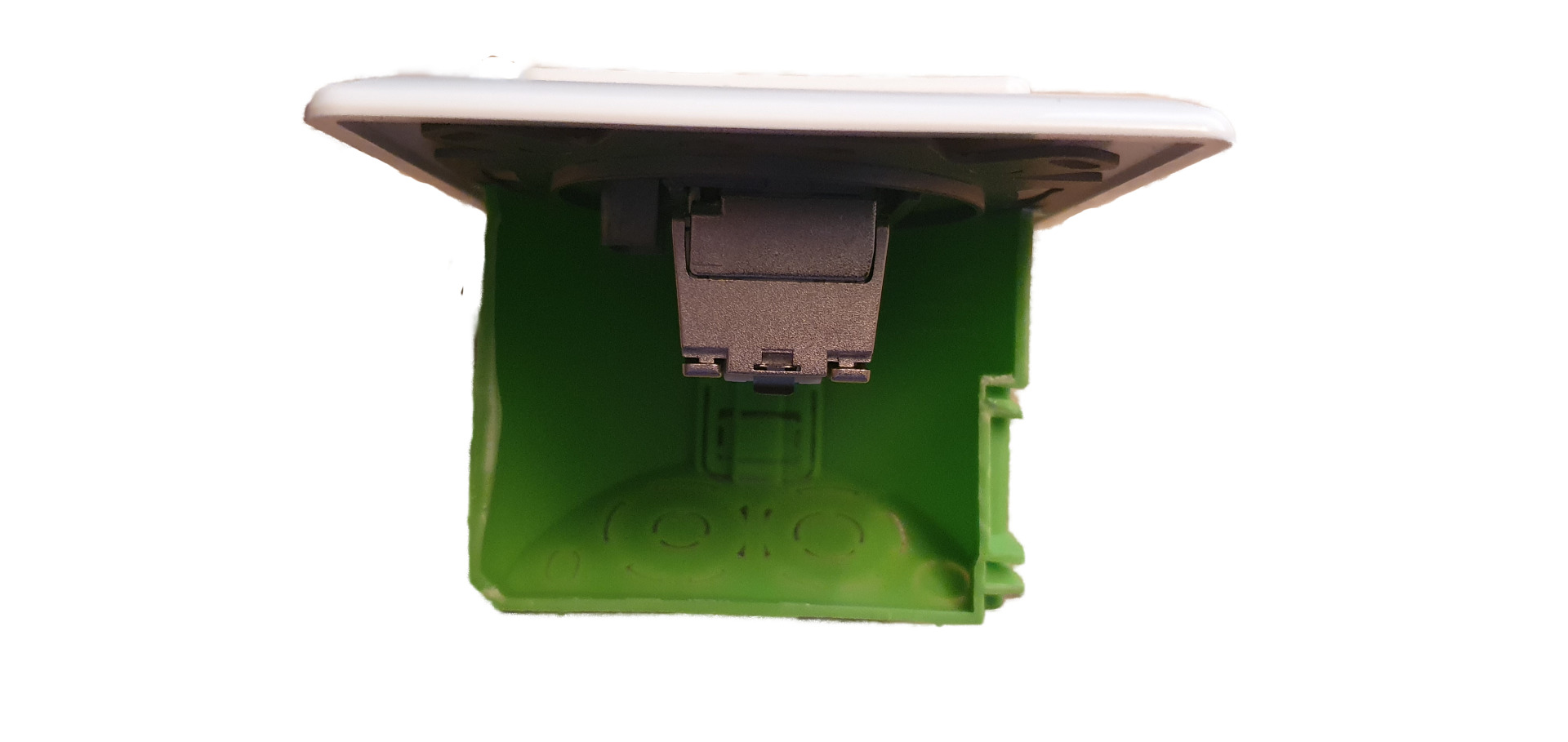

| Mounting method: | Flush mounted (plaster) |
| Number of modules (module system): | 2 |
| Suitable for degree of protection (IP): | - |
| Support ring: | True |
| Surface finishing: | matt |
| Surface treatment: | other |
| Transparent: | False |
| Type of fastening: | mounting with screw |
| Type of locking: | snap lock |
| With dust cover: | False |
| With hinged lid: | False |
| With imprint: | False |
| With strain relief: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
