RJ45 Keystone UTP, Cat.6, 250MHz, components certified

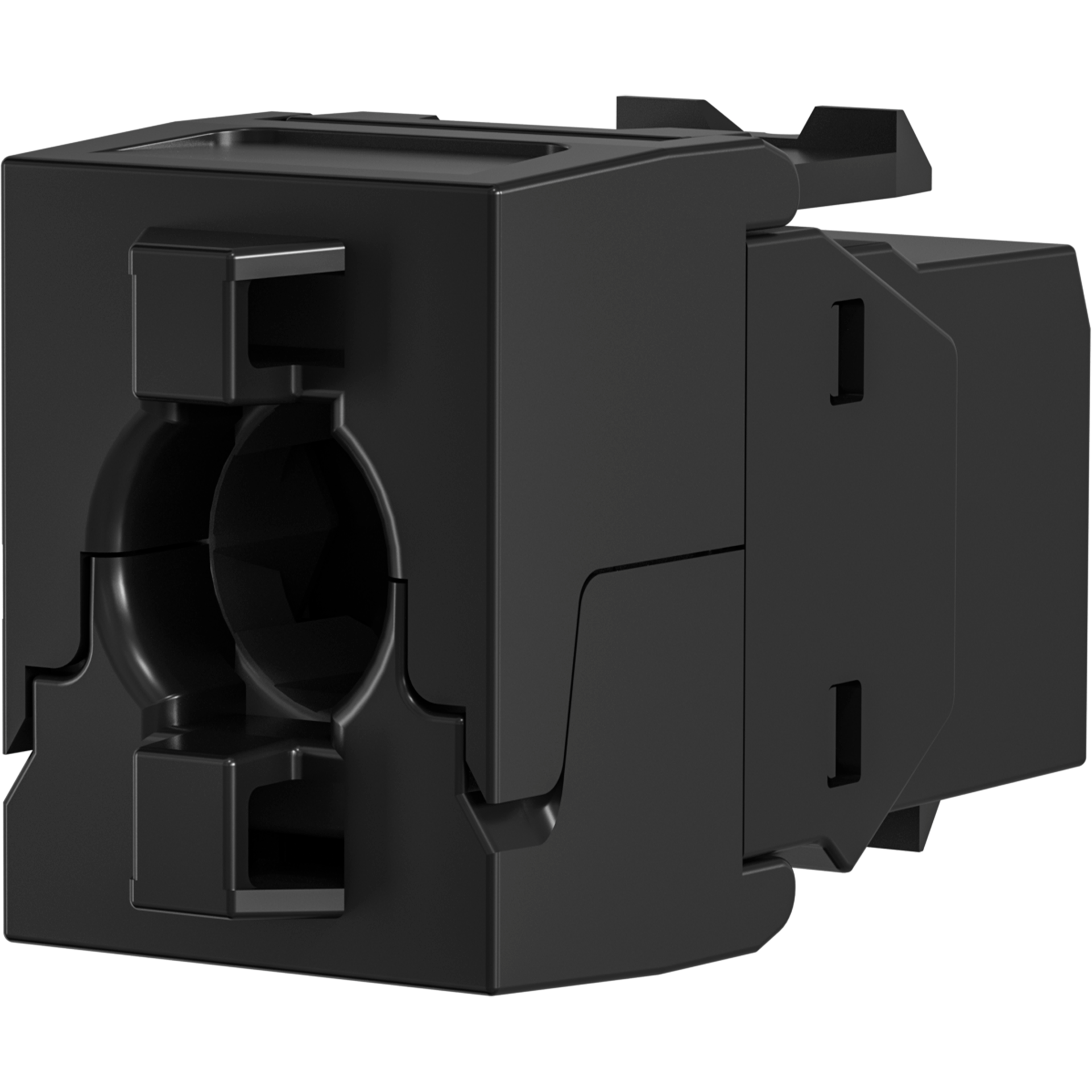

RJ45 Keystone UTP, Cat.6, component certified, black
Item number:
E-20081
EAN no.:
4049759083724
Product information for RJ45 Keystone UTP, Cat.6, component certified, black
Specifications:
Plastic housing PC+ABS

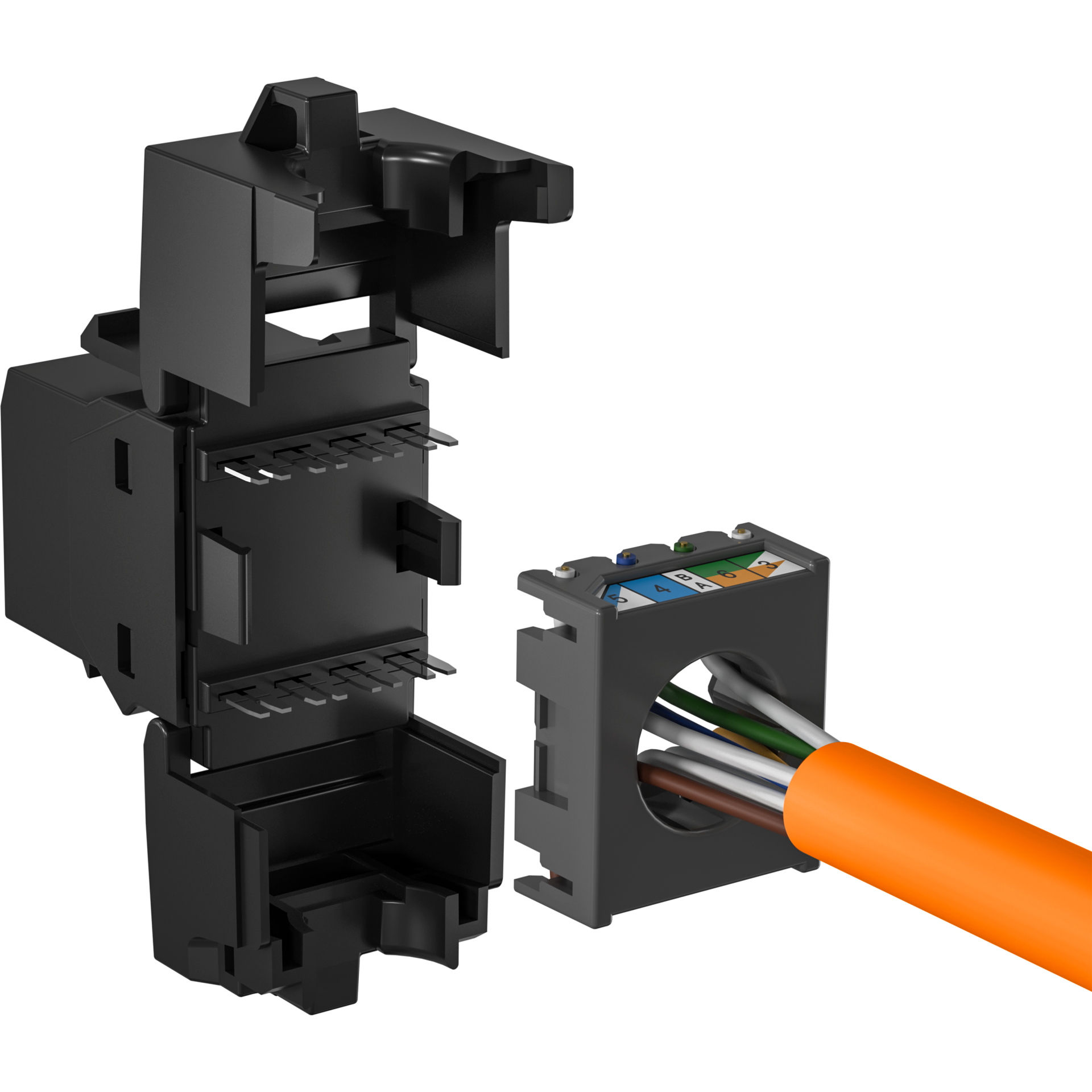

Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots

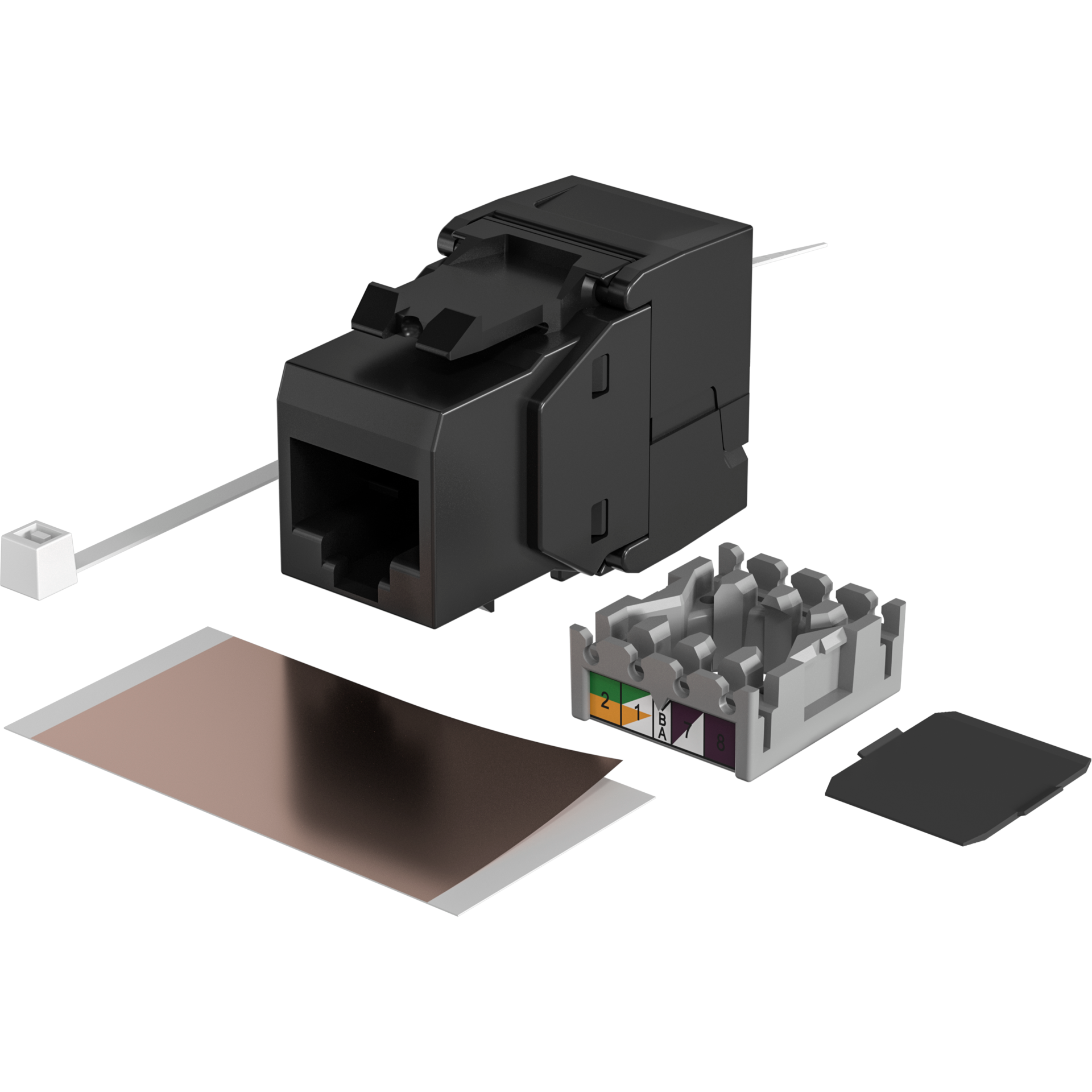

Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Plastic housing PC+ABS
Compact cable presorter for AWG 24/1 .. 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x hinged dust cover, 1 x cable tie, 1 x mounting instruction
Technical properties
| 4PPOE certified: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.5 mm |
| Casing material: | Plastic |
| Category: | 6 |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | < 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true |
| For UAE suitable: | True |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -40 – 66 °C |
| Screened: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
