RJ45 Keystone STP, Cat.6, 250MHz
RJ45 Keystone STP, Cat.6, 250 MHz
Item number:
E-20072
EAN no.:
4049759022266
Product information for RJ45 Keystone STP, Cat.6, 250 MHz
The RJ45 keystone module provides a combination of excellent transmission qualities and an easy tool-free assembly. The high quality of the keystone module ensures very good qualities for 5 Gigabit Ethernet applications. No special tools are needed for the assembly. The assembly is easy and handy to execute. With the RJ45 keystone module you receive a fully shielded module, which will provide good service for a long time in your network installation.
Specifications:
Compact cable presorter for AWG 24/1 .. AWG 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots
Scope of delivery:

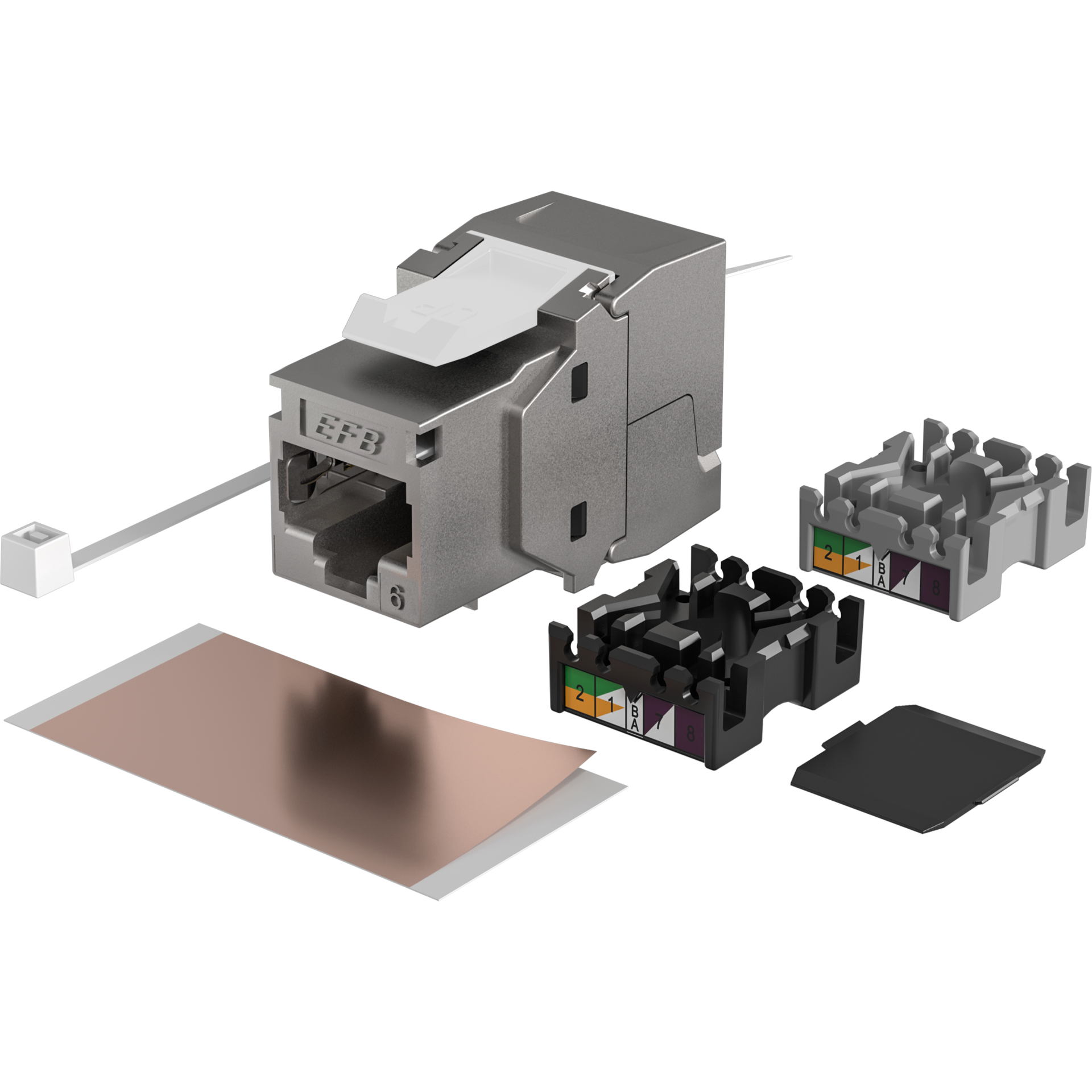

1 x RJ45 keystone, Cable coder, 1 x copper foil, 1 x cable tie, dust cover, mounting instruction
Specifications:
Compact cable presorter for AWG 24/1 .. AWG 22/1
Pair management according to TIA 568A /B colour codes
Appropriate for all distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, Cable coder, 1 x copper foil, 1 x cable tie, dust cover, mounting instruction
Technical properties
| 4PPOE certified: | True |
|---|---|
| AWG-range: | 24 – 22 |
| Category: | 6 |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current Rating: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | true |
| For UAE suitable: | False |
| Housing material: | Zinc die cast |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 |
| Max. cable diameter: | 8.0 mm |
| Model: | jack |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Temperature range: | -40 – 66 °C |
| Type of connector: | RJ45 8(8) |
| screened: | True |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
