INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Cca

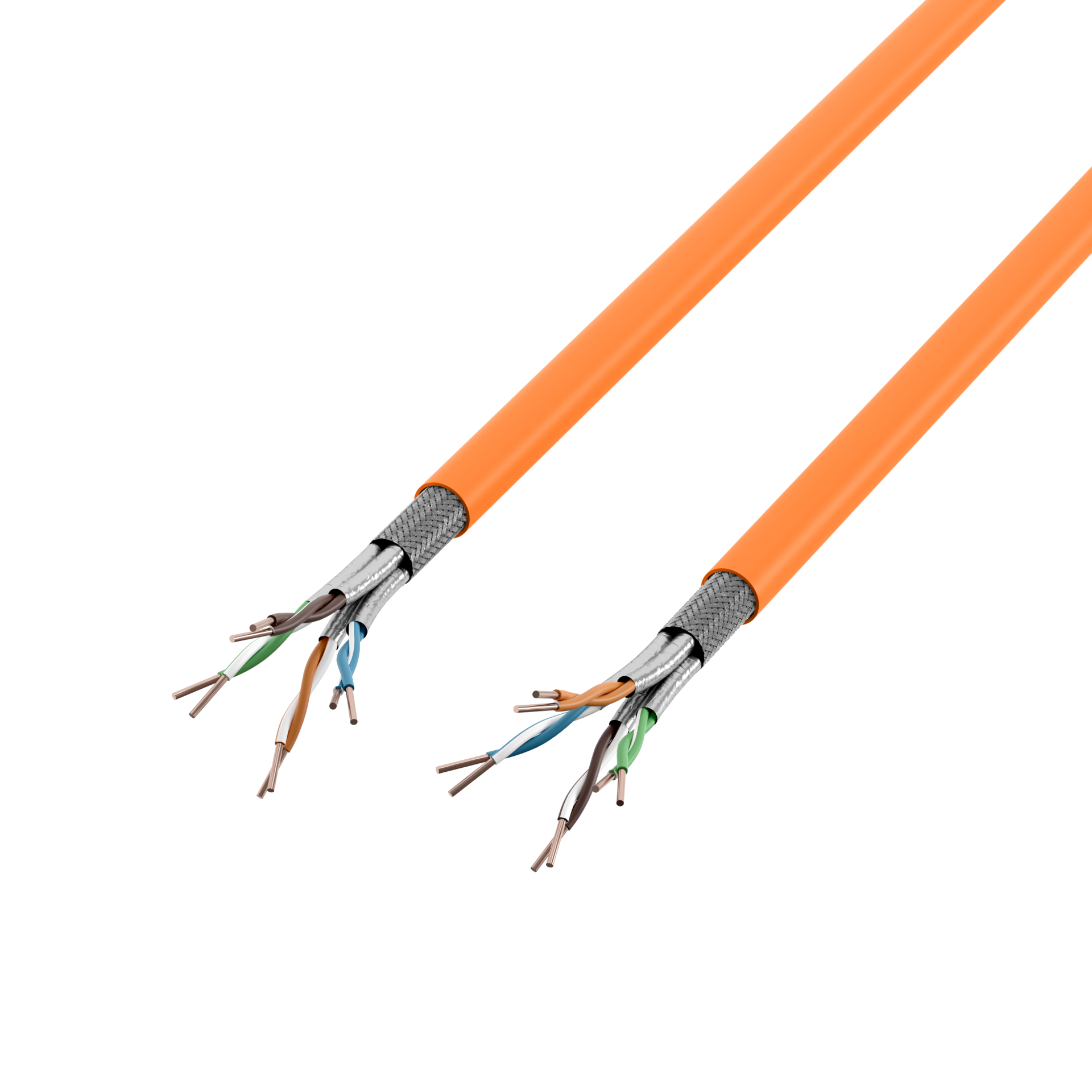

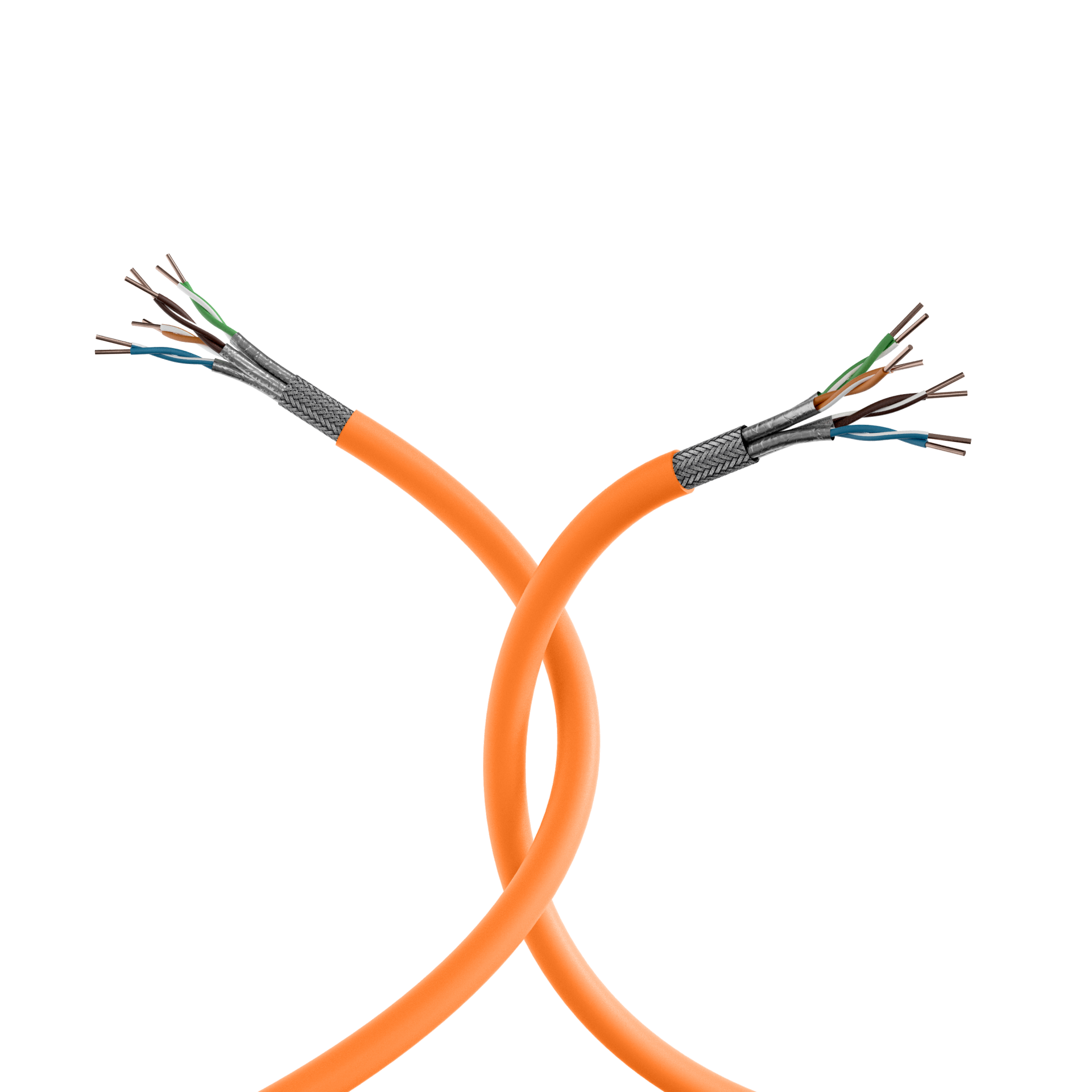

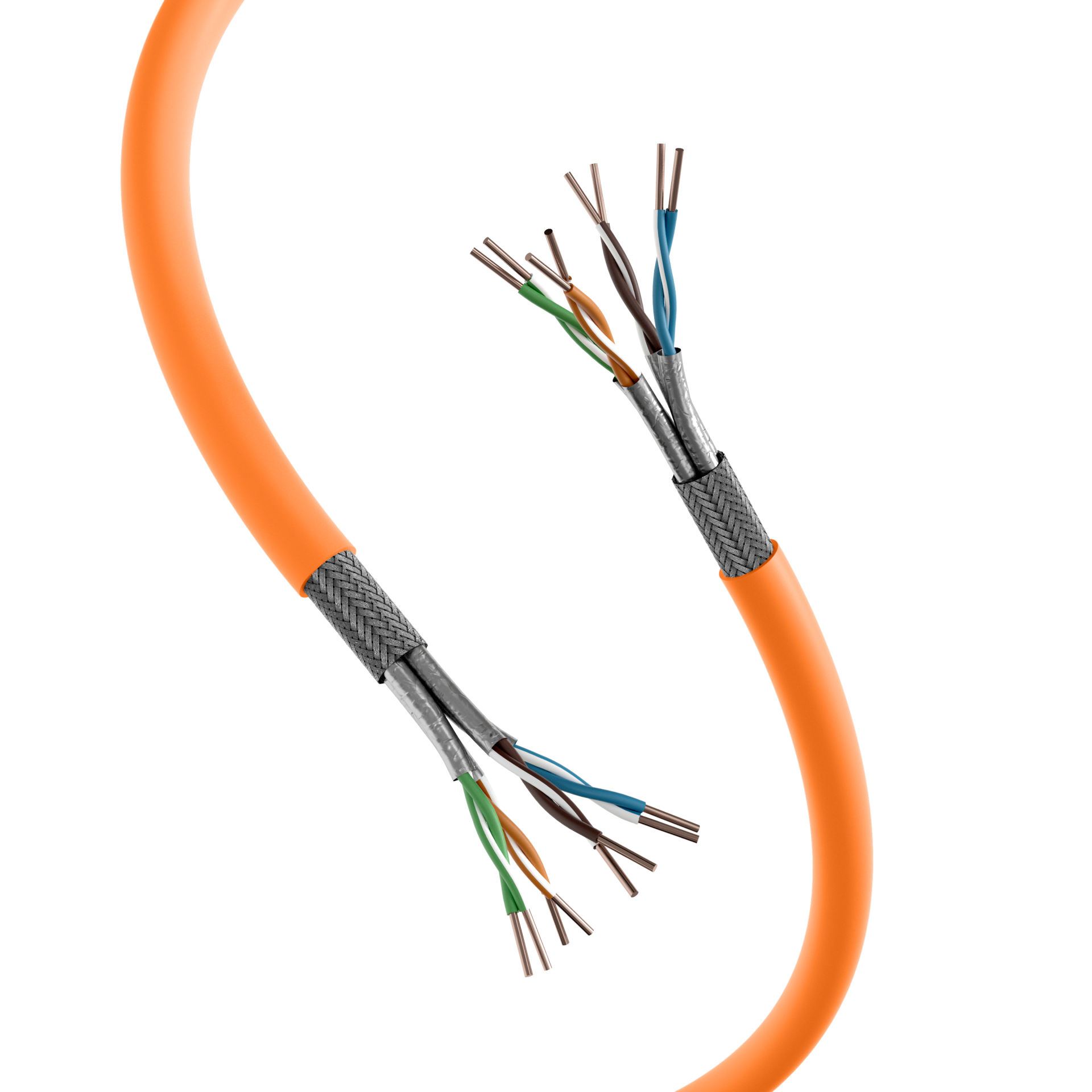

INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange
Item number:
99981.1-CPR
EAN no.:
4049759180850
Product information for INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange
The INFRALAN® installation cable 99981.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible. Additional this Cable is certified by GHMT PVP program in simplex version.
Technical properties
| (Halogenfree): | nach EN 50267-2-2 |
|---|---|
| AWG-size: | 23/1 |
| Bending radius (dynamic): | ≥ 60 mm |
| Bending radius (static): | ≥ 30 mm |
| Cable: | IEC 61156-5 |
| Cable: | EN 50288-4-1 |
| Cable silicone free: | Ja |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Capacity to earth: | ≤ 1600 pF/km |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Kl.1 = eindrähtig |
| Conductor material: | Cu, tinned |
| Core identification: | Farbe |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Typ 1b |
| Delay skew: | 20 ns/100m |
| Diameter conductor: | 0,56 mm |
| Dielectric strength DC: | 1 kV/1 min |
| Directive/Regulation: | REACH 1907/2006/EC |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Cca |
| Flame retardant: | nach IEC/EN 60332-3-24 |
| Halogen free (acc. EN 50267-2-2): | Ja |
| Halogen free (according to EN 60754-1/2): | Ja |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | ≤ 146 Ohm/km |
| Low smoke: | nach EN 61034-2 |
| Low smoke (acc. EN 61034-2): | Ja |
| Max. frequency: | 1000 MHz |
| NVP value: | 78 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | 0 – 50 °C |
| PoE: | nach IEEE802.3af PoE |
| PoE: | nach IEEE802.3bt 4PPoE |
| PoE: | nach IEEE802.3at PoE+ |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | Geflecht |
| Screen over stranding element: | Folie |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Paare |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 20 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 30 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | Nein |
Variants
| Item no. | Name | Colour outer sheath | Length | RAL colour | Type | Number of cores | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | Colour outer sheath | Number of cores | Length | RAL colour | Type | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99981.1-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange | orange | 1,0 m | RAL2003 | simplex | 8 | 28 kg/km | 58 kg/km | 95 N | 7,5 mm | 0,57 MJ/m | - | - | - | - | - | |
| 99981.100-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange, 100m | - | - | - | - | - | 28 kg/km | 58 kg/km | 95 N | 7,5 mm | 0,57 MJ/m | orange | 8 | 100.0 m | RAL2003 | simplex | |
| 99981.200-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange, 200m | - | - | - | - | - | 28 kg/km | 58 kg/km | 95 N | 7,5 mm | 0,57 MJ/m | orange | 8 | 200.0 m | RAL2003 | simplex | |
| 99981.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Cca orange, 500 | - | - | - | - | - | 28 kg/km | 58 kg/km | 95 N | 7,5 mm | 0,57 MJ/m | orange | 8 | 500.0 m | RAL2003 | simplex | |
| 99981DX.100-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 2x4P CPR Cca orange, 100m | - | - | - | - | - | 56 kg/km | 116 kg/km | 190 N | 7,5 x 15,8 mm | 1,14 MJ/m | orange | 2x8 | 100.0 m | RAL2003 | duplex | |
| 99981DX.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 2x4P CPR Cca orange, 500m | - | - | - | - | - | 56 kg/km | 116 kg/km | 190 N | 7,5 x 15,8 mm | 1,14 MJ/m | orange | 2x8 | 500.0 m | RAL2003 | duplex |
