INFRALAN Cat.7A 1500 AWG22 S/FTP 4P CPR Cca

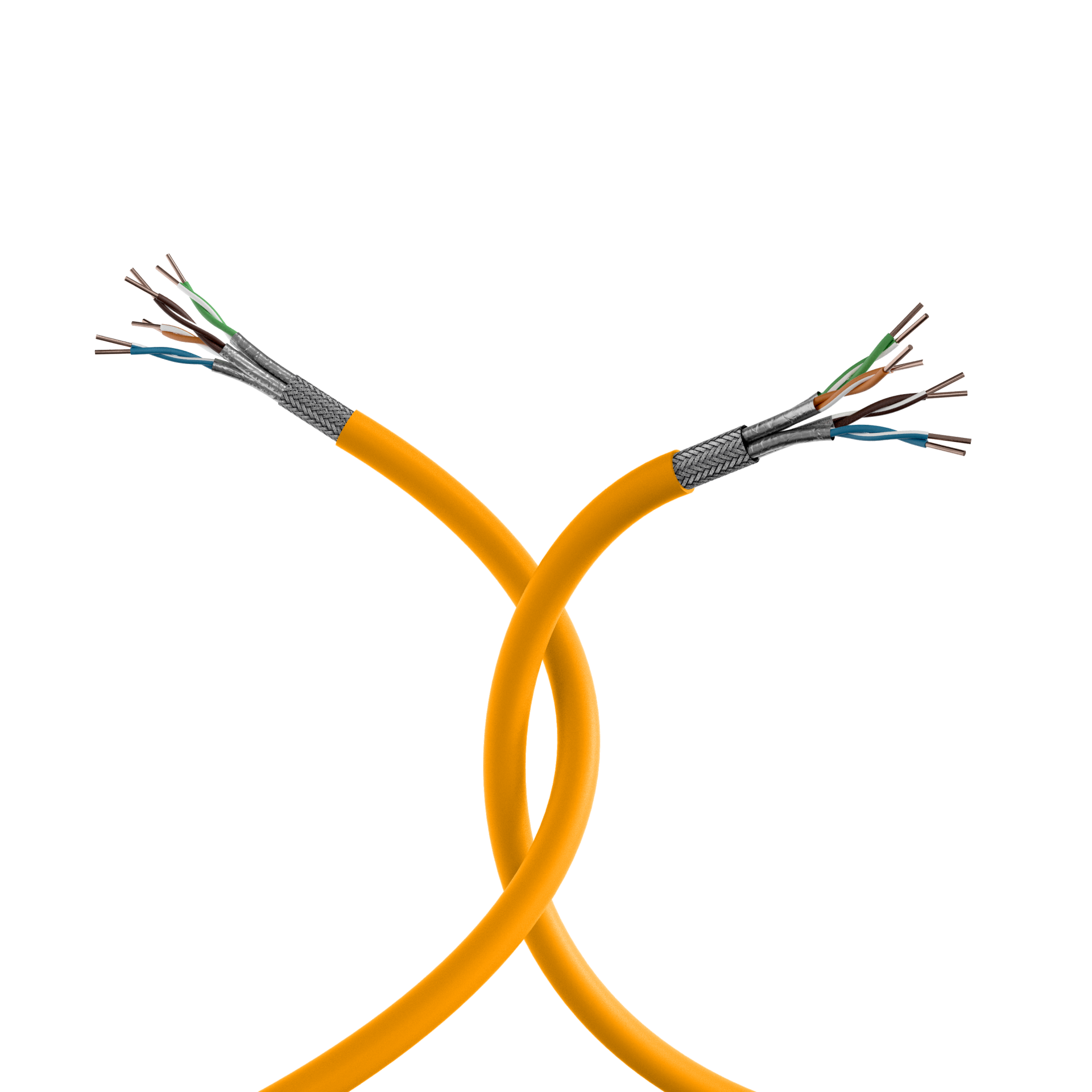

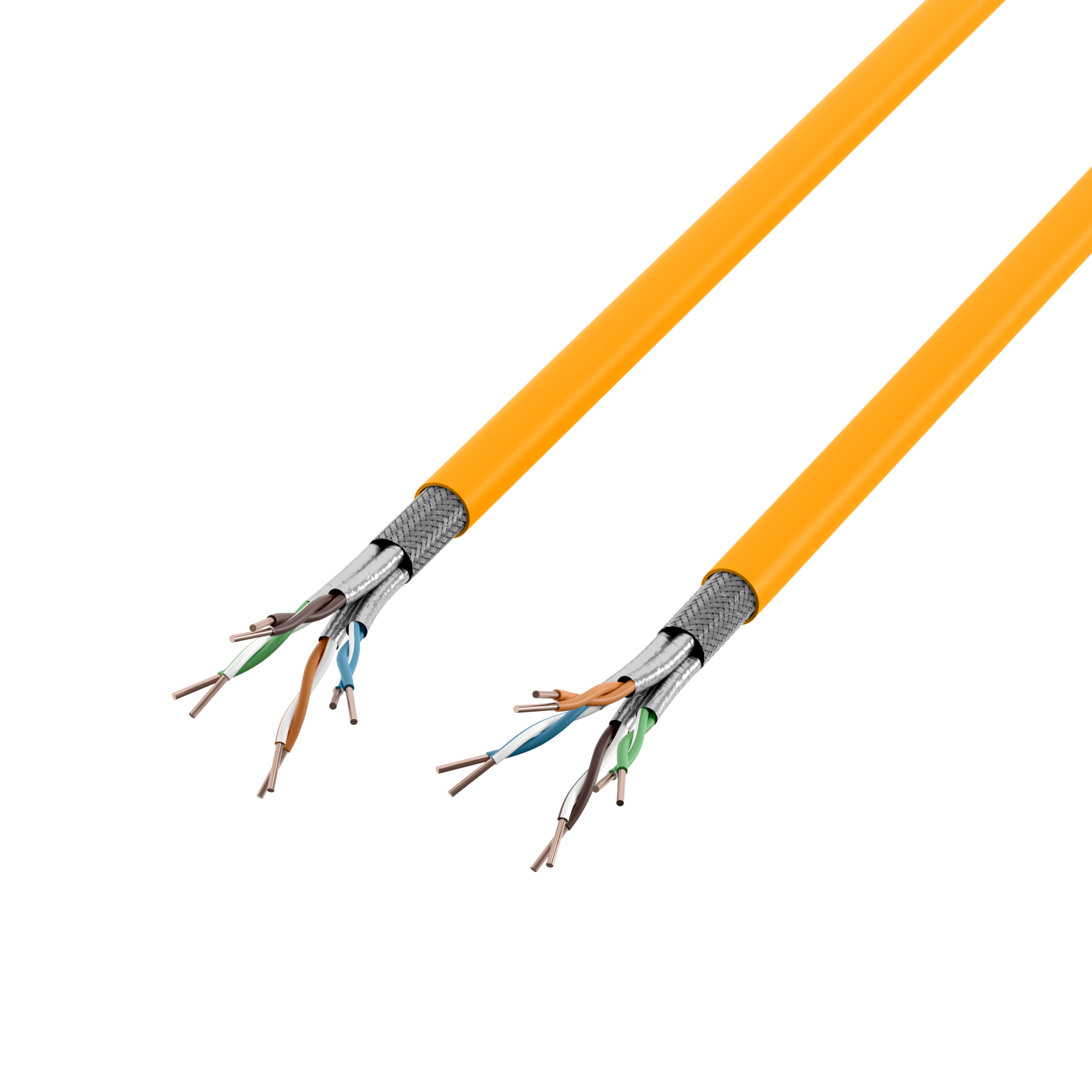

INFRALAN Cat.7A 1500 AWG22 S/FTP 2x4P CPR Cca melon yellow RAL1028, 500m
Item number:
999834DX.500-CPR
EAN no.:
4065624117431
Product information for INFRALAN Cat.7A 1500 AWG22 S/FTP 2x4P CPR Cca melon yellow RAL1028, 500m
The INFRALAN® data cable 999834.x-CPR is designed for transmissions up to 1500 MHz and, with its electrical transmission properties, exceeds the requirements of Category 7A. This cable is used for cabling routes of channel classes E, EA, F, and FA according to ISO/IEC 11801 (AMD 2:2009) and EN 50173-1 (2009).

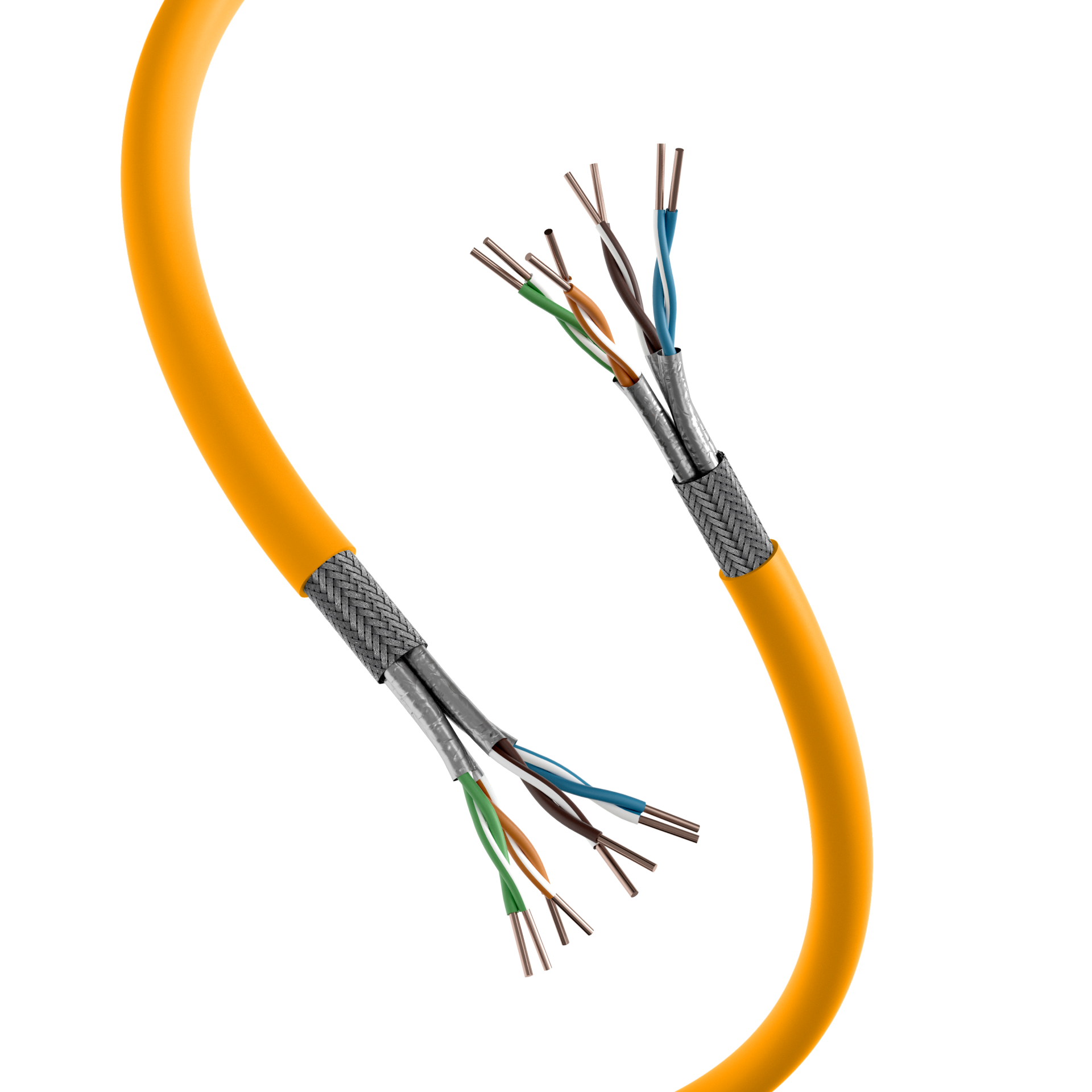

The individual twisted pairs are protected against interference with the cable by a shielding foil (PiMF) and an overall braided shield. This excellent protection also prevents signals from being emitted from the cable. This shielding guarantees compliance with the emission standards according to Class B EN 55022 and immunity to interference according to EN 55024. The twisting of the individual pairs is optimized to minimize the propagation time difference (skew) between the pairs while ensuring maximum decoupling (crosstalk).
This cable enables transmissions of 10 GBit according to IEEE 802.3 and 25GBase-T up to 30m according to ISO/IEC TR 11801-9905 (2018-02).
The individual twisted pairs are protected against interference with the cable by a shielding foil (PiMF) and an overall braided shield. This excellent protection also prevents signals from being emitted from the cable. This shielding guarantees compliance with the emission standards according to Class B EN 55022 and immunity to interference according to EN 55024. The twisting of the individual pairs is optimized to minimize the propagation time difference (skew) between the pairs while ensuring maximum decoupling (crosstalk).
This cable enables transmissions of 10 GBit according to IEEE 802.3 and 25GBase-T up to 30m according to ISO/IEC TR 11801-9905 (2018-02).
Technical properties
| AWG-size: | 22 |
|---|---|
| Bending radius (dynamic): | 4 x OD |
| Bending radius (static): | 8 x OD |
| Cable structure: | S/FTP |
| Capacity to earth: | nom. 43 nF/km |
| Category: | 7A |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Delay skew: | 15 ns/100m |
| Euro class: | Cca |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | LSZH |
| Loop resistance: | ≤ 128 Ohm/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
Variants
| Item no. | Name | RAL colour | Colour outer sheath | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|
| 999834.1-CPR | INFRALAN Cat.7A 1500 AWG22 S/FTP 4P CPR Cca melon yellow RAL1028 | RAL1028 | yellow | 1.0 m | 35 kg/km | 67 kg/km | 150 N | 7.7 mm | 645 MJ/km | |
| 999834DX.500-CPR | INFRALAN Cat.7A 1500 AWG22 S/FTP 2x4P CPR Cca melon yellow RAL1028, 500m | RAL1028 | yellow | 500 m | 70 kg/km | 134 kg/km | 150 N | 7.7x15.4 mm | 645 MJ/km |
Safety instructions
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Manufacturer information
Draka Comteq Germany GmbH & Co. KG
Piccoloministraße 2
51063 Köln
