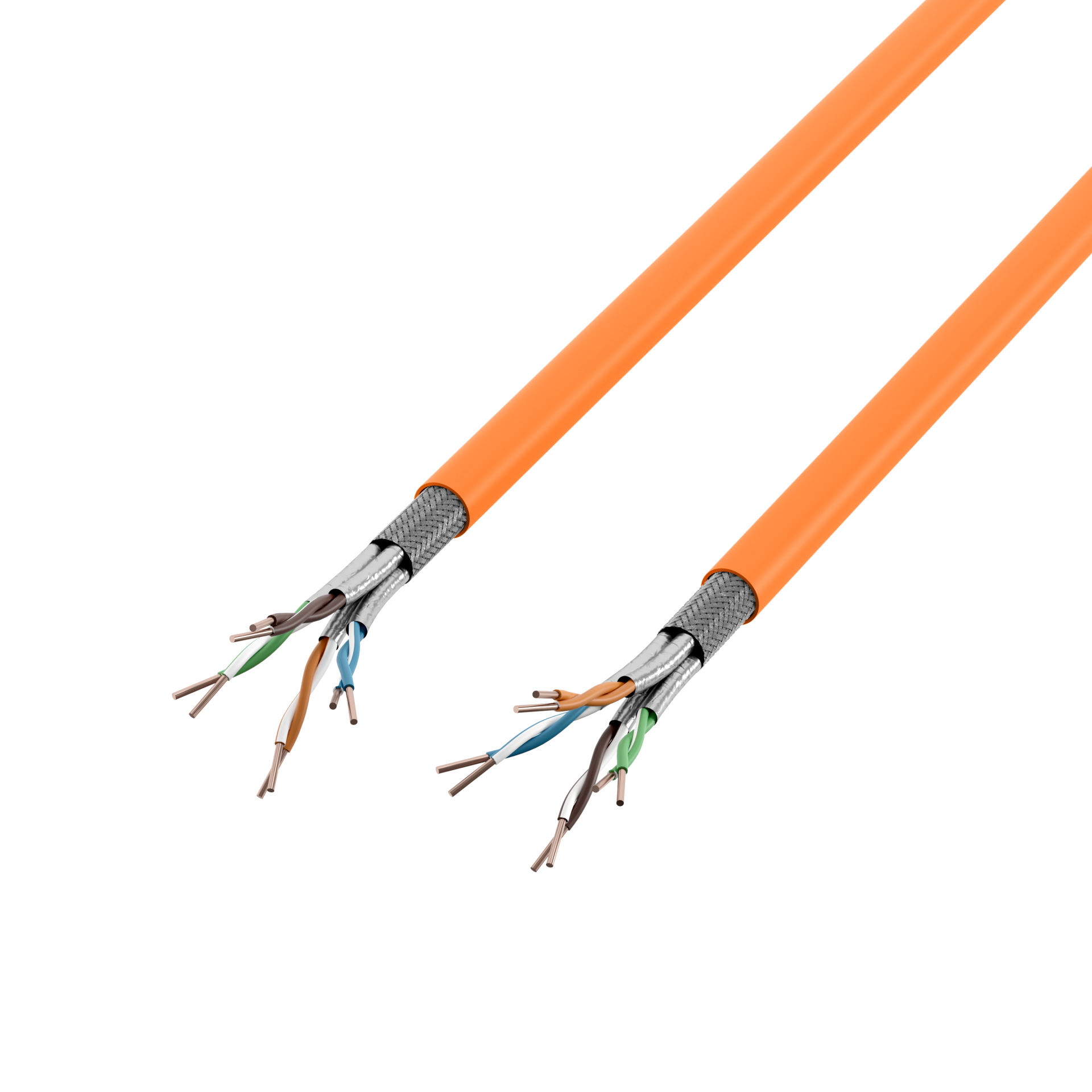

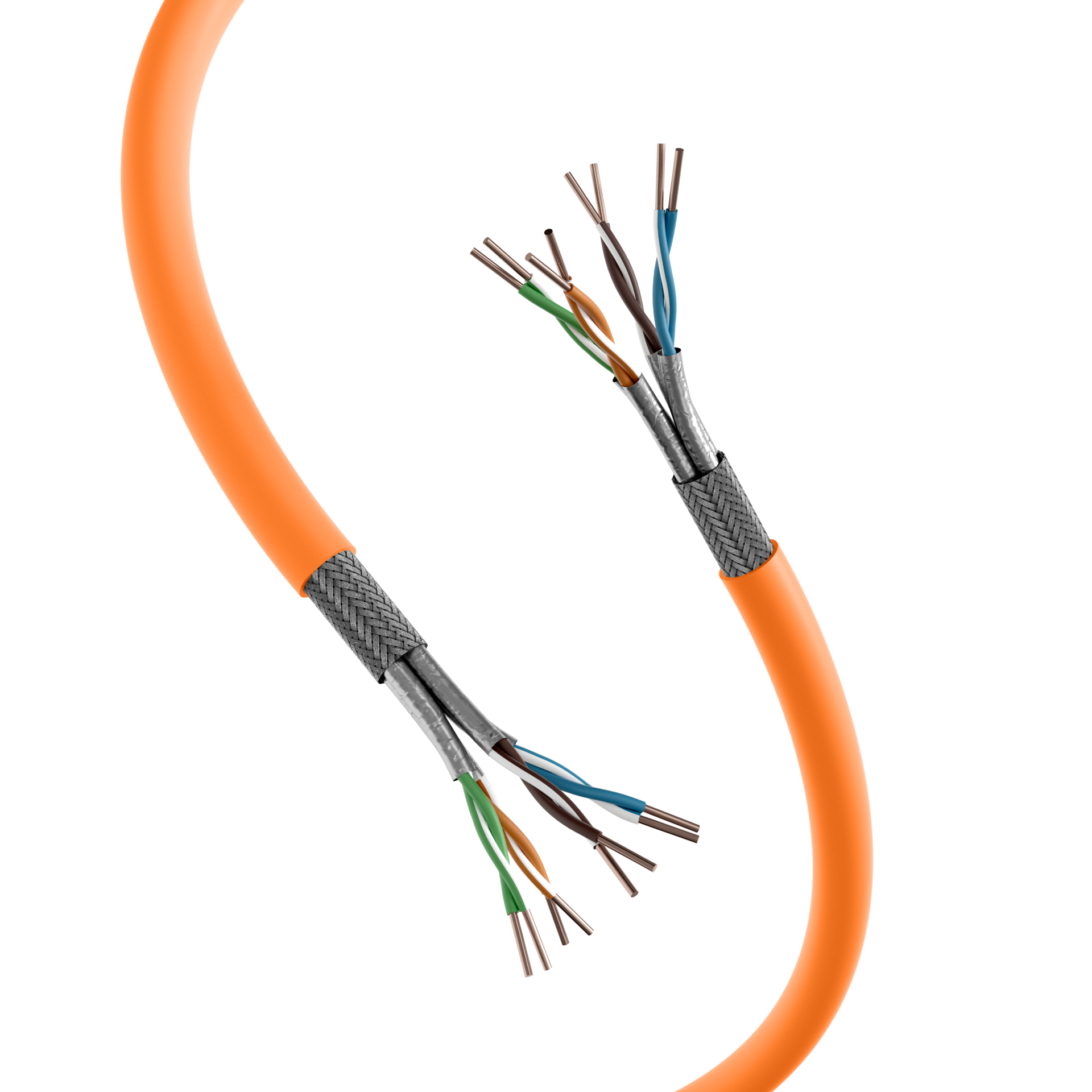

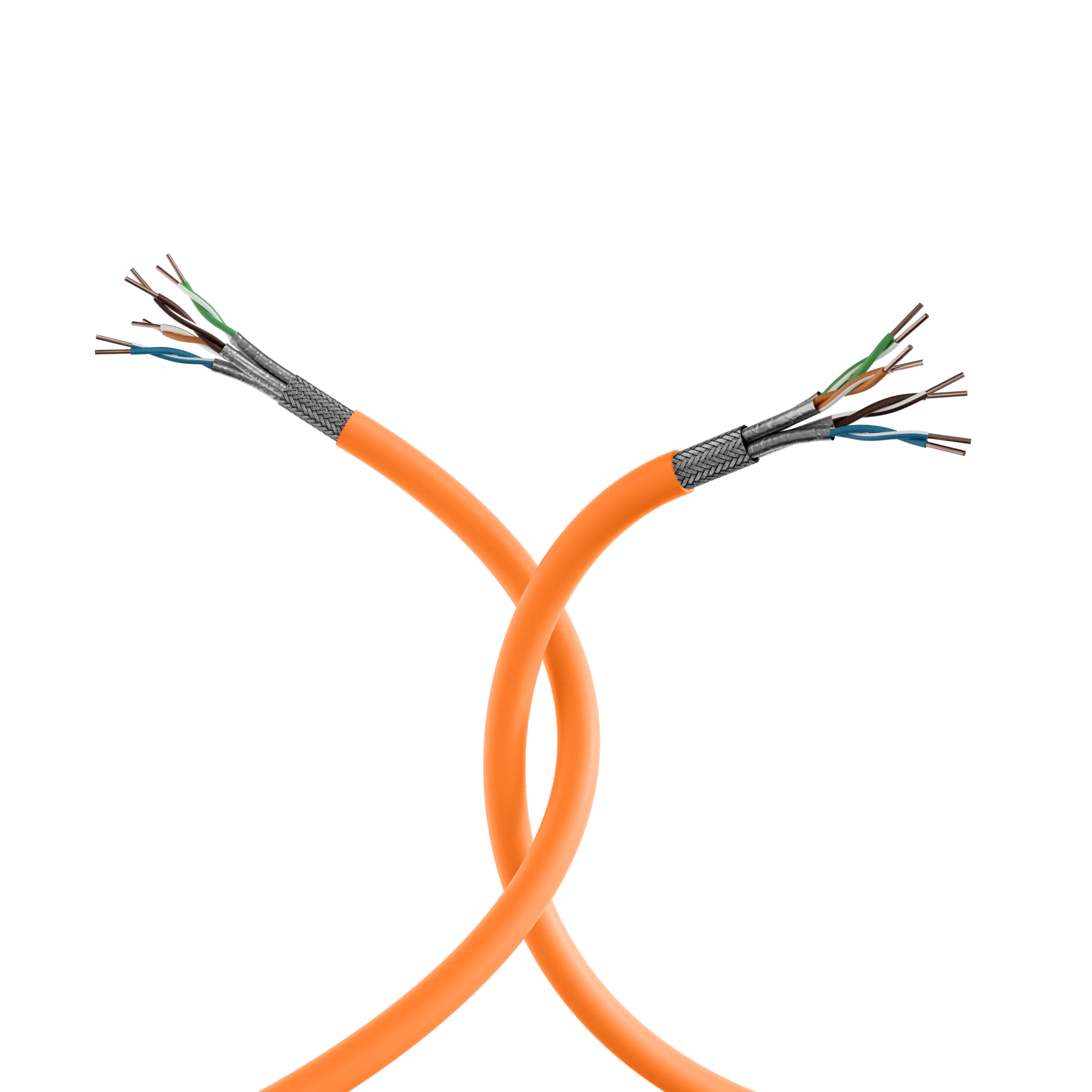

Cat.7 LAN Installation Cable 1000MHz AWG23 FRNC-B
LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
Item number:
MK7101.500-CPR
EAN no.:
4049759201180
Product information for LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
The data cable MK7101.x is constructed for transmissions up to 1000 MHz
and exceeds with the electrical transmission properties and requirements of the category
7. With this cable transmission rates up to 10 Gigabit
Ethernet are possible without difficulty.
and exceeds with the electrical transmission properties and requirements of the category
7. With this cable transmission rates up to 10 Gigabit
Ethernet are possible without difficulty.
Technical properties
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | ≥ 60 mm |
| Bending radius (static): | ≥ 30 mm |
| Cable: | IEC 61156-5 |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 15 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Jacket material: | Other |
| Loop resistance: | 191,2 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. frequency: | 1000 MHz |
| NVP value: | 76 |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: | acc. to IEEE802.3af PoE |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| PoE: | acc. to IEEE802.3at PoE+ |
| Resistance unbalance: | < 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistant: | no |
Variants
| Item no. | Name | Colour outer sheath | RAL colour | Type | Number of cores | Length | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|
| MK7101.1-CPR | LAN Cat.7 1000 AWG 23 S/FTP,4P, CPR Dca, orange | orange | RAL2003 | simplex | 8 | 1.0 m | 7.4 mm | 590 MJ/km | |
| MK7101.100-CPR | LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 100m | orange | RAL2003 | simplex | 8 | 100.0 m | 7.4 mm | 590 MJ/km | |
| MK7101.500-CPR | LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m | orange | RAL2003 | simplex | 8 | 500.0 m | 7.4 mm | 590 MJ/km |
Safety instructions
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
