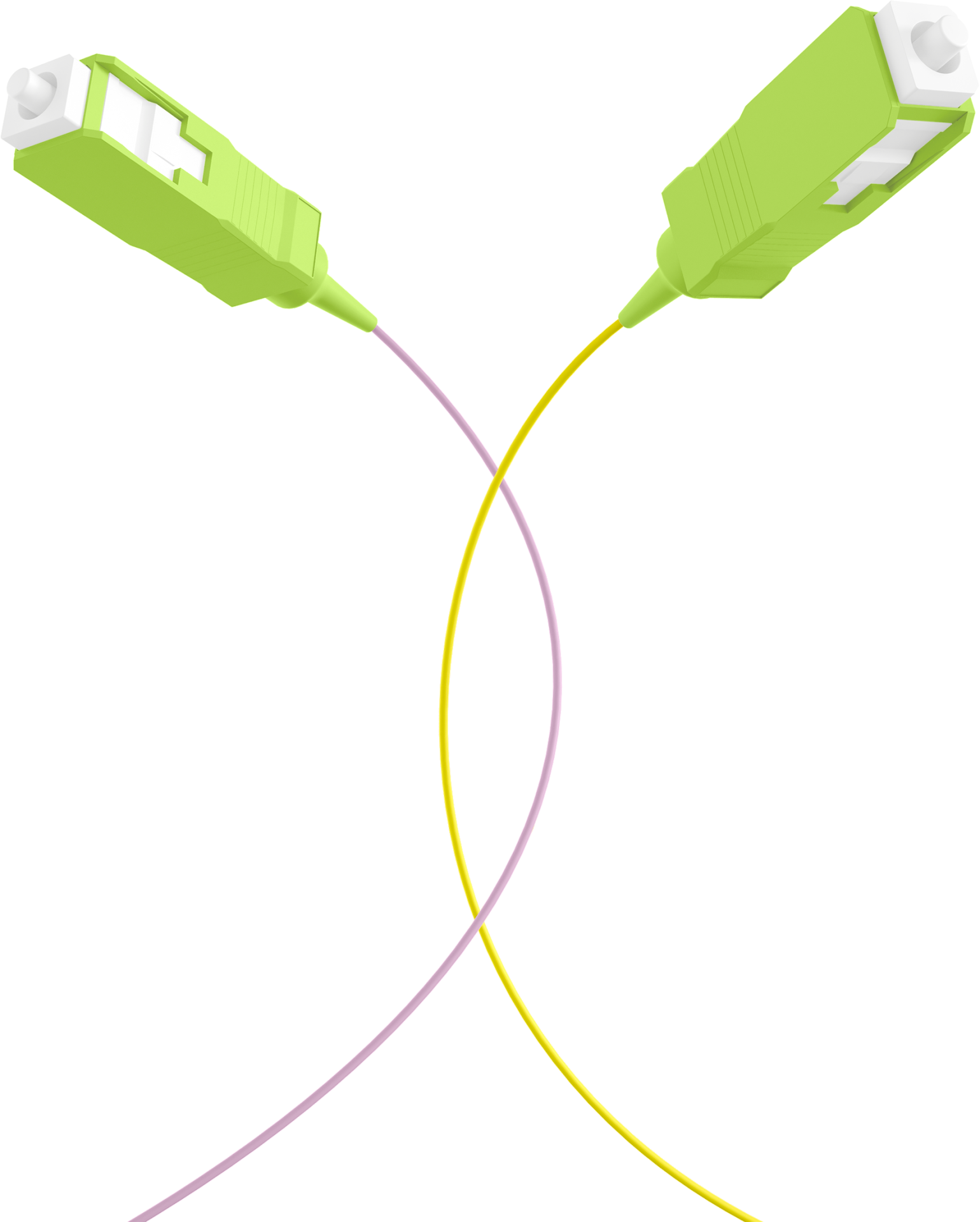

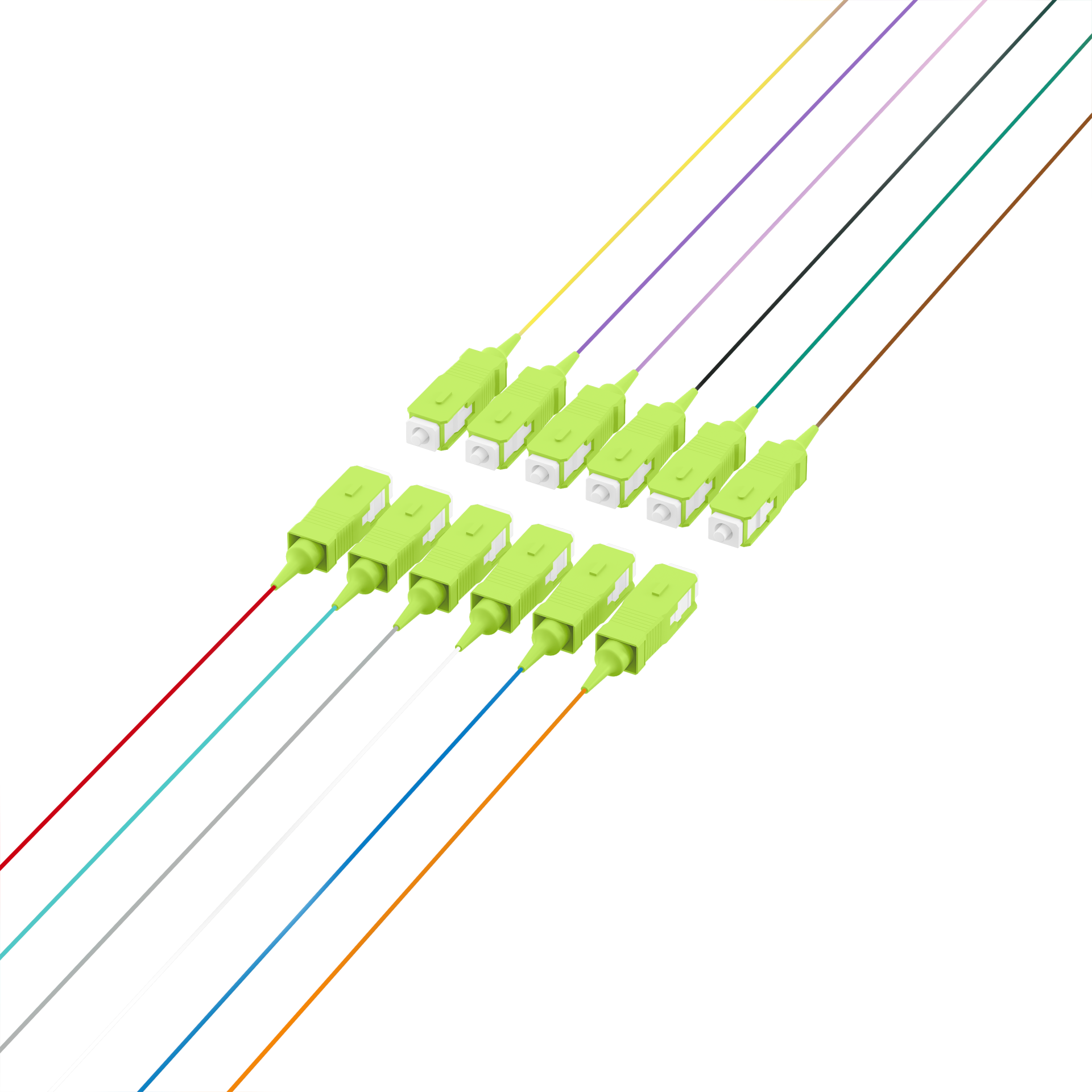

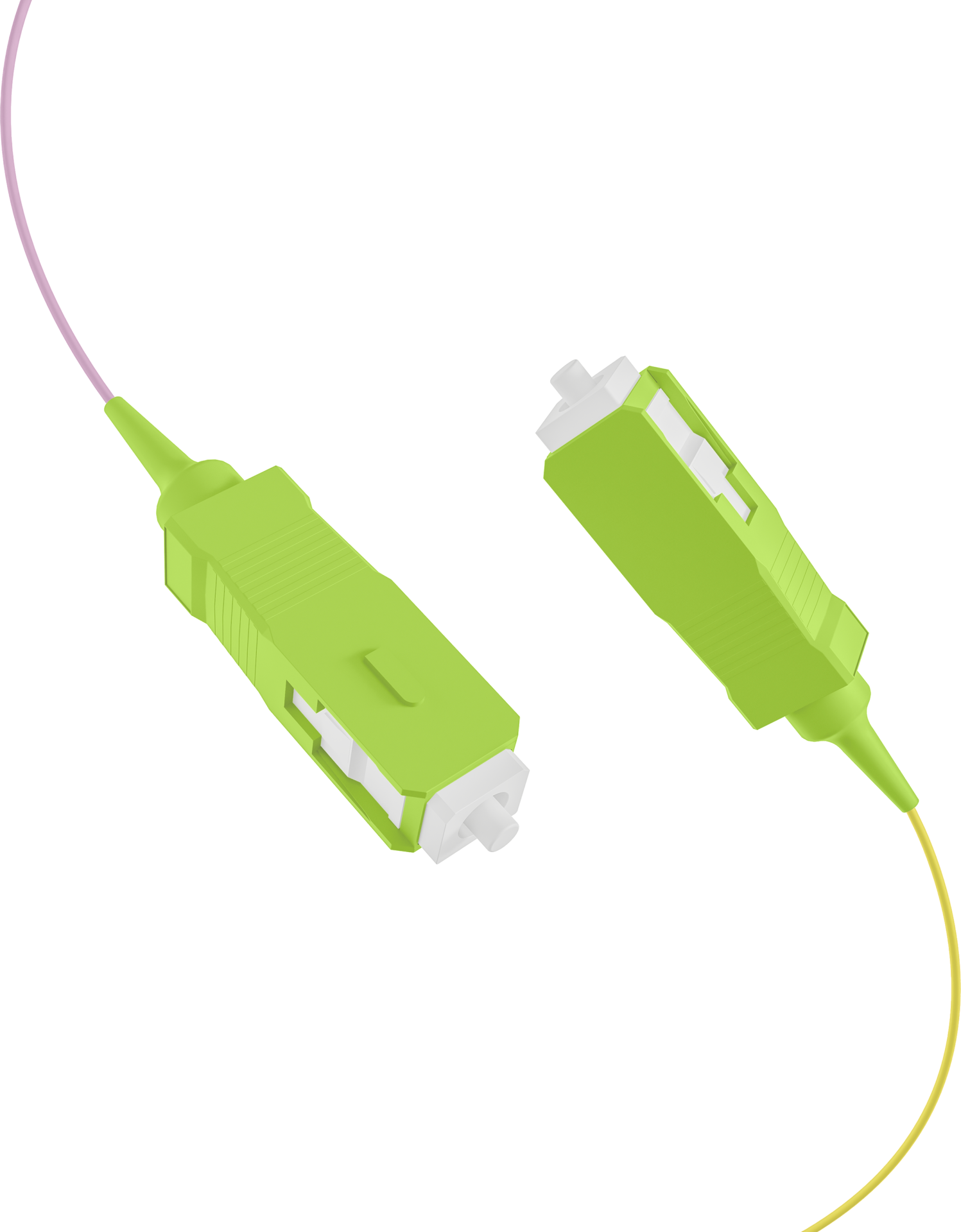

INFRALAN® Fiber Pigtail SC OM5 -colored set 2m - 12 pieces
Content:
12 Stück
(€3.59 / 1 Stück)
INFRALAN® Fiber Pigtail SC OM5 -colored set 2m - 12 pieces
Item number:
IFP-SCU-5-12
EAN no.:
4049759194208
Product information for INFRALAN® Fiber Pigtail SC OM5 -colored set 2m - 12 pieces
The SC OM5 tight-buffered fibre pigtail from INFRALAN is designed for professional fibre optic splice connections in multimode fibre optic networks. The version as a coloured set with 12 pigtails and a length of 2.0 m is intended for standard-compliant use in the installation environment.
• OM5 Multimode 50/125 according to IEC60793-2 – Supports use in professional fibre optic splice connections with a clear assignment to the OM5 category.
• SC connector according to IEC61754-4 and on the connector side in lime green – Ensures a standard-compliant interface and facilitates clear identification in the installation and patch environment.
• Coloured set of 12 pigtails in 2.0 m length – Provides full deployment for multiple splice points and supports structured processing in the installation environment.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The multimode version in the OM5 category is specified according to IEC61753-022-2 in quality class B/2. The SC connector corresponds to IEC61754-4 and is designed in lime green. The marking follows the VDE-0888 colour code and the DIN colour code is provided. An attached strain-relief boot grommet is available and the test report is available.
Technical details
• Brand: INFRALAN
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC
• Fibre type: Multimode 50/125
• Category: OM5
• Cable standard: IEC60793-2
• Multimode quality class: B/2 according to IEC-61753-022-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour code: VDE-0888
• Colour: DIN colour code
• Connector colour: lime green
• Connector standard: IEC61754-4
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
• OM5 Multimode 50/125 according to IEC60793-2 – Supports use in professional fibre optic splice connections with a clear assignment to the OM5 category.
• SC connector according to IEC61754-4 and on the connector side in lime green – Ensures a standard-compliant interface and facilitates clear identification in the installation and patch environment.
• Coloured set of 12 pigtails in 2.0 m length – Provides full deployment for multiple splice points and supports structured processing in the installation environment.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The multimode version in the OM5 category is specified according to IEC61753-022-2 in quality class B/2. The SC connector corresponds to IEC61754-4 and is designed in lime green. The marking follows the VDE-0888 colour code and the DIN colour code is provided. An attached strain-relief boot grommet is available and the test report is available.
Technical details
• Brand: INFRALAN
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC
• Fibre type: Multimode 50/125
• Category: OM5
• Cable standard: IEC60793-2
• Multimode quality class: B/2 according to IEC-61753-022-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour code: VDE-0888
• Colour: DIN colour code
• Connector colour: lime green
• Connector standard: IEC61754-4
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM5 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | lime green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multimode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class Multimode: | B/2 acc. IEC-61753-022-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC |
Technical properties
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM5 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | lime green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multimode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class Multimode: | B/2 acc. IEC-61753-022-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC |
Product information for INFRALAN® Fiber Pigtail SC OM5 -colored set 2m - 12 pieces
The SC OM5 tight-buffered fibre pigtail from INFRALAN is designed for professional fibre optic splice connections in multimode fibre optic networks. The version as a coloured set with 12 pigtails and a length of 2.0 m is intended for standard-compliant use in the installation environment.
• OM5 Multimode 50/125 according to IEC60793-2 – Supports use in professional fibre optic splice connections with a clear assignment to the OM5 category.
• SC connector according to IEC61754-4 and on the connector side in lime green – Ensures a standard-compliant interface and facilitates clear identification in the installation and patch environment.
• Coloured set of 12 pigtails in 2.0 m length – Provides full deployment for multiple splice points and supports structured processing in the installation environment.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The multimode version in the OM5 category is specified according to IEC61753-022-2 in quality class B/2. The SC connector corresponds to IEC61754-4 and is designed in lime green. The marking follows the VDE-0888 colour code and the DIN colour code is provided. An attached strain-relief boot grommet is available and the test report is available.
Technical details
• Brand: INFRALAN
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC
• Fibre type: Multimode 50/125
• Category: OM5
• Cable standard: IEC60793-2
• Multimode quality class: B/2 according to IEC-61753-022-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour code: VDE-0888
• Colour: DIN colour code
• Connector colour: lime green
• Connector standard: IEC61754-4
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
• OM5 Multimode 50/125 according to IEC60793-2 – Supports use in professional fibre optic splice connections with a clear assignment to the OM5 category.
• SC connector according to IEC61754-4 and on the connector side in lime green – Ensures a standard-compliant interface and facilitates clear identification in the installation and patch environment.
• Coloured set of 12 pigtails in 2.0 m length – Provides full deployment for multiple splice points and supports structured processing in the installation environment.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The multimode version in the OM5 category is specified according to IEC61753-022-2 in quality class B/2. The SC connector corresponds to IEC61754-4 and is designed in lime green. The marking follows the VDE-0888 colour code and the DIN colour code is provided. An attached strain-relief boot grommet is available and the test report is available.
Technical details
• Brand: INFRALAN
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC
• Fibre type: Multimode 50/125
• Category: OM5
• Cable standard: IEC60793-2
• Multimode quality class: B/2 according to IEC-61753-022-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour code: VDE-0888
• Colour: DIN colour code
• Connector colour: lime green
• Connector standard: IEC61754-4
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM5 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | lime green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multimode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class Multimode: | B/2 acc. IEC-61753-022-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC |
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM5 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | lime green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multimode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class Multimode: | B/2 acc. IEC-61753-022-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC |
