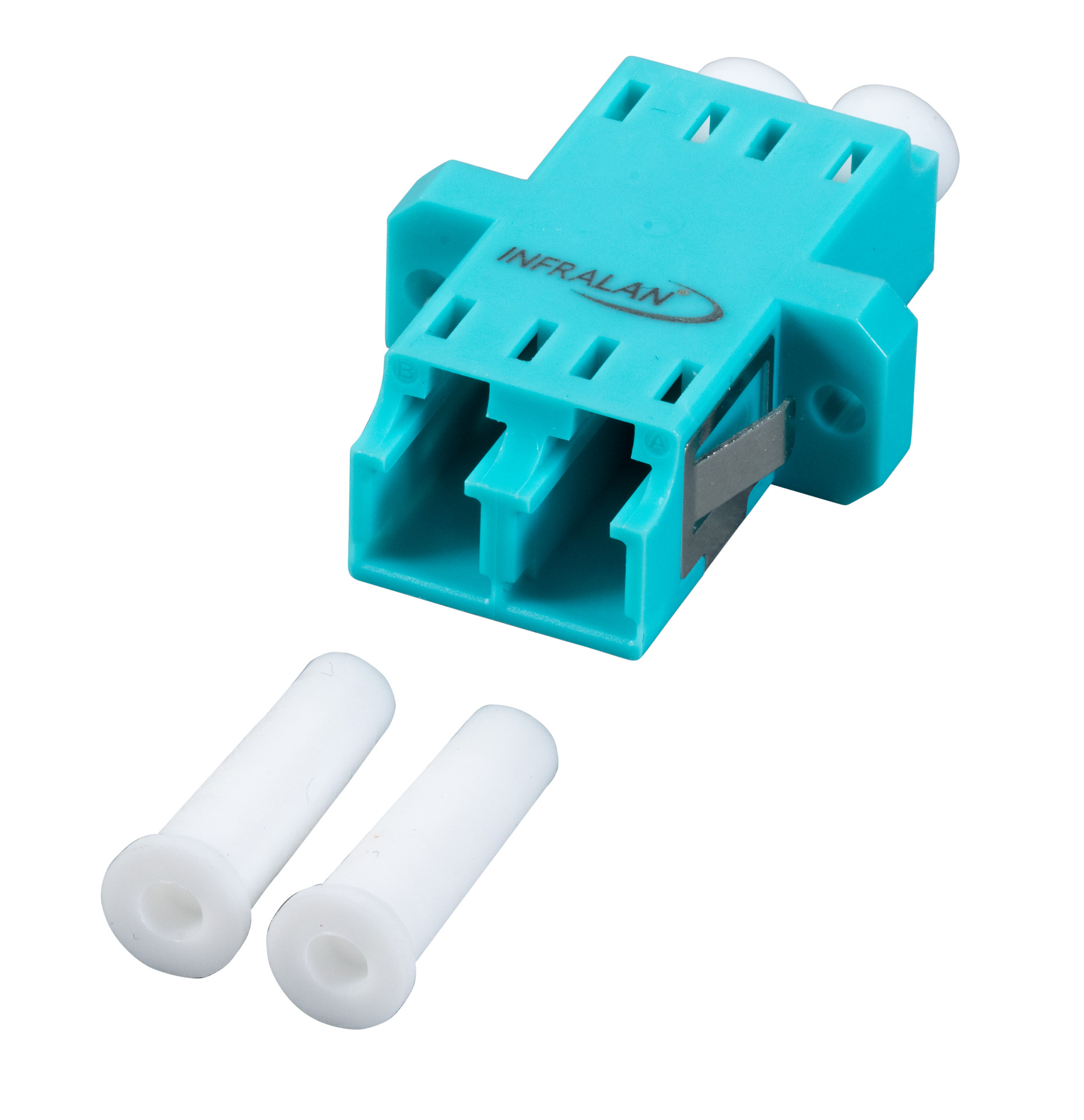

INFRALAN® adapter LC Duplex OM3 aqua
Content:
1 Stück
INFRALAN® adapter LC Duplex OM3 aqua
Item number:
IKL-LCDU-MM-K-AQ
EAN no.:
4049759194222
Product information for INFRALAN® adapter LC Duplex OM3 aqua
The precision-engineered INFRALAN LC Duplex Connector in plastic housing connects fibre optic cables to LC duplex connectors and is designed for OM3 multimode applications. The aqua-coloured housing with ceramic sleeve and dust cap is designed for practical and stable installation.
• LC duplex connectors on ports 1 and 2 – Enable the precise connection of compatible fibre links in multimode installations.
• OM3 multimode design – Fits into appropriate transmission links and supports a dedicated cabling infrastructure.
• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design with a cleanly protected plug connection in the installation environment.
The LC duplex design supports dual signal routing. The locking mechanism and fastening by screw or snap-in enable secure integration into matching front panels and housings. The plastic housing with flange, the ceramic sleeve, the dust cap and the IP5X degree of protection increase the practicality. The aqua-coloured version with white dust protection paint makes it easier to visually identify.
Technical details
• Finish: LC
• Connector type Connector 1: LC Duplex
• Connector type Connector 2: LC Duplex
• Design: SC-Simplex
• Category: OM3
• Suitable for fibre type: Multimode
• Suitable for protection class (IP): IP5X
• Colour: aqua
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing type: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
• LC duplex connectors on ports 1 and 2 – Enable the precise connection of compatible fibre links in multimode installations.
• OM3 multimode design – Fits into appropriate transmission links and supports a dedicated cabling infrastructure.
• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design with a cleanly protected plug connection in the installation environment.
The LC duplex design supports dual signal routing. The locking mechanism and fastening by screw or snap-in enable secure integration into matching front panels and housings. The plastic housing with flange, the ceramic sleeve, the dust cap and the IP5X degree of protection increase the practicality. The aqua-coloured version with white dust protection paint makes it easier to visually identify.
Technical details
• Finish: LC
• Connector type Connector 1: LC Duplex
• Connector type Connector 2: LC Duplex
• Design: SC-Simplex
• Category: OM3
• Suitable for fibre type: Multimode
• Suitable for protection class (IP): IP5X
• Colour: aqua
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing type: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
| Accessories: | Self-Tapping Screw |
|---|---|
| Colour Dust Cover: | White |
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Internal Shutter: | False |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -40 – 75 °C |
| Packaging: | Polybag |
| Scope of deliveryLieferumfang: | 1 coupling, 2 screws |
| Storage Temperature: | -40 – 85 °C |
| Suitable for degree of protection (IP): | IP5X |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Type of locking: | Latching mechanism |
| Width: | 22.0 mm |
Technical properties
| Accessories: | Self-Tapping Screw |
|---|---|
| Colour Dust Cover: | White |
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Internal Shutter: | False |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -40 – 75 °C |
| Packaging: | Polybag |
| Scope of deliveryLieferumfang: | 1 coupling, 2 screws |
| Storage Temperature: | -40 – 85 °C |
| Suitable for degree of protection (IP): | IP5X |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Type of locking: | Latching mechanism |
| Width: | 22.0 mm |
Product information for INFRALAN® adapter LC Duplex OM3 aqua
The precision-engineered INFRALAN LC Duplex Connector in plastic housing connects fibre optic cables to LC duplex connectors and is designed for OM3 multimode applications. The aqua-coloured housing with ceramic sleeve and dust cap is designed for practical and stable installation.
• LC duplex connectors on ports 1 and 2 – Enable the precise connection of compatible fibre links in multimode installations.
• OM3 multimode design – Fits into appropriate transmission links and supports a dedicated cabling infrastructure.
• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design with a cleanly protected plug connection in the installation environment.
The LC duplex design supports dual signal routing. The locking mechanism and fastening by screw or snap-in enable secure integration into matching front panels and housings. The plastic housing with flange, the ceramic sleeve, the dust cap and the IP5X degree of protection increase the practicality. The aqua-coloured version with white dust protection paint makes it easier to visually identify.
Technical details
• Finish: LC
• Connector type Connector 1: LC Duplex
• Connector type Connector 2: LC Duplex
• Design: SC-Simplex
• Category: OM3
• Suitable for fibre type: Multimode
• Suitable for protection class (IP): IP5X
• Colour: aqua
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing type: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
• LC duplex connectors on ports 1 and 2 – Enable the precise connection of compatible fibre links in multimode installations.
• OM3 multimode design – Fits into appropriate transmission links and supports a dedicated cabling infrastructure.
• Plastic housing with flange, ceramic sleeve and dust cap – Ensures a robust design with a cleanly protected plug connection in the installation environment.
The LC duplex design supports dual signal routing. The locking mechanism and fastening by screw or snap-in enable secure integration into matching front panels and housings. The plastic housing with flange, the ceramic sleeve, the dust cap and the IP5X degree of protection increase the practicality. The aqua-coloured version with white dust protection paint makes it easier to visually identify.
Technical details
• Finish: LC
• Connector type Connector 1: LC Duplex
• Connector type Connector 2: LC Duplex
• Design: SC-Simplex
• Category: OM3
• Suitable for fibre type: Multimode
• Suitable for protection class (IP): IP5X
• Colour: aqua
• Colour dust cover: white
• Sleeve material: ceramic
• Housing material: plastic
• Housing type: Flanged
• Locking type: Latching Lock
• Mounting type: Screw, Snap-in
• Dust cap: Yes
• Scope of delivery: 1 coupling, 2 screws
• Accessories: Self-tapping screw
| Accessories: | Self-Tapping Screw |
|---|---|
| Colour Dust Cover: | White |
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Internal Shutter: | False |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -40 – 75 °C |
| Packaging: | Polybag |
| Scope of deliveryLieferumfang: | 1 coupling, 2 screws |
| Storage Temperature: | -40 – 85 °C |
| Suitable for degree of protection (IP): | IP5X |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Type of locking: | Latching mechanism |
| Width: | 22.0 mm |
| Accessories: | Self-Tapping Screw |
|---|---|
| Colour Dust Cover: | White |
| Conform to Standard: | IEC61754-20 |
| Construction type: | SC-Simplex |
| Dust cover: | True |
| Height: | 9.3 mm |
| Internal Shutter: | False |
| Length: | 29.2 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -40 – 75 °C |
| Packaging: | Polybag |
| Scope of deliveryLieferumfang: | 1 coupling, 2 screws |
| Storage Temperature: | -40 – 85 °C |
| Suitable for degree of protection (IP): | IP5X |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
| Type of fastening: | Screw/snap in |
| Type of housing: | With flange |
| Type of locking: | Latching mechanism |
| Width: | 22.0 mm |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
Skip product gallery
sold with
Item no. IPL-DR-LCULCU-4-1000
INFRALAN® Duplex Patchcable LC-LC OM4 10m LSZH 2mm heatherviolet
Length:
10.0 m
Item no. IPL-DR-LCUSCU-2-0300
INFRALAN® Duplex Patchcable LC-SC OS2 G652D 3m LSZH 2mm yellow
Length:
3.0 m
Item no. IPL-DF-LCULCU-3-0500
INFRALAN® Duplex Patchcable Flat-Twin LC-LC OM3 5m LSZH 3x5mm aqua
Length:
5.0 m
Item no. IPL-DF-LCUSCU-3-0100
INFRALAN® Duplex Patchcable Flat-Twin LC-SC OM3 1m LSZH 3x5mm aqua
Length:
1.0 m
Skip product gallery
accessory
Item no. ISB-LCDU-24-GR

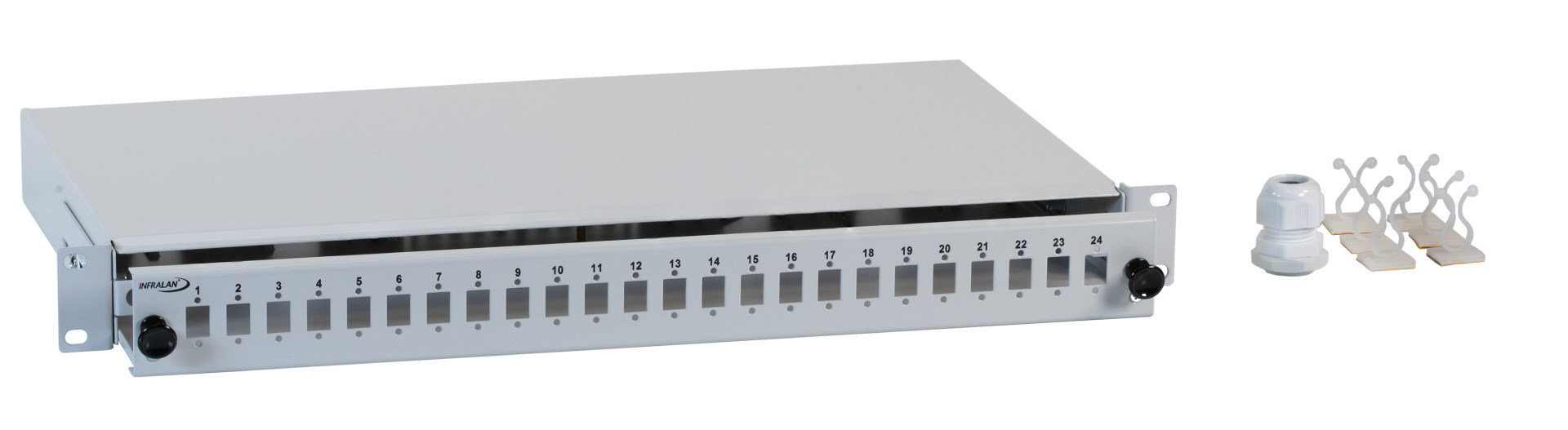

INFRALAN® Splicebox sliding version 24x LC-Duplex unequipped, grey
