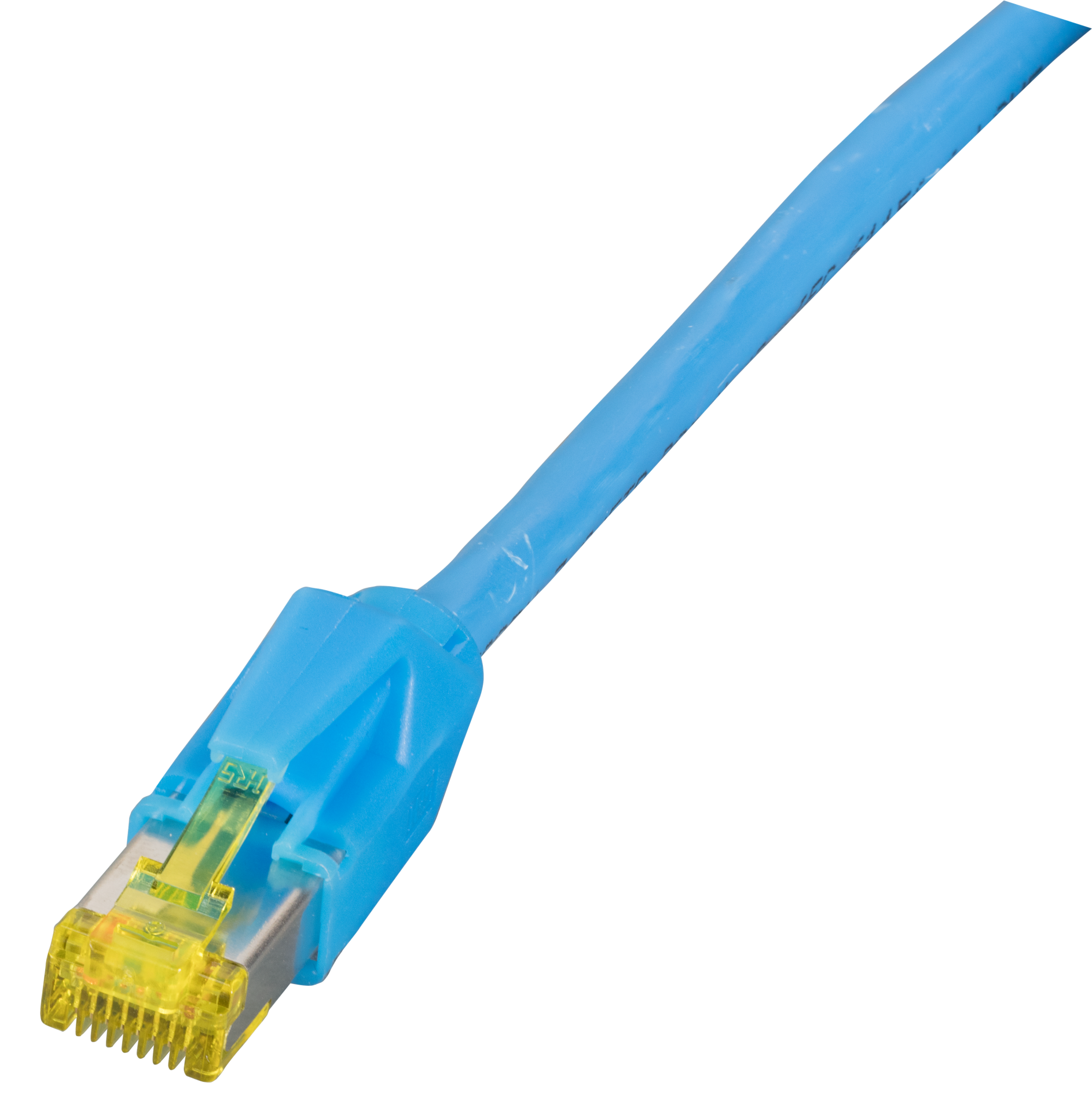

IP67 Cable gland, M25, RJ45 TM31, M-M
IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m
Item number:
IP67KVRJ45TM31-5,0
EAN no.:
4049759194994
Product information for IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m
IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug
For installation in housings with M25 cut-out
Gland material: brass
For installation in housings with M25 cut-out
Gland material: brass
Technical properties
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS26 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blau |
| Colour outer sheath: | blau |
| Conductive shield: | 360° shield contact |
| Connector type: | TM31 |
| Contacts: | Gold plated |
| Jacket material: | LSZH |
| Locking lever: | Ja |
| Model: | shielded |
| Oil resistant: | No |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
| UL approbated: | False |
| UV resistant: | Nein |
Variants
| Item no. | Name | Length | |
|---|---|---|---|
| IP67KVRJ45TM31-1,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 1.0m | 1,0 m | |
| IP67KVRJ45TM31-2,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m | 2.0 m | |
| IP67KVRJ45TM31-5,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m | 5.0 m | |
| IP67KVRJ45TM31-10,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 10.0m | 10,0 m |
